System Highlights
- Balanced Symmetrical Zoning: Three matched 12K cassettes, each covering up to 550 sq. ft., for even comfort across three similarly sized main rooms.
- Flush Ceiling Integration: Low-profile cassettes fit between 16" joists for a clean architectural finish — no ductwork, no wall penetrations.
- Substantial Expansion Headroom: The 48K condenser supports up to six zones, leaving three ports open for future handlers.
- True DIY Installation: Patented pre-charged Quick Connect® line sets eliminate vacuuming, charging, and professional trade labor. Every line set in this kit includes the DIYPro® cable.
- Elevation Filter Access: The panel lowers on demand so filters can be cleaned without dismantling the unit.
- Smart Control: Wireless remotes, the SmartHVAC app for iOS and Android, plus Amazon Alexa and Google Assistant support out of the box.

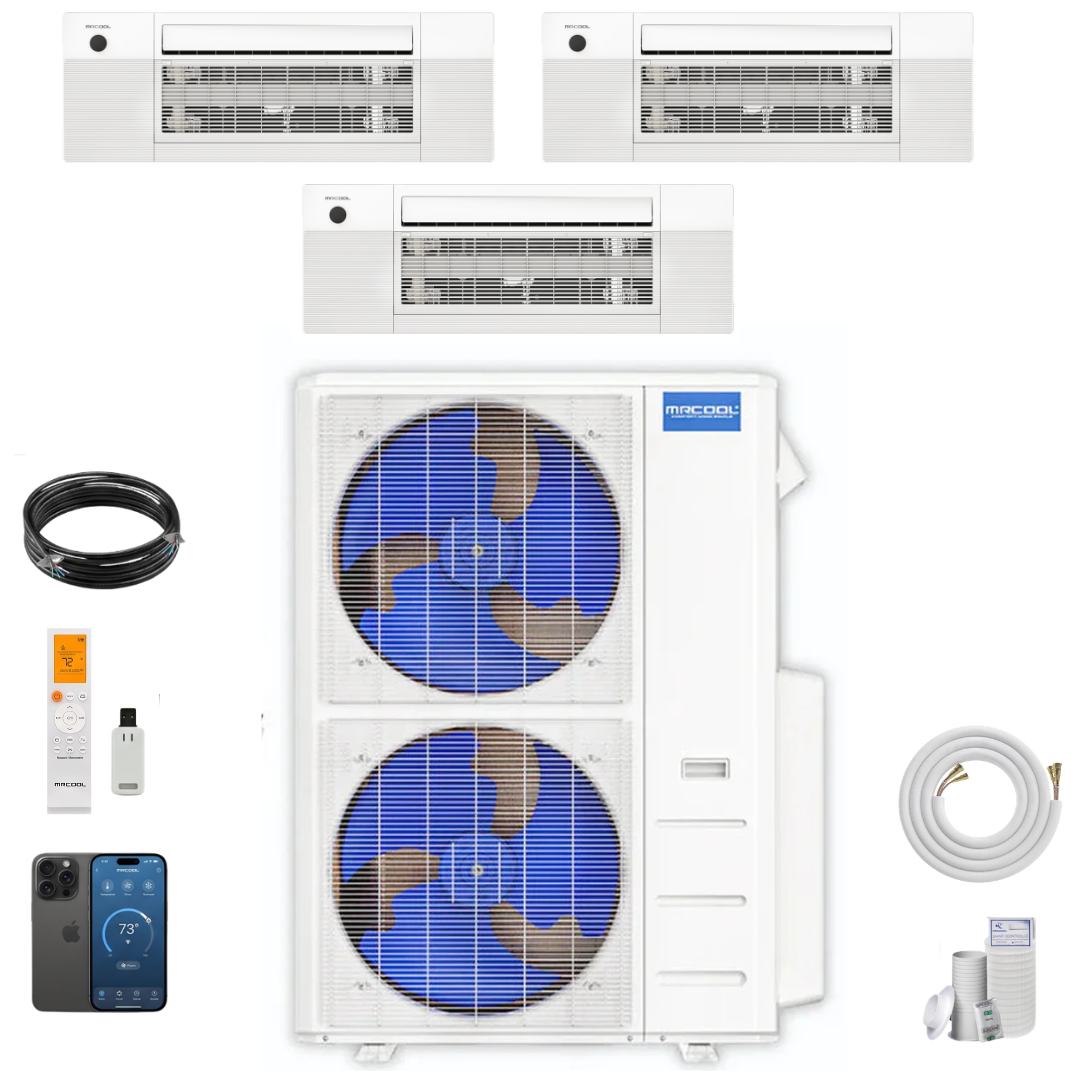

What’s Included
- 1 × DIY-MULTI6-48HP230D-O — 48K BTU Multi-Zone Condenser, 230V (6-zone capable)
- 3 × DIYCASSETTE12HP-230D25-O — 12K BTU OuttaSight® One-Way Ceiling Cassette, 230V
- 3 × Pre-charged 1/4" × 3/8" Quick Connect® line sets with DIYPro® cable — lengths selected above
- Wireless remotes, mounting hardware, and installation documentation
Condenser Specifications — DIY-MULTI6-48HP230D-O
| SEER2 / EER2 | 21.8 / 12 |
|---|---|
| HSPF2-4 / HSPF2-5 | 10 / 7.8 |
| Cooling / Heating Capacity | 43,000 BTU / 48,000 BTU |
| Tonnage | 4.0 |
| Zone Capacity | 6 (3 used in this kit) |
| Electrical | 208–230V, 1 Phase, 60 Hz |
| Max Fuse Breaker / MCA | 45A / 40A |
| Refrigerant | R-454B, 148.15 oz (pre-charged) |
| Compressor / Inverter | Rotary / DC |
| Sound Level | 64 dBA |
| Max Total Line Set Length | 221.4 ft |
| Net Dimensions (D×H×W) | 16.34" × 52.48" × 37.48" |
| Net Weight | 223.77 lbs |
Zone Configuration — DIYCASSETTE12HP-230D25-O (×3)
| Capacity / Coverage | 12,000 BTU — up to 550 sq. ft. per zone |
|---|---|
| Air Flow Direction | 1-Way |
| CFM | 353 / 312 / 283 / 247 / 177 |
| Sound Level | 37 dBA (24 low / 41 high) |
| Blower Motor RPM | 1075 / 982 / 797 |
| Rated Load | 1.0 |
| Line Set Sizes | 1/4" Liquid • 3/8" Suction |
| Dimensions & Weight | 50.31"W × 13.19"D × 8.98"H (45 lbs each) |
Line Set Options
| Length | Model |
|---|---|
| 25 ft | DIY25-1438C-O |
| 35 ft | DIY35-1438C-O |
| 50 ft | DIY50-1438C-O |
Engineering & Warranty
- Gold Fin® Corrosion Protection against humidity and coastal salt exposure.
- DC Inverter Drive scales output to match thermal load.
- R-454B Refrigerant — more efficient and eco-friendly than R-410A.
- Certifications: Intertek listed 5031495, UL Listed, ETL Listed, ENERGY STAR® certified, AHRI certified.
- Warranty: 5-year parts and 7-year compressor coverage, eligible for the MRCOOL® Care Program.
Shipping restrictions: Ceiling cassettes cannot be shipped to Guam, Puerto Rico, or the U.S. Virgin Islands.
