System Highlights
- Near-Matched Zoning: Two 9K cassettes at 400 sq. ft. each, with a 12K unit handling up to 550 sq. ft.
- Uniform Line Set Sizing: All three zones use the same 1/4" × 3/8" line set — no risk of mismatching fittings during install.
- Flush Ceiling Integration: Low-profile cassettes fit between 16" joists for a clean architectural finish — no ductwork, no wall penetrations.
- Expansion Headroom: The 36K condenser supports up to five zones, leaving two ports open for future handlers.

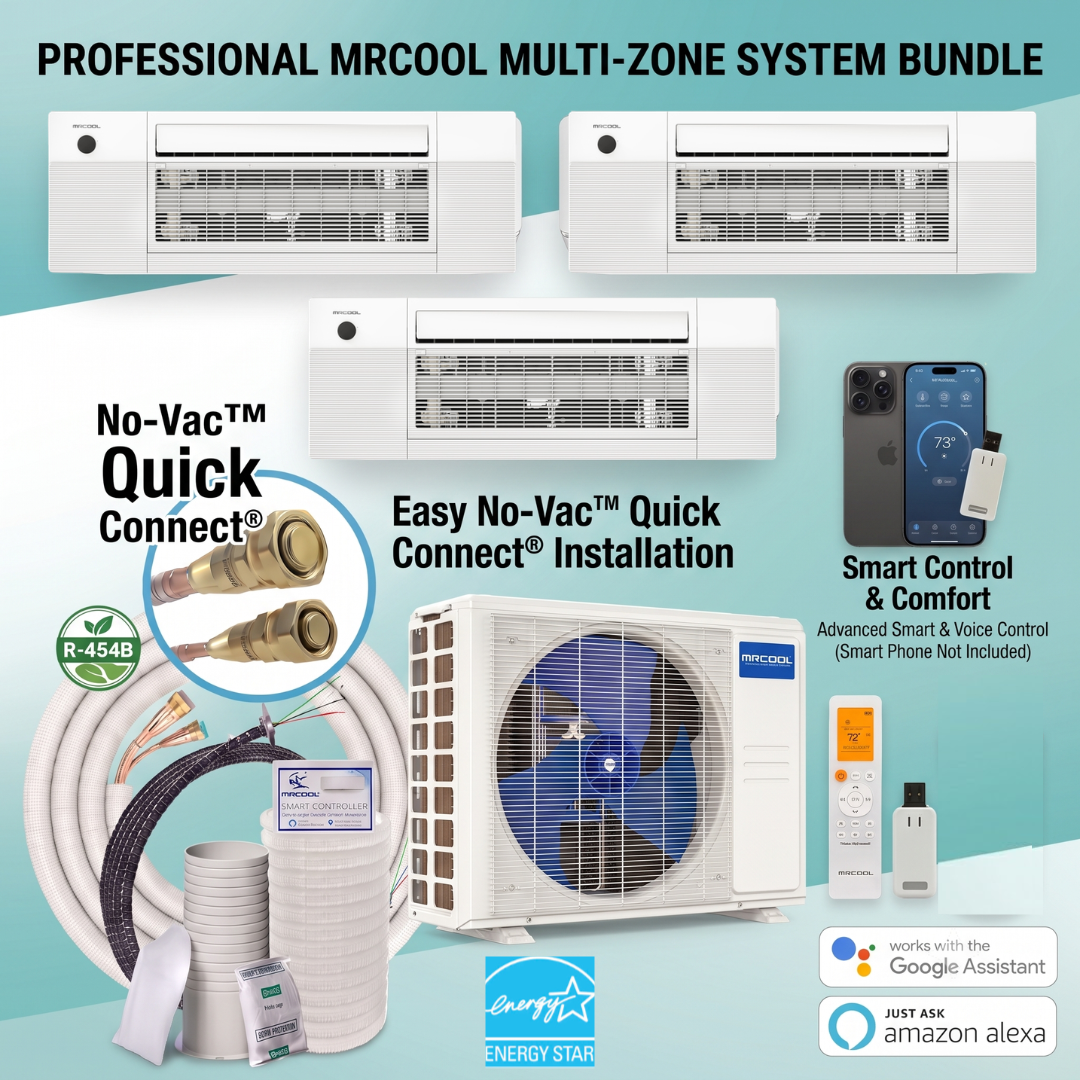

- True DIY Installation: Patented pre-charged Quick Connect® line sets eliminate vacuuming, charging, and professional trade labor. Every line set in this kit includes the DIYPro® cable.
- Smart Control: Wireless remotes, the SmartHVAC app for iOS and Android, plus Amazon Alexa and Google Assistant support out of the box.

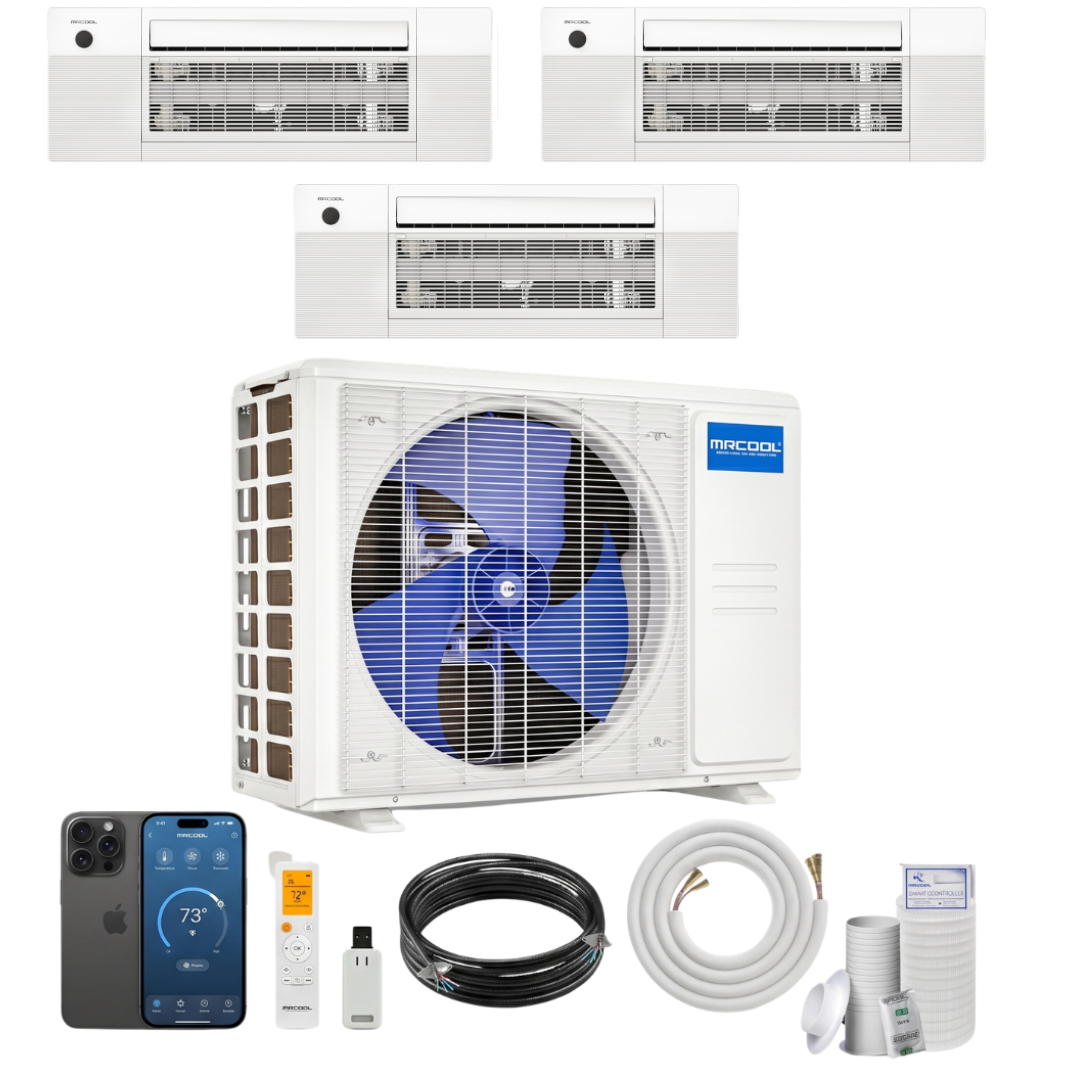

What's Included
- 1 × DIY-MULTI5-36HP230D-O — 36K BTU Multi-Zone Condenser, 230V (5-zone capable)
- 2 × DIYCASSETTE09HP-230D25-O — 9K BTU OuttaSight® One-Way Ceiling Cassette, 230V
- 1 × DIYCASSETTE12HP-230D25-O — 12K BTU OuttaSight® One-Way Ceiling Cassette, 230V
- 3 × Pre-charged 1/4" × 3/8" Quick Connect® line sets with DIYPro® cable — lengths selected above
- Wireless remotes, mounting hardware, and installation documentation
Condenser Specifications — DIY-MULTI5-36HP230D-O
| SEER2 / EER2 | 23 / 12 |
|---|---|
| HSPF2-4 / HSPF2-5 | 9.9 / 7.5 |
| Cooling / Heating Capacity | 34,000 BTU / 36,000 BTU |
| Tonnage | 3.0 |
| Zone Capacity | 5 (3 used in this kit) |
| Electrical | 208–230V, 1 Phase, 60 Hz |
| Max Fuse Breaker / MCA | 35A / 30.5A |
| Refrigerant | R-454B, 104.75 oz (pre-charged) |
| Compressor / Inverter | Rotary / DC |
| Sound Level | 64 dBA |
| Max Total Line Set Length | 221.4 ft |
| Net Dimensions (D×H×W) | 16.14" × 31.89" × 37.24" |
| Net Weight | 169.24 lbs |
Zone Configuration
| Zone | Model | Capacity & Coverage | CFM | Sound |
|---|---|---|---|---|
| Zone 1 | DIYCASSETTE09HP-230D25-O | 9,000 BTU — up to 400 sq. ft. | 341 / 294 / 259 / 235 / 235 | 36 dBA (24 low / 38 high) |
| Zone 2 | DIYCASSETTE09HP-230D25-O | 9,000 BTU — up to 400 sq. ft. | 341 / 294 / 259 / 235 / 235 | 36 dBA (24 low / 38 high) |
| Zone 3 | DIYCASSETTE12HP-230D25-O | 12,000 BTU — up to 550 sq. ft. | 353 / 312 / 283 / 247 / 177 | 37 dBA (24 low / 41 high) |
All zones use 1/4" liquid and 3/8" suction lines. Cassettes measure 50.31"W × 13.19"D × 8.98"H and weigh 45 lbs each. Air flow is 1-Way with Swing Technology and reusable filtration.
Line Set Options
| Length | Model (all zones) |
|---|---|
| 25 ft | DIY25-1438C-O |
| 35 ft | DIY35-1438C-O |
| 50 ft | DIY50-1438C-O |
All line sets ship pre-charged with R-454B and include the DIYPro® cable.
Engineering & Warranty
- Gold Fin® Corrosion Protection against humidity and coastal salt exposure.
- DC Inverter Drive scales output to match thermal load.
- R-454B Refrigerant — more efficient and eco-friendly than R-410A.
- Certifications: Intertek listed 5031495, UL Listed, ETL Listed, ENERGY STAR® certified, AHRI certified.
- Warranty: 5-year parts and 7-year compressor coverage, eligible for the MRCOOL® Care Program.
Shipping restrictions: Ceiling cassettes cannot be shipped to Guam, Puerto Rico, or the U.S. Virgin Islands.
