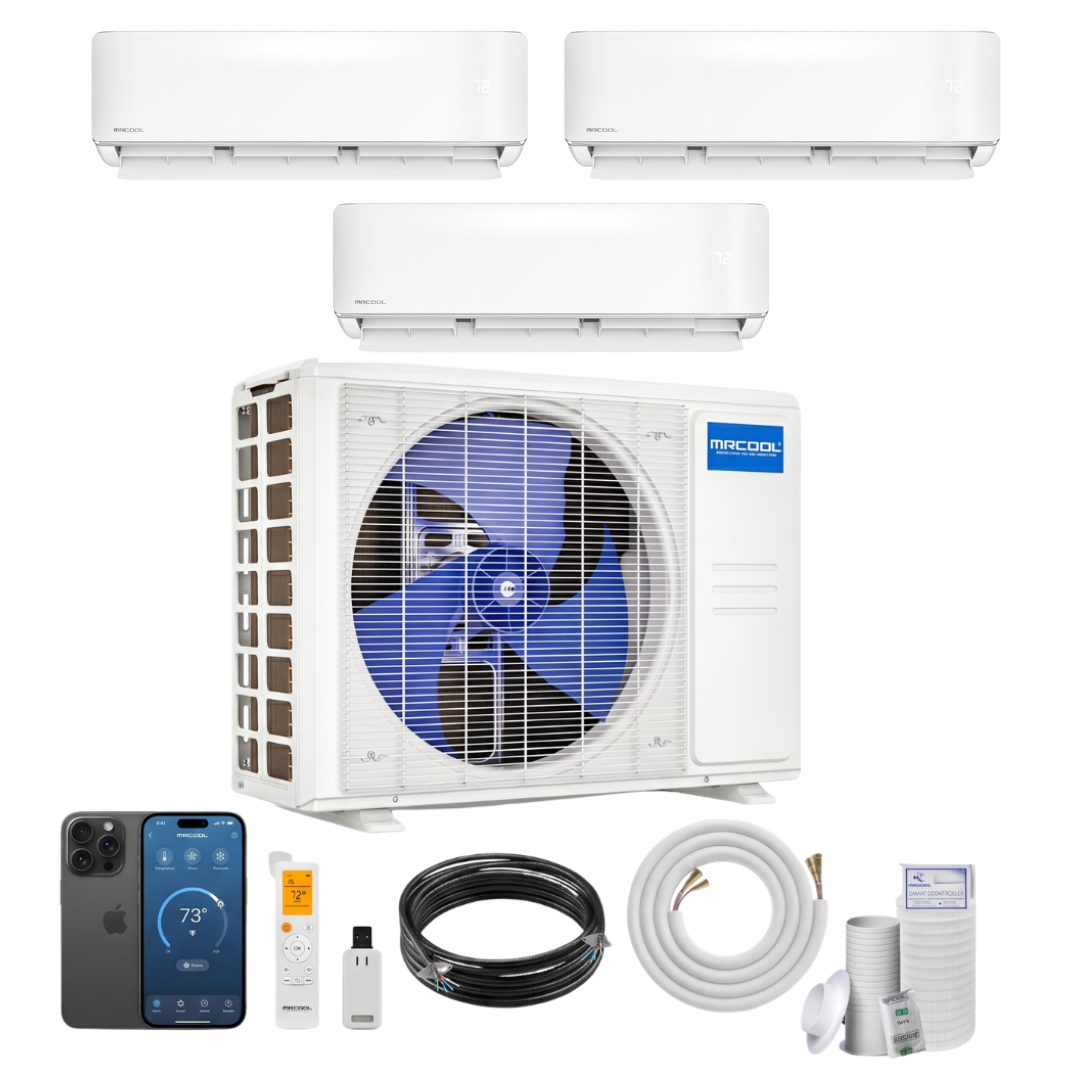

MRCOOL® DIY® 5th Gen 3-Zone Ductless Mini Split (6K+9K+9K)
The MRCOOL® DIY® 5th Generation 24,000 BTU 3-Zone Wall Mounted Mini Split delivers professional-grade, multi-room comfort to your home without the need for an HVAC technician. This tri-zone system pairs a high-efficiency 27K BTU condenser—featuring structural headroom to drive up to 4 zones total—with one compact 6,000 BTU and two versatile 9,000 BTU wall-mounted air handlers. Using patented pre-charged Quick Connect® line sets filled with eco-friendly R-454B refrigerant, the configuration guarantees a seamless, leak-free installation without demanding professional trade labor, lineset charging, or mechanical line vacuuming steps.
System Highlights
Three Independent Zones: Control temperature in three rooms separately; each air handler runs on its own schedule and setpoint with flexible sizing for mixed-capacity space requirements.
Flexible Zone Configuration: One 6K zone plus two 9K zones for optimal coverage in homes with one smaller room and two medium-sized rooms.
Expandable 27K Condenser Chassis: Deploys out of the box as a robust tri-zone system, leaving ample reserve capacity to hook up one additional air handler as your living layout expands.
True DIY Installation Workflow: Patented pre-charged Quick Connect® lines completely eliminate the need for vacuuming or professional HVAC assistance. Includes robust DIYPRO® cabling.
Smart Ecosystem Control: Full out-of-the-box integration via Amazon Alexa, Google Assistant, and the dedicated SmartHVAC mobile app for detailed remote zone tuning.
Engineered for homeowners who require balanced, high-efficiency climate control across three varied residential zones, offering future expansion flexibility from a single centralized 27K condenser framework.
Technical Specifications
Total Connected Capacity
24,000 BTU (6K + 9K + 9K Wall-Mounted Handlers)
Condenser Model
DIY-MULTI4-27HP230D-O (4-Zone Capable)
SEER2 Rating
SEER2 21.8
Electrical Interface Requirements
208–230V, 1 Phase, 60 Hz
Refrigerant Type
R-454B (Pre-Charged)
Zone Configuration & Performance Metrics
Specification / Feature
Zone 1: 6K Wall-Mount
Zone 2: 9K Wall-Mount
Zone 3: 9K Wall-Mount
Cooling / Heating Output
6,000 BTU
9,000 BTU
9,000 BTU
Lineset Interconnect Size
1/4" Liquid • 3/8" Suction
1/4" Liquid • 3/8" Suction
1/4" Liquid • 3/8" Suction
Lineset Length Options
16 ft, 25 ft, 35 ft, or 50 ft
16 ft, 25 ft, 35 ft, or 50 ft
16 ft, 25 ft, 35 ft, or 50 ft
Advanced Engineering & Warranty
Gold Fin® Corrosion Protection: Advanced clear-coat protective barrier shields the exterior condenser coil against extreme humidity and harsh coastal climates.
DC Inverter Drive Architecture: The continuous variable-speed rotary inverter compressor scales its operating frequency down precisely to match ambient thermal loads, completely avoiding costly current draw spikes.
Eco-Friendly R-454B Refrigerant: Uses next-generation refrigerant for better environmental impact and enhanced system efficiency.
7-Year Compressor Warranty: Commercial-grade structural factory backing ensuring the heart of your outdoor condenser system remains protected against manufacturing defects.
5-Year Parts Protection Framework: Comprehensive hardware replacement coverage across internal circuit boards and critical operational components.
