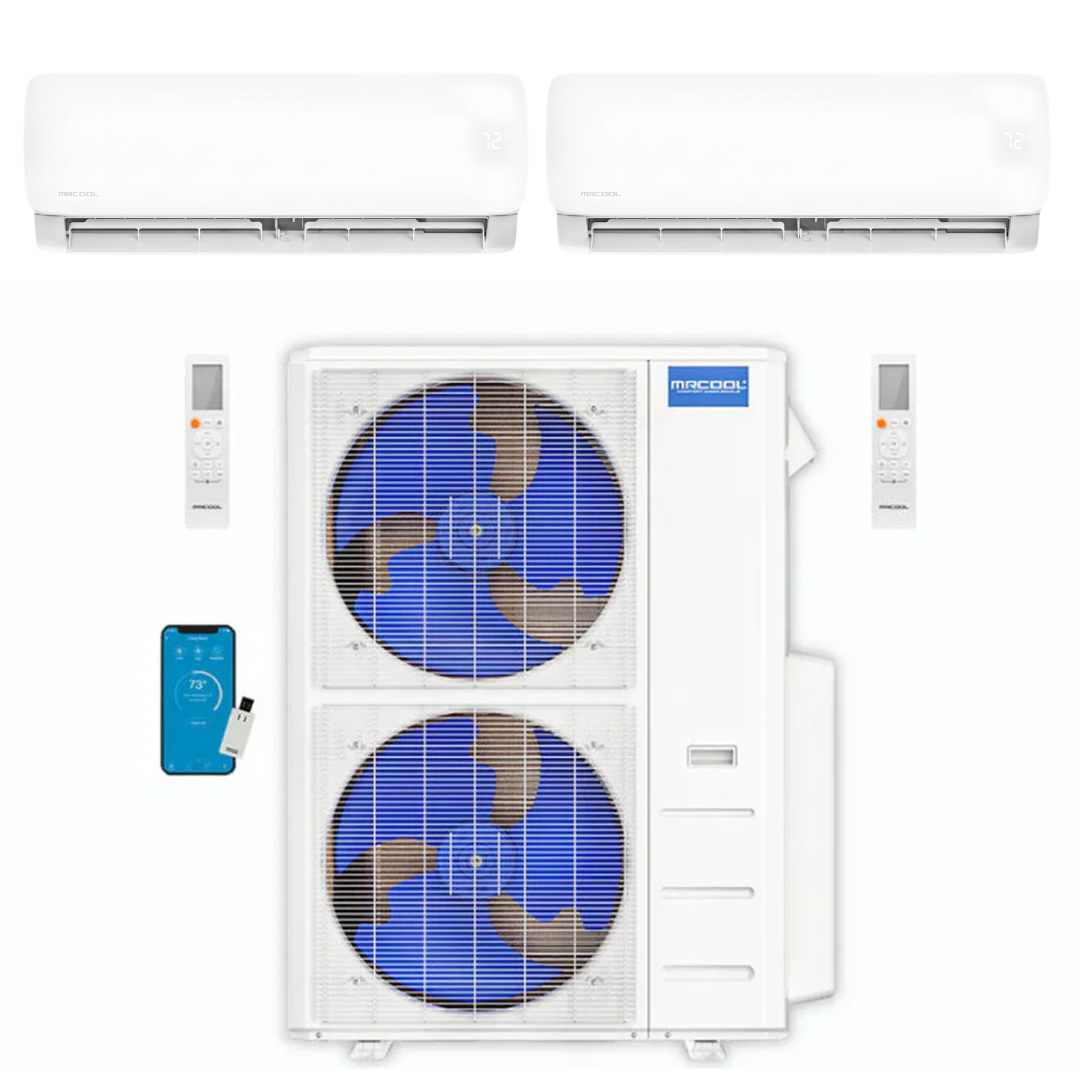

System Highlights
- Ultra-High-Capacity Multi-Zone: Powered by a premium 55K condenser that supports up to 6 zones, currently running a heavy-duty dual configuration (24K + 36K).
- Future-Proof Scaling: Expand your system up to four additional zones down the line as your property infrastructure grows.

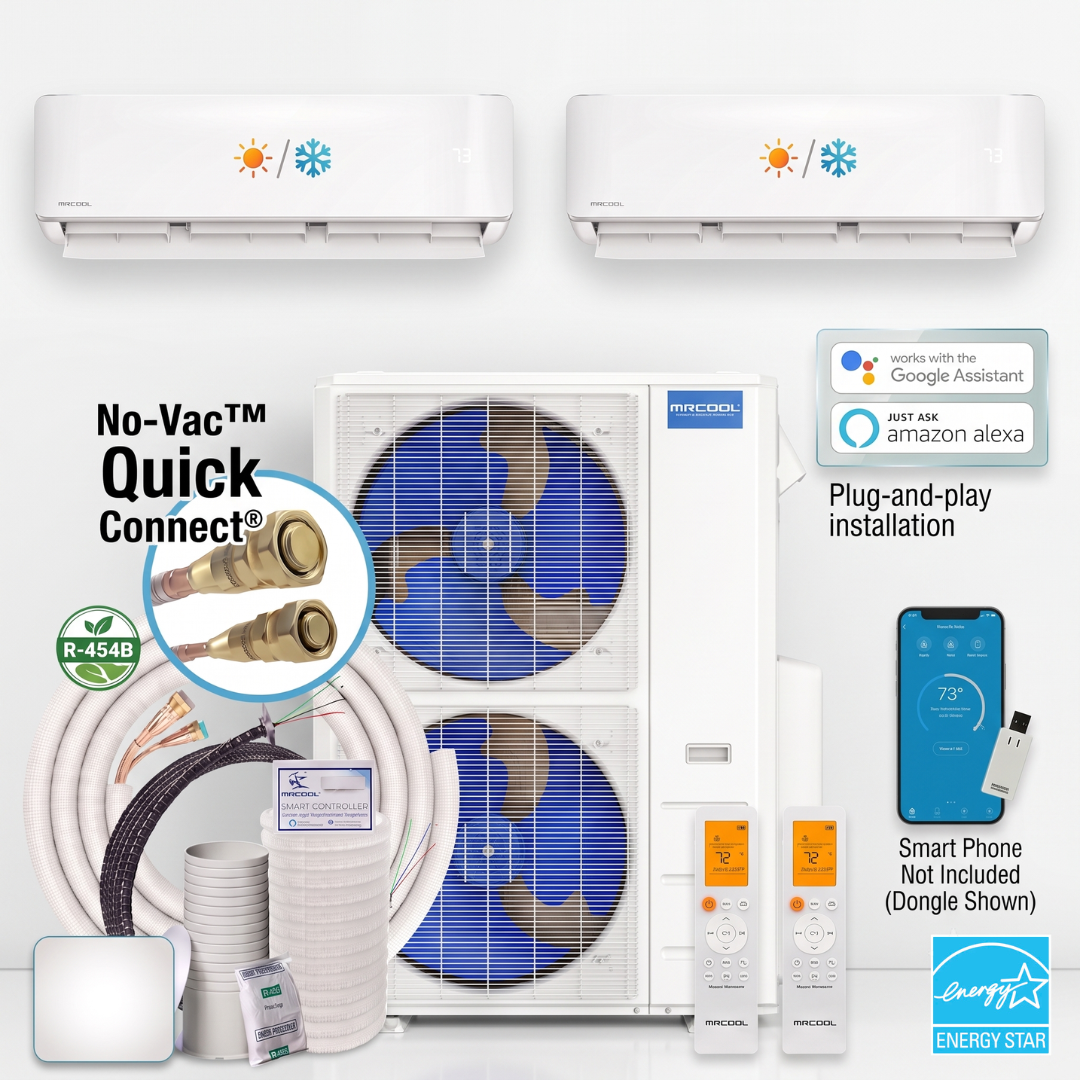

- True DIY Installation: Patented pre-charged Quick Connect® line sets eliminate vacuuming, line charging, and professional labor fees. Includes DIYPRO® cable.
- Smart HVAC Integration: Full control via Amazon Alexa, Google Assistant, and the dedicated SmartHVAC mobile application.
- Gold Fin® Protection: Advanced corrosion-resistant clear coating on the condenser ensures industrial-grade durability in coastal and humid zones.
Engineered for large residences, expansive commercial areas, and high-load spaces that require massive heating and cooling outputs with hands-on installation simplicity.
Technical Specifications
| Total System Capacity | 60,000 BTU (24K + 36K Handlers) |
|---|---|
| System SEER2 | 22.0 |
| System HSPF2-4 | 10.6 |
| Refrigerant Type | R-454B (Pre-Charged, Eco-Friendly) |
| Voltage | 208–230V, 1 Phase, 60 Hz |
| Condenser Dimensions | 37.48" W x 16.34" D x 52.48" H |
| Condenser Weight | 245.81 lbs |
| Certifications | UL Listed, ETL Listed, ENERGY STAR, AHRI Certified |
Performance & Volume Details
- Asymmetric Large-Area Coverage: The 24K air handler seamlessly covers 751–1,000 sq. ft., while the heavy-duty 36K air handler easily conditions expansive open spaces from 1,001–1,500 sq. ft.
- Advanced DC Inverter: The smart rotary inverter compressor self-modulates output smoothly, matching the absolute building load to maintain steady temps while slashing utility bills.
- Follow Me® Intelligence: The handheld remote senses the temperature of its direct location, signaling the handler to shift airflow output for ultimate localized comfort.
- Dry & Auto Cool Modes: Provides dedicated dehumidification workflows alongside automated multi-speed cooling configurations to maintain strict indoor air standards.
- Washable Filters: Both high-capacity handlers feature internal reusable filter systems to maximize long-term uptime and cut ongoing maintenance overhead.
Warranty & Protection Compliance
- 7-Year Compressor Warranty: Fully backed structural coverage keeping the heart of your high-tonnage multi-zone condenser protected.
- 5-Year Parts Warranty: Complete comprehensive protection covering internal electronics, air handlers, and control modules.
- MRCOOL® Care Program: Eligible for extended priority support networks and service programs for maximum long-term reliability.
- Independently Tested: Holds strict UL, ETL, and AHRI safety standards alongside Intertek certification to verify accurate performance across North America.
The MRCOOL® 5th Gen 60K system stands as the premium threshold for independent multi-zone heating and cooling. Massive force, DIY ease, and future expandability built into a unified structural climate solution.
