System Highlights

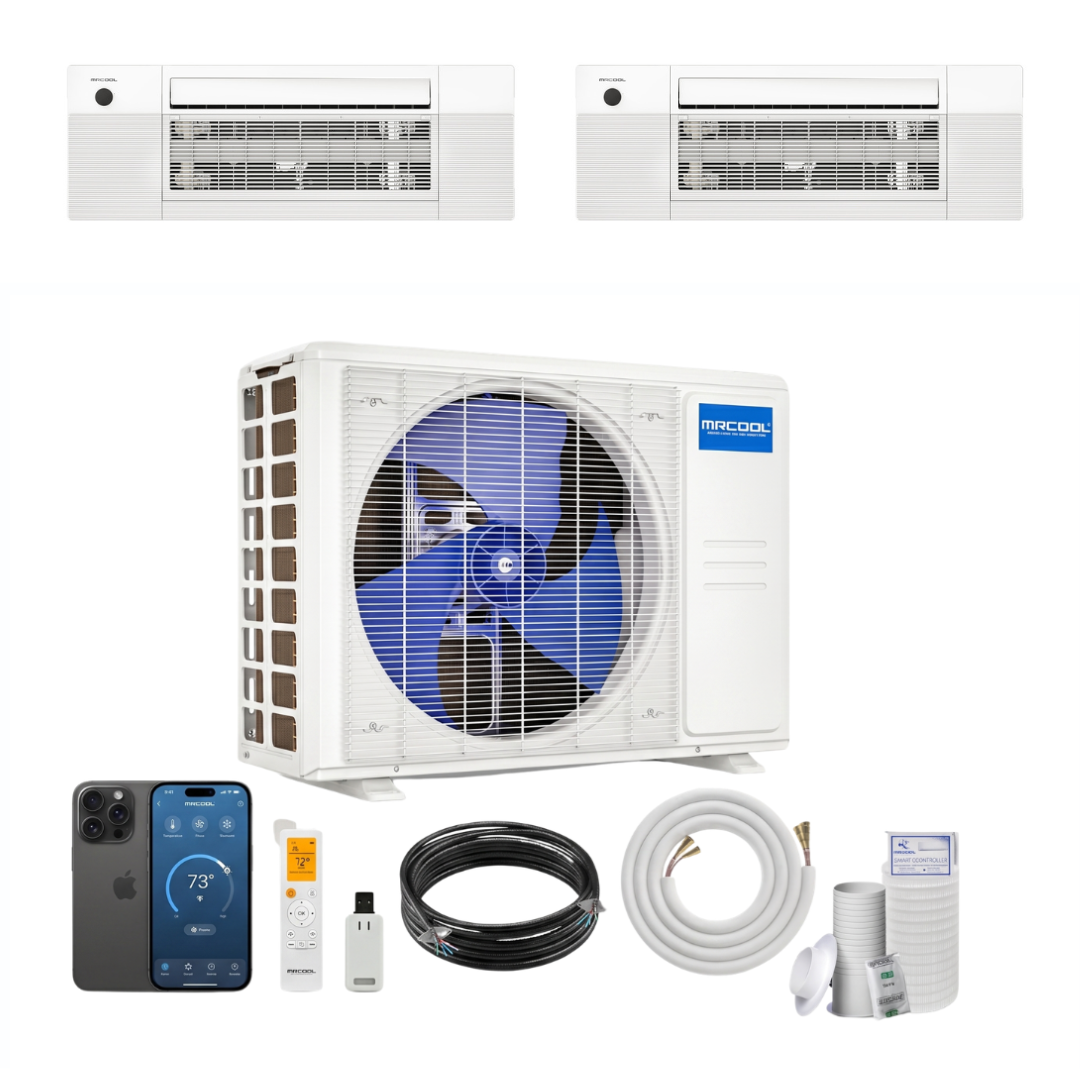

- OuttaSight® Symmetrical Performance: Two matching 18K recessed cassettes deliver clean, multi-directional comfort across two large residential areas up to 800 sq. ft. each, completely eliminating wall-mounted clutter.
- Massive 6-Zone Condenser Frame: Deploys as a powerful dual-zone configuration out of the box, leaving immense reserve capacity to connect up to four additional air handlers down the line.

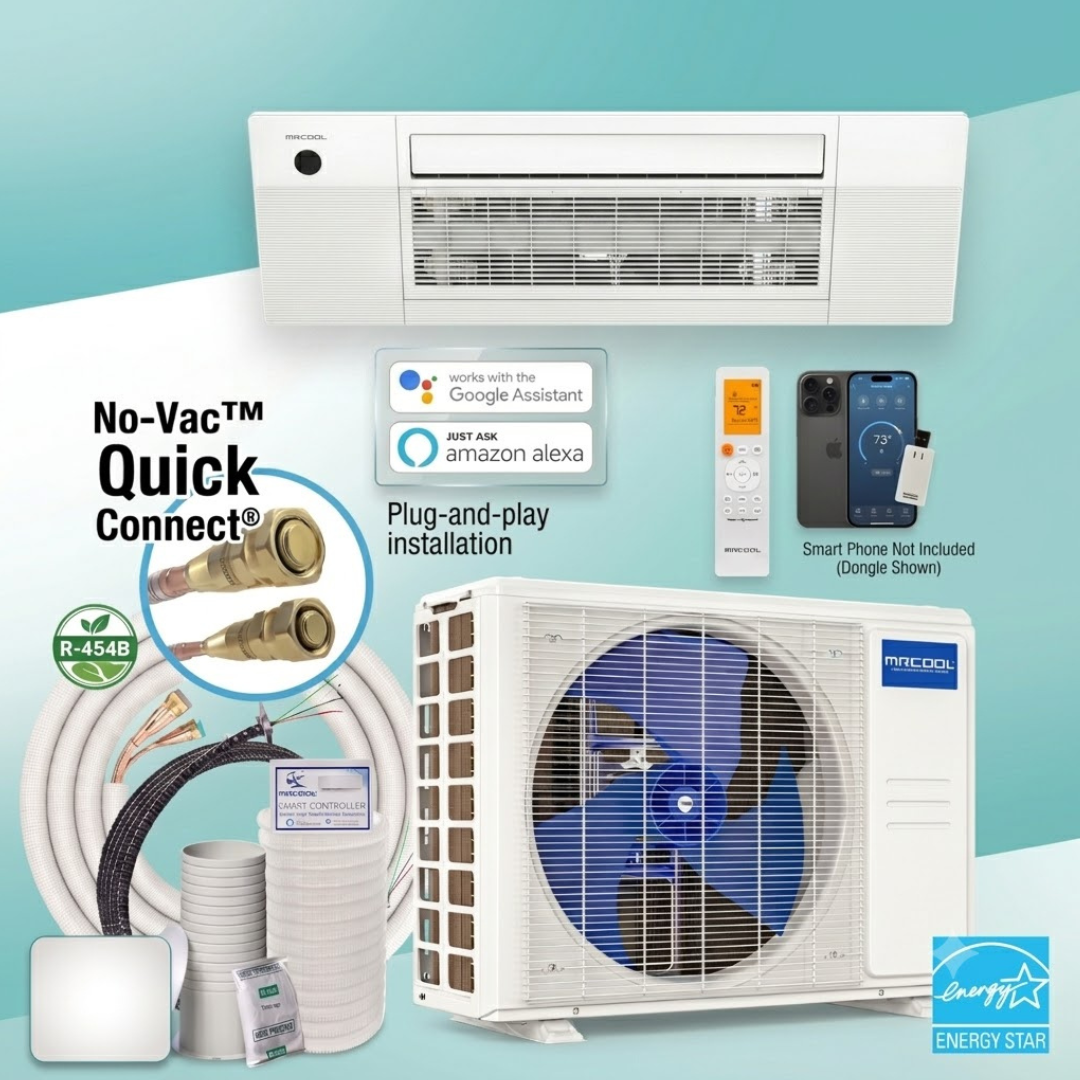

- True DIY Installation Workflow: Patented pre-charged Quick Connect® line sets completely eliminate standard line charging and mechanical vacuuming steps. Includes robust DIYPRO® cabling.
- Smart Ecosystem Control: Full native automation via Amazon Alexa, Google Assistant, and the SmartHVAC mobile app for streamlined off-site zone balancing.
- Gold Fin® Condenser Shielding: Advanced clear-coat corrosion resistance ensures lasting physical frame durability against high humidity and harsh coastal climates.
Engineered for large residences, expansive home additions, and wide open-concept layouts that demand high-capacity cooling and heating outputs paired with a premium, low-profile visual finish.
Technical Specifications
| Total Connected System Output | 36,000 BTU (18K + 18K Ceiling Cassettes) |
|---|---|
| System SEER2 Efficiency | 21.8 |
| System HSPF2-4 Performance | 10.0 |
| Refrigerant Selection | R-454B (Pre-Charged, Low-GWP Eco-Refrigerant) |
| Refrigerant Volume | 148.15 oz |
| Electrical Interface Requirements | 208–230V, 1 Phase, 60 Hz |
| Max Fuse Breaker / Min Circuit Ampacity | 45A / 40A |
| Condenser Model | DIY-MULTI6-48HP230D-O (6-Zone Capable) |
| Industry Compliance Certifications | UL Listed, ETL Listed, ENERGY STAR, AHRI Certified |
Zone Configuration & Performance Metrics (Per Cassette)
| Specification / Feature | Zone 1: 18K Ceiling Cassette | Zone 2: 18K Ceiling Cassette |
|---|---|---|
| Cooling / Heating Output | 18,000 BTU | 18,000 BTU |
| Target Floor Plan Coverage | Up to 800 sq. ft. | Up to 800 sq. ft. |
| Lineset Interconnect Size | 1/4" Liquid • 1/2" Suction | 1/4" Liquid • 1/2" Suction |
| Lineset Length Options | 25 ft, 35 ft, or 50 ft Lengths | 25 ft, 35 ft, or 50 ft Lengths |
| Airflow Volume (CFM Max) | 400 CFM | 400 CFM |
| Operational Noise (Average) | 41.5 dB(A) | 41.5 dB(A) |
| Air Distribution Layout | 1-Way Swing Tech Louver | 1-Way Swing Tech Louver |
Advanced Engineering Controls
- DC Inverter Drive Architecture: The continuous variable-speed rotary inverter compressor scales its operating frequency down precisely to match ambient thermal loads, completely avoiding current draw spikes.
- Integrated Condensate Lift Pump: Each ceiling cassette features a built-in heavy-duty drain pump to seamlessly clear moisture accumulation from shallow interstitial spaces.
- Follow Me® Climate Sensing: The wireless hand-remote samples temperature data directly from where you sit, signaling the active air handler to refine its louver movement.
- Dry & Sleep Profile Modes: Maximizes indoor air quality via dedicated moisture extraction cycles and automated fan tuning to conserve electricity overnight.
- Reusable Internal Filter Screens: High-efficiency washable air filters slide out easily from the ceiling panel frame to sustain peak static air movement without premium ongoing maintenance costs.
Warranty & Compliance Safeguards
- 7-Year Compressor Warranty: Commercial-grade structural factory backing ensuring the heart of your multi-zone condenser remains protected against manufacturing defects.
- 5-Year Parts Protection Framework: Complete comprehensive hardware replacement covering digital cassettes, line connections, and internal circuit boards.
- MRCOOL® Care Verified: Fully qualified for extended priority product support networks and custom maintenance validation pathways.
- Intertek Quality Assurance: Independently tested and verified to strictly satisfy rigid North American mechanical and structural building code guidelines.
The MRCOOL® 5th Gen OuttaSight® ceiling cassette framework delivers high-capacity, uniform comfort right from your ceiling line. Install it yourself, reclaim your living walls, and manage your custom home climate down to the precise degree with ultimate long-term expansion headroom.
