System Highlights
- Extreme Asymmetrical Precision: Run a micro-sized 6K zone for smaller bedrooms, offices, or utility areas alongside a high-tonnage 24K zone for great rooms and wide-open living areas.
- Expandable 27K Condenser: Configured for dual-zone performance out of the box with the capability to scale up to 4 zones total as your space layout evolves.

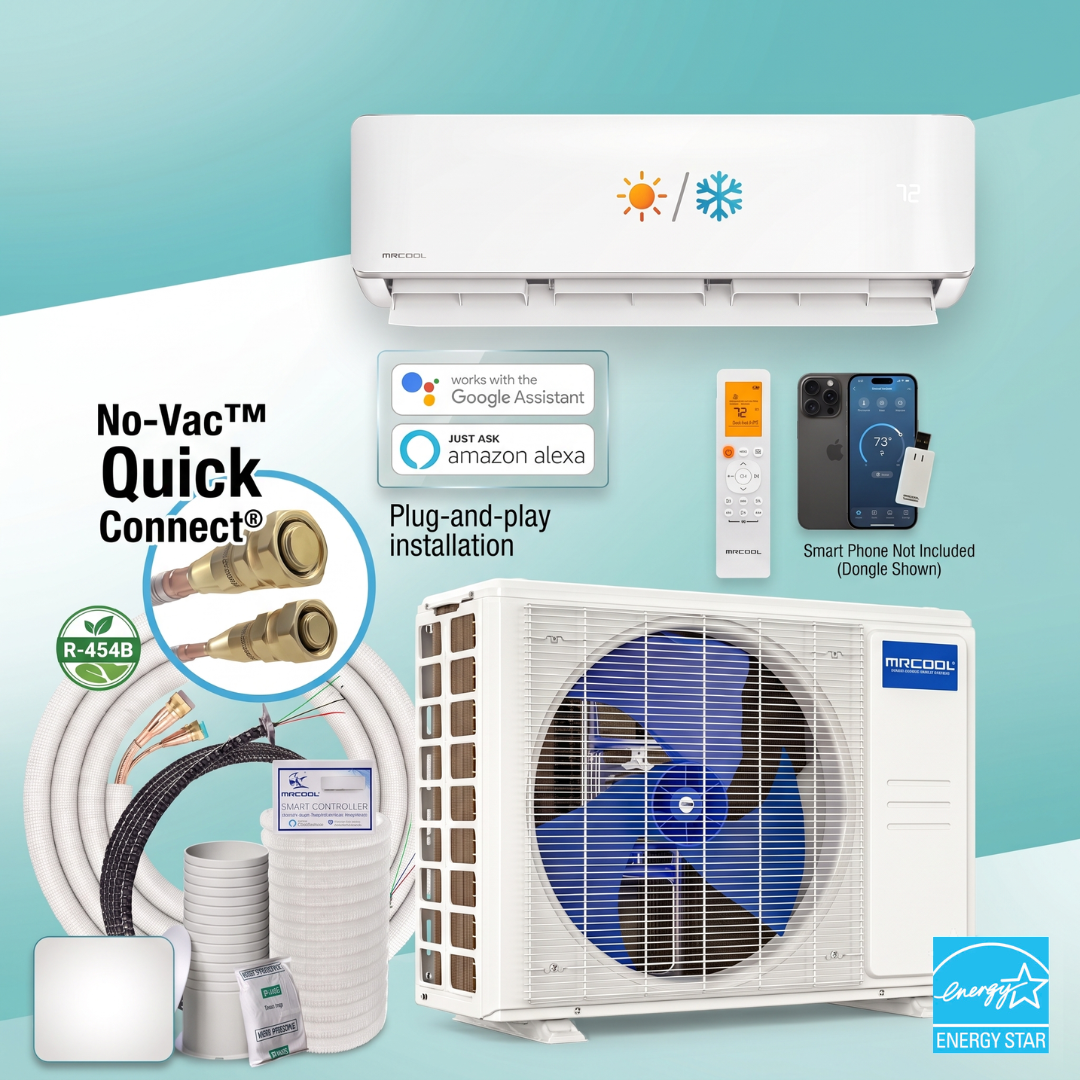

- True DIY Installation: Patented pre-charged Quick Connect® lines eliminate standard line charging and vacuuming steps. Includes DIYPRO® cable.
- Smart HVAC Integration: Full out-of-the-box management via Amazon Alexa, Google Assistant, and the SmartHVAC mobile app.
- Gold Fin® Protection: Advanced corrosion-resistant condenser coating ensures lasting structural durability in humid or coastal environments.
Engineered for homeowners who require precise zone-by-zone custom scheduling between a small, low-load room and a massive open layout from a single high-efficiency condenser.
Technical Specifications
| Total Capacity | 30,000 BTU (6K + 24K Handlers) |
|---|---|
| System SEER2 | 23.0 |
| System HSPF2-4 | 9.5 |
| Refrigerant | R-454B (Pre-Charged) |
| Voltage | 208–230V, 1 Phase, 60 Hz |
| Condenser Dimensions | 37.24" W x 16.14" D x 31.89" H |
| Air Handler Noise Level | 54 dB(A) High |
| Certifications | UL Listed, ETL Listed, ENERGY STAR, AHRI Certified |
Performance & Efficiency Controls
- DC Inverter Technology: The variable speed rotary inverter compressor scales down smooth power increments to match the load requirements perfectly, slashing utility bills.
- Targeted Coverage: The 6K handler perfectly manages compact zones up to 200 sq. ft., while the 24K handler handles large spaces from 751–1,000 sq. ft.
- Follow Me® Monitoring: The handheld remote measures temperature from its exact spot, commanding the air handler to redirect flow for precise localized comfort.
- Dehumidification & Air Quality: Features Dry Mode to pull high moisture levels from the environment alongside washable, reusable internal air filters to keep operational maintenance low.
Warranty & Compliance Details
- 7-Year Compressor Warranty: Full commercial-grade structural assurance for the heart of your outdoor condenser system.
- 5-Year Parts Warranty: Complete comprehensive replacement protection covering the digital handlers, lines, and internal circuitry.
- MRCOOL® Care Program: Fully eligible for extended priority support networks and service programs.
- Safety Standards: Fully UL, ETL, and AHRI certified to ensure safety and verified performance for North American homes.

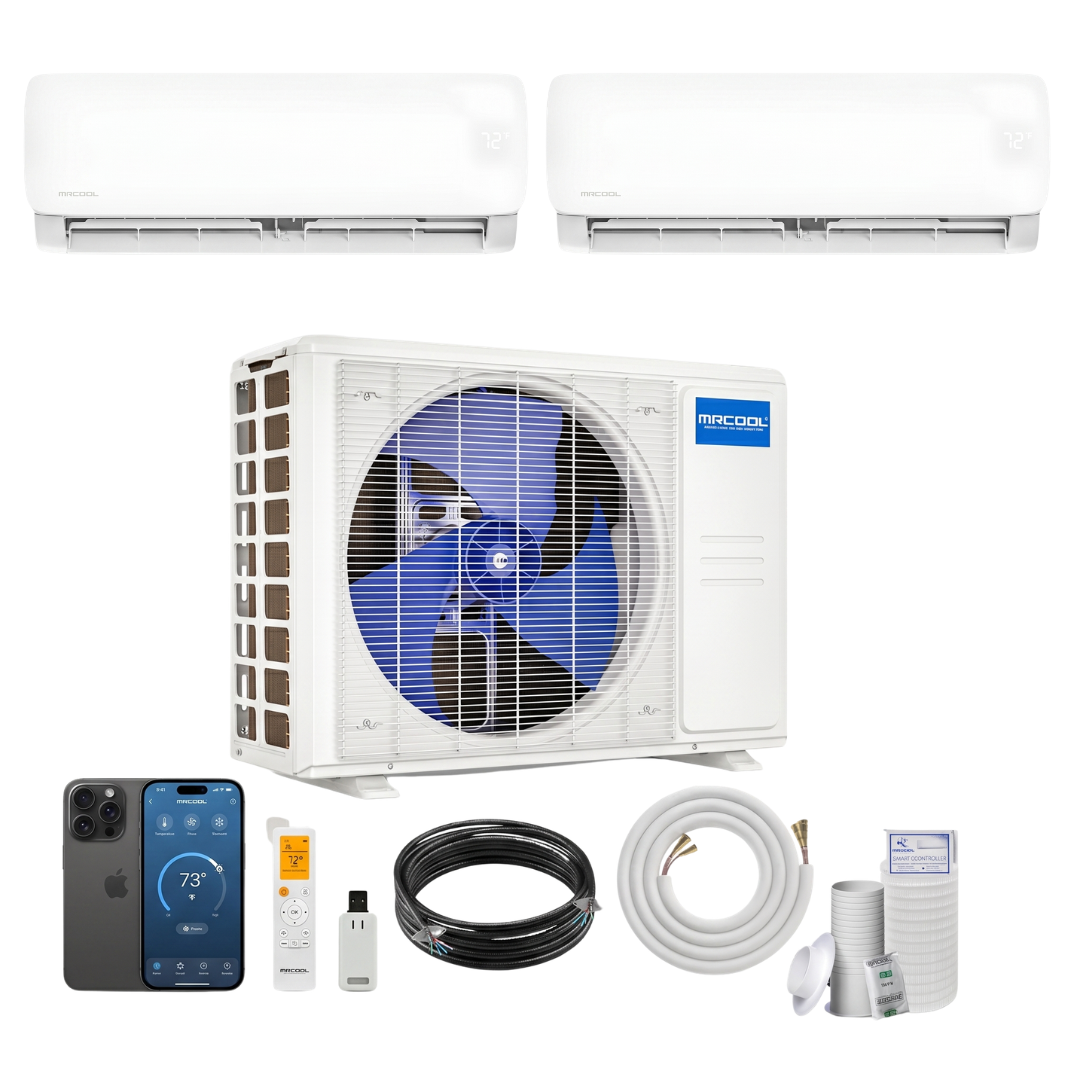

The MRCOOL® 5th Gen 30K asymmetrical system resolves the challenge of heating and cooling uneven room layouts. Install it yourself, configure each zone independently, and lock in professional climate management year-round.
