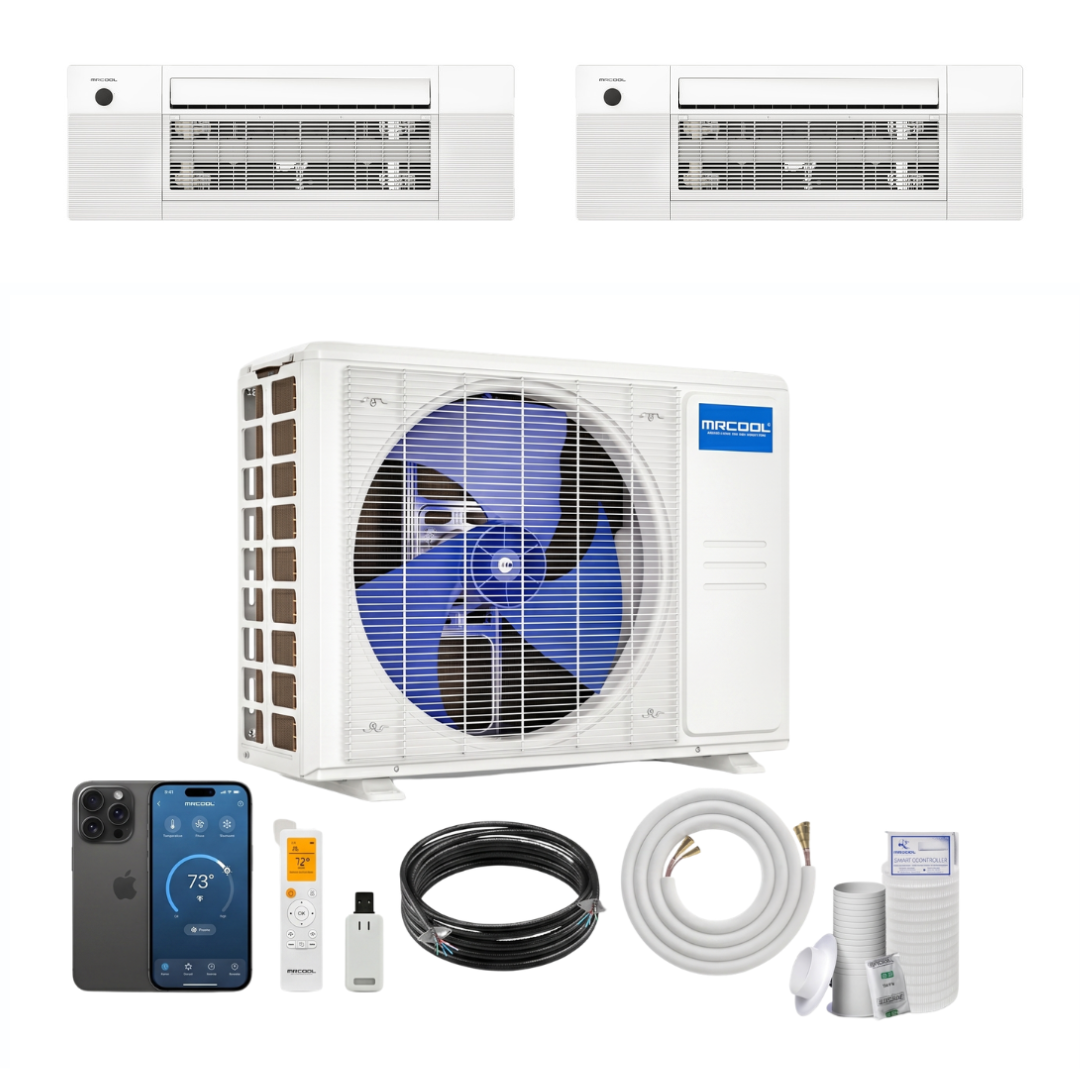

System Highlights
- OuttaSight® Recessed Aesthetics: Eliminates large wall-mounted units entirely; the sleek ceiling panel design integrates flush into high-end residential interiors or office areas.
- Flexible Asymmetrical Zoning: Run a 12K cassette for bedrooms or dining areas up to 550 sq. ft. alongside a high-capacity 18K cassette for great rooms or open living zones up to 800 sq. ft.
- Expandable 27K Condenser Chassis: Deploys out of the box as a robust dual-zone system, leaving ample reserve ports to hook up two additional air handlers later as your property footprint scales.

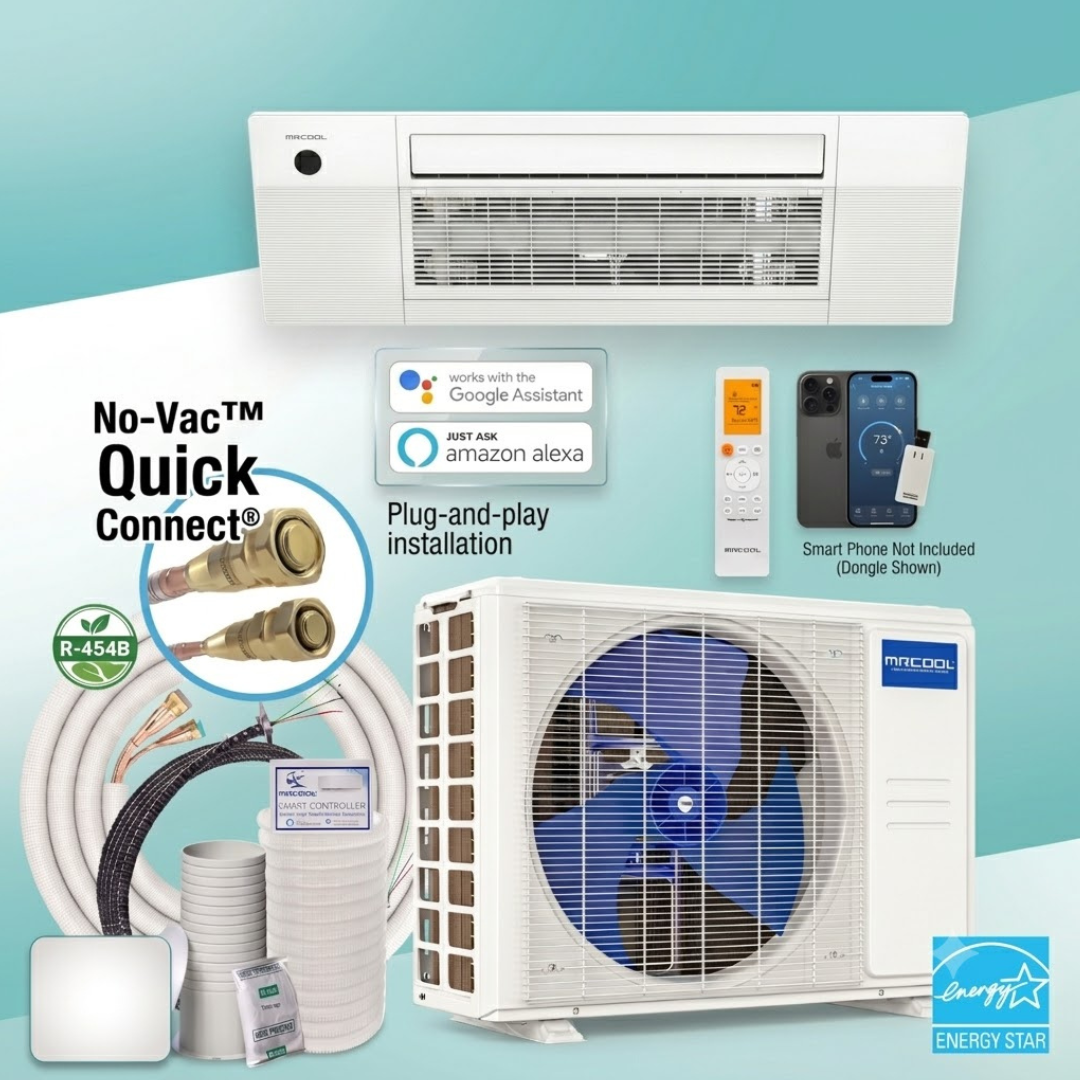

- True DIY Installation Workflow: Patented pre-charged Quick Connect® line sets eliminate conventional line evacuation and nitrogen testing.
- Smart Ecosystem Control: Full out-of-the-box integration via Amazon Alexa, Google Assistant, and the SmartHVAC mobile app for detailed remote zone tuning.
Engineered for homeowners who want clean architectural profiles and differentiated cooling/heating outputs, offering maximum long-term expansion flexibility from a single centralized condenser framework.
Technical Specifications
| Total Connected Capacity | 30,000 BTU (12K + 18K Ceiling Cassettes) |
|---|---|
| Condenser Model | DIY-MULTI4-27HP230D-O (4-Zone Capable) |
| Electrical Interface Requirements | 208–230V, 1 Phase, 60 Hz |
| Refrigerant Type | R-454B (Pre-Charged) |
| Industry Compliance Certifications | UL Listed, ETL Listed, ENERGY STAR, AHRI Certified |
Zone Configuration & Performance Metrics
| Specification / Feature | Zone 1: 12K Ceiling Cassette | Zone 2: 18K Ceiling Cassette |
|---|---|---|
| Cooling / Heating Output | 12,000 BTU | 18,000 BTU |
| Target Floor Plan Coverage | Up to 550 sq. ft. | Up to 800 sq. ft. |
| Lineset Interconnect Size | 1/4" Liquid • 3/8" Suction | 1/4" Liquid • 1/2" Suction |
| Lineset Length Options | 16 ft, 25 ft, 35 ft, or 50 ft | 25 ft, 35 ft, or 50 ft |
Advanced Engineering & Warranty
- DC Inverter Drive Architecture: The continuous variable-speed rotary inverter compressor scales its operating frequency down precisely to match ambient thermal loads, completely avoiding current draw spikes.
- Integrated Condensate Lift Pump: Each ceiling cassette features a built-in heavy-duty drain pump to seamlessly clear moisture accumulation from shallow interstitial spaces.
- 7-Year Compressor Warranty: Commercial-grade structural factory backing ensuring the heart of your outdoor condenser system remains protected against manufacturing defects.
- 5-Year Parts Protection Framework: Comprehensive hardware replacement coverage across internal circuit boards and critical operational components.
