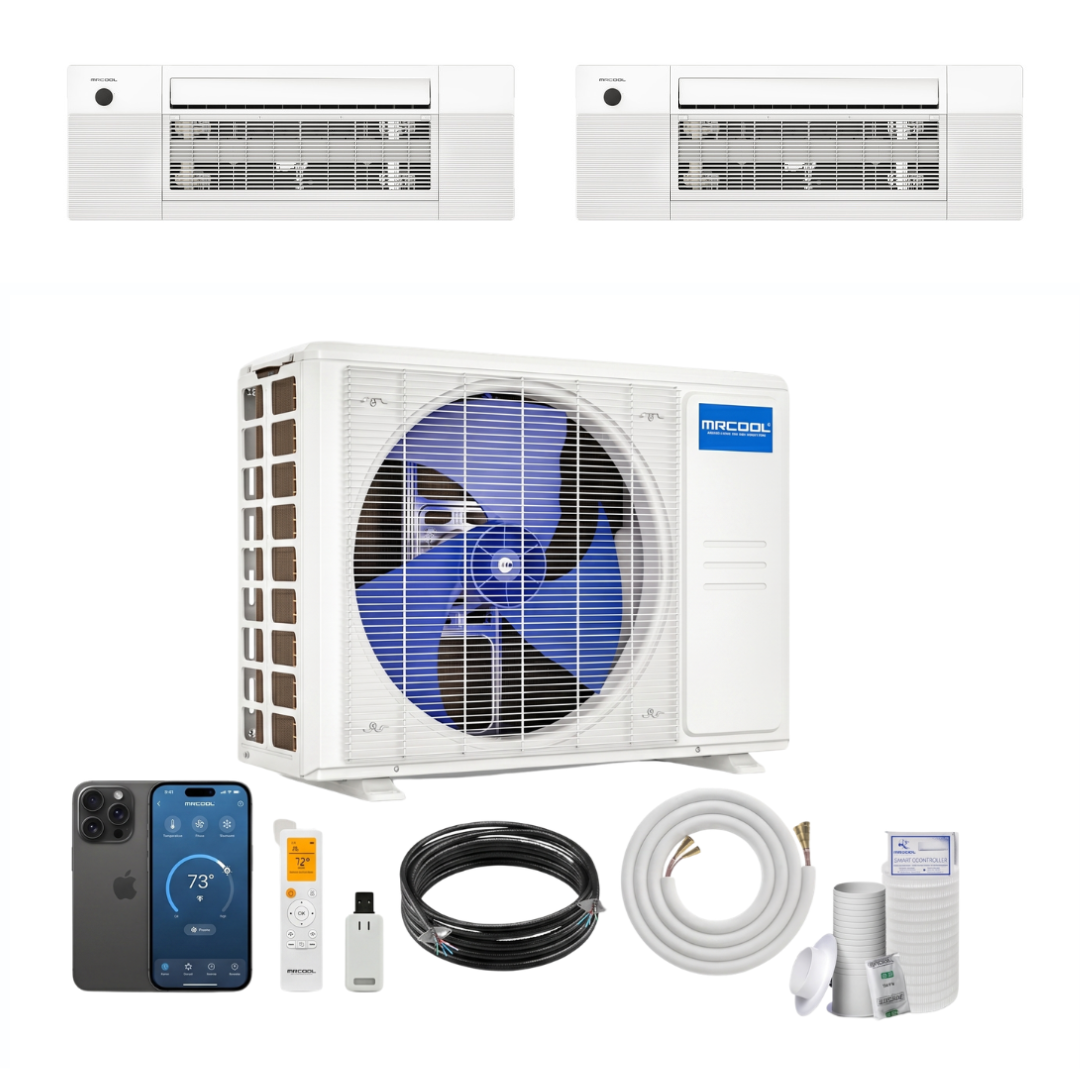

System Highlights
- OuttaSight® Recessed Profile: Eliminates wall-mounted clutter entirely; the sleek ceiling panel design integrates flush into modern residential layouts or office settings.
- Extreme Asymmetrical Precision: Condition a micro-sized area like a small office or nursery up to 200 sq. ft. with the quiet 6K handler, while concurrently managing massive living rooms or open layouts up to 800 sq. ft. with the high-tonnage 18K unit.
- Expandable 36K Condenser Chassis: Deploys out of the box as a robust dual-zone system, leaving ample reserve ports to hook up three additional air handlers later as your property footprint scales.

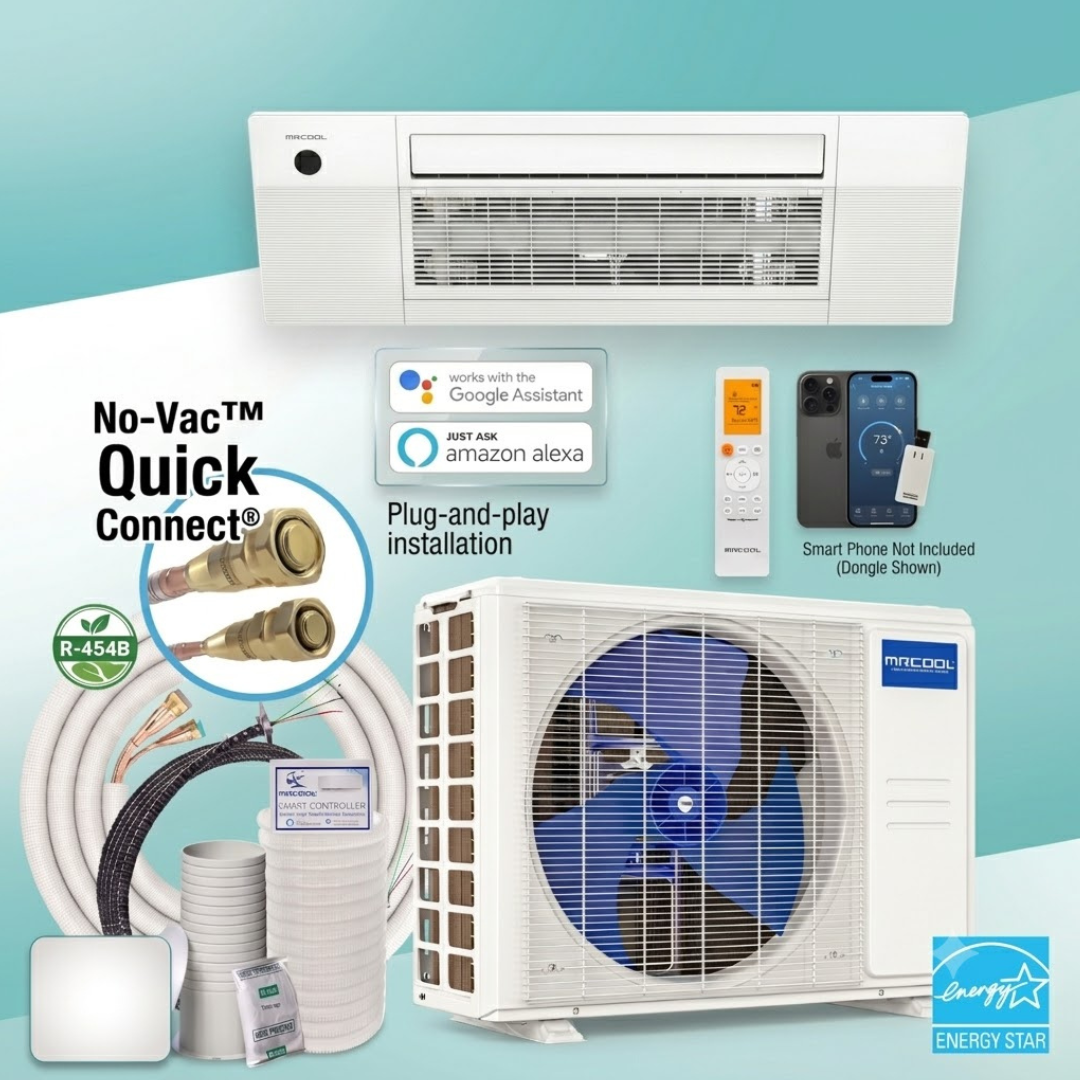

- True DIY Installation Workflow: Patented pre-charged Quick Connect® line sets completely eliminate conventional line evacuation and nitrogen testing steps. Includes robust DIYPRO® cabling.
- Smart Ecosystem Control: Full out-of-the-box integration via Amazon Alexa, Google Assistant, and the SmartHVAC mobile app for detailed remote zone tuning.
- Gold Fin® Corrosion Protection: Advanced clear-coat protective barrier shields the exterior condenser coil against extreme humidity and harsh coastal climates.
Engineered for homeowners who want clean architectural symmetry and premium cooling/heating outputs, resolving the challenge of managing extremely diverse room sizes from a single centralized condenser framework.
Technical Specifications
| Total Connected Capacity | 24,000 BTU (6K + 18K Ceiling Cassettes) |
|---|---|
| System SEER2 Efficiency | 23.0 |
| System HSPF2-4 Performance | 9.9 |
| Refrigerant Selection | R-454B (Pre-Charged, Eco-Friendly) |
| Refrigerant Volume | 104.75 oz |
| Electrical Interface Requirements | 208–230V, 1 Phase, 60 Hz |
| Max Fuse Breaker / Min Circuit Ampacity | 35A / 30.5A |
| Condenser Footprint Dimensions | 37.24" W x 16.14" D x 31.89" H |
| Condenser Model | DIY-MULTI5-36HP230D-O (5-Zone Capable) |
| Industry Compliance Certifications | UL Listed, ETL Listed, ENERGY STAR, AHRI Certified |
Zone Configuration & Performance Metrics
| Specification / Feature | Zone 1: 6K Ceiling Cassette | Zone 2: 18K Ceiling Cassette |
|---|---|---|
| Cooling / Heating Output | 6,000 BTU | 18,000 BTU |
| Target Floor Plan Coverage | Up to 200 sq. ft. | Up to 800 sq. ft. |
| Lineset Interconnect Size | 1/4" Liquid • 3/8" Suction | 1/4" Liquid • 1/2" Suction |
| Lineset Length Options | 25 ft, 35 ft, or 50 ft Lengths | 25 ft, 35 ft, or 50 ft Lengths |
| Airflow Volume (CFM Max) | 341 CFM | 400 CFM |
| Operational Noise Range | 23.5 to 46.5 dB(A) | 26.0 to 44.0 dB(A) |
| Air Distribution Layout | 1-Way Swing Tech Directional | 1-Way Swing Tech Directional |
Advanced Engineering Controls
- DC Inverter Drive Architecture: The continuous variable-speed rotary inverter compressor scales its operating frequency down precisely to match ambient thermal loads, completely avoiding current draw spikes.
- Integrated Condensate Lift Pump: Each ceiling cassette features a built-in heavy-duty drain pump to seamlessly clear moisture accumulation from shallow interstitial spaces.
- Follow Me® Climate Sensing: The wireless hand-remote samples temperature data directly from where you sit, signaling the active air handler to refine its louver movement.
- Dry & Sleep Profile Modes: Maximizes indoor air quality via dedicated moisture extraction cycles and automated fan tuning to conserve electricity overnight.
- Reusable Internal Filter Screens: High-efficiency washable air filters slide out easily from the ceiling panel frame to sustain peak static air movement without premium ongoing maintenance costs.
Warranty & Compliance Safeguards
- 7-Year Compressor Warranty: Commercial-grade structural factory backing ensuring the heart of your outdoor condenser system remains protected against manufacturing defects.
- 5-Year Parts Protection Framework: Complete comprehensive hardware replacement covering digital cassettes, line connections, and internal circuit boards.
- MRCOOL® Care Verified: Fully qualified for extended priority product support networks and custom maintenance validation pathways.
- Intertek Quality Assurance: Independently tested and verified to strictly satisfy rigid North American mechanical and structural building code guidelines.
The MRCOOL® 5th Gen OuttaSight® ceiling cassette framework delivers clean, low-profile comfort right from your ceiling line. Install it yourself, reclaim your living walls, and manage your custom home climate down to the precise degree with unmatched expansion headroom.
