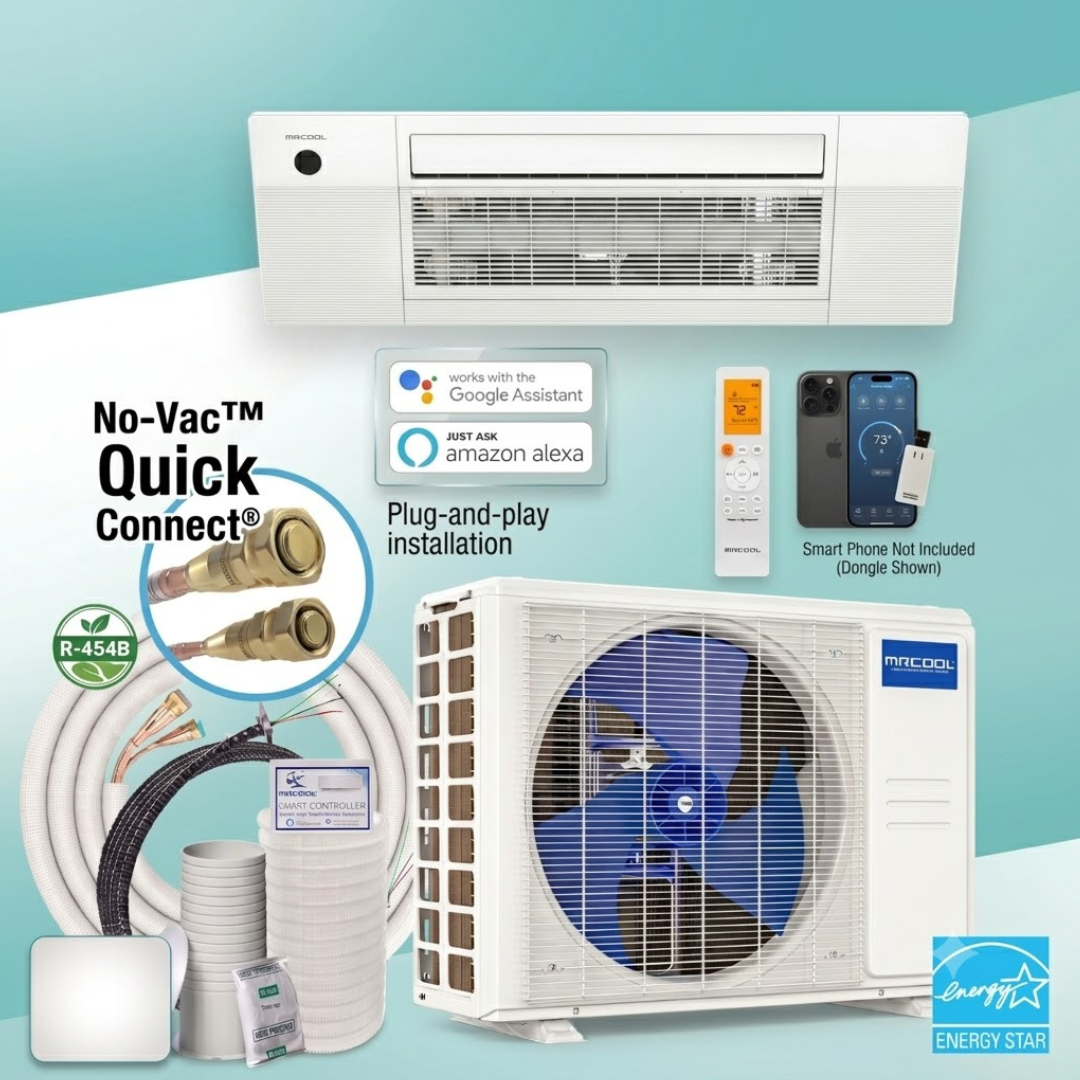

System Highlights
- OuttaSight® Recessed Aesthetics: Eliminates large wall-mounted units entirely; the sleek ceiling panel design integrates flush into modern residential spaces, apartments, or targeted comfort zones.
- Targeted Asymmetrical Zoning: Condition a micro-sized area like a small office or nursery up to 200 sq. ft. with the ultra-quiet 6K handler, while concurrently managing an adjacent living layout or bedroom up to 550 sq. ft. with the 12K unit.
- Expandable 27K Condenser Chassis: Deploys out of the box as a robust dual-zone system, leaving ample reserve ports to hook up two additional air handlers later as your property footprint scales.
- True DIY Installation Workflow: Patented pre-charged Quick Connect® line sets eliminate conventional line evacuation and nitrogen testing steps entirely.
- Gold Fin® Corrosion Protection: Advanced clear-coat protective barrier shields the exterior condenser coil against extreme humidity and harsh coastal climates.
Engineered for homeowners who want clean architectural profiles and differentiated cooling/heating outputs, resolving multi-room comfort demands in compact spaces from a single centralized condenser framework.
Technical Specifications

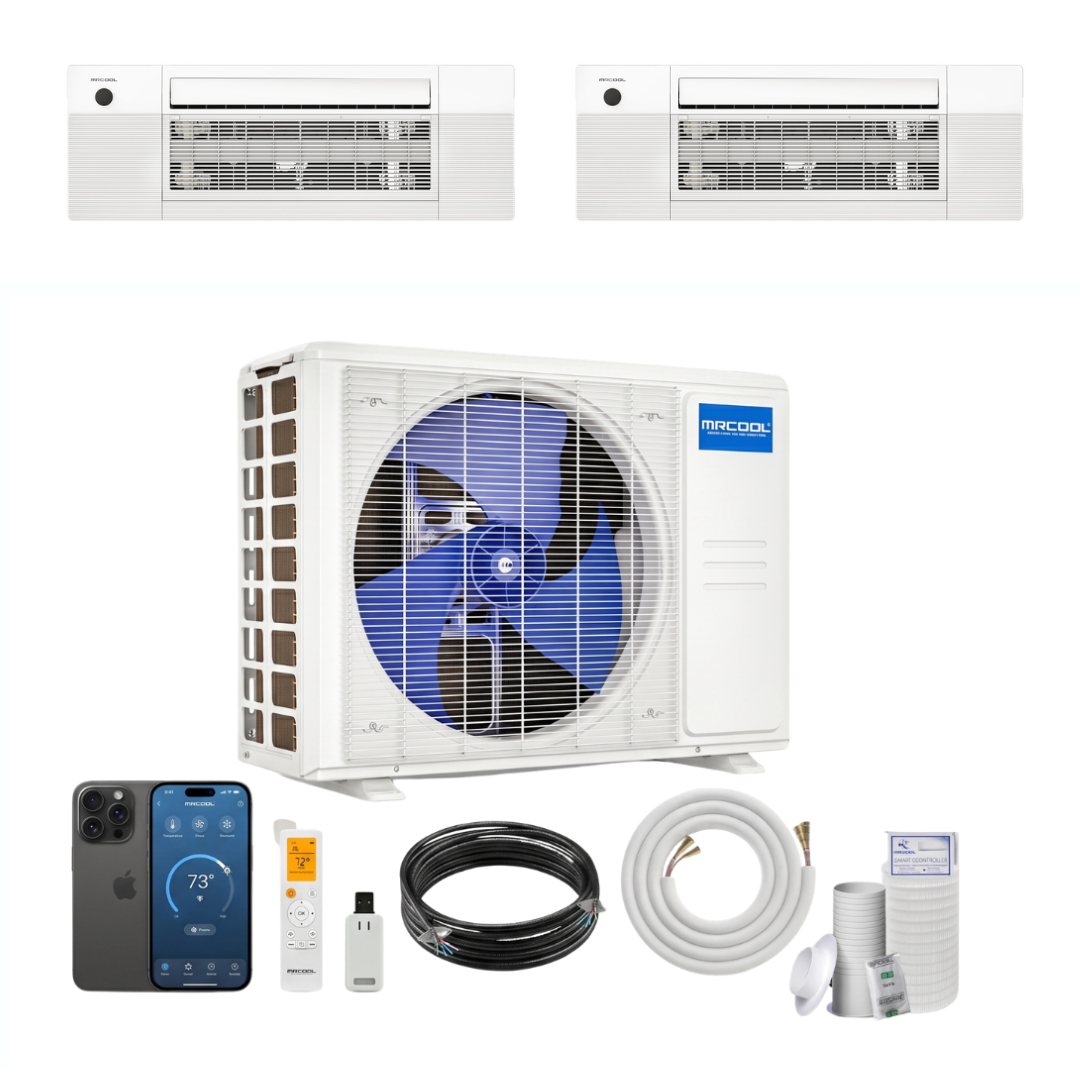

| Total Connected Capacity | 18,000 BTU (6K + 12K Ceiling Cassettes) |
|---|---|
| Condenser Model | DIY-MULTI4-27HP230D-O (4-Zone Capable) |
| Electrical Interface Requirements | 208–230V, 1 Phase, 60 Hz |
| Refrigerant Type | R-454B (Pre-Charged) |
| Industry Compliance Certifications | UL Listed, ETL Listed, ENERGY STAR, AHRI Certified |
Zone Configuration & Performance Metrics
| Specification / Feature | Zone 1: 6K Ceiling Cassette | Zone 2: 12K Ceiling Cassette |
|---|---|---|
| Cooling / Heating Output | 6,000 BTU | 12,000 BTU |
| Target Floor Plan Coverage | Up to 200 sq. ft. | Up to 550 sq. ft. |
| Lineset Interconnect Size | 1/4" Liquid • 3/8" Suction | 1/4" Liquid • 3/8" Suction |
| Lineset Length Options | 16 ft, 25 ft, 35 ft, or 50 ft | 16 ft, 25 ft, 35 ft, or 50 ft |
Advanced Engineering & Warranty
- DC Inverter Drive Architecture: The continuous variable-speed rotary inverter compressor scales its operating frequency down precisely to match ambient thermal loads, completely avoiding current draw spikes.
- Integrated Condensate Lift Pump: Each ceiling cassette features a built-in heavy-duty drain pump to seamlessly clear moisture accumulation from shallow interstitial spaces.
- 7-Year Compressor Warranty: Commercial-grade structural factory backing ensuring the heart of your outdoor condenser system remains protected against manufacturing defects.
- 5-Year Parts Protection Framework: Comprehensive hardware replacement coverage across internal circuit boards and critical operational components.
