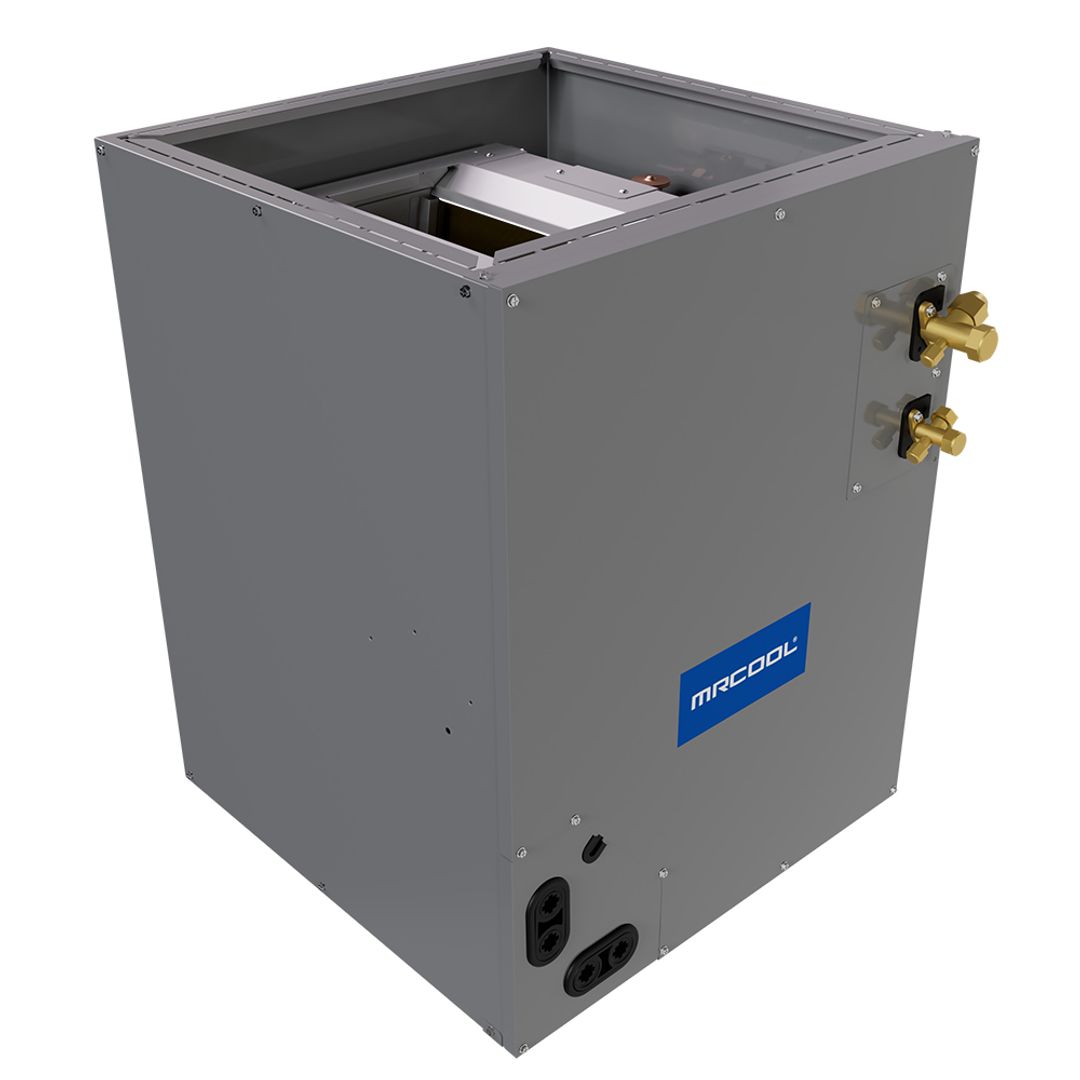

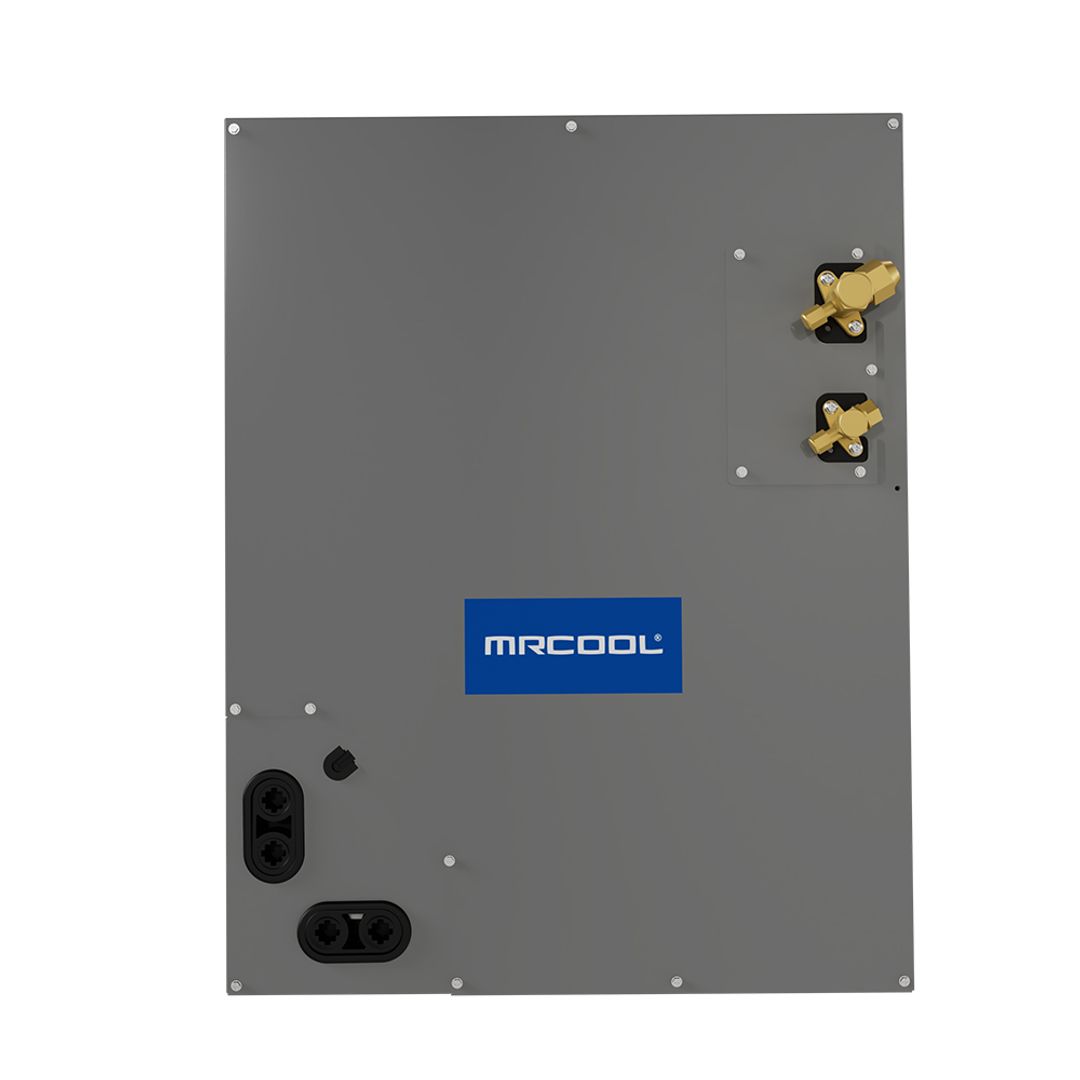

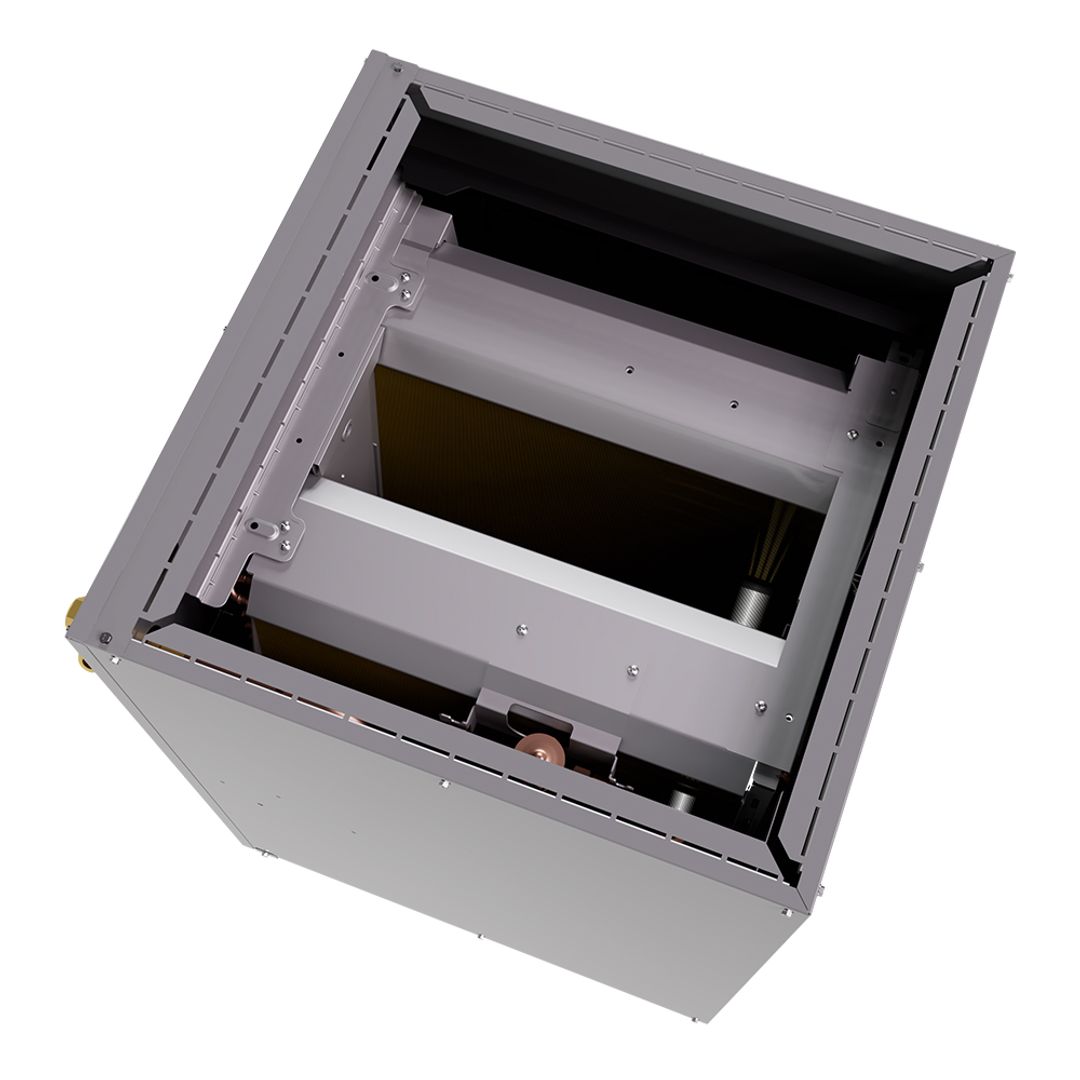

MRCOOL Coils MCMP4860DOTB Highlights
- The MRCOOL® 4-5 Ton Pre-Charged A-Coil is a high-performance, installation-ready solution designed to work seamlessly with most R-454B systems that have No-Vac® Quick Connect® line set or a flare to sweat connections.
- It's also compatible with a range of other HVAC configurations, making it an excellent choice for both retrofit projects and new installations.
- Factory pre-charged with environmentally friendly R-454B refrigerant, this coil helps meet today's stricter environmental standards.
- With a significantly lower Global Warming Potential than older refrigerants, R-454B reduces environmental impact while maintaining efficient, reliable cooling and heating performance.
- The A-Coil supports multiple airflow orientations—upflow, downflow, and horizontal—making it a flexible option for homes with space limitations or unique layouts.
- Helpful features like dual front drains allow for simple condensate management, while a built-in side drain pan (for horizontal models) and an A2L leak detection sensor makes setup fast and straightforward.
MRCOOL Coils MCMP4860DOTB Specifications
| Brand | MRCOOL |
|---|---|
| Model | MCMP4860DOTB |
| Tonnage | 4-5 Ton |
| Configuration | Multi-Position |
| Cased | Yes |
| Refrigerant | R-454B |
| Liquid Line Size | 3/8 |
| Suction Line Size | 3/4 |
| Metering Device | TXV |
| Color | Grey |
| Net Width (in) | 24.5 |
| Net Height (in) | 28 |
| Net Depth (in) | 21 |
| Net Weight (lbs) | 81 |
| Gross Weight (lbs) | 92 |
| Warranty | 10 Year Part Warranty |
| Parts Warranty | 10 Year |
