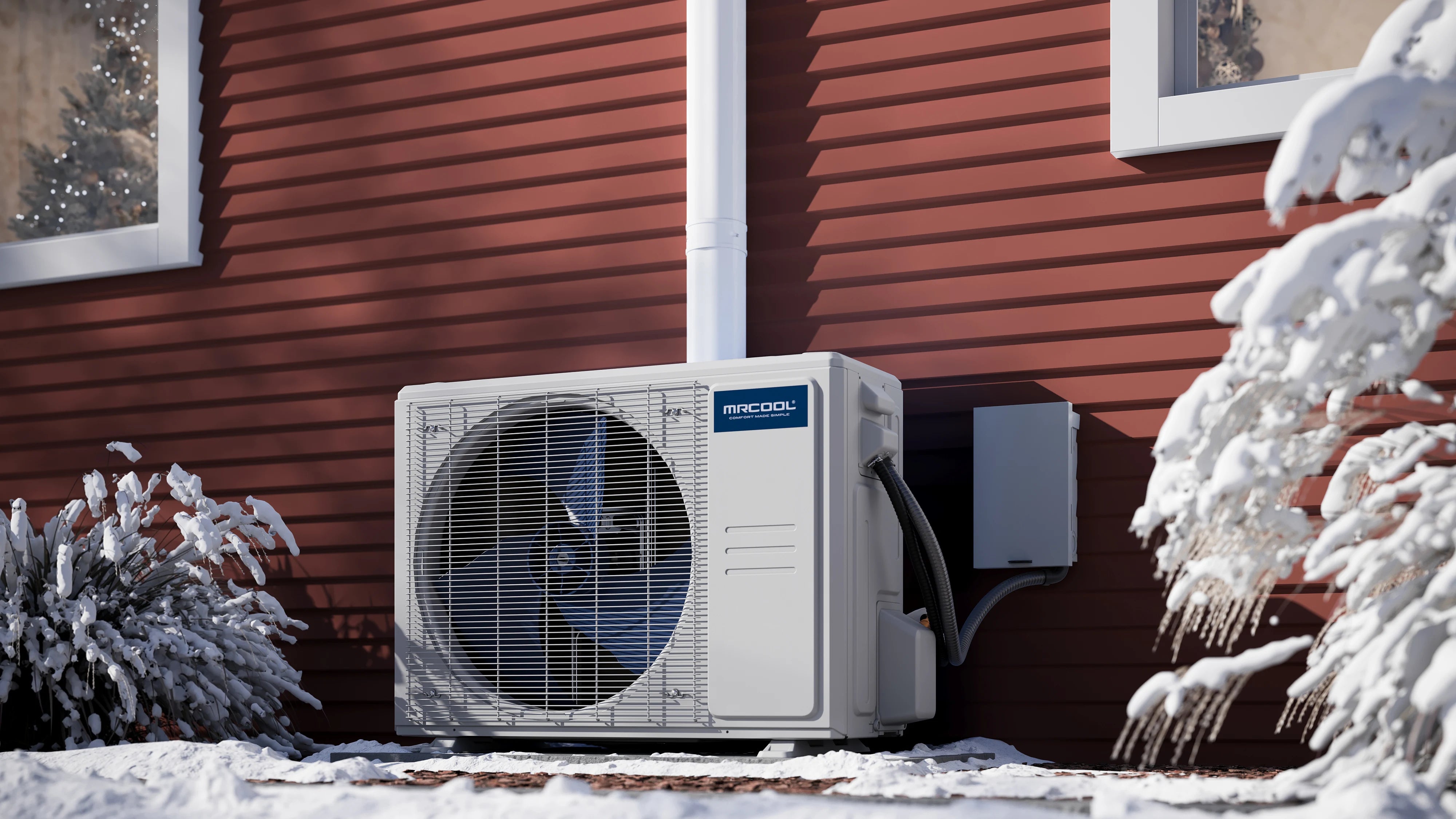

MRCOOL 5th Gen DIY 36k Single Zone Mini-split System 230v DIY-36-HP-WM-230D25-O outdoor air condenser

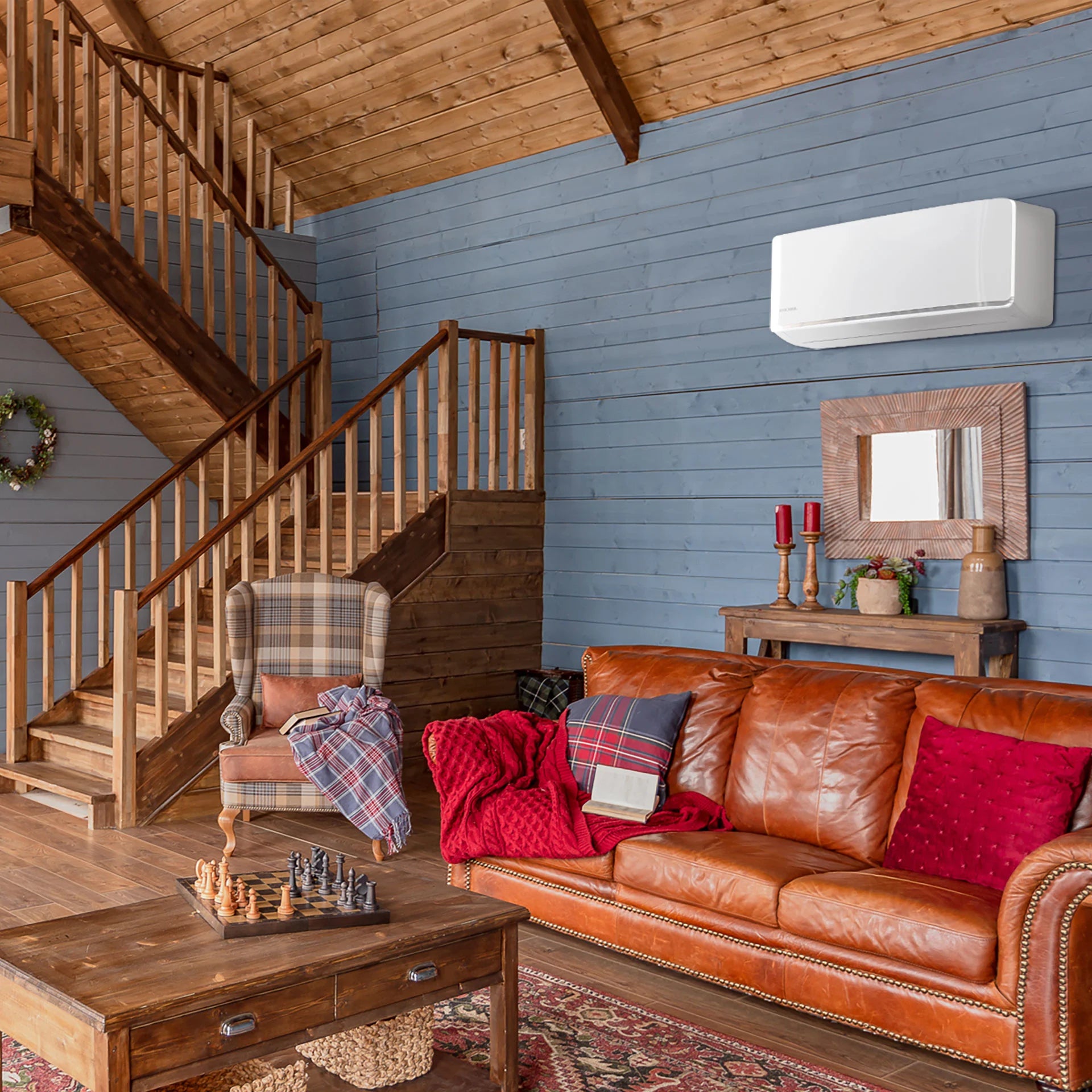

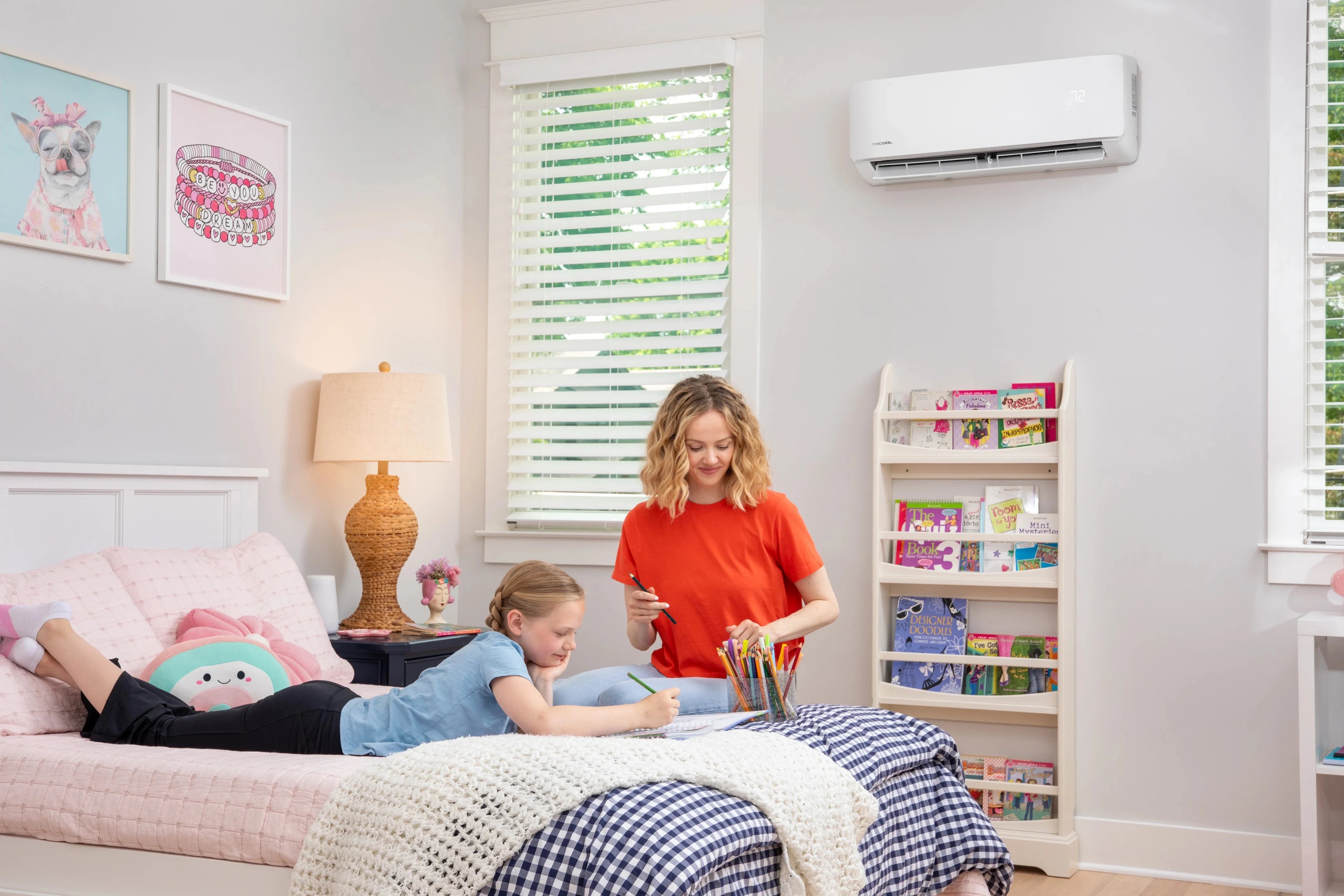

MRCOOL 5th Gen DIY 36k Single Zone Mini-split System 230v DIY-36-HP-WM-230D25-O air handler in living room

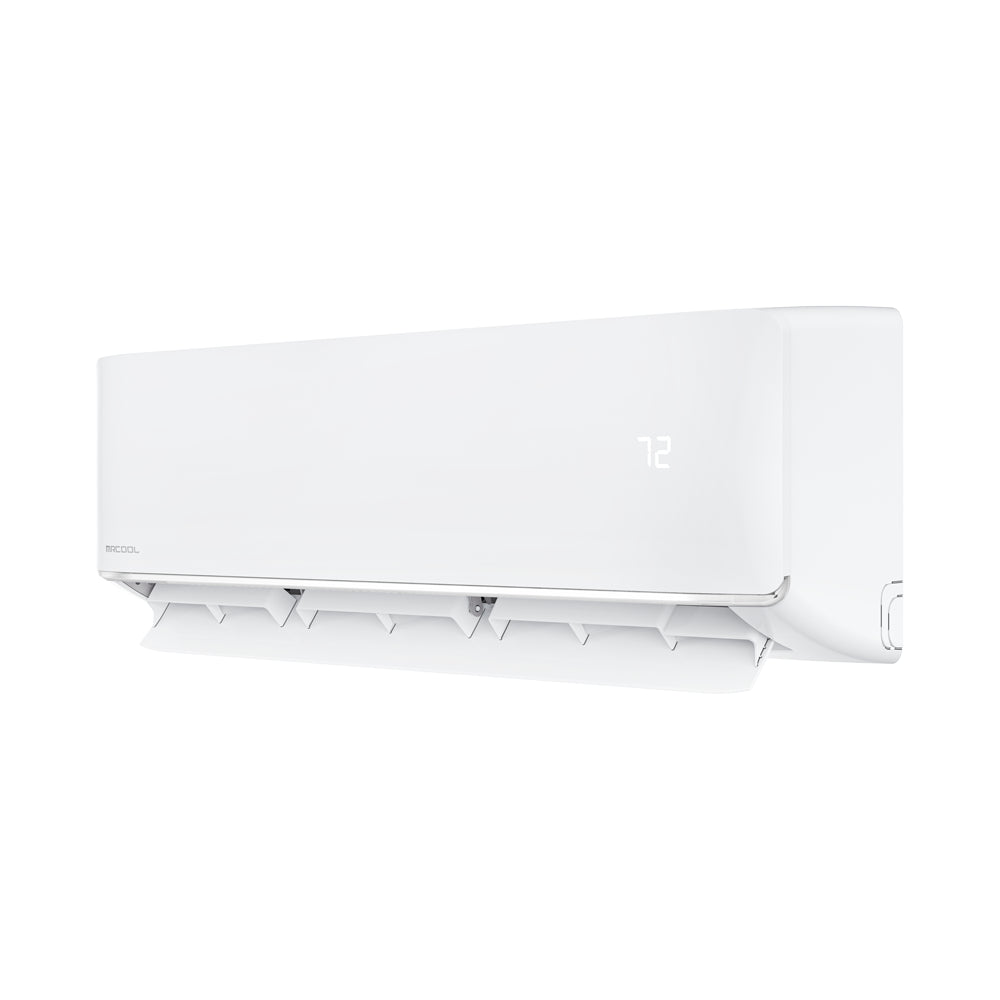

MRCOOL 5th Gen DIY 36k Single Zone Mini-split System 230v DIY-36-HP-WM-230D25-O air handler left

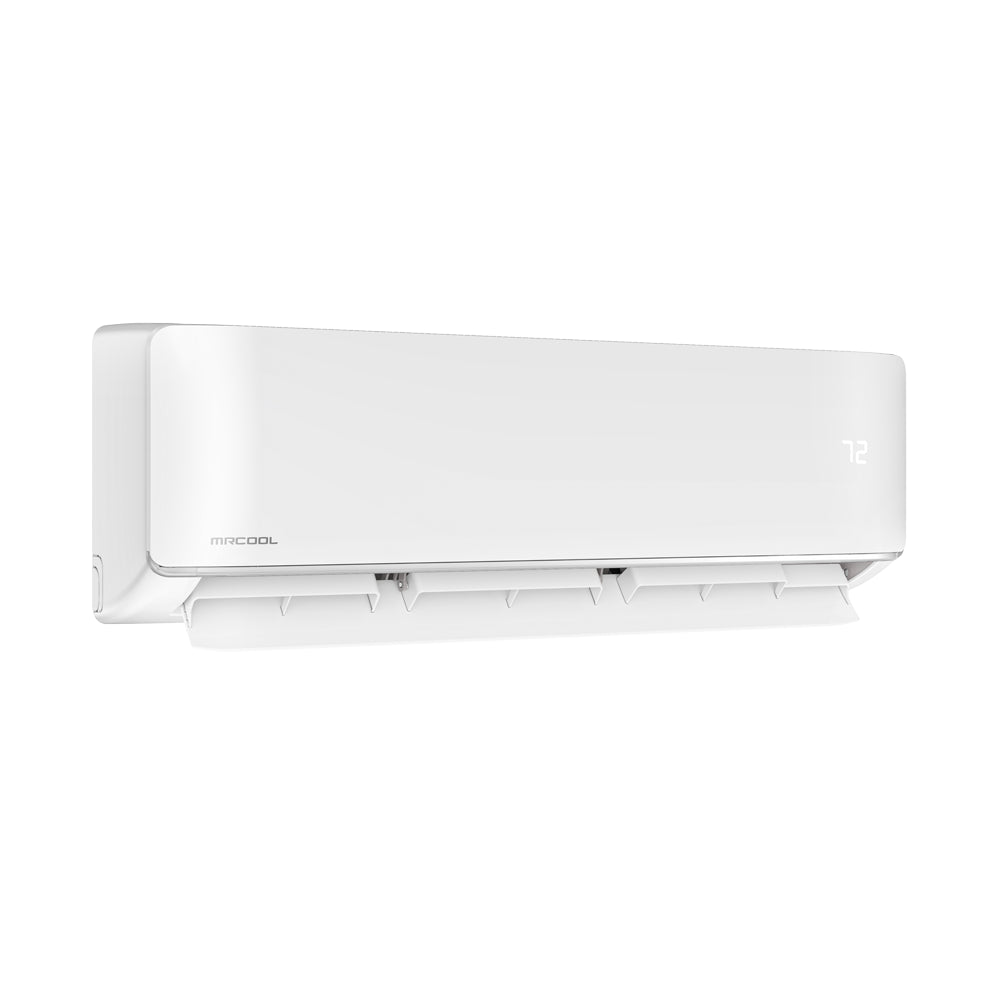

MRCOOL 5th Gen DIY 36k Single Zone Mini-split System 230v DIY-36-HP-WM-230D25-O air handler right angle

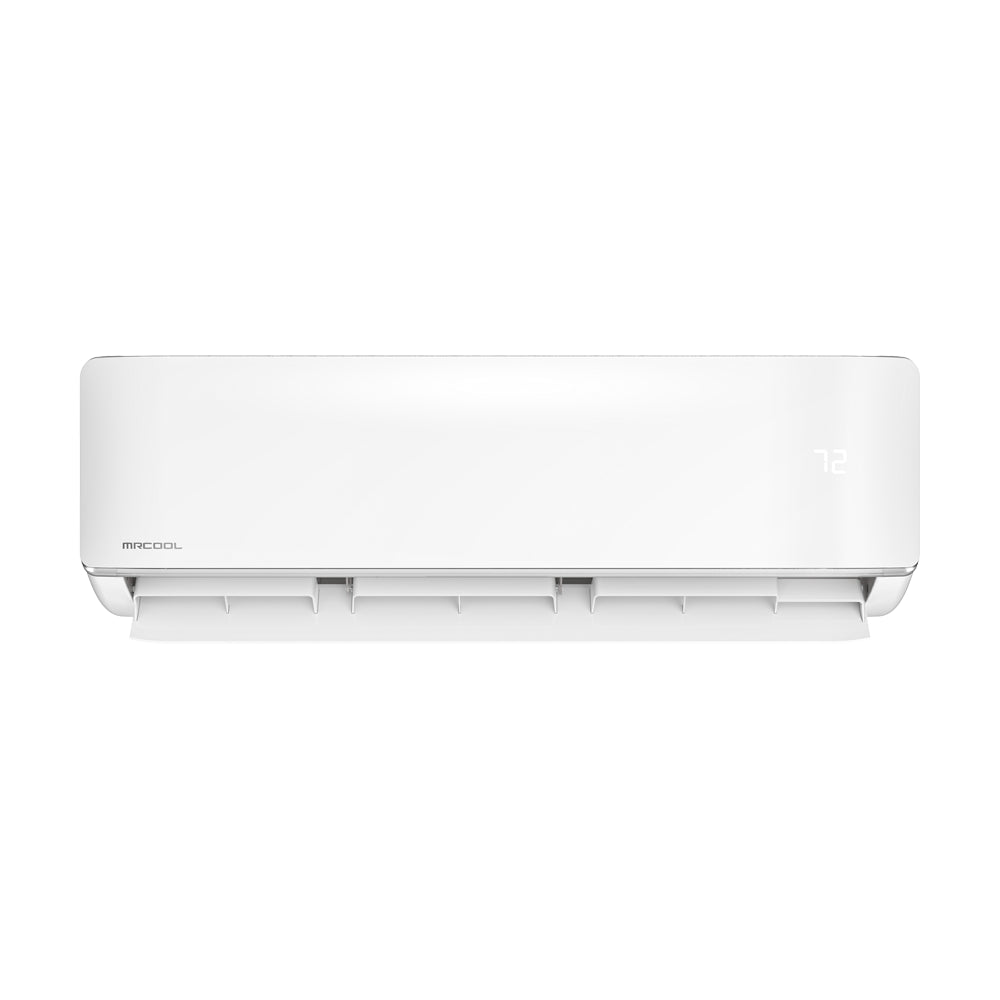

MRCOOL 5th Gen DIY 36k Single Zone Mini-split System 230v DIY-36-HP-WM-230D25-O air handler forward facing

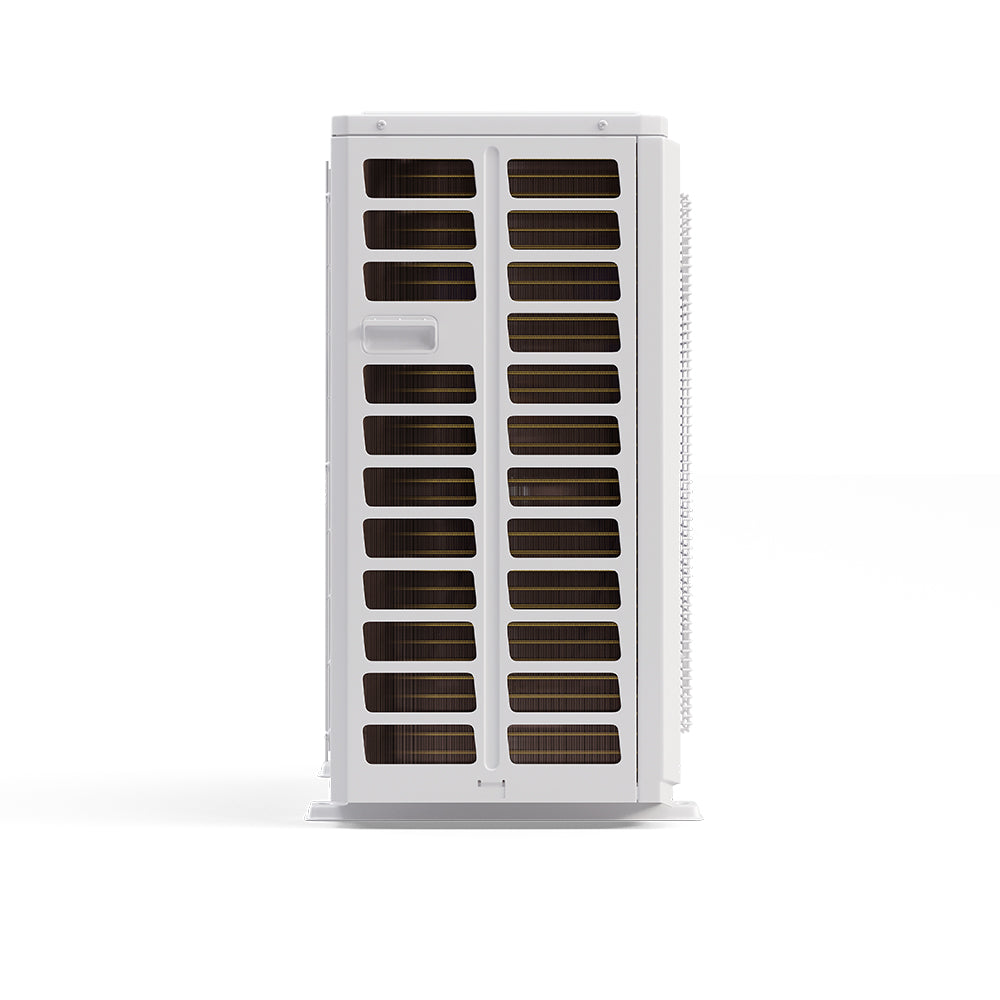

MRCOOL 5th Gen DIY 36k Single Zone Mini-split System 230v DIY-36-HP-WM-230D25-O condenser side view

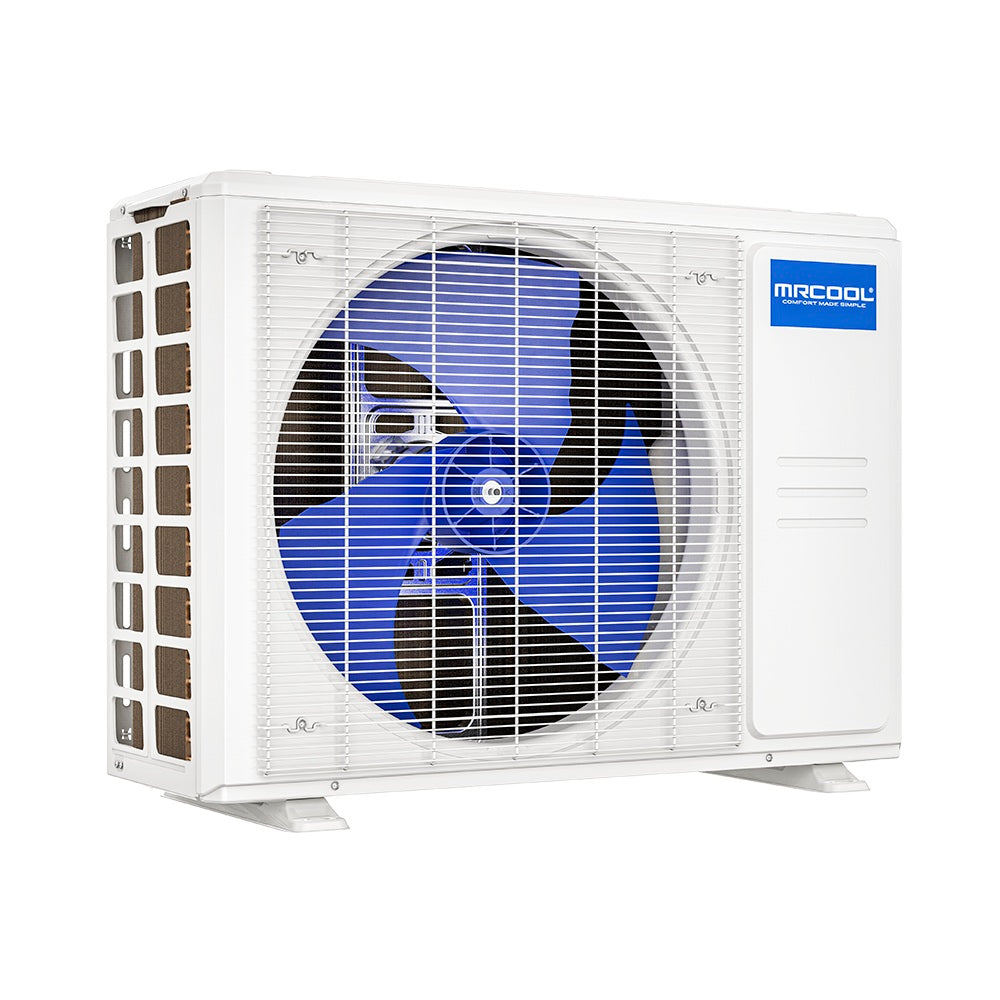

MRCOOL 5th Gen DIY 36k Single Zone Mini-split System 230v DIY-36-HP-WM-230D25-O condenser front angled view

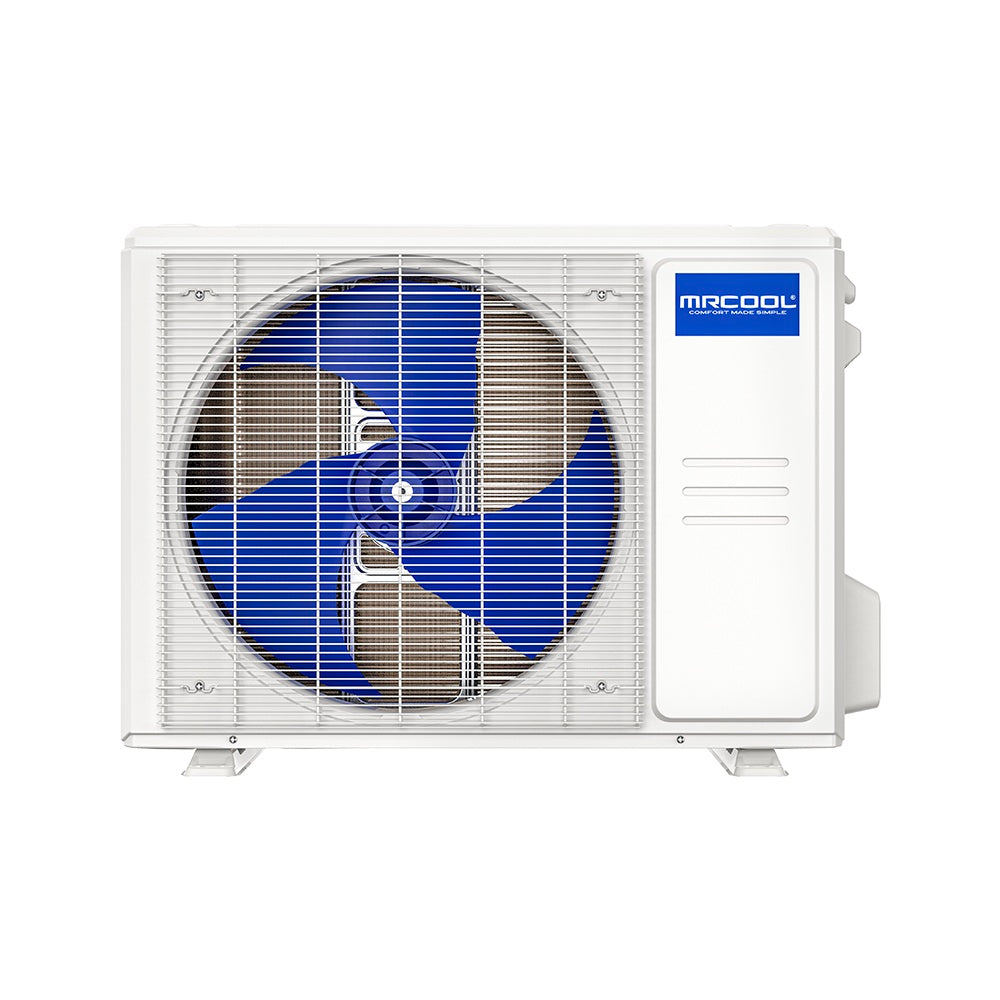

MRCOOL 5th Gen DIY 36k Single Zone Mini-split System 230v DIY-36-HP-WM-230D25-O condenser front view

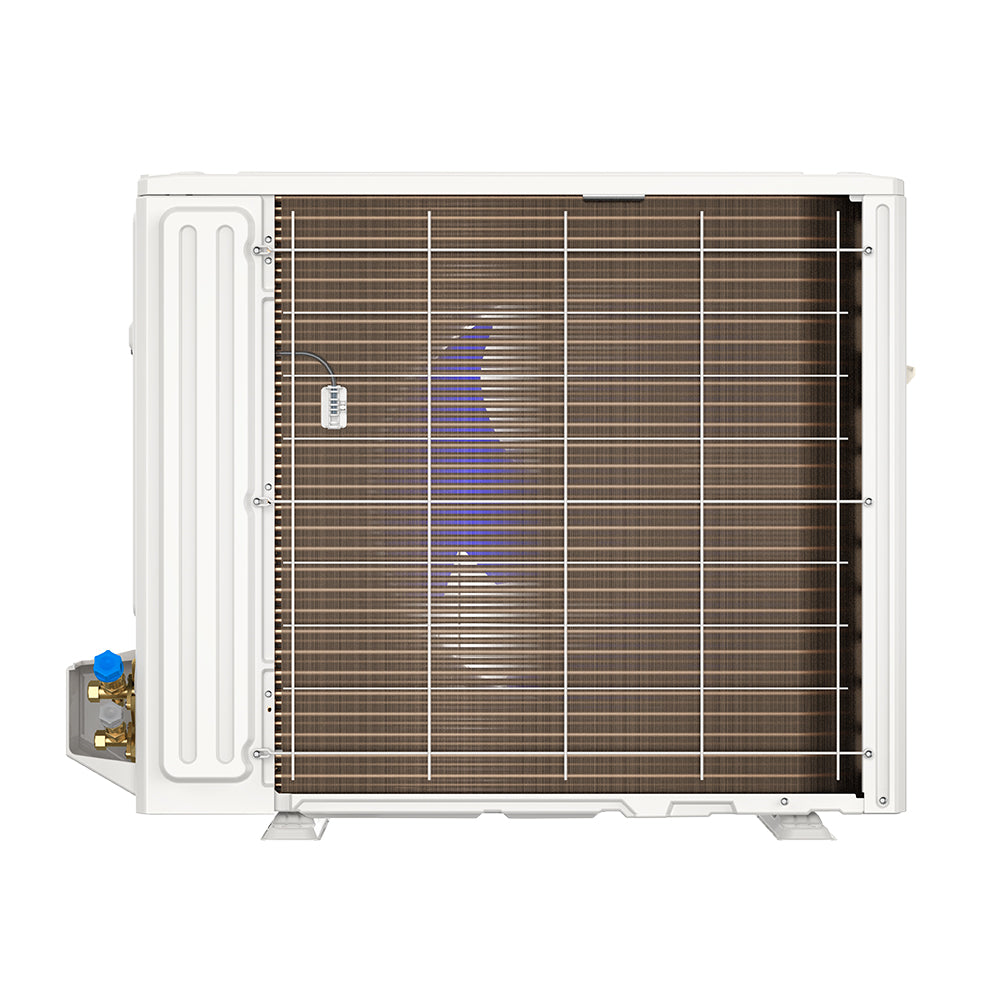

MRCOOL 5th Gen DIY 36k Single Zone Mini-split System 230v DIY-36-HP-WM-230D25-O back view

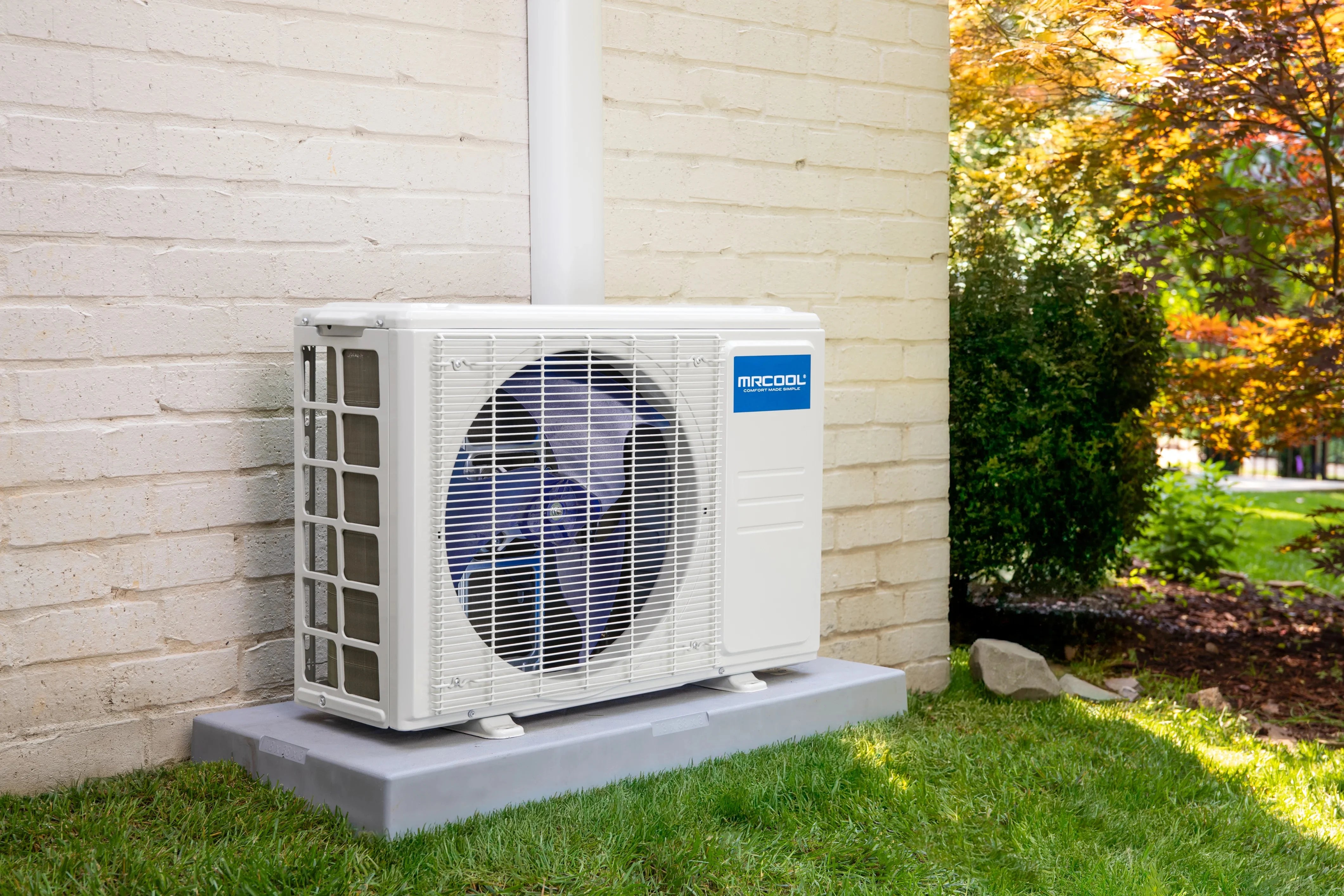

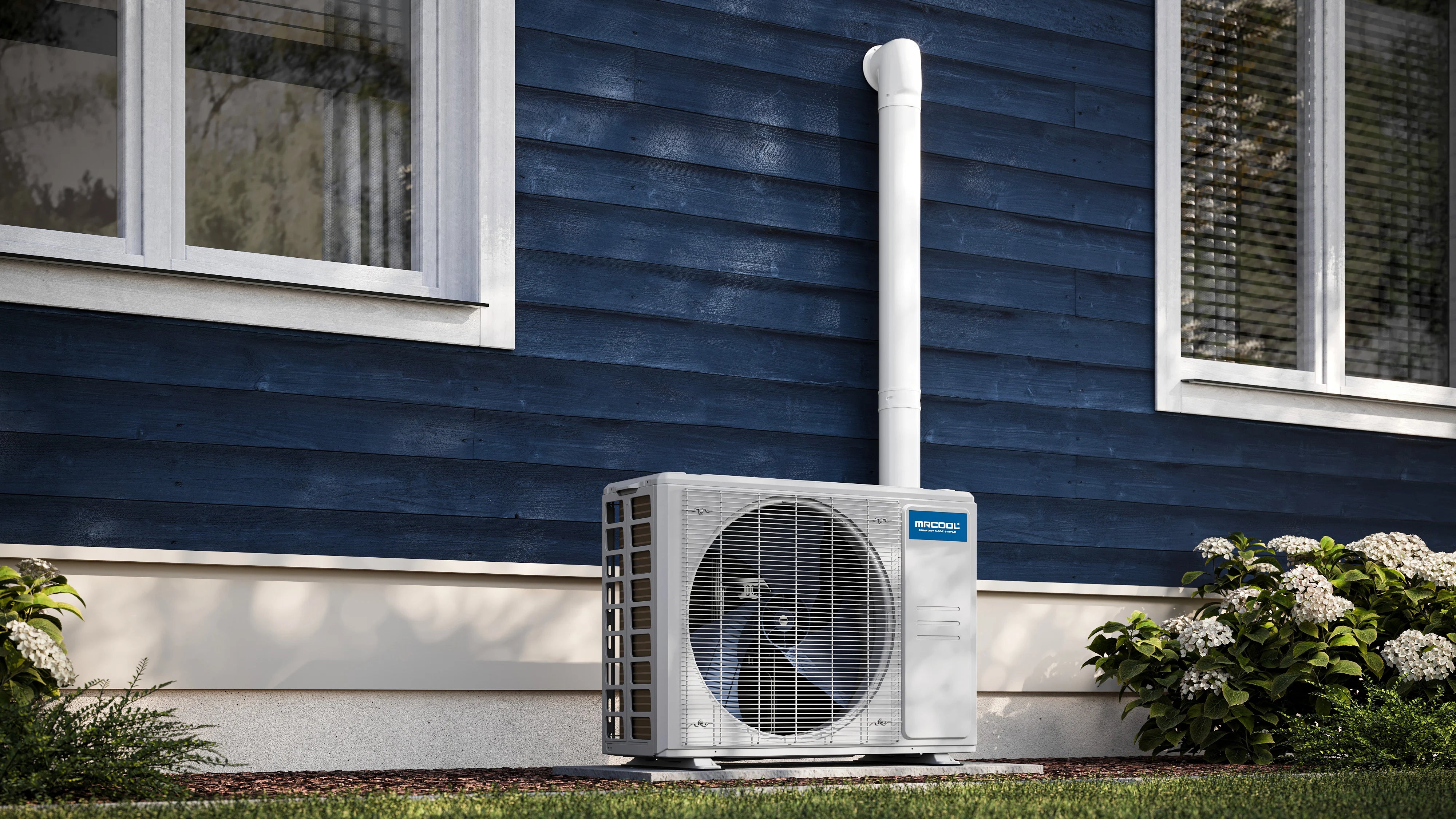

MRCOOL 5th Gen DIY 36k Single Zone Mini-split System 230v DIY-36-HP-WM-230D25-O condenser outdoor

Roll over image to zoom in Click on image to zoom

MRCOOL 5th Gen DIY 36k Single Zone Mini-split System 230v DIY-36-HP-WM-230D25-O

★★★★★

Iron Line Verified

Authorized Dealer: MRCOOL

Official Partner

IN STOCK & RECEIVE IN 2-7 DAYS

SKU: DIY-36-HP-WM-230D25-O

Mount Type: Wall Mount

Lineset Options: 16ft

Variant

Price:

$4,040.00

Quantity:

Financing as low as ~$67 / month (60 mo. terms) Estimate your payment

We pay your sales tax! (IL excluded) 📦 Order before 7 PM CST for same-day shipping.

Share this product

Section 179
Tax Savings

Save up to $848.40 on this equipment Estimate Your Tax Deduction

Calculate Savings →

Commercial Buyer?

Unlock volume pricing and dedicated facility support with Trade Accounts
(Requires minimum of 2+ items)

36K BTU (3-ton) single-zone mini-split, covers up to 1,550 sq ft
DIY install with no HVAC license needed, runs on 208-230V power
18 SEER2 efficiency, includes 25 ft Quick Connect lineset with DIYPro cable
Wi-Fi app control, Alexa/Google compatible
Gold Fin coated condenser for coastal/humid climates, 5-year parts/7-year compressor warranty

Order Placed

Ships Out

Delivered

*Please Note: This timeline is an estimate. Certain products may require an additional 1 week for manufacturing. Please speak with your sales rep, Matthew, for official details and confirmation before placing your order.

CALL US FOR THE MOST ACCURATE AND COMPETITIVE LTL SHIPPING RATE, (888) 308-5580

Get Questions Answered Fast

Experience: 20+ Years B2B • Origin: US-Based Support

EXPRESS SHIPPING

Most orders process in 1-3 days. Yes, even if it weights 400lb

Hassle-Free Returns

No restocking fees. Ever.

Manufacturer Warranty

Fully backed by the brands you trust.

Dedicated Rep Mathew

Speak to a US-Based Equipment Specialist: (888) 308-5580

Flexible Financing

Get Upto 60 Months Financing

3.0 Ton Capacity • 18 SEER2 Efficiency • Pre-Charged R-454B

MRCOOL® 5th Gen DIY® 36k Single Zone Mini-split System (230V) DIY-36-HP-WM-230D25-O

The 5th Generation MRCOOL® DIY® 36k BTU Ductless Mini-Split System is a high-capacity climate solution engineered for expansive spaces up to 1,550 sq. ft. Designed specifically for homeowners, this robust 3.0-ton system allows for a 100% do-it-yourself installation without the need for a certified HVAC technician or specialized vacuum equipment. Utilizing a pre-charged 25-foot Quick Connect® line set and the next-generation, eco-friendly R-454B refrigerant, this system delivers commercial-grade heating and cooling power. Complete with the rugged DIYPRO® cable to eliminate electrical conduit and a Gold Fin® anti-corrosive condenser, the 5th Gen DIY system provides unmatched reliability, out-of-the-box smart home connectivity, and a faster, safer path to total home comfort.

MRCOOL 5th Gen DIY 36K BTU System Applications

Primary heating and cooling for large open-concept living areas, great rooms, and expansive finished basements (Up to 1,550 sq. ft.).
High-capacity climate control for commercial spaces, massive workshops, or large outbuildings.
Coastal or high-humidity environments requiring the advanced corrosion resistance of the Gold Fin® condenser coating.
Modern smart homes needing out-of-the-box integration with Alexa, Google Assistant, or smartphone apps.

Technical Performance Specifications

System Capacity	36,000 BTU (3.0 Ton)	Voltage / Phase	208-230V / 1 Ph / 60Hz
SEER2 Efficiency	18.0	EER2 / HSPF2-4	8.5 / 8.5
Max Coverage Area	Up to 1,550 sq. ft.	Refrigerant Type	R-454B (Pre-Charged)
Liquid / Suction Line	3/8" - 5/8"	Sound Rating (IDU / ODU)	27.5-55.5 dBA / 60.5 dBA
MCA / Max Fuse	33A / 35A	Certifications	NEEP ccASHP, ETL, AHRI

Advanced System Features

Patented Quick Connect®: Simple, leak-proof 25-foot line set connections that completely eliminate the need for vacuuming or flaring.
DIYPRO® Cable Included: Future-proofs your investment by eliminating the need for traditional electrical conduit, while safeguarding against wildlife and weather.
SmartHVAC Integration: The MRCOOL® Smart HVAC Controller® module fully supports Google Assistant, Amazon Alexa, and the iOS/Android SmartHVAC app.
Follow Me® Technology: The wireless remote acts as a localized thermostat, tracking the air temperature directly around you to ensure hyper-accurate comfort.
Gold Fin® Protection: Anti-corrosive coating on the condenser ensures long-term performance and durability in harsh, coastal environments.

Downloads & Documentation

Condenser Documentation:

Air Handler Documentation:

The DIY Difference

The MRCOOL® 5th Generation system is more than just a mini-split; it’s a high-performance investment in your home that you can manage from start to finish. With an industry-leading 7-year compressor and 5-year parts warranty, along with eligibility for the MRCOOL® Care Program, you gain commercial-grade climate control with total peace of mind.

Experience professional-grade 36,000 BTU cooling and heating without the contractor markups. The 5th Gen MRCOOL DIY® System is built for efficiency, durability, and a hassle-free installation.

Key Information

Order Cutoff Time: 2:00 PM EST
Order Handling Time: 1–3 business days (Monday–Friday)
Transit Time: 1–7 business days (Monday–Friday)
Total Estimated Delivery Time: 3–11 business days (Monday–Friday)
Shipping Availability: Free Shipping On some Items In The Contiguous United States only

For more information Click Here

Request Expert Consultation

Our tool specialists are ready to help you find the perfect solution for your specific application.

CAPITAL ACCESS

EQUIPMENT FINANCING

AVAILABLE

Preserve cash flow with up to 60 month financing.

Job Site Proven

Trusted by Facilities and manufacturing centers

JLT #180A-M2 Pneumatic Panel Flattener Customer review image

Travis Farwell | Farwell's Fine Woodworking Field Verified

I hope this helps

"I have attached the pictures of how I use my panel flattener. I hope this helps."

JLT #180A-M2 Pneumatic Panel Flattener

Mike Yaross Field Verified

Just what I needed

"Saw works great. Just what I needed. You may want to update the specs though. It says 110v but it’s 220v. I don’t think it will an 10” saw blade either. Haven’t tried but I don’t think it’s set up for one like it says. Ordering process was nice and easy. Thank you."

Castaly 12" Radial Arm Saw RS-612

FRANCISCO, Shop Manager Field Verified

Built for 24/7 Production

"Got the JLT #717C for our shop and it’s an absolute beast for narrow stile doors. The 2-second squaring cycle is legit—we’re easily pushing 100+ perfect doors a day now without stressing over glue joint alignment. Setup is super fast with the pin system, and the heavy-duty build takes daily abuse without losing accuracy."

JLT #717C Cabinet Door Clamp

JLT Pressurized A8 Glue Tank for PVA Glue PIZ.9001 in shop

Lincoln Lakes Ind | Lincoln Lakes Industries LLC Field Verified

Thanks for the service!

"Here are 2 pictures of the glue tank in our shop. I hesitated to send anything as it is not in its final place but perhaps it's good enough for you. We are using it for our drawer box station and assembly station. Thanks for the service!"

JLT Pressurized A8 Glue Tank for PVA Glue PIZ.9001

Gedalya Glauber Field Verified

Purchased Machine for Partner

"I purchased this machine for our partner in China to use. We had some issues but we were able to get them fixed thanks to iron line tools."

Virutex CE53S Edge Lipping Planer for Perfect Flush Edges 5300199

Virutex TWOO AB200 Corded Dowel Jointer (120V) 7900799 vertical dowel joint cutting on panel surface ensuring precise alignment and repeatable results

David & Joyce West Field Verified

I know this will meet my requirements

"haven't had a chance to use it but it looks like a well built product have a few projects down the road and I know this will meet my requirements. so hats off to your team! David"

Virutex TWOO AB200 Corded Dowel Jointer (120V) 7900799

Virutex AU93 Double Edge Trimmer And Scraper + RC21E Manual End Trimmer SET 2800086 complete edge finishing tool set shown with dual edge trimmer and manual end trimmer.

Stuart Casterlin | Stuart Casterlin Custom Cabinets and Fine Woodworking, Inc. Field Verified

Both Tools Work Great

"Both tools work great and are real time savers . The two tools that I received from your company were replacements for the exact same tools that I've used for the past years, I think its safe to say 20+ years. Extremely pleased with product and service."

Virutex AU93 Double Edge Trimmer And Scraper + RC21E Manual End Trimmer SET 2800086

Bradley Cole, CB Anderson Shutter Co Field Verified

They are just what we needed

"We use these clamps daily, and they're very helpful for our work. We are always happy to support a small business."

JLT #812B Clamp Design

California Air Tools 10020DCAD-22060 2.0 Hp Ultra Quiet Oil-Free 10 Gallon Air Compressor angled view with dual piston pump

Mike T., Shop Manager Field Verified

Quiet, Fast, and Totally Worth It

"Bought this California Air Tools compressor for the shop and it’s an absolute game changer. It’s incredibly quiet—you can actually have a normal conversation right next to it without yelling. It fills up fast, keeps up with all our nailers and blowguns with zero issues, and the oil-free pump means no maintenance. If you're tired of loud, annoying compressors ruining the vibe on your floor, grab this bad boy. Worth every penny."

Jet 16" x 40" Engine Lathe: Geared Head, 230 V 3 Phase, 3-1/8" Spindle Bore Dia, 25 to 1,800 RPM JT9-321381

Mark D. | Machine Shop Foreman Field Verified

Heavy Duty & Precise

"Brought this Jet 16" x 40" Engine Lathe into the shop recently and it’s an absolute beast. The 3-1/8" spindle bore is exactly what we needed for turning larger bar stock, and the geared head runs incredibly smooth from 25 all the way up to 1,800 RPM. It handles our heavy daily metalwork without breaking a sweat, and you can see how solid the build is right in the photo. If you need a reliable 3-phase lathe that holds tight tolerances all day, grab this bad boy. Worth every penny."

Jet Tools Lathe

Euroboor TCT 1" Depth Annular Cutter tungsten carbide tipped annular cutter designed for high-performance drilling in hard steel and abrasive materials.

LEKS KAMIHIRA Field Verified

Yep we got the cutter

"Yep we got the cutter. We haven’t used it, the project we purchased it for has ended. Shipping was fast and I had no issues getting my order"

Euroboor TCT 1" Depth Annular Cutter

Virutex Hand-Held Hot Air Edgebander Set AG52F AG98F AU93 RC21E 5200199 showing complete kit with edgebander, tape roll holder, and accessories

Jesse Pegorsch Field Verified

The edge bender is working great!

"The edge bender is working great! I’ll keep you in mind next time I need something for my shop"

Virutex Hand-Held Hot Air Edgebander Set AG52F: AG98F + AU93 + RC21E 5200199

Virutex Wheel Cutter Set of 2 Wheel Cutters for Laminate and Veneer 1527075 in retail packaging showing replacement cutting wheels

Bryce Bamsey Field Verified

Thanks for checking in.

"I believe they are working well judging by none of the guys have said anything about them other than a thank you for swapping them out for them hahah. So thanks for checking in."

Virutex Wheel Cutter Set Of 2 Wheel Cutters For Laminate And Veneer 1527075

Jesse Browning Field Verified

Figured it out

"I had issues initially with the order but iron line tools helped me figure it out and sent me another Handheld Gluer. Very good service."

Virutex EM125T Handheld Gluer With Upper Roller 2500300

Frequently Asked Questions

The MRCOOL 5th Gen DIY 36K (3.0 ton) is rated for spaces up to 1,550 sq. ft., such as large open-concept living areas, finished basements, and big workshops.

Lifespan depends on use and maintenance. This system has a Gold Fin anti-corrosion condenser coating and a 7-year compressor and 5-year parts warranty.

It runs on 208-230V, single-phase, 60Hz power, with a 33A minimum circuit ampacity and 35A maximum fuse.

Yes. It includes a pre-charged 25-foot Quick Connect lineset (3/8" x 5/8") and a DIYPRO cable, so no vacuuming, flaring, or electrical conduit is needed.

It is rated at 18.0 SEER2 and 8.5 EER2/HSPF2. The indoor unit runs at 27.5-55.5 dBA and the outdoor unit at 60.5 dBA.

Yes. The Smart HVAC Controller module works with the SmartHVAC app for iOS and Android, Amazon Alexa, and Google Assistant, and the remote's Follow Me feature senses the temperature where you are.
