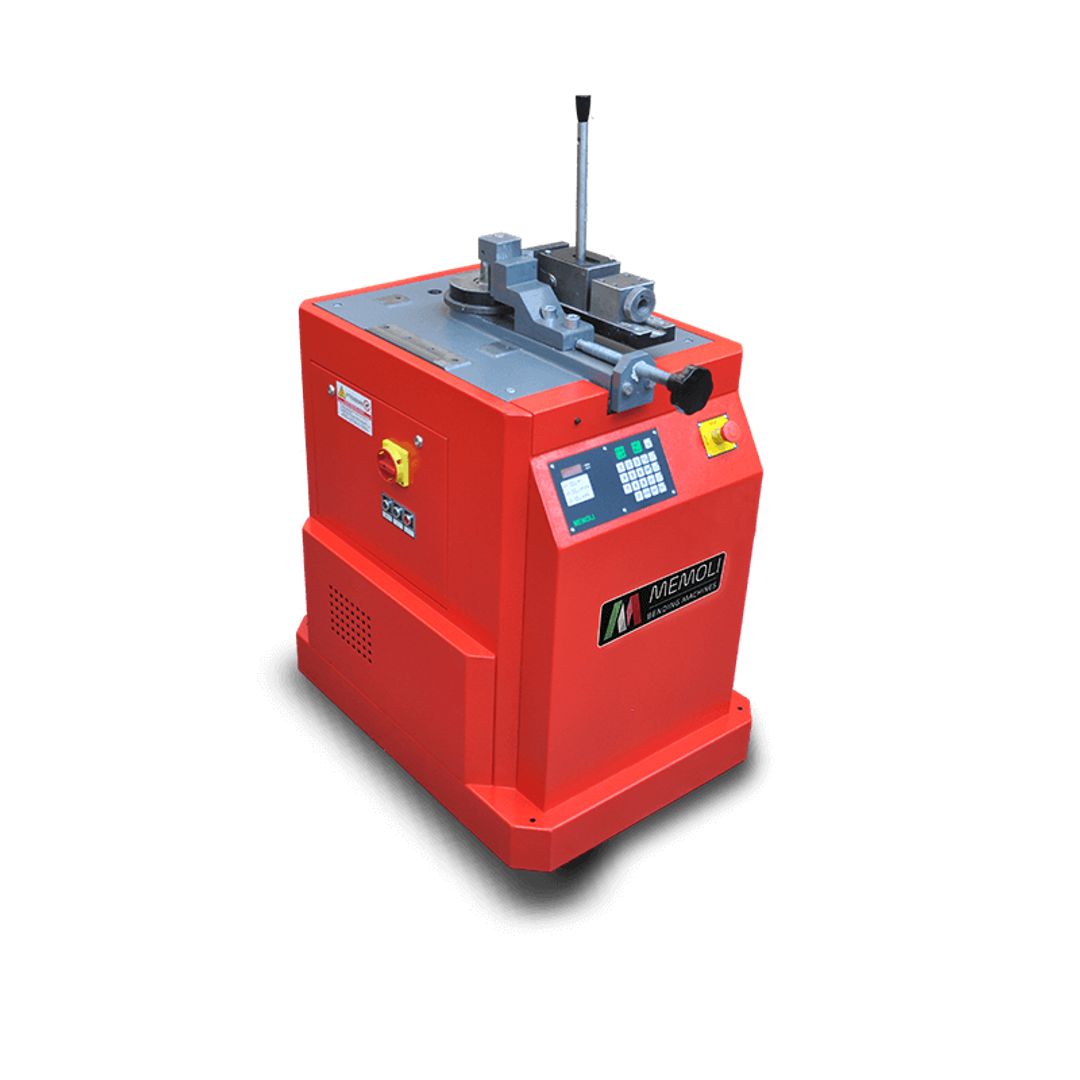

Memoli Eurekamatic Highlights
- 4 operations in one machine: curve bending, angle-bending, tube bending with or without mandrel, and scroll-bending.
- Digital control: display with tactile keypad and 45 programmable bend angles, manual or semi-automatic modes.
- Oil-bath cooled gearing: for continuous-duty production work.
- Bends past 180°: optional pneumatic or hydraulic clamping vice.
- Broad material range: handles ferrous and non-ferrous metals, including high-temperature alloys.
- Monolithic cast-iron construction: built for cold-working applications.
Memoli Eurekamatic Specifications
| Brand | Memoli |
|---|---|
| Model | Eurekamatic (E-Matic CE/CN) |
| Motor Power | 4 kW |
| Rotation Speed | 7-14 rpm |
| Weight | 280 kg (approx. 617 lbs) |
| Dimensions (L x W x H) | 850 x 620 x 980 mm |
| Max Solid Round (AB-PF / AB-CF tooling) | Ø25 mm |
| Max Solid Square (AB-PF / AB-CF tooling) | 22 mm |
| Max Flat Stock (AB-PF tooling) | 100 x 10 mm |
| Max Flat Stock (AB-CF tooling) | 50 x 15 mm |
| Max Pipe, No Mandrel (AB-CTA tooling) | Ø40 x 2 mm |
| Max Pipe, With Mandrel (AB-CTA tooling) | Ø30 x 2 mm |
| Max Round / Square / Flat (CS tooling) | Ø12 mm / 12 mm / 30 x 12 mm |
| Bend Radius | Up to 15" |
| Control | Digital display with tactile keypad, 45 programmable bend angles |
| Construction | Monolithic cast iron |
Note: Carell Corporation markets this Memoli-built machine in North America as the E-Matic CE/CN — "5 machines in one," with a 4.5 HP motor and oil-bath reducer per Carell's own catalog. Specs above are Memoli's own published figures for the Eurekamatic, its more completely documented native model; tooling (scrolling, bar folding, circle/curve, tube bending, custom accessories) is sold separately.
