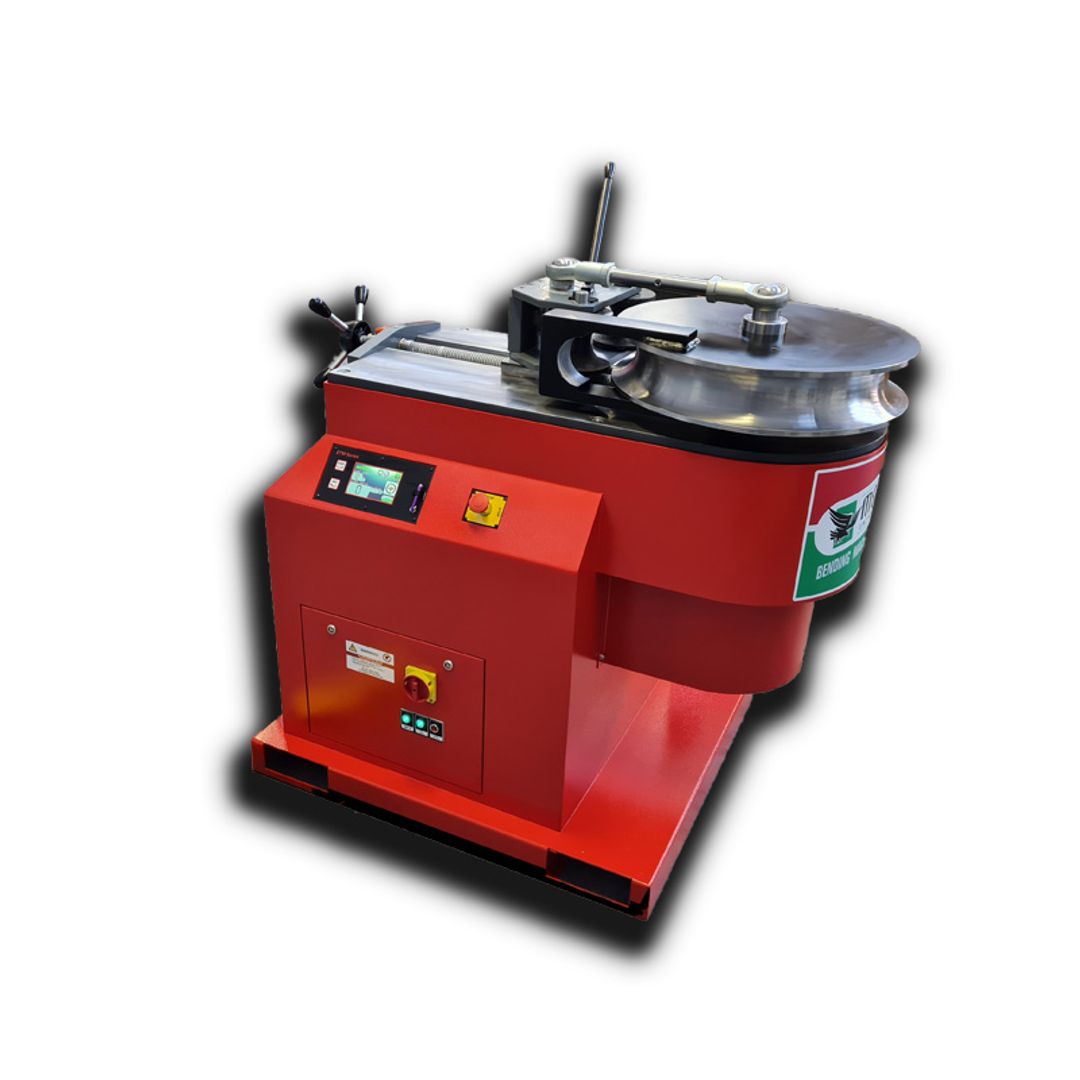

Memoli ETM90 Highlights
- Rotary-draw, mandrelless bending: single-piece steel-block monolithic construction with solid C45 steel dies and tooling.
- Digital Bend Programming Touch Screen 2: 49 programs x 8 bend-angle stops each, with automatic springback compensation.
- Smart production tools: built-in capacity calculator, bend counter, and maintenance alerts.
- Industry 4.0 ready: remote connectivity for monitoring and diagnostics.
- Counter-die system: reduces bending force and speeds up cycle time.
- Bidirectional tooling: left/right bending with an optional hydraulic vice and positioner.
Memoli ETM90 Specifications
| Brand | Memoli |
|---|---|
| Model | ETM90 |
| Motor Power | 2.2 kW |
| Rotation Speed | 3 rpm |
| Weight | 800 kg (approx. 1,764 lbs) |
| Dimensions (L x W x H) | 1300 x 870 x 1250 mm |
| Tube Capacity (S235 steel) | 90 x 6 mm |
| Tube Capacity (Aluminium) | 90 x 10 mm |
| Tube Capacity (INOX AISI304) | 90 x 4 mm |
| Solid Round Bar (S235) | Ø65 mm |
| Square Tube | 80 x 4 mm |
| US Pipe Capacity (Sch.40) | 3" |
| US Round Tube Capacity | 3.5" OD x 0.16" wall |
| US Round Bar Capacity | 2" |
| US Square Tube Capacity | 2-1/2" x 2-1/2" x .25" wall |
| Bending Radius Range | 2.5" - 19" |
| Control | Digital Bend Programming Touch Screen 2 |
| Construction | Monolithic steel block, C45 steel dies/tooling |
Note: Metric mechanical specs and tooling capacities above are Memoli's own published figures for the ETM90; the US pipe/tube/bar/square-tube capacities and bending-radius range reflect Carell Corporation's North American tooling configuration for this same Memoli-built machine, which used-equipment listings have also directly branded "Carell Memoli ETM 90."
