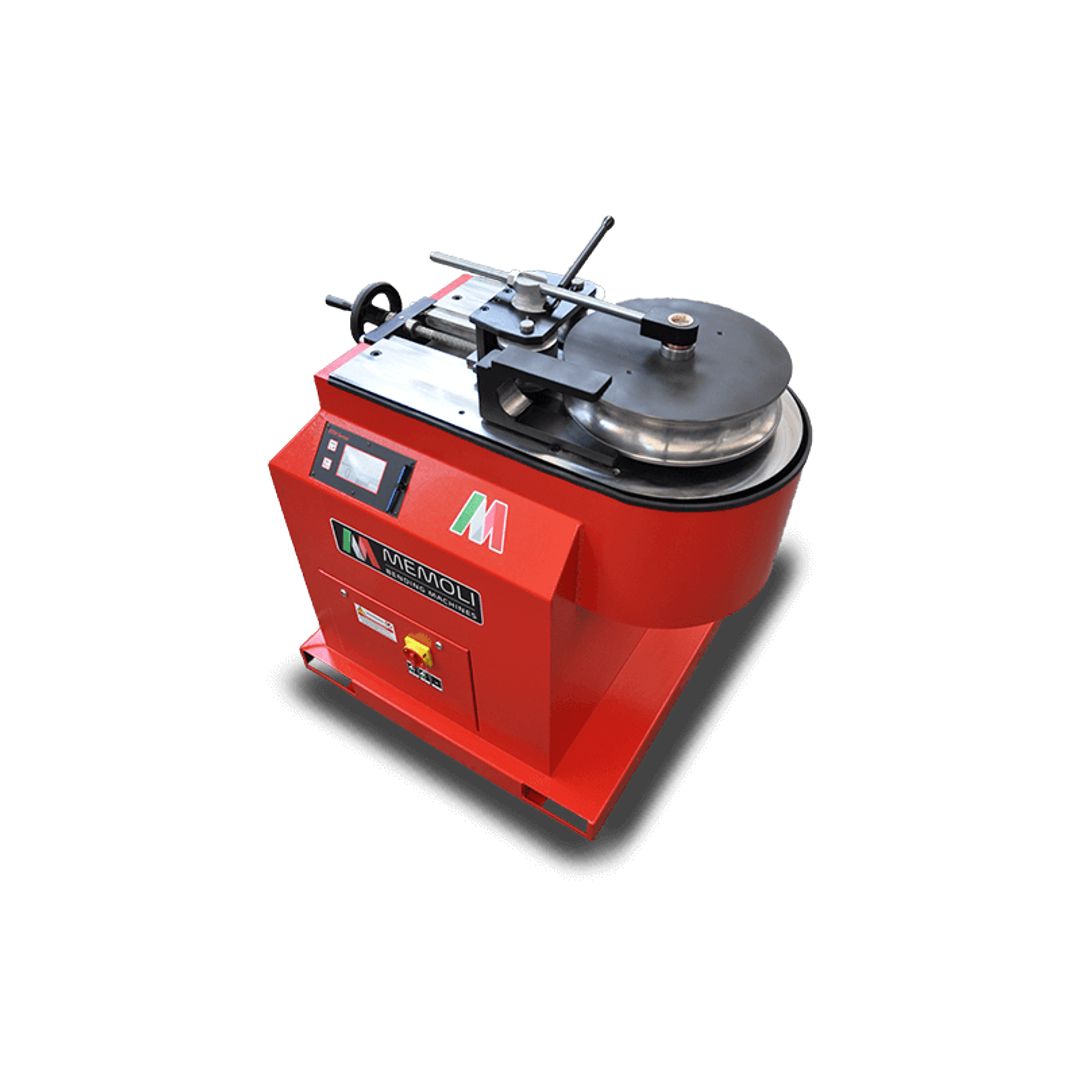

Memoli ETM80 Highlights
- Rotary-draw, mandrelless bending: single-piece steel-block monolithic construction with solid C45 steel dies and tooling.
- Digital Bend Programming Touch Screen 2: 49 programs x 8 bend-angle stops each, with automatic springback compensation.
- Smart production tools: built-in capacity calculator, bend counter, and maintenance alerts.
- Industry 4.0 ready: remote connectivity for monitoring and diagnostics.
- Counter-die system: reduces bending force and speeds up cycle time.
- Bidirectional tooling: left/right bending with an optional hydraulic vice and positioner.
Memoli ETM80 Specifications
| Brand | Memoli |
|---|---|
| Model | ETM80 |
| Motor Power | 2.2 kW |
| Rotation Speed | 3.5 rpm |
| Weight | 560 kg (approx. 1,235 lbs) |
| Dimensions (L x W x H) | 1100 x 810 x 1200 mm |
| Tube Capacity (S235 steel) | 76 x 6 mm |
| Tube Capacity (Aluminium) | 76 x 8 mm |
| Tube Capacity (INOX AISI304) | 76 x 4 mm |
| Solid Round Bar (S235) | Ø55 mm |
| Square Tube | 60 x 4 mm |
| US Pipe Capacity (Sch.40) | 2-1/2" |
| US Round Tube Capacity | 3" OD x 0.125" wall |
| US Round Bar Capacity | 1-7/8" |
| US Square Tube Capacity | 2-1/4" x 2-1/4" x .120" wall |
| Bending Radius Range | 1/2" - 16" |
| Control | Digital Bend Programming Touch Screen 2 |
| Construction | Monolithic steel block, C45 steel dies/tooling |
Note: Metric mechanical specs and tooling capacities above are Memoli's own published figures for the ETM80; the US pipe/tube/bar/square-tube capacities and bending-radius range reflect Carell Corporation's North American tooling configuration for this same Memoli-built machine (sold through Carell as part of the ETM Series).
