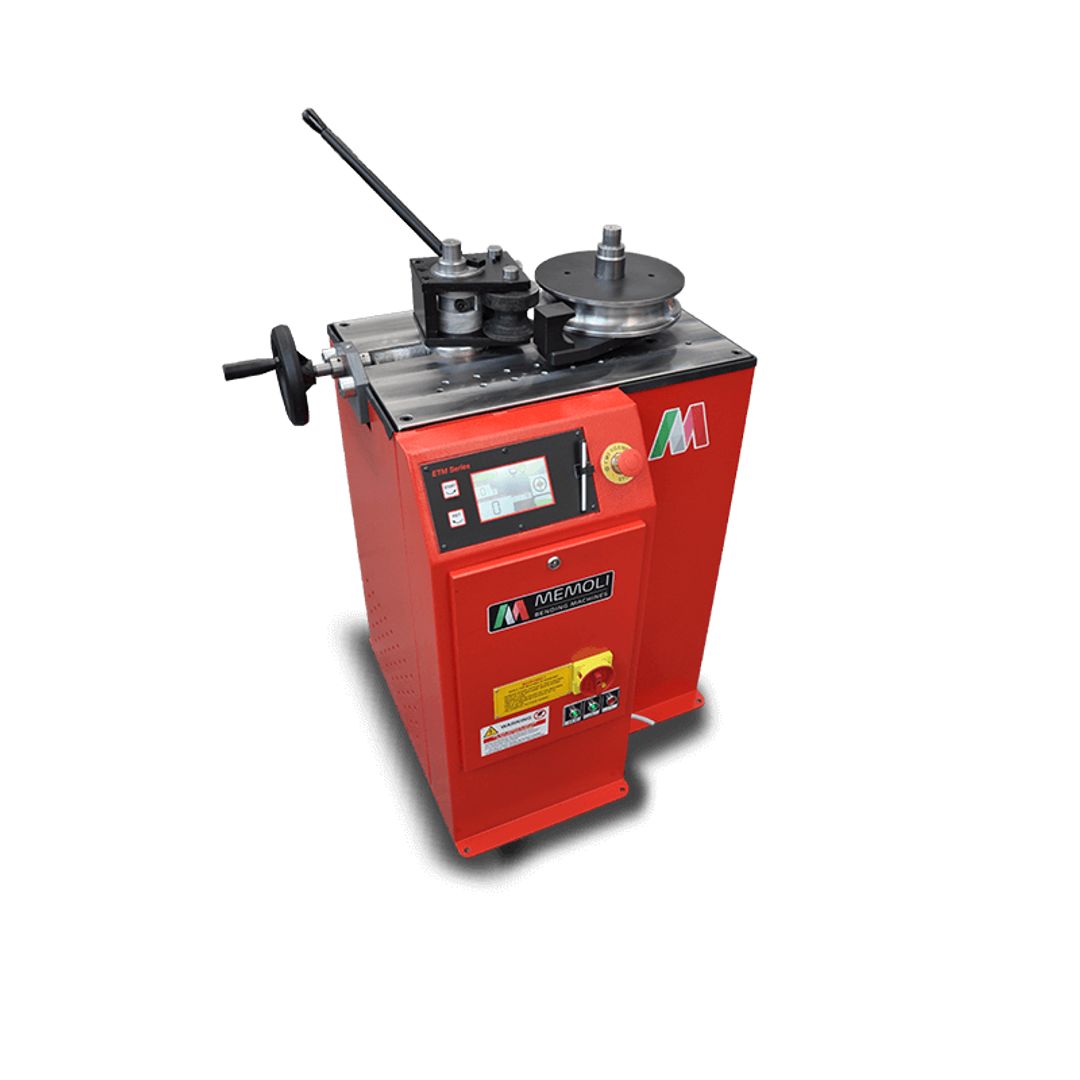

Memoli ETM60 Highlights
- Rotary-draw, mandrelless bending: single-piece steel-block monolithic construction with solid C45 steel dies and tooling.
- Digital Bend Programming Touch Screen 2: 49 programs x 8 bend-angle stops each, with automatic springback compensation.
- Smart production tools: built-in capacity calculator, bend counter, and maintenance alerts.
- Industry 4.0 ready: remote connectivity for monitoring and diagnostics.
- Counter-die system: reduces bending force and speeds up cycle time.
- Bidirectional tooling: left/right bending with a minimum bend radius of roughly 3x tube diameter.
Memoli ETM60 Specifications
| Brand | Memoli |
|---|---|
| Model | ETM60 |
| Motor Power | 2 kW |
| Rotation Speed | 6 rpm |
| Weight | 210 kg (approx. 463 lbs) |
| Dimensions (L x W x H) | 600 x 500 x 950 mm |
| Tube Capacity (S235 steel) | 60 x 4 mm |
| Tube Capacity (Aluminium) | 60 x 8 mm |
| Tube Capacity (INOX AISI304) | 60 x 3 mm |
| Solid Round Bar (S235) | Ø45 mm |
| Square Tube | 50 x 3 mm |
| US Pipe Capacity (Sch.40) | 1-1/2" |
| US Round Tube Capacity | 2.25" OD x 0.135" wall |
| US Round Bar Capacity | 1.25" |
| US Square Tube Capacity | 1.25" |
| Bending Radius Range | 2" - 10" |
| Control | Digital Bend Programming Touch Screen 2 |
| Construction | Monolithic steel block, C45 steel dies/tooling |
Note: Metric mechanical specs and tooling capacities above are Memoli's own published figures for the ETM60; the US pipe/tube/bar/square-tube capacities and bending-radius range reflect Carell Corporation's North American tooling configuration for this same Memoli-built machine (sold through Carell as part of the ETM Series).
