Frequently Asked Questions

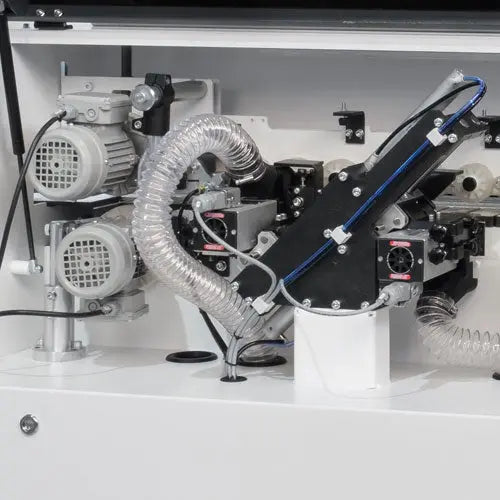

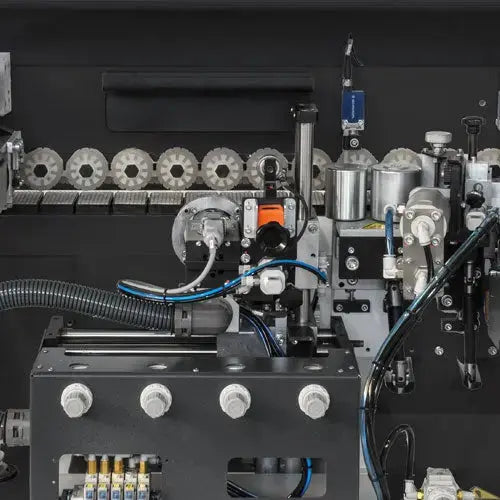

The pre-milling unit uses two diamond cutters rotating in opposite directions to shave a small amount of material (usually 0.5mm to 2.0mm) off the edge of the panel. This removes "step marks" from the saw blade and eliminates any swelling from humidity, ensuring a zero-joint appearance.
The CBC.TPM is designed to work with edgebanding thickness ranging from 0.4mm to 3mm. Note: When using 3mm PVC, ensure the machine's temperature and pressure rollers are adjusted to account for the increased stiffness of the material.

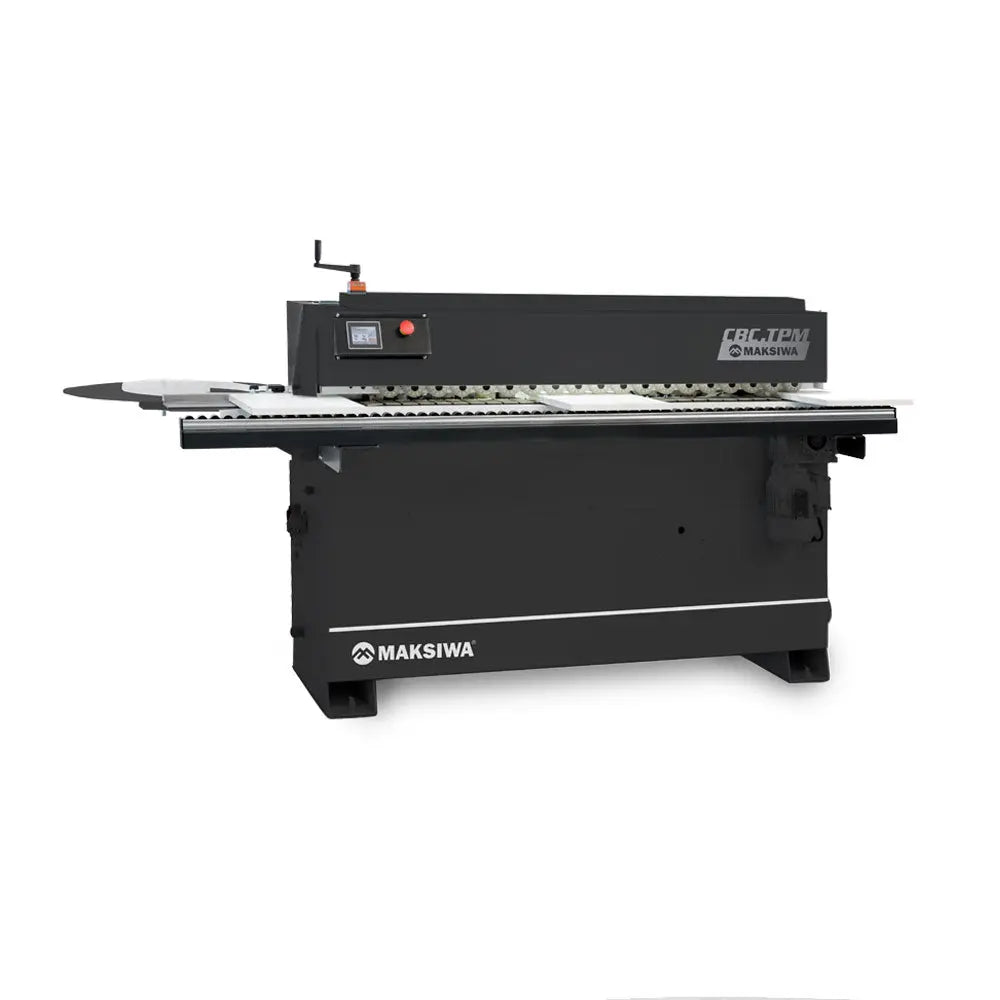

No. The CBC.TPM is a stationary, straight-line edgebander. It is designed for rectangular panels. For curved work, you would require a manual contour edgebander like the Maksiwa CBC.E.
Most versions of the CBC.TPM require a 220V, Single Phase connection. Because it houses heaters, motors for the cutters, and a conveyor system, it is essential to have a dedicated circuit to prevent breakers from tripping during the initial heat-up phase.
On average, the glue pot takes 15 to 20 minutes to reach the standard working temperature (usually set between 180°C and 210°C, depending on the glue type).

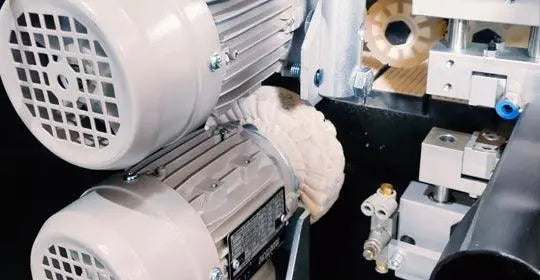

The machine performs a complete sequence after the tape is applied: End Trimming: Cuts the excess tape at the front and back of the panel. Top and Bottom Trimming: Flushes the tape to the panel faces. Scraping: Removes any "chatter" marks from the trimmers. Buffing: Polishes the edge for a smooth, finished look.
Recently viewed
Frequently Asked Questions for Maksiwa
The pre-milling unit uses two diamond cutters rotating in opposite directions to shave a small amount of material (usually 0.5mm to 2.0mm) off the edge of the panel. This removes "step marks" from the saw blade and eliminates any swelling from humidity, ensuring a zero-joint appearance.
The CBC.TPM is designed to work with edgebanding thickness ranging from 0.4mm to 3mm. Note: When using 3mm PVC, ensure the machine's temperature and pressure rollers are adjusted to account for the increased stiffness of the material.
No. The CBC.TPM is a stationary, straight-line edgebander. It is designed for rectangular panels. For curved work, you would require a manual contour edgebander like the Maksiwa CBC.E.
Most versions of the CBC.TPM require a 220V, Single Phase connection. Because it houses heaters, motors for the cutters, and a conveyor system, it is essential to have a dedicated circuit to prevent breakers from tripping during the initial heat-up phase.
On average, the glue pot takes 15 to 20 minutes to reach the standard working temperature (usually set between 180°C and 210°C, depending on the glue type).
The machine performs a complete sequence after the tape is applied: End Trimming: Cuts the excess tape at the front and back of the panel. Top and Bottom Trimming: Flushes the tape to the panel faces. Scraping: Removes any "chatter" marks from the trimmers. Buffing: Polishes the edge for a smooth, finished look.
