Maksiwa CY/3.C Cyclone Dust Collector
The Maksiwa CY/3.C Cyclone Dust Collector is made for high-production cabinet and millwork shops that need strong pickup, cleaner air, and a system that’s easy to live with every day. Powered by a 3HP motor on 1 Phase 220V (15A), it delivers up to 1,941 CFM airflow—enough headroom to manage dust from up to three machines at once.
Why the Maksiwa CY/3.C Cyclone Dust Collector works so well in production shops
-
1,941 CFM airflow to keep chips moving (not piling up)
In busy shops, suction isn’t “nice to have”—it’s how you keep machines running clean. The Maksiwa CY/3.C Cyclone Dust Collector is rated at 1,941 CFM, giving you the airflow headroom needed to reduce clogs, prevent dust buildup at ports, and keep pickup consistent through the day.
-

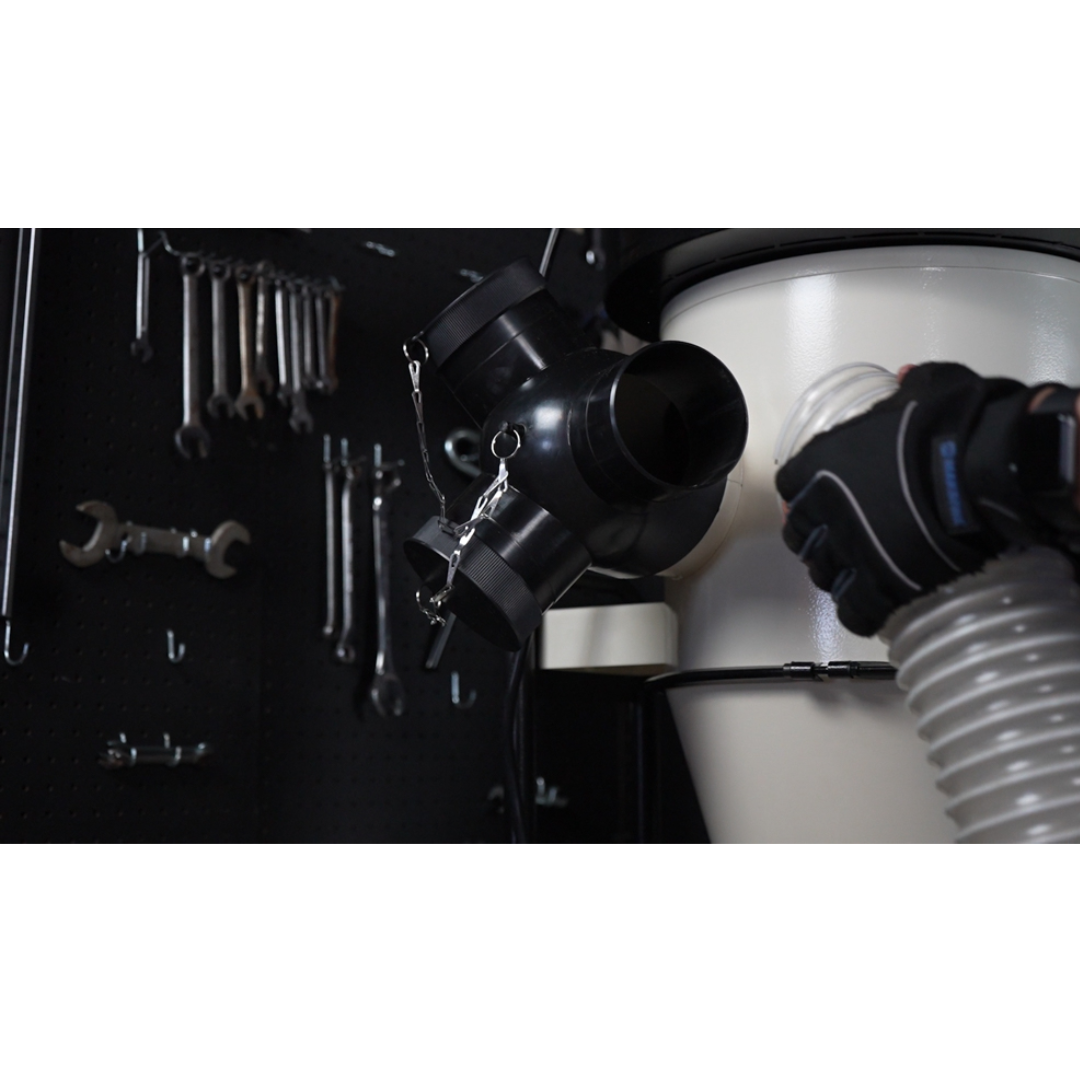

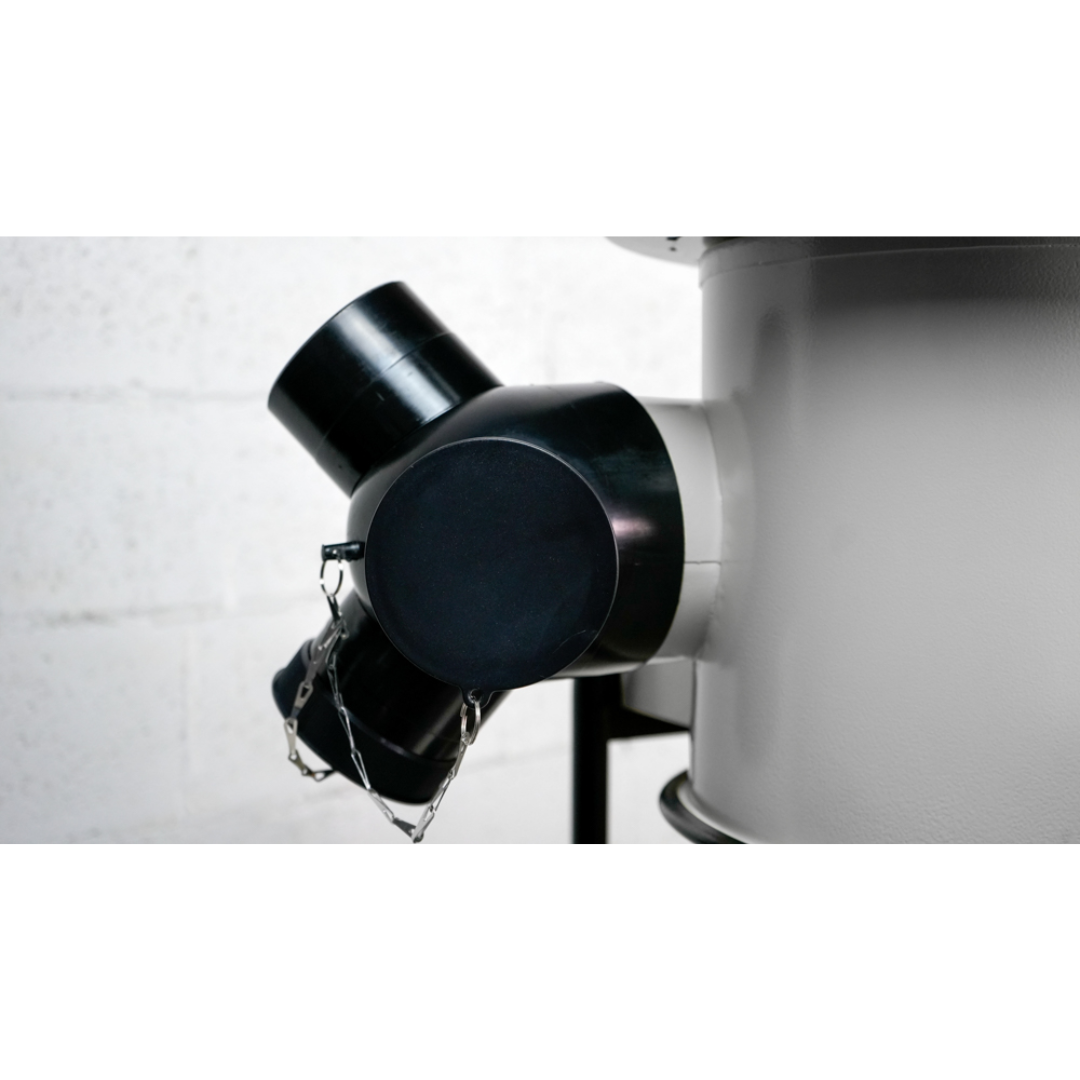

3 × 4" inlets so up to three machines can stay connected
The Maksiwa CY/3.C Cyclone Dust Collector includes three 4" ports to support multi-station layouts. That means less hose swapping, less “stop-and-change” time, and a workflow that feels smoother—especially when one operator bounces between machines.
-
1 micron cartridge filtration to capture fine dust from sheet goods
MDF, plywood, and melamine don’t just create chips—they create fine dust that hangs in the air and settles on finished work. The 1 micron cartridge on the Maksiwa CY/3.C Cyclone Dust Collector is designed to capture smaller particles for a cleaner work zone and less dust on everything else in the shop.
-
Cyclone separation first, so the filter stays cleaner longer
The cyclone creates a vortex that drops heavier chips and dust into the drum before the fine dust ever reaches the filter. That’s the whole point: better separation, less filter loading, and more consistent suction when your shop is cutting all day.
-

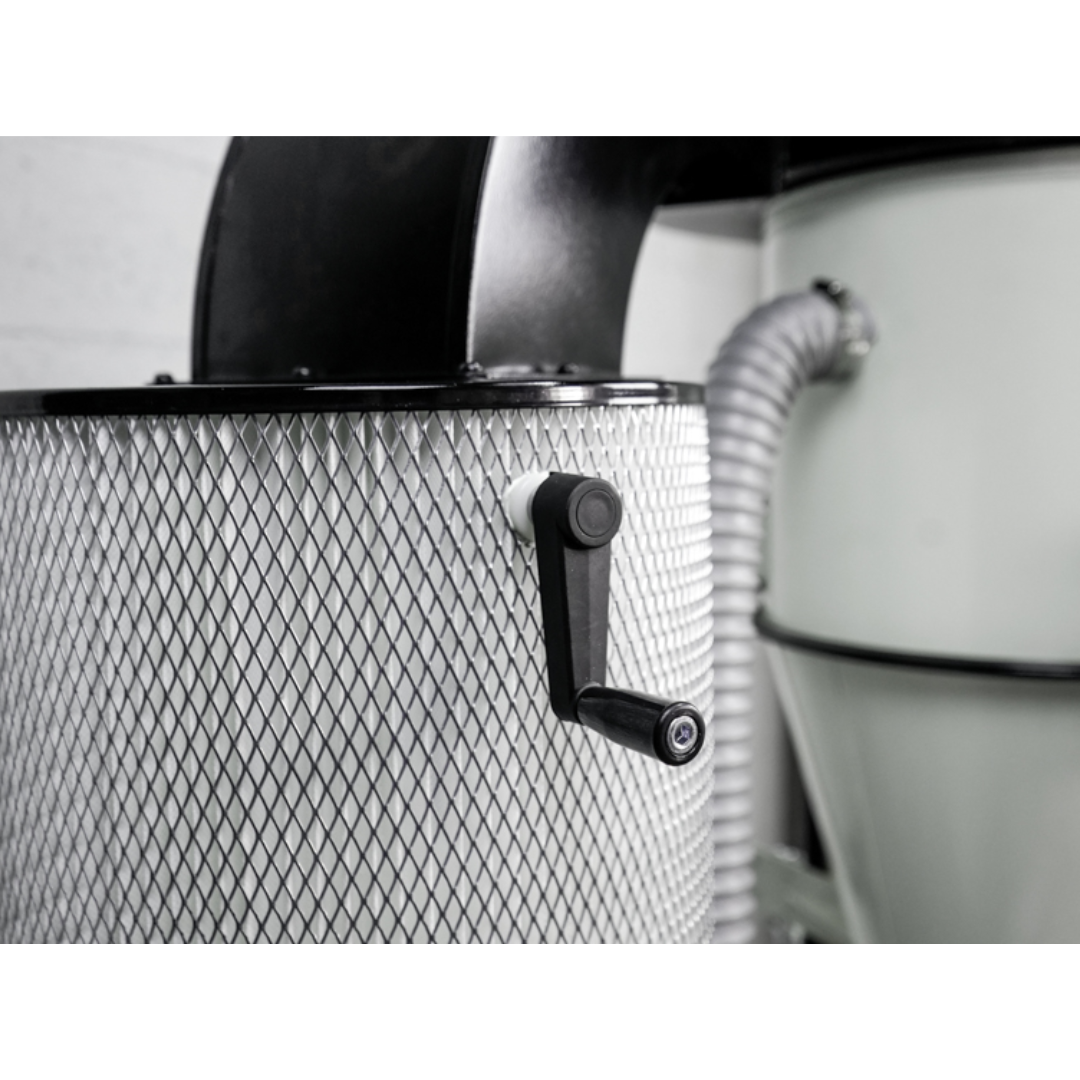

Hand-cranked cartridge cleaning keeps airflow up without teardown
Fine dust cakes on pleats over time. With the Maksiwa CY/3.C Cyclone Dust Collector, you can turn the cleaning handle to knock buildup down into the bag—helping maintain performance during heavy dust-collection use.
-

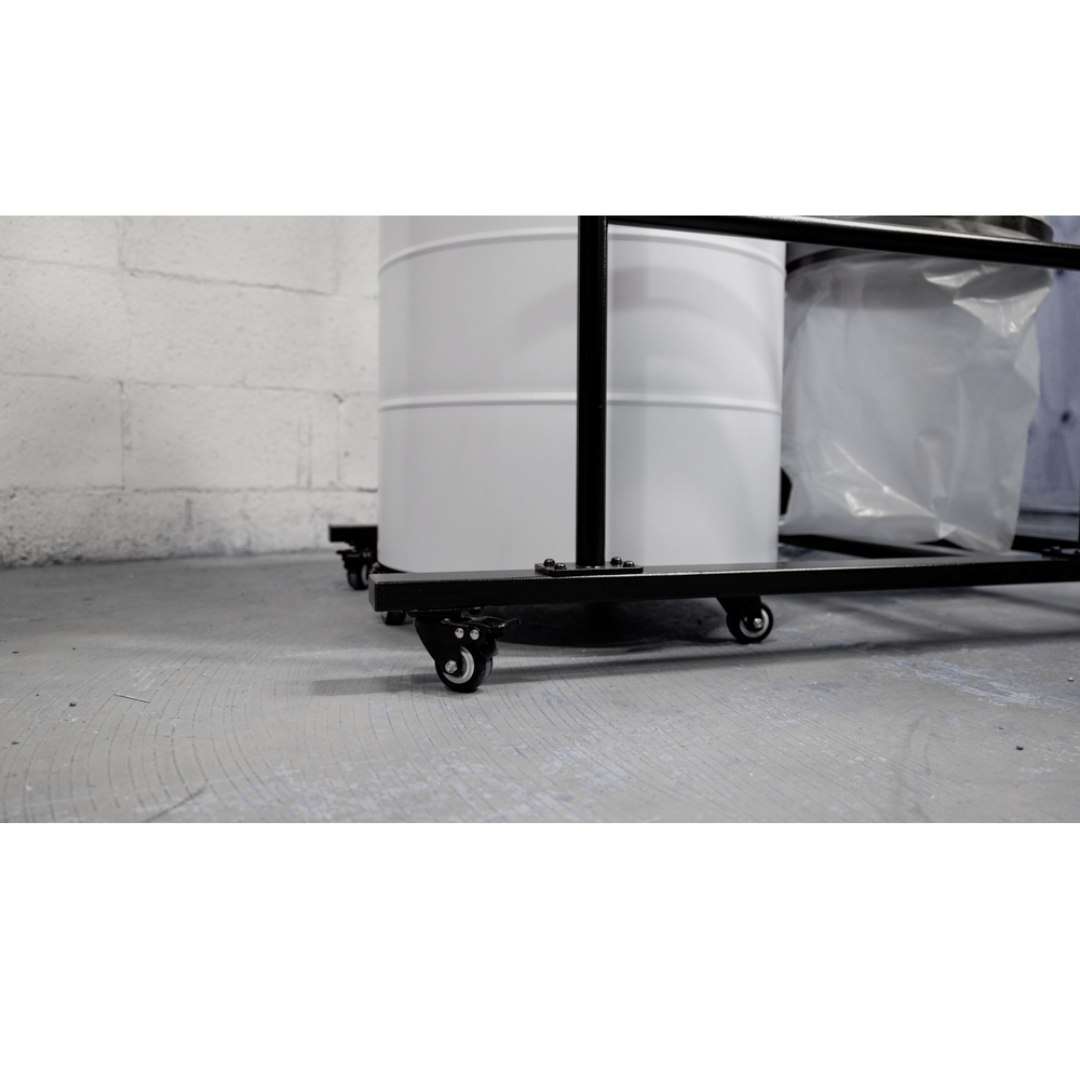

Wheels for easier placement (shorter runs = better pickup)
Ducting choices impact suction. The Maksiwa CY/3.C Cyclone Dust Collector includes wheels so you can place it where it performs best—shorter duct runs, fewer harsh bends, and easier layout adjustments when the shop changes.
Where the Maksiwa CY/3.C Cyclone Dust Collector fits best (real shop scenarios)
- Cabinet + millwork production: high volume sheet goods cutting (MDF, ply, melamine).
- Three-machine cells: keep common stations connected and reduce hose swapping.
- Upgrades from smaller bag units: you want cyclone separation + finer filtration.
- Shops that care about maintenance speed: crank-cleaning + drum collection keeps the routine simple.
Setup & operation notes for the Maksiwa CY/3.C Cyclone Dust Collector

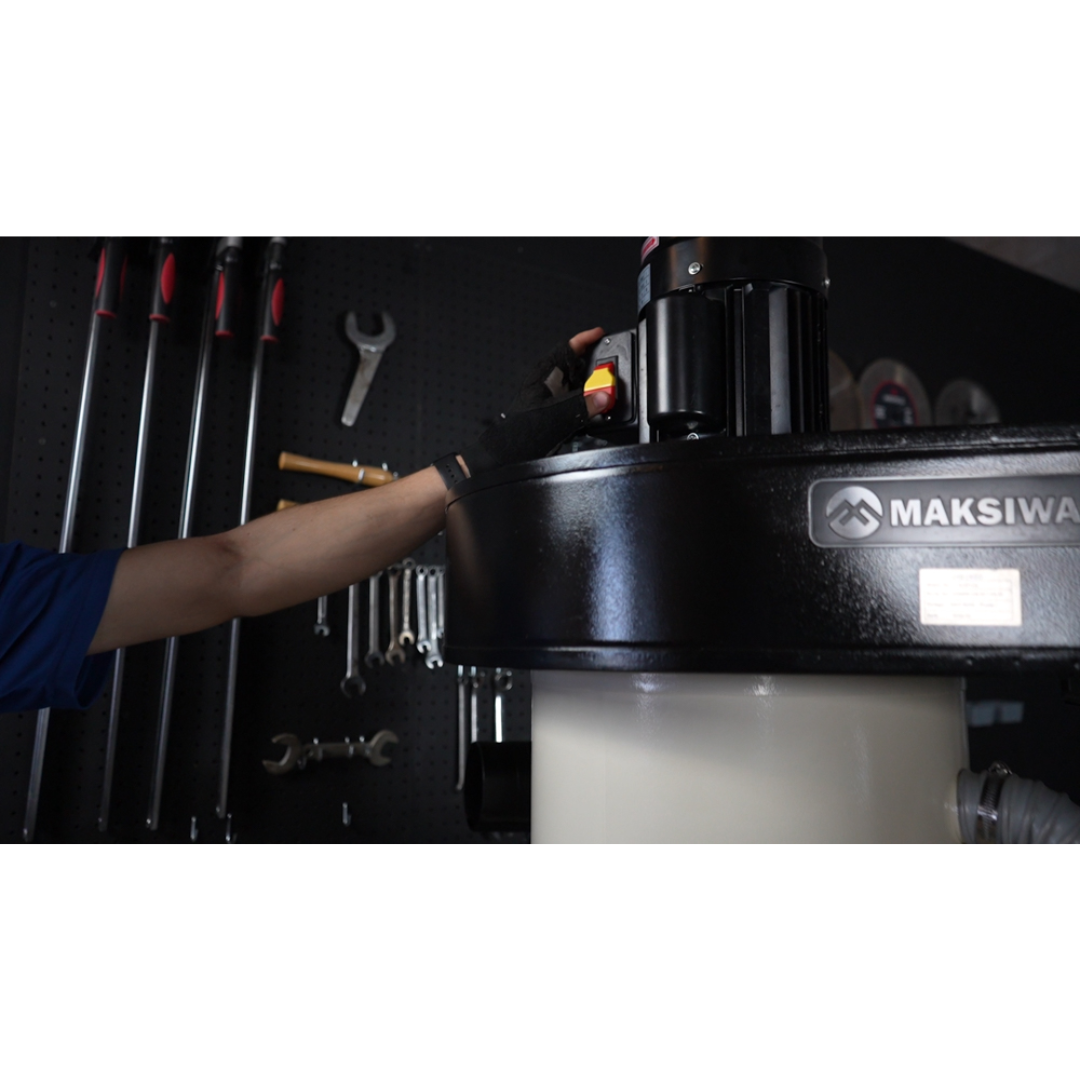

- Power: 3HP • 1 Phase • 220V • 15A. Use a properly grounded circuit and follow local code.
- Rotation check: after install, verify the unit runs smoothly and sounds normal before production use.
- Don’t run wide open: connect to ducting or cap unused ports to maintain proper airflow resistance.
- Ducting: keep runs short; minimize sharp bends; gradual turns perform better than sudden turns.
- Filter cleaning: turn the crank handle during heavy use to knock dust into the bag and keep airflow strong.
- Casters: lock swivel wheels before operation for stability.
Safety essentials for the Maksiwa CY/3.C Cyclone Dust Collector
- Intended use: wood dust and chips only—do not collect metal, liquids, aerosols, drywall, silica, or hazardous materials.
- Wear PPE: safety glasses + hearing protection; use a NIOSH-approved respirator for fine dust exposure.
- Disconnect power before service: turn OFF, unplug, and wait for the impeller to stop before maintenance.
- Static electricity: properly ground ducting and lines to reduce static spark risk.
- Fire safety: keep away from ignition sources; operate where fire suppression/extinguisher is available.
- Impeller hazard: never put hands/tools near open inlets while running—powerful suction can pull objects in.
Maintenance rhythm for the Maksiwa CY/3.C Cyclone Dust Collector (keep performance consistent)
- Filter crank cleaning: use routinely during heavy cutting to knock dust cake into the bag.
- Empty drum bag: replace/empty when roughly 3/4 full to avoid performance drop and overfill mess.
- Replace filter bag: replace when roughly 1/2 full for cleaner airflow and less blow-by risk.
- Monthly check: vacuum dust buildup off motor/body; check for loose bolts, leaks, worn wiring, and damaged bags.
- If underpowered: check for duct restrictions, suction leaks, and a clogged canister filter first.
Maksiwa CY/3.C Cyclone Dust Collector specifications (full)
| Technical Information | Maksiwa CY/3.C Cyclone Dust Collector |
|---|---|

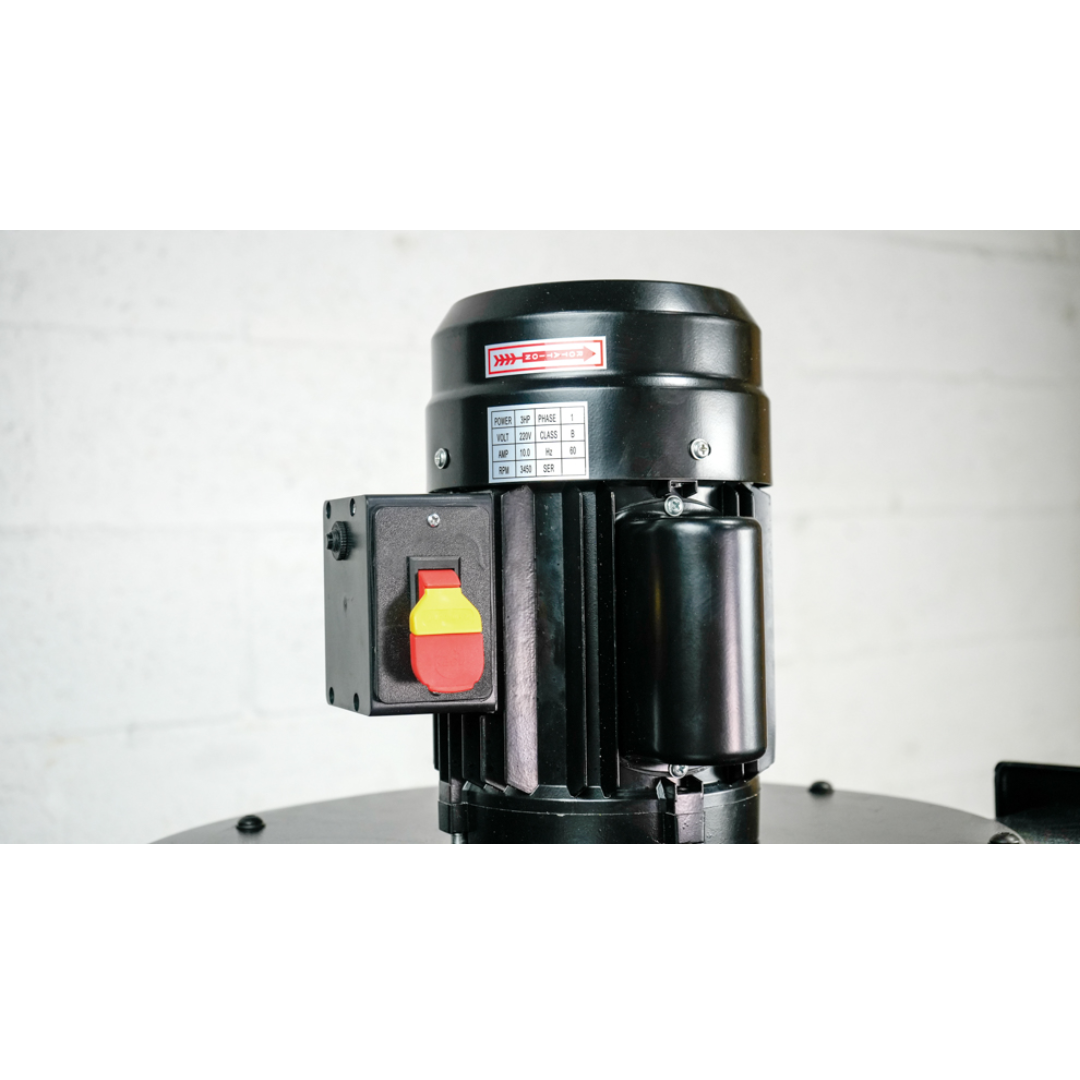

| Motor Specs | 3 HP • 1 PHASE • 220V • 15A |
| Air Flow Capacity | 1,941 CFM |
| Fan Diameter | 14" / 356mm |
| Number of Inlet | 3 |
| Inlet Size | 4" |
| Filtration | 1 micron Cartridge |
| Cartridge Filtration Size | 13" × 31" |
| Cartridge Bag Size | 14.5" × 29.5" |
| Drum Size | 31 Gal (117.3 L) |
| Drum Bag Size | 20" × 43" |

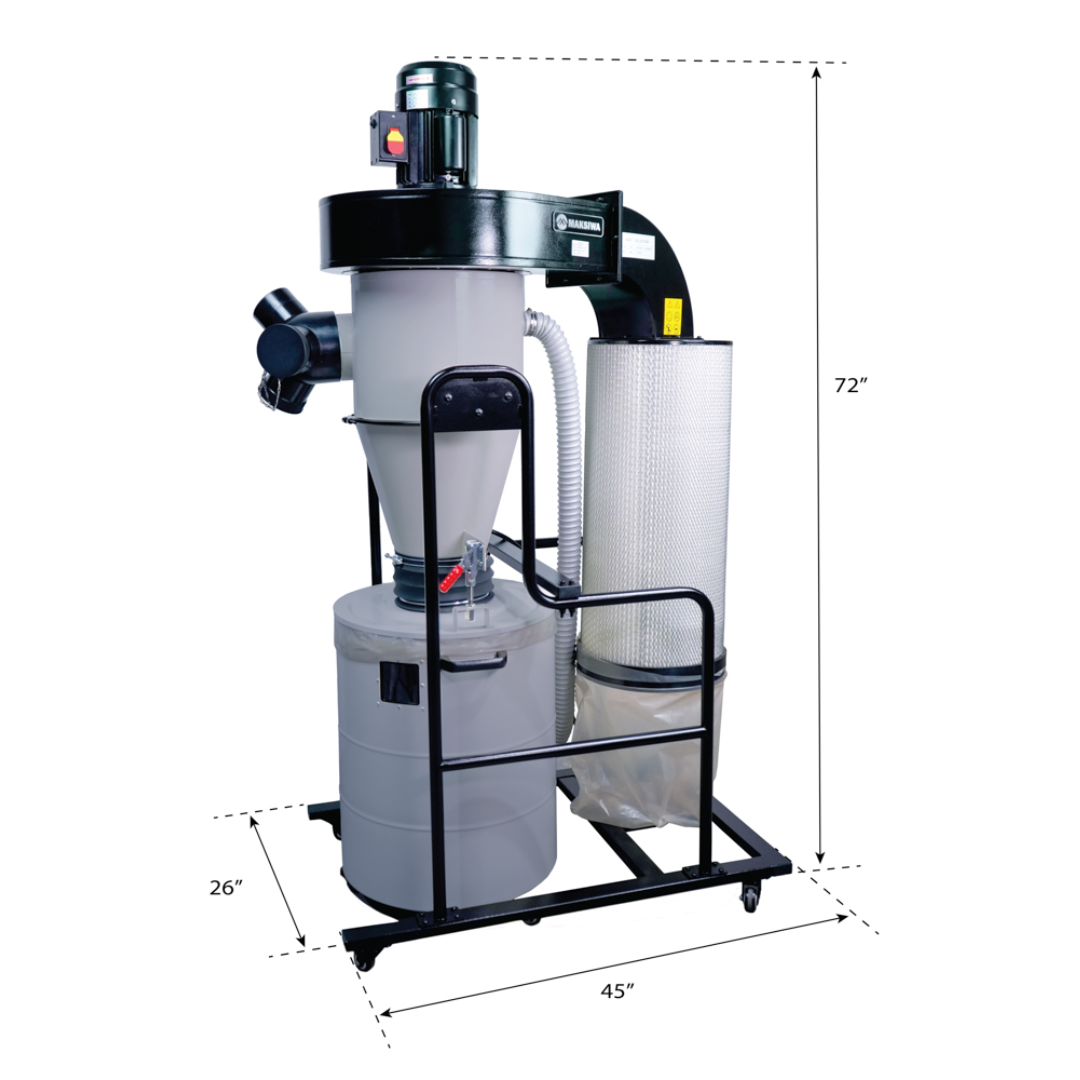

| Machine Dimensions | 45" × 26" × 72" |
| Weight | 181 lbs |
| Warranty | 2 Years |
Bottom line: The Maksiwa CY/3.C Cyclone Dust Collector is a production-ready upgrade when you want cyclone chip separation, 1 micron filtration, and 1,941 CFM airflow—plus a 31-gallon drum and hand-cranked cartridge cleaning to keep your shop moving with less dust and less downtime.
