Maksiwa CPD/5.S Dust Collector
The Maksiwa CPD/5.S Dust Collector is built for high-production cabinet and millwork shops that need strong suction, reliable filtration, and a layout that actually fits real workflows. With a 5HP motor on 3 Phase 220V power and a rated airflow capacity of 2,760 CFM, the Maksiwa CPD/5.S Dust Collector is designed to pull dust from multiple machines at once—helping keep your air cleaner, your cuts clearer, and your cleanup time lower.
This collector includes five 4" inlet ports for flexible ducting and a 2.5 micron filtration system that captures fine dust typical of MDF, plywood, melamine, and hardwood machining. Collection is handled with two 53-gallon (200L) containers that can be configured as either carbon steel tanks or bags—both designed for quick replacement and faster maintenance cycles in busy shops.
Why the Maksiwa CPD/5.S Dust Collector earns its spot on the floor
-
High-output 5HP suction built for multi-machine dust control
The Maksiwa CPD/5.S Dust Collector is rated at 2,760 CFM, giving you the airflow headroom needed for real production. That matters when you’re running a table saw + shaper, a CNC, or multiple stations that kick up dust fast. More airflow means better chip transport, fewer line clogs, and less fine dust hanging in the shop after a cut.
-

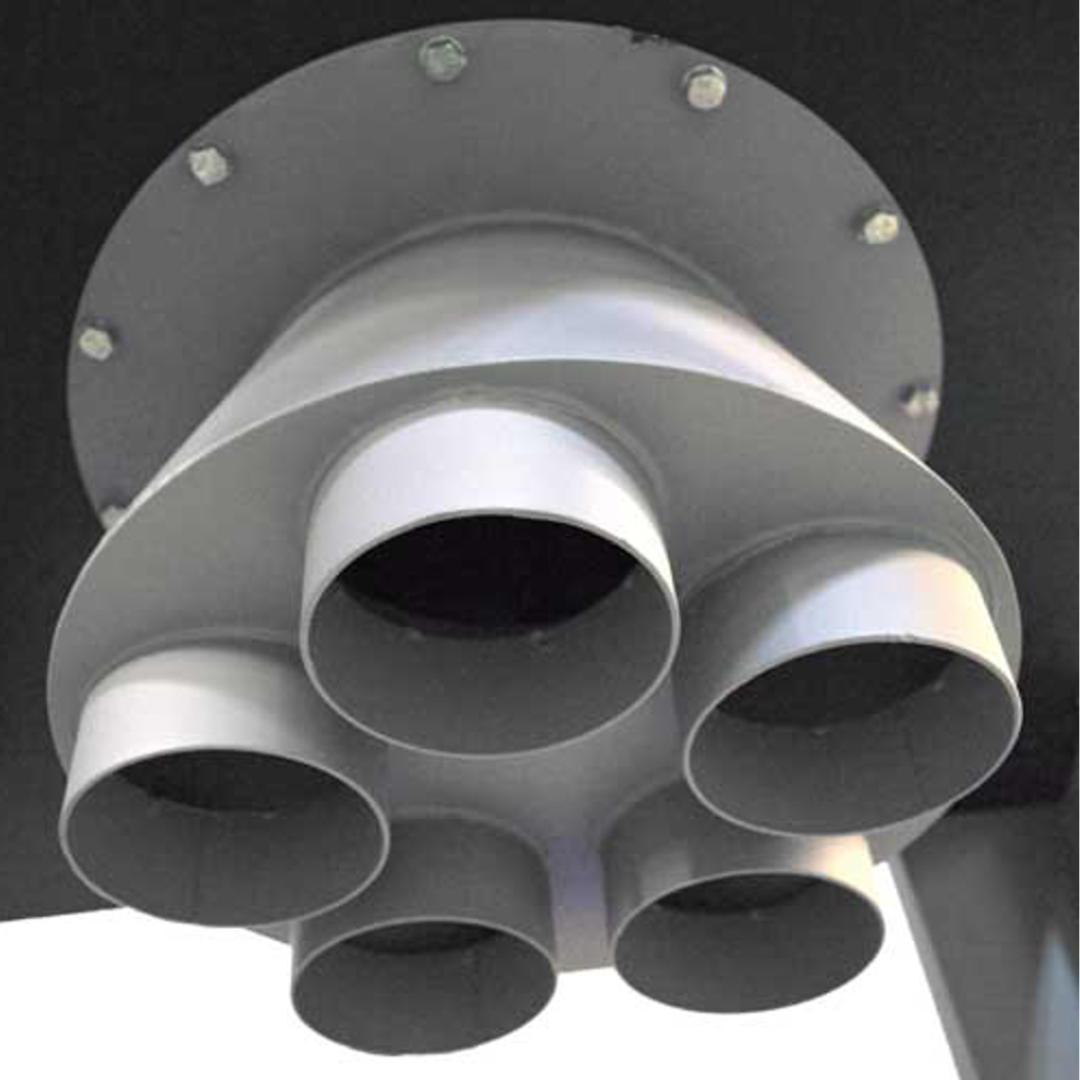

Five 4" inlets for flexible ducting and shop layout
The Maksiwa CPD/5.S Dust Collector includes 5 dust ports (4"), letting you connect multiple machines without constantly swapping hoses. In a cabinet shop, this is a real time-saver—especially when operators move between saws, edge banders, sanders, and routers throughout the day.
-
2.5 micron filtration for cleaner air during MDF + sheet goods production
MDF and melamine can create extremely fine dust. The 2.5 micron filtration on the Maksiwa CPD/5.S Dust Collector helps capture those smaller particles so they don’t just recirculate. The practical result: clearer visibility near machines, less dust settling on finished work, and a noticeably cleaner shop environment.
-

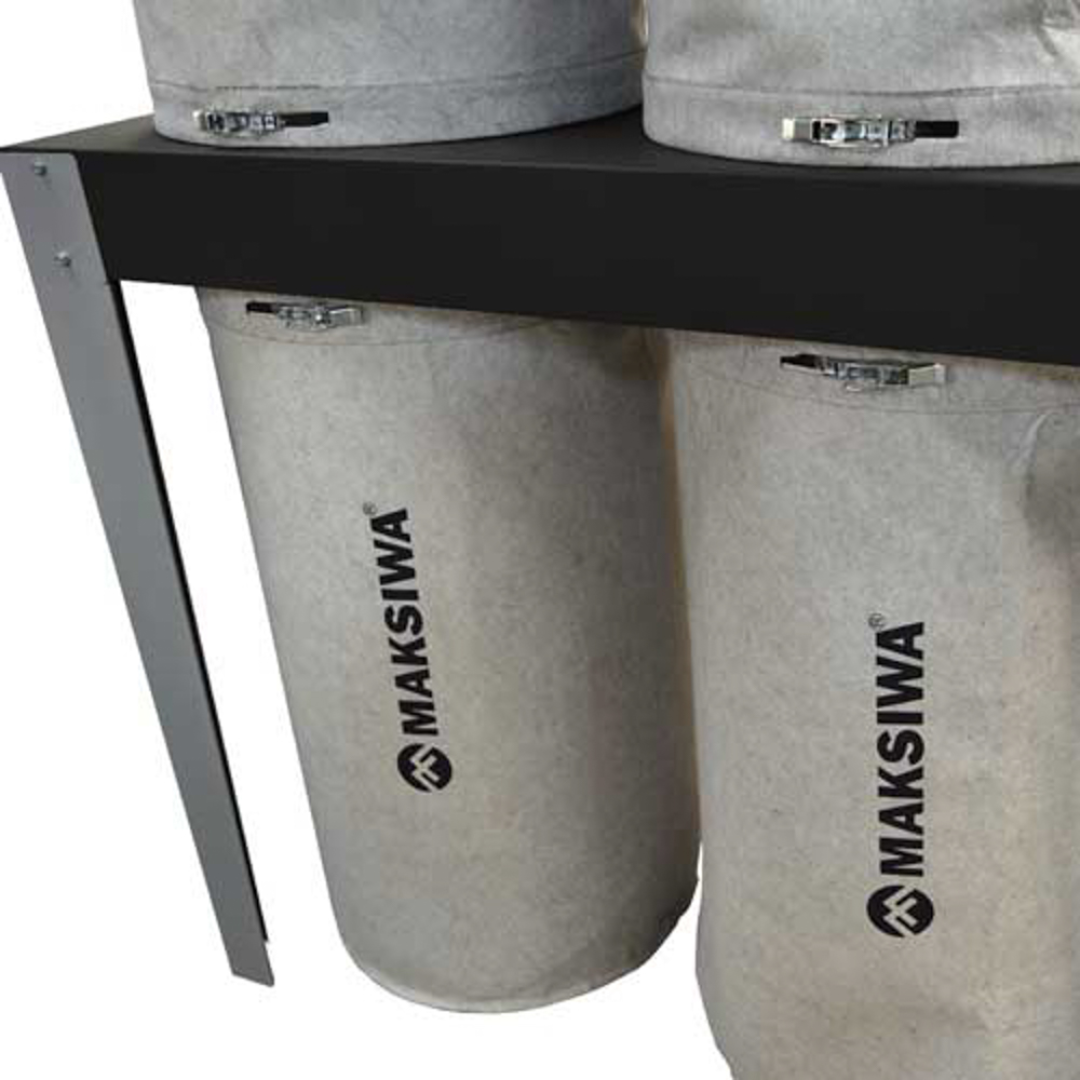

Dual 53-gallon (200L) collection system with tank or bag flexibility

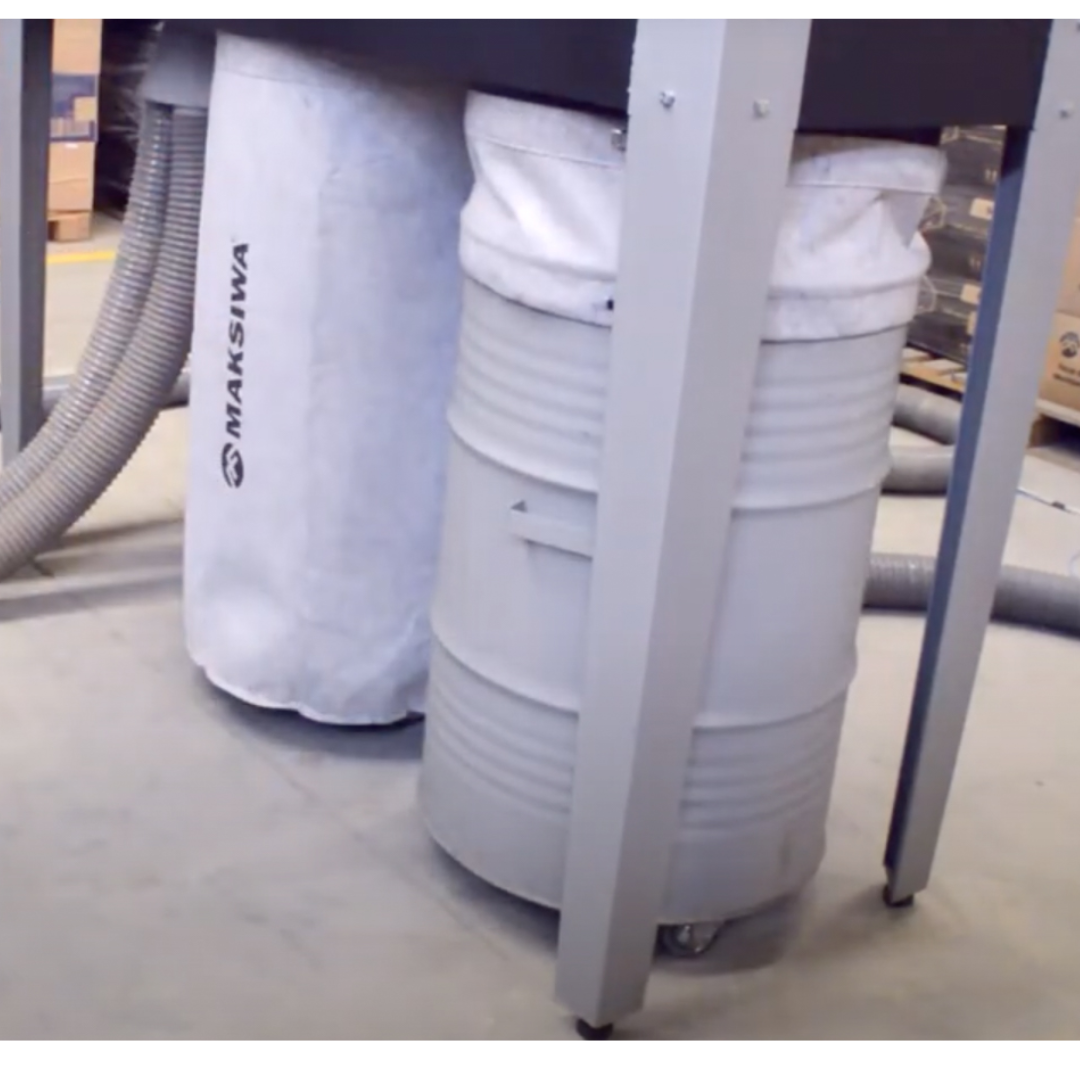

The Maksiwa CPD/5.S Dust Collector features two 53-gallon (200L) collectors that can be configured as either carbon steel tanks or bags. That means you can match your workflow: use tanks for heavier chip loads and easy dumping, or bags for quick swap-outs and simple disposal.
-
Designed for real-world serviceability and maintenance speed
In production, dust collection downtime costs money. The Maksiwa CPD/5.S Dust Collector is built around easy-to-replace tanks/bags so you can empty and return to work quickly. Filters and bags are designed to be cleaned and maintained routinely—weekly cleaning is recommended depending on usage to keep airflow strong.
Where the Maksiwa CPD/5.S Dust Collector fits best (shop scenarios)
The Maksiwa CPD/5.S Dust Collector is a strong fit when you have multiple dust-producing machines and you want centralized suction without stepping down to a smaller collector. Common fits include:
- High-production cabinet shops running sheet goods daily (MDF, melamine, plywood).
- Multi-station layouts where operators move between machines and need multiple 4" connections ready.
- Chip-heavy processes that fill bins quickly—dual 53-gallon capacity reduces emptying frequency.
- Shops upgrading from smaller single-stage collectors to a higher-airflow, more scalable system.
Setup & operation notes (important details)
- Power requirement: The Maksiwa CPD/5.S Dust Collector uses a 5HP, 3 Phase, 220V motor (rated 20A in the spec table).
- Grounding: Always use a properly grounded circuit and follow local electrical codes. If unsure, use a qualified electrician.
- Rotation check: After installation, briefly power on/off and confirm the impeller rotation direction. If rotation is wrong, invert phase wiring at the junction box (qualified personnel).
- Hose routing: Avoid kinks and sharp bends. Maximum hose length listed is 100 ft (30m).
- Extensions: Manual guidance warns against long extensions; do not use an extension cord above 60 ft.
- Maintenance: Filters/bags are washable; weekly cleaning is recommended depending on usage to maintain airflow and reduce fine dust blow-through.
Safety essentials for the Maksiwa CPD/5.S Dust Collector
- Wear PPE: safety glasses + hearing protection; avoid loose clothing/jewelry near moving parts.
- Unplug before service: turn OFF and disconnect power before maintenance or adjustments.
- Keep guards in place: operate with all protections installed and functioning.
- Do not insert hands: never put hands into hoses, ports, or enclosed areas while running.
- Electrical safety: do not patch/adapt plugs; ensure correct outlet compatibility; keep cords in good condition.
- Fire risk: motors can emit sparks—keep away from flammable gases and hazardous environments.
Real reviews. Real results (Maksiwa CPD/5.S Dust Collector)
"Best machines for working with custom cabinets I've ever seen, Maksiwa is the best."
Michel Silva • @cabinetmanatl
Maksiwa CPD/5.S Dust Collector specifications (full)
| Technical Information | Maksiwa CPD/5.S Dust Collector |
|---|---|
| Motor Specs | 5HP • 3 PHASES • 220V • 20A |
| Number of Inlet | 5 |
| Inlet Size | 4" |
| Filtration | 2.5 micron |
| Air Flow Capacity | 2,760 CFM |
| Bag or Tank Capacity | 53 Gal (200 L) |
| Bag Size | 25" × 35" | 580mm × 900mm |
| Weight | 240 lbs |
| Warranty | 2 Years |
Bottom line: If you need one collector to support multiple machines with serious airflow, the Maksiwa CPD/5.S Dust Collector delivers 5HP power, 2,760 CFM suction, five 4" inlets, and 2.5 micron filtration—with a dual 53-gallon collection setup designed for faster maintenance in real production shops.
