Maksiwa CBC.T Automatic Edgebander

Name: Maksiwa CBC.T Automatic Edgebander
Brand: Maksiwa
SKU: MaksiwaCBC.T
Price: 13200.00 USD
Availability: OutOfStock

Iron Line Verified

Authorized Dealer: Maksiwa

Official Partner

OUT OF STOCK

SKU: MaksiwaCBC.T

Quick Specs

Power & Infrastructure: 1 Phase 220V / 30 Amp. Requires a dedicated pneumatic line (6 SCFM @ 100 PSI) and a minimum of 700 CFM dust collection via two 4" ports to support the automated trimming and buffing stations.
Footprint & Workspace: 849 lb industrial mono-block steel chassis. Occupies a maximum operational footprint of 112" x 63", featuring an extendable panel support rail (78"+) for handling oversized workpieces.
Automated Production: Fully synchronized automatic feed system running at 16 ft/min. Processes 12–45 mm panel thicknesses and 0.4–3 mm edge tape with integrated end trimming, top/bottom flush trimming, and dual-surface buffing.
Consumables & Thermal Control: 2 lb capacity glue pot optimized for high-temperature granulated hot-melt (180°C–210°C). Features a pre-heated infeed fence and digital temperature regulation to ensure bond integrity across high-volume runs.

The Maksiwa CBC.T Automatic Edgebander delivers fast, consistent edge banding for production-focused shops ⚙️. Designed for efficiency and reliability, it produces clean, professional results with minimal operator input 🪵.

Price:

$13,200.00

Quantity:

Equipment financing available. Up to 60 months Terms. Learn more

We Cover Sales Tax Excluding (Illinois)

Share this product

Section 179
Tax Savings

Save up to $2,772.00 on this equipment Estimate Your Tax Deduction

Calculate Savings →

Commercial Buyer?

Unlock volume pricing and dedicated facility support with Trade Accounts
(Requires minimum of 2+ items)

Order Placed

Ships Out

Delivered

*Please Note: This timeline is an estimate. Certain products may require an additional 1 week for manufacturing. Please speak with your sales rep, Matthew, for official details and confirmation before placing your order.

CALL US FOR THE MOST ACCURATE AND COMPETITIVE LTL SHIPPING RATE, (888) 308-5580

Get Questions Answered

Fast & Free

Experience: 20+ Years B2B • Origin: US-Based Support

EXPRESS SHIPPING

Most orders process in 1-3 days. Yes, even if it weights 400lb

Hassle-Free Returns

No restocking fees. Ever.

Manufacturer Warranty

Fully backed by the brands you trust.

Dedicated Rep Mathew

Speak to a US-Based Equipment Specialist: (888) 308-5580

Flexible Financing

Get Upto 60 Months Financing

IRONLINETOOLS

Stainless mono-block • Auto feed • 1PH 220V

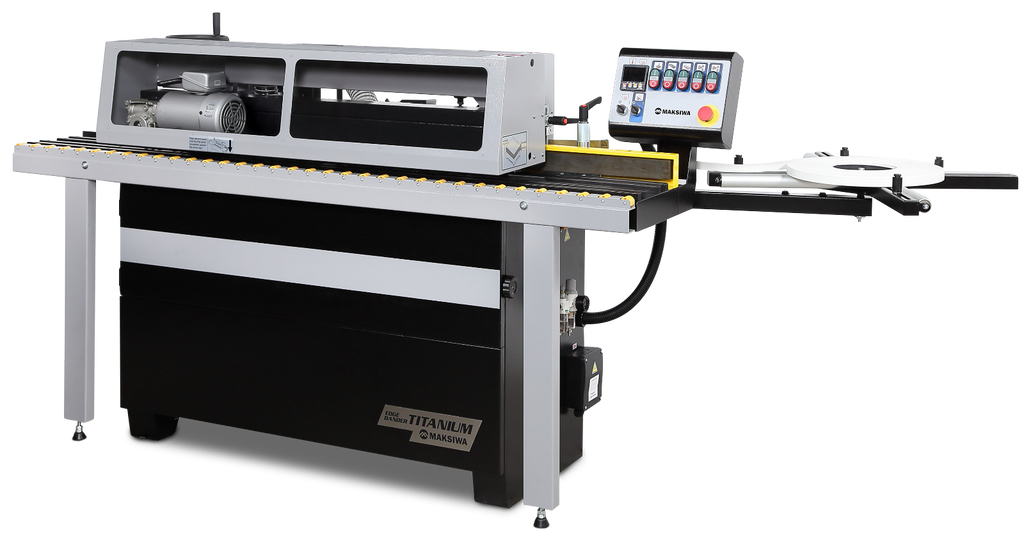

Maksiwa Edgebander CBC.T Automatic Edgebander

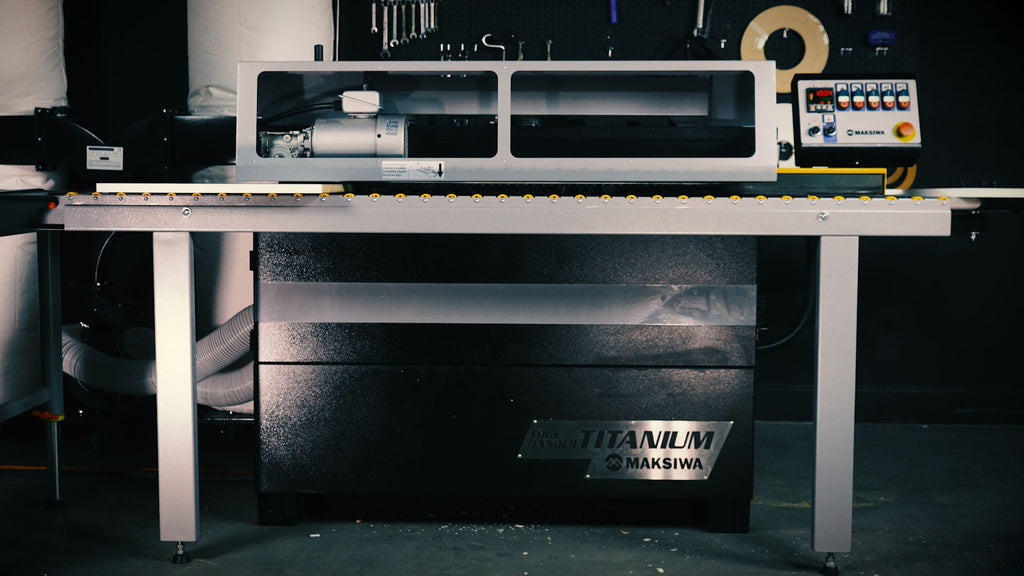

Experience a finished panel like never before. The Maksiwa Edgebander CBC.T is a rock-solid, automated edgebander built for shops that want smooth feeding, consistent glue performance, and clean trimming in one dependable platform. Its exceptionally stable design features a stainless-steel mono-block base and easy access to components—just lift the protection hood.

Run 0.4–3 mm edge tape on 12–45 mm panels at up to 16 ft/min (5 m/min). The synchronized automatic feed system keeps panels moving effortlessly, while manual adjustments with mechanical readouts give you quick reference control.

Maksiwa Edgebander CBC.T | Why it wins in real shops

Steady mono-block platform. Steel frame with a single-block base for superior stability—built to stay accurate under daily production.
Precision feeding with low-friction worktable. Rollers move panels through smoothly for cleaner edges and more consistent results.
Automated feed, still adjustable. Fully synchronized processing with manual adjustments + mechanical readouts when you want quick reference control.
Handles common edge materials. Works with Melamine, PVC, ABS, PP, Veneer, and Laminate edge tape.

Maksiwa Edgebander CBC.T | Machine performance (what it does best)

The Maksiwa Edgebander CBC.T is designed for clean, repeatable edge finishing with an automatic panel feed system and controlled glue application. It processes up to 45 mm panels and supports edge tape from 0.4 to 3 mm.

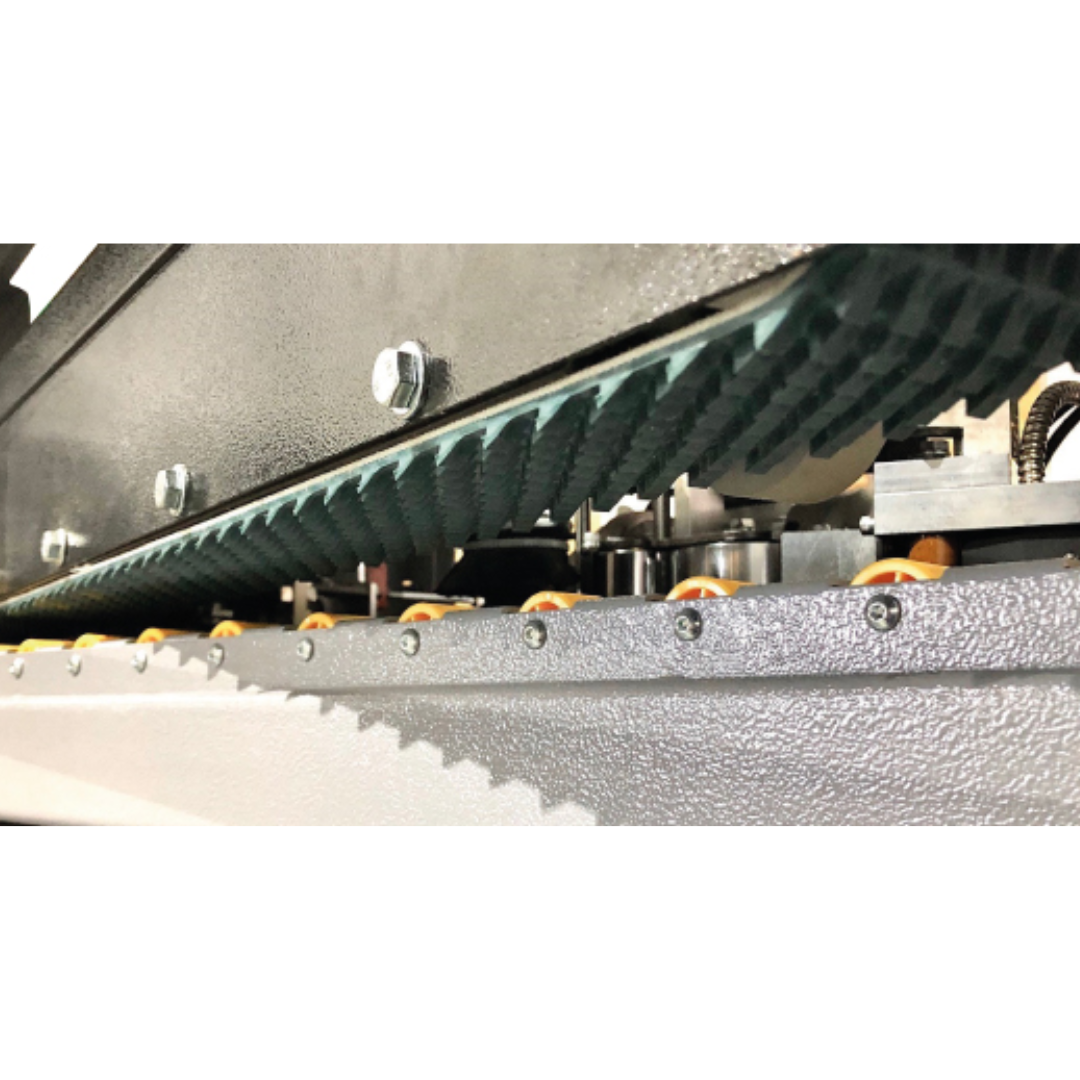

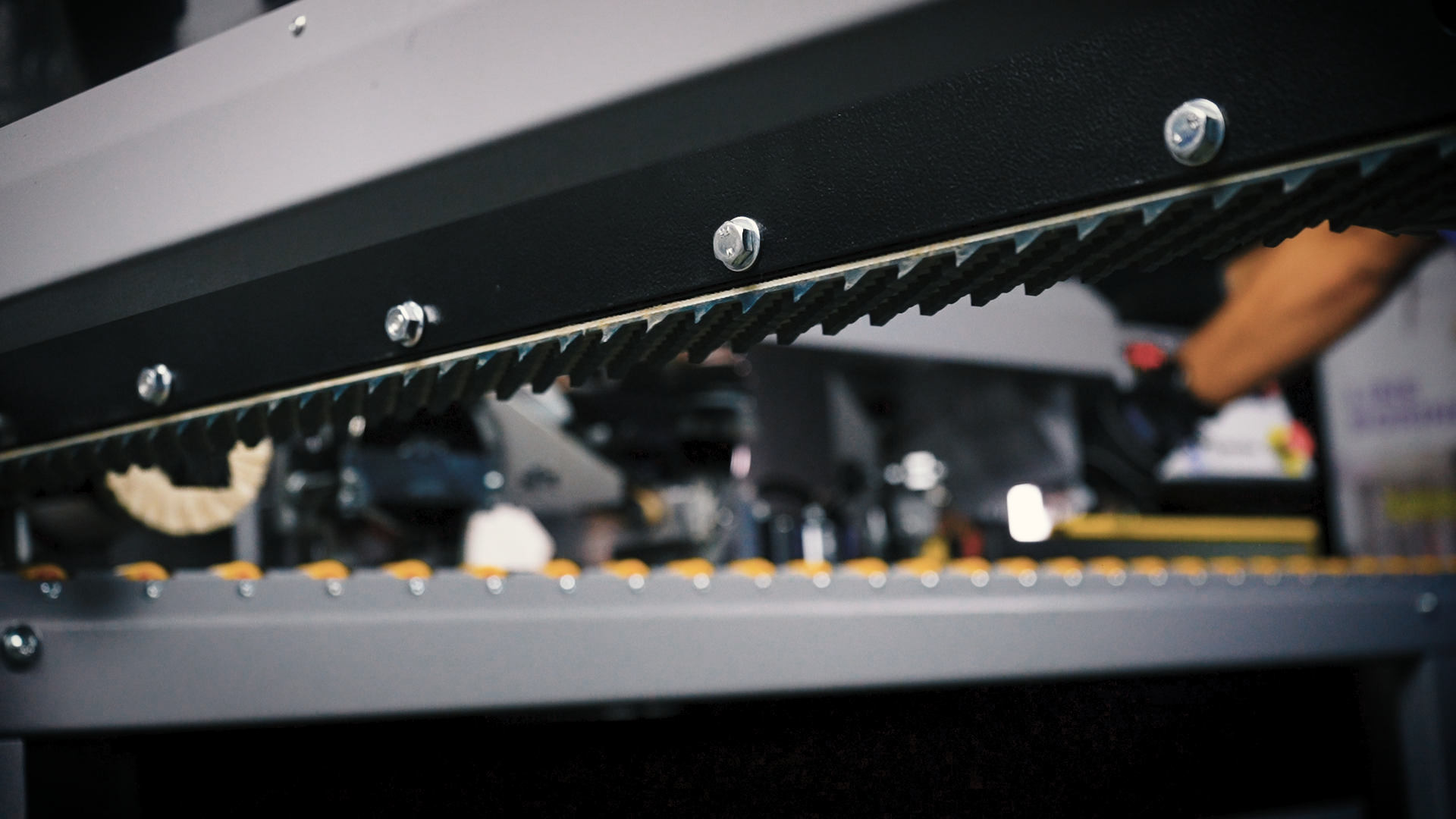

Automatic panel feed: synchronized, smooth movement through the machine.
Digital temperature control: set and maintain glue pot temperature accurately.

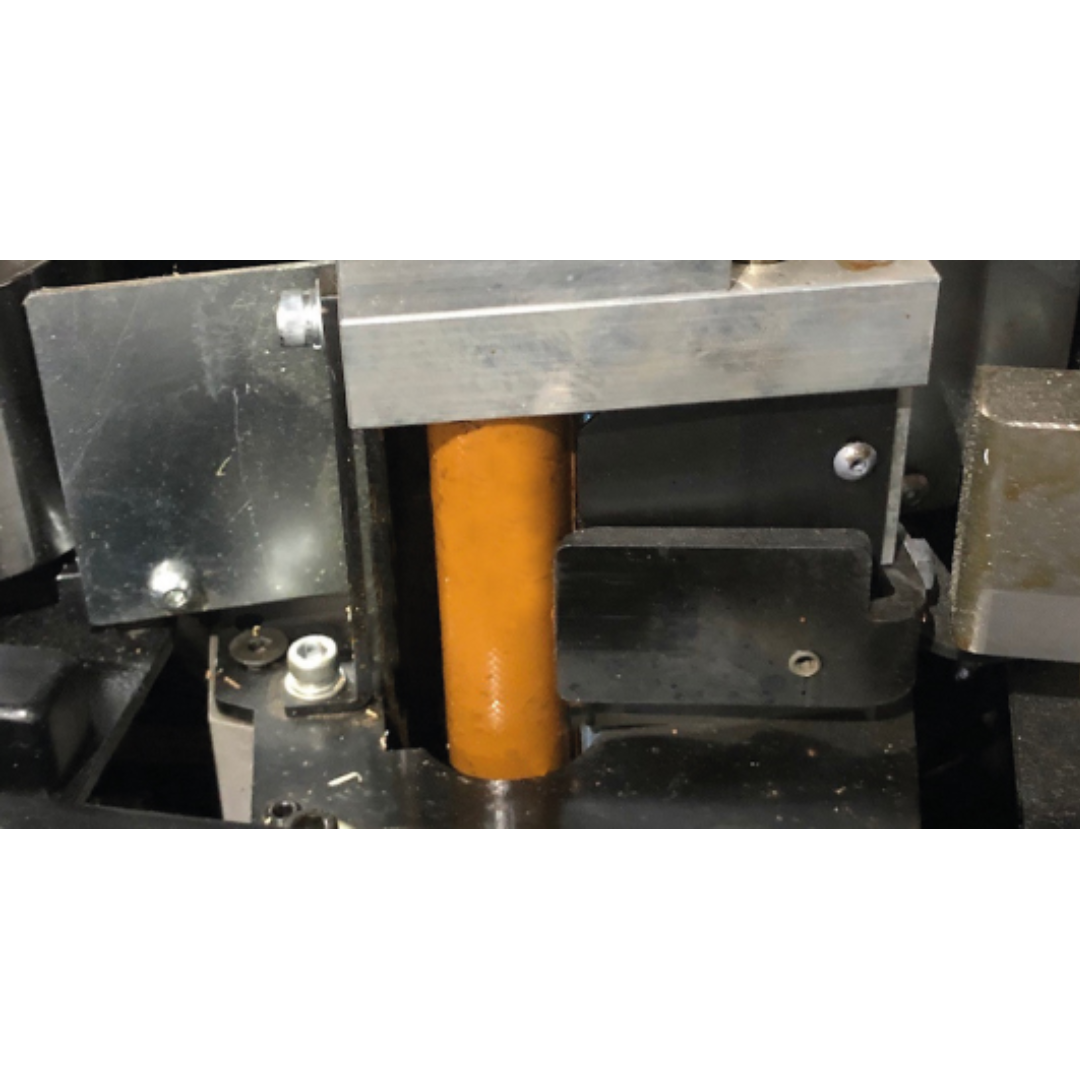

Dual pressure rollers: spread glue evenly across the workpiece edge.
Trim + buff workflow: end trimming, top/bottom flush trimming, and dual buffing for a cleaner finish.

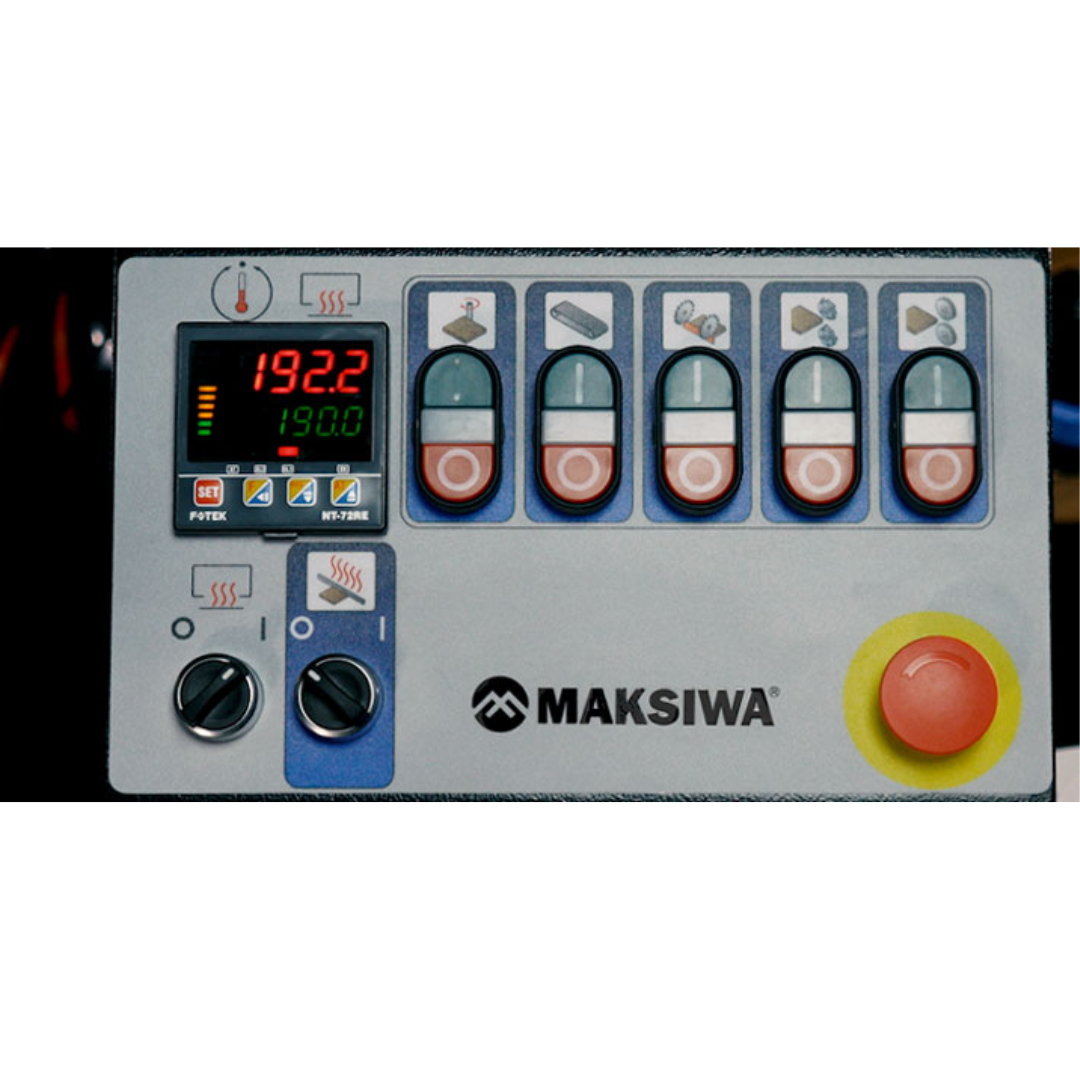

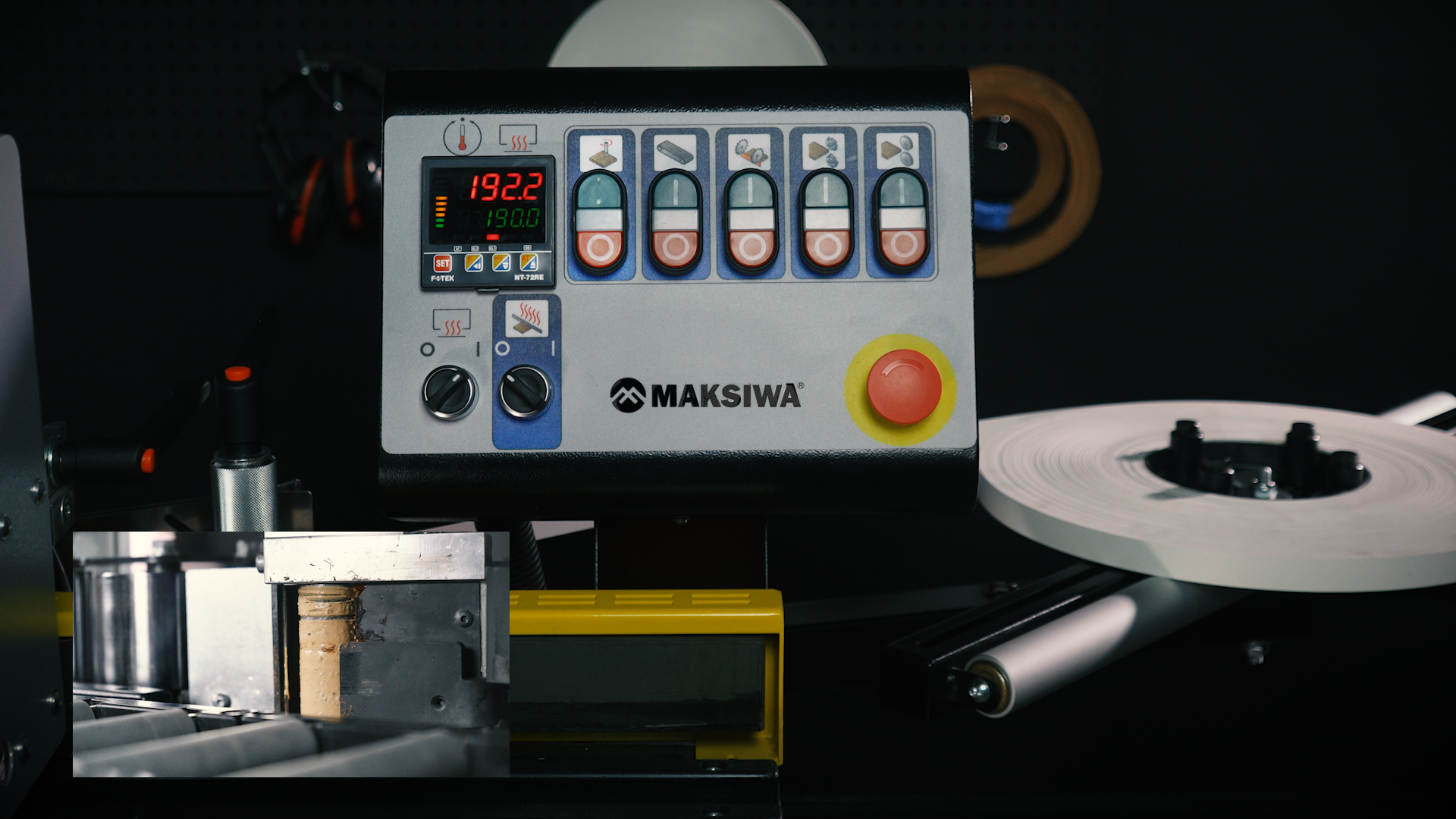

Maksiwa Edgebander CBC.T | Control panel (fast, ergonomic operation)

The front-mounted control unit is positioned for quick operation. It lets you view and adjust:

Digital glue temperature: desired vs current temperature display.
Pre-heating functions: pre-heated infeed fence + glue pot heating controls.
Station toggles: conveyor belt, glue spindle, front/rear trimming, top/bottom trimming, and buffing unit.

Maksiwa Edgebander CBC.T | Glue pot unit (rapid, even heating)

The glue pot heats rapidly and evenly to maintain optimal temperature and consistent application.

Capacity: 2 lbs (1 kg)
Glue type: Pellet / granulated hot-melt
Recommended range: 180°C – 210°C (356°F – 410°F)

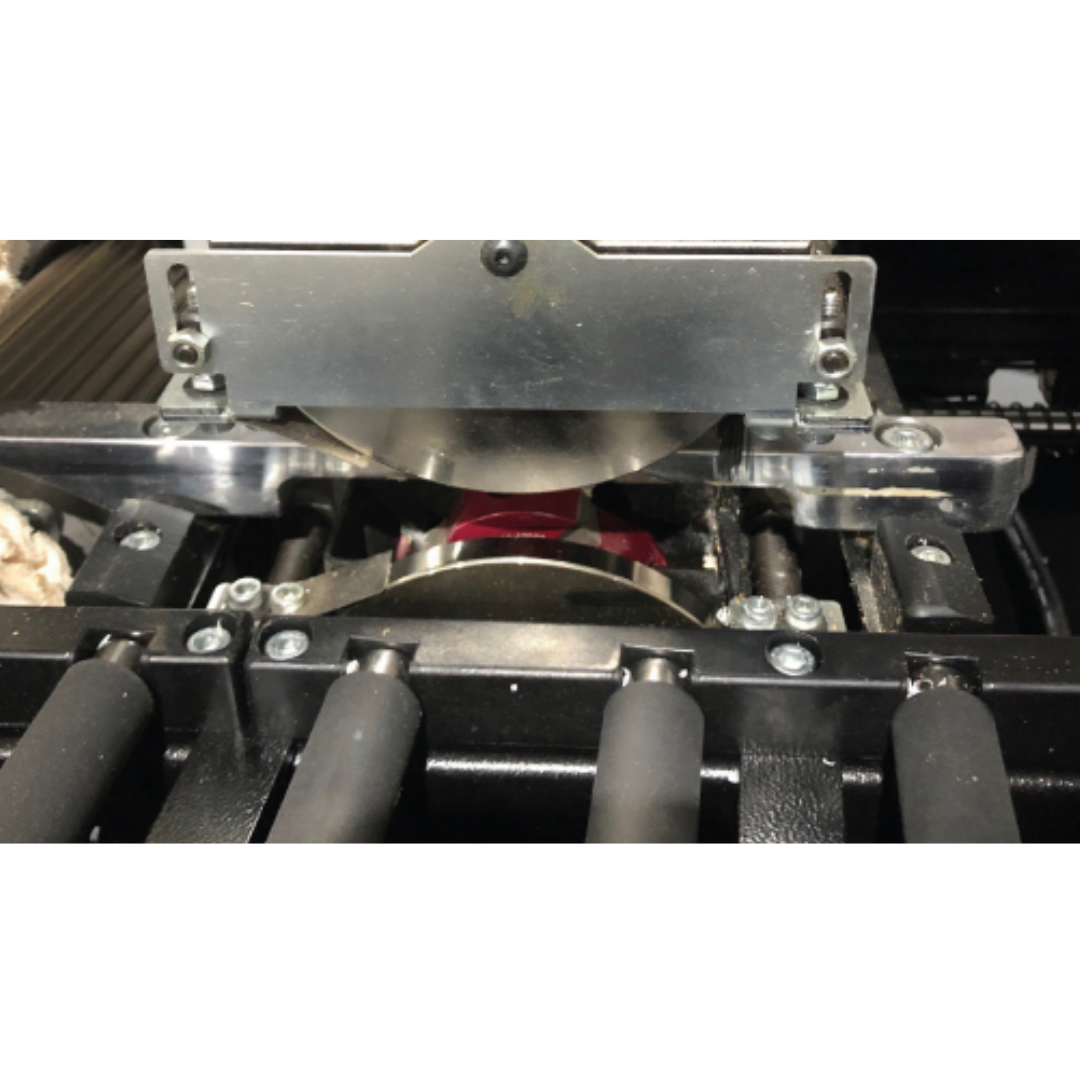

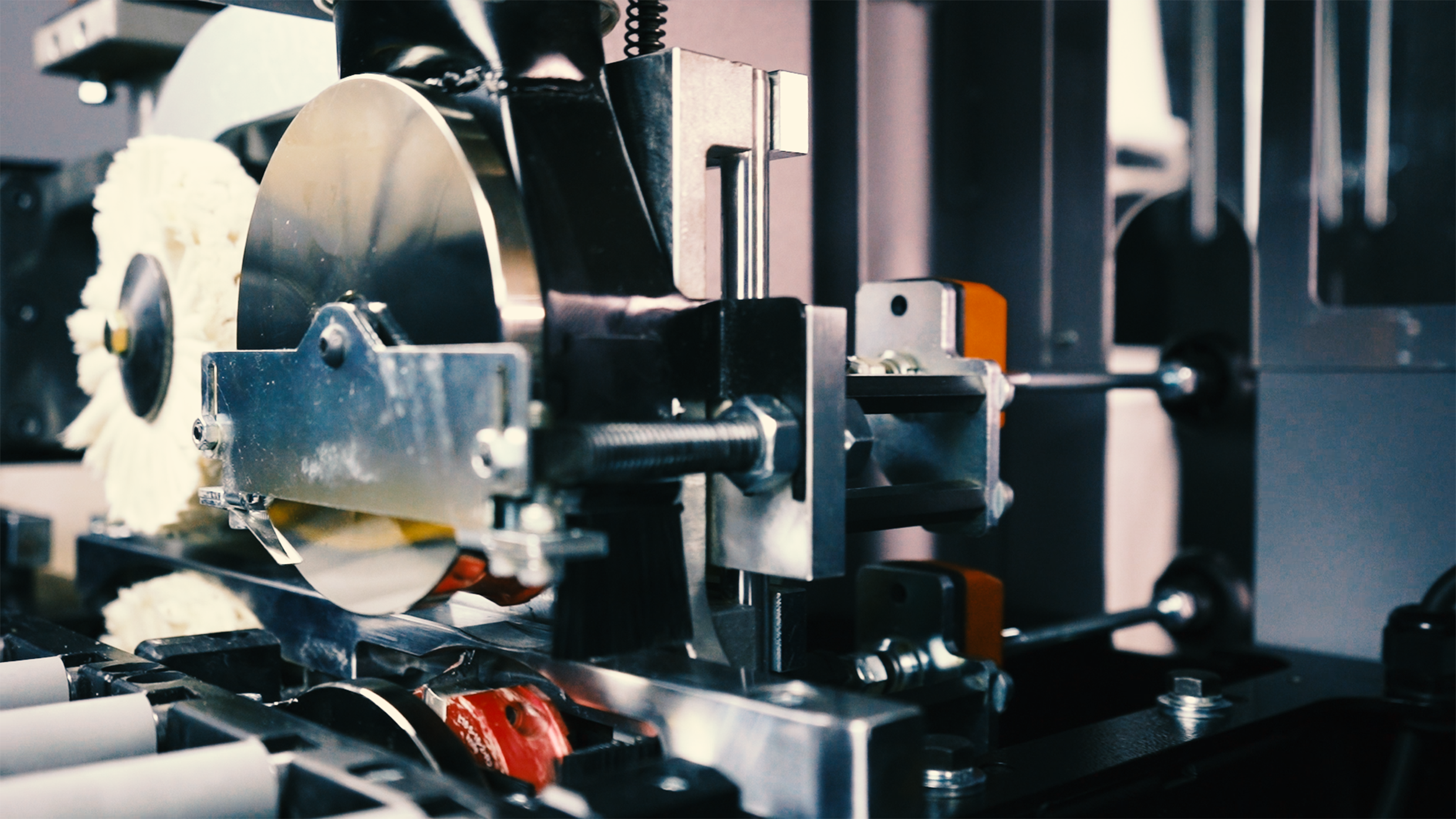

Maksiwa Edgebander CBC.T | Trimming + buffing (clean edges, less touch-up)

Front & rear end trimming: cuts edge band ends cleanly.

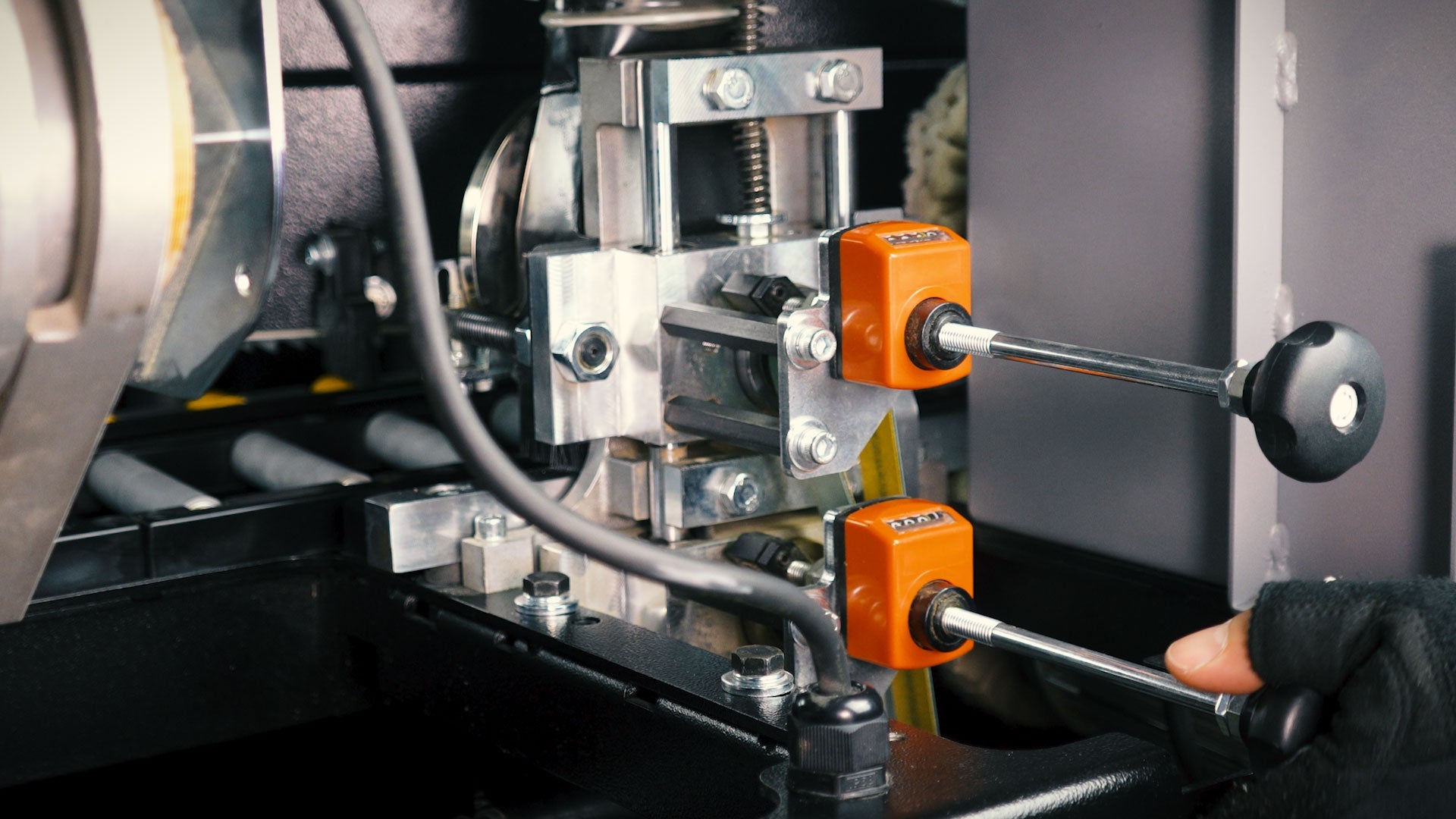

Top & bottom flush trimming: automatic, with manual adjustability for dialed-in results.

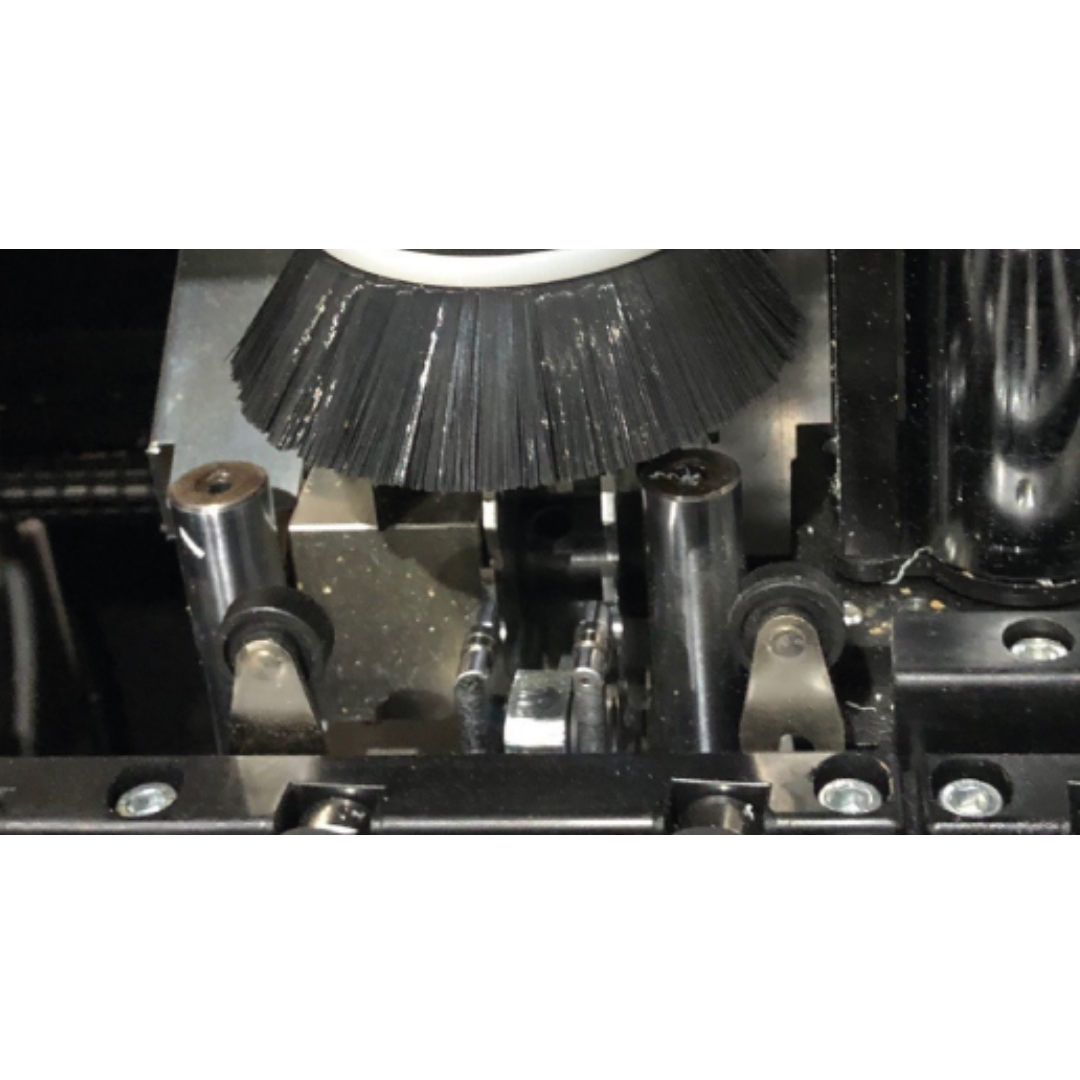

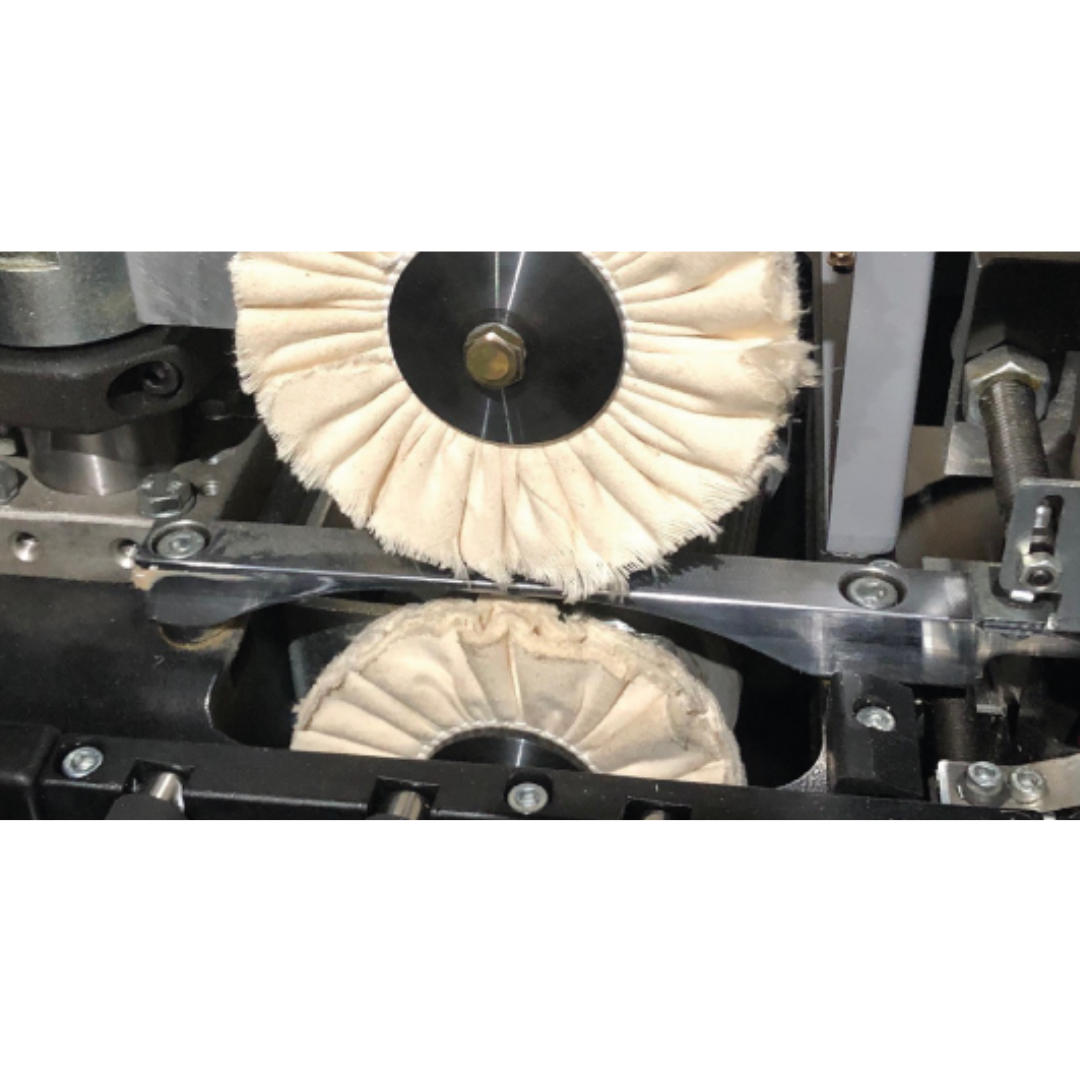

Dual buffing unit: polishes edges and helps maintain natural edge tape color.

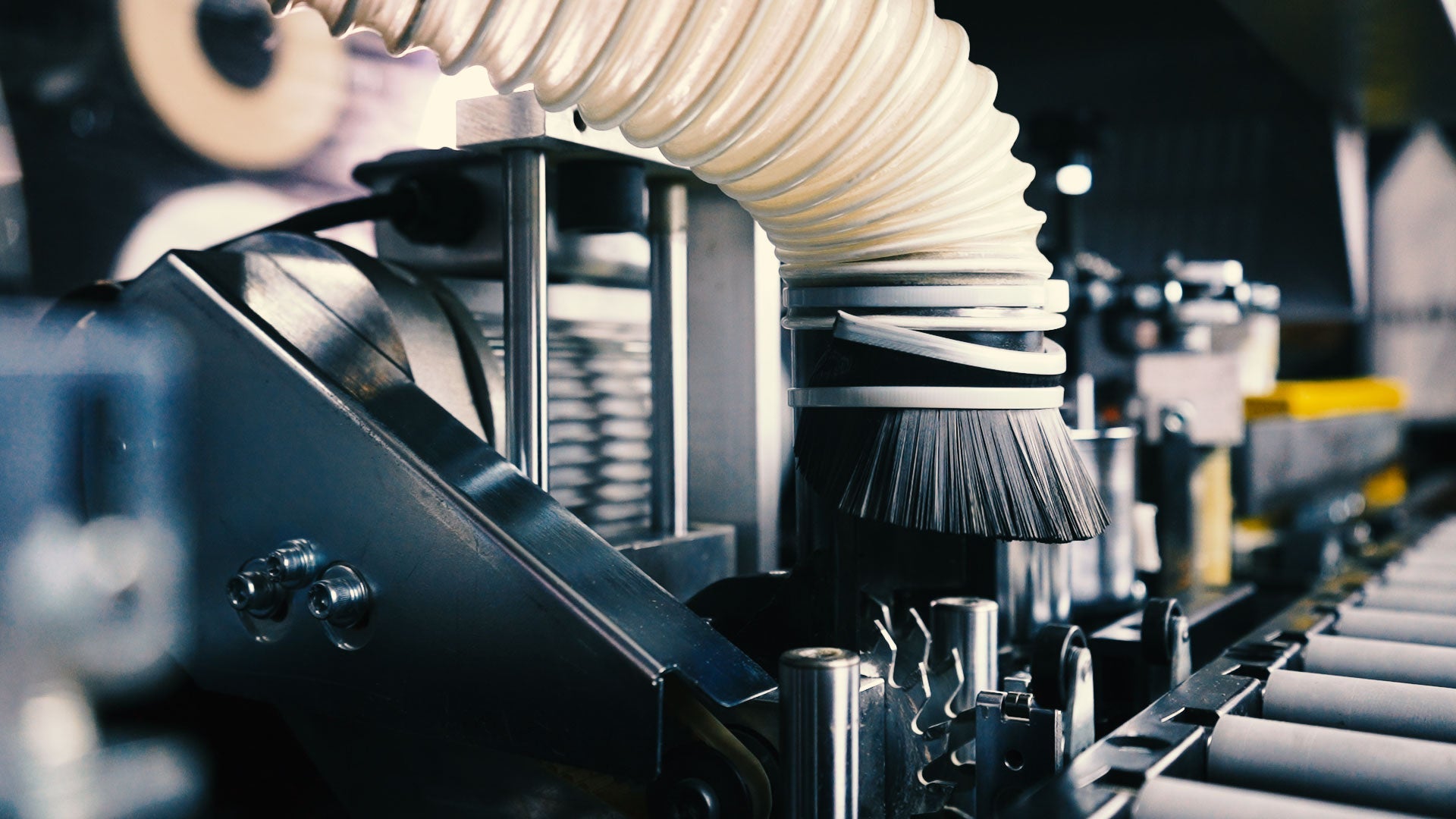

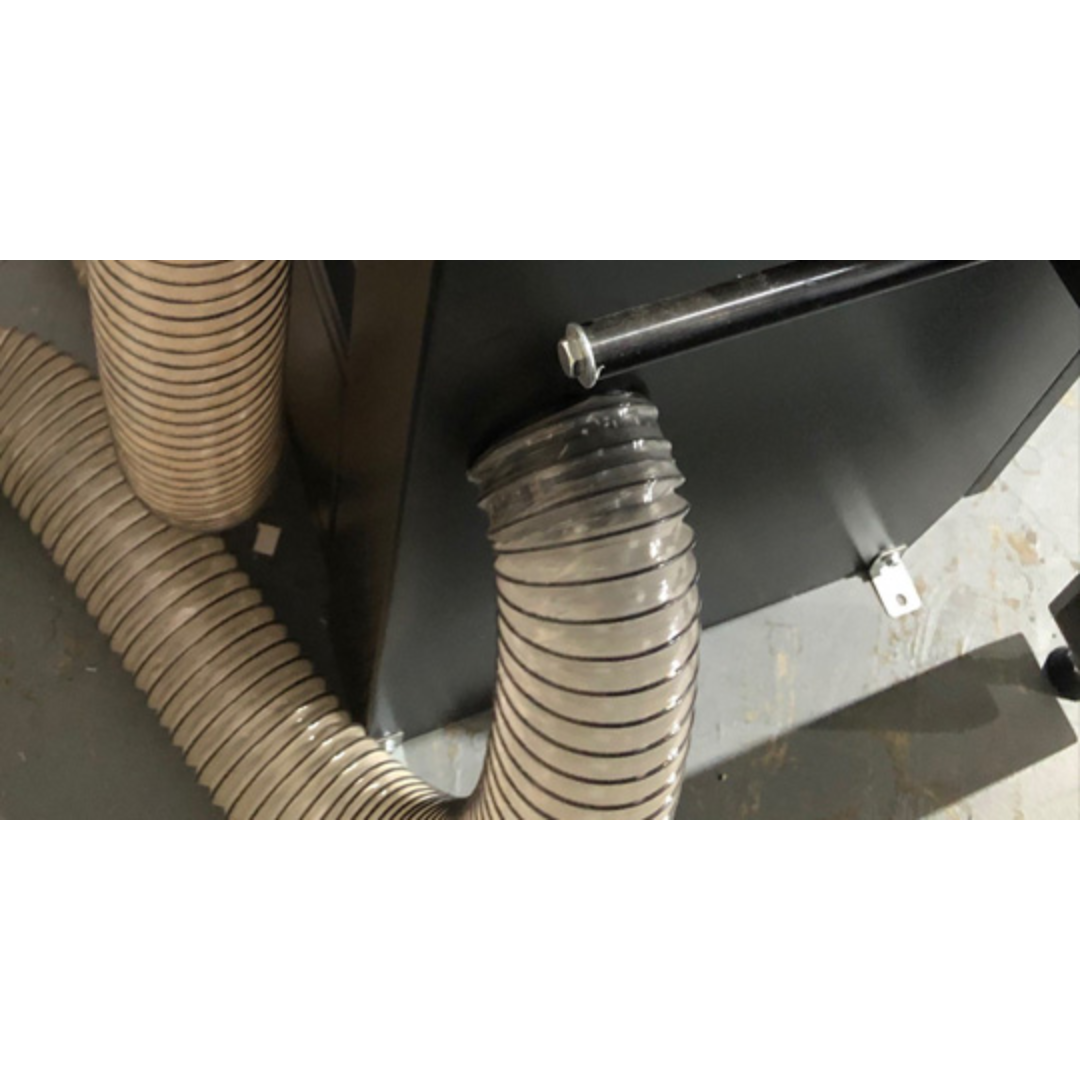

Maksiwa Edgebander CBC.T | Dust collection (shop-ready)

Equipped with (2) dust collection ports sized at 4"/100 mm. Minimum recommended dust collection: 700 CFM.

Maksiwa Edgebander CBC.T | Full specifications

Specification	SAE	Metric
Automatic feeding speed	16 ft/min	5 m/min

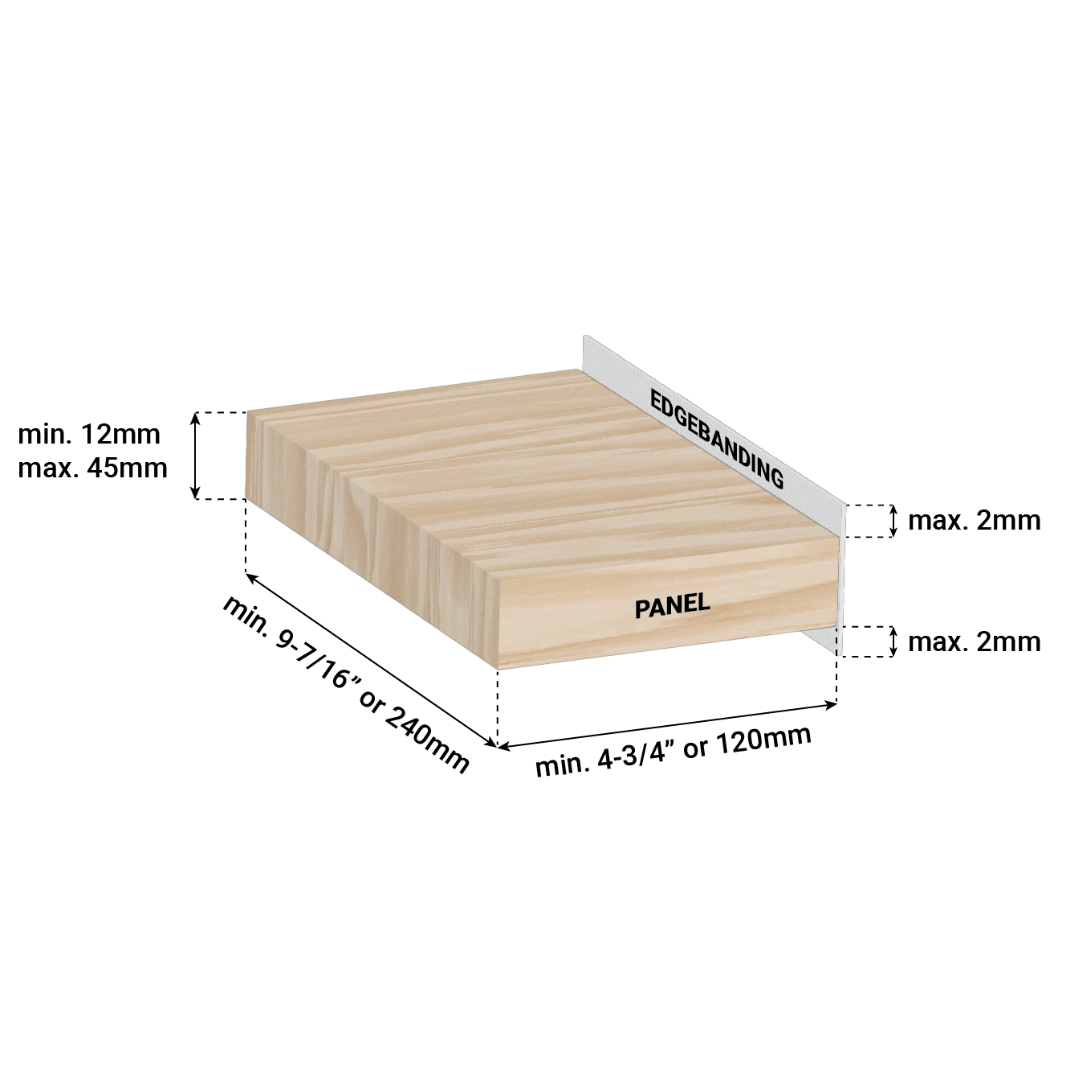

Panel thickness (Min/Max)	31/64" – 1 3/4"	12 – 45 mm
Edgebanding thickness	0.0157" – 0.118"	0.4 – 3 mm
Glue pot capacity	2 lbs	1 kg
Max edgebanding height	2"	50 mm
Minimum panel width	4 3/4"	120 mm
Minimum panel length	9 7/16"	240 mm
Extendable panel support rail length	78 21/32"	1998 mm
Extension table max width	12"	310 mm
Dust collector ports (2)	4"	100 mm
Minimum dust collection requirements	700 CFM	20 m/min
Air pressure requirement	6 SCFM @ 100 PSI	7 kg/cm²
Edgebanding coil support diameter	31 1/2"	820 mm
Recommended glue temperature range	356°F – 410°F	180°C – 210°C
Glue type	Pellet - Granulated Hot-Melt	Pellet - Granulated Hot-Melt

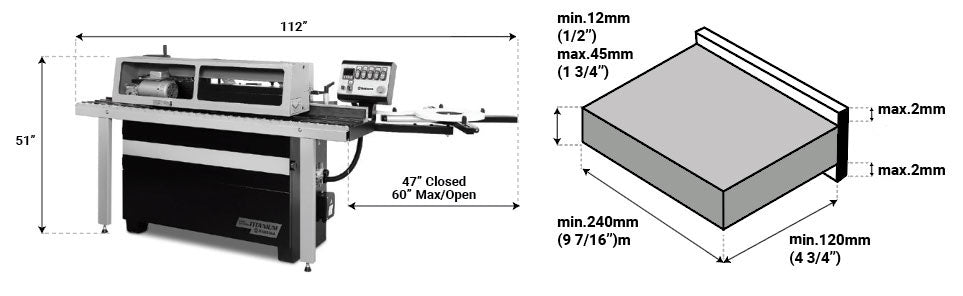

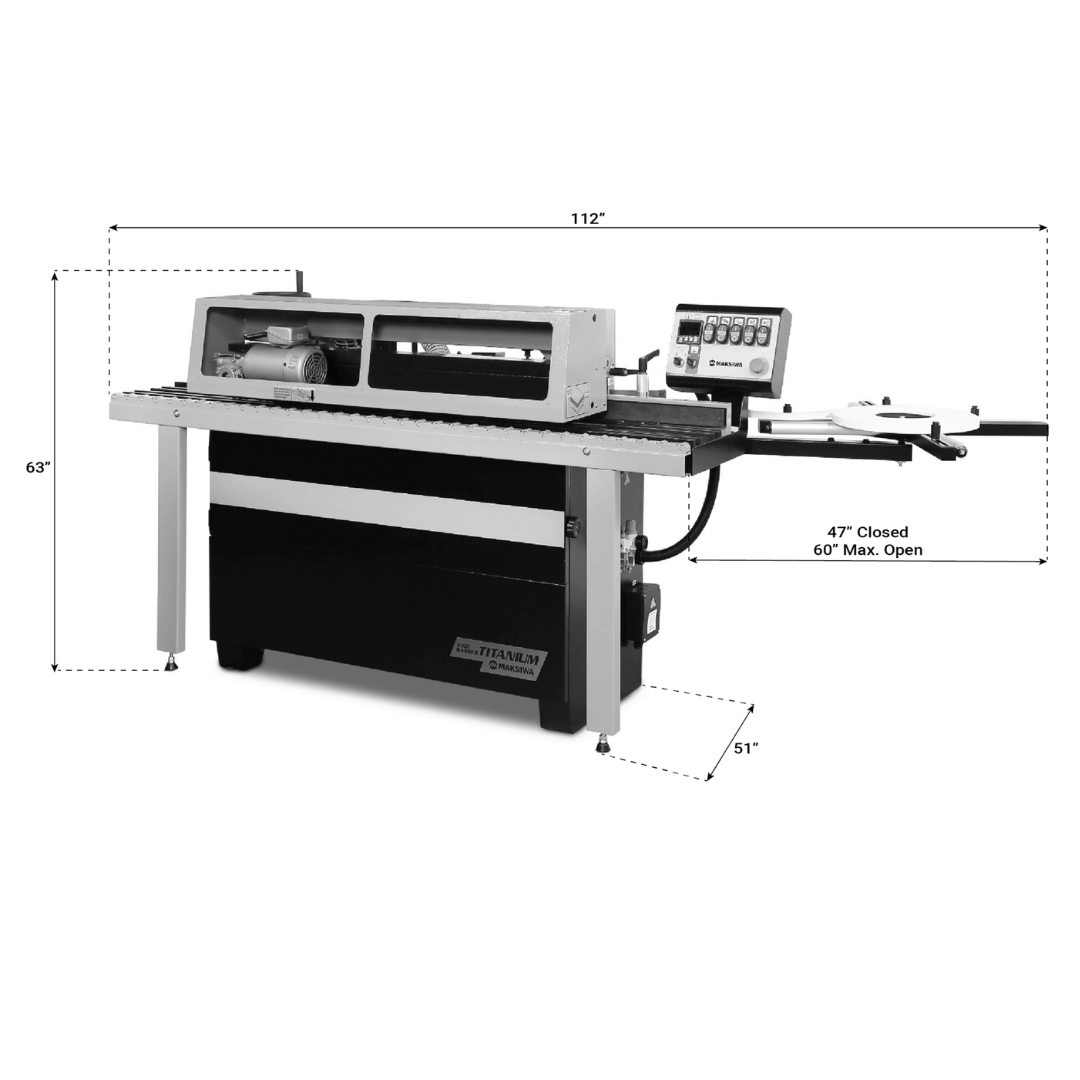

Max machine dimensions (L×W×H)	112" × 63" × 51"	2844 × 1600 × 1295 mm
Machine weight	849 lbs	385 kg
Shipping dimensions (L×W×H)	86" × 36" × 57"	2184 × 914 × 1448 mm
Shipping weight	1025 lbs	465 kg
Maksiwa Edgebander CBC.T \| Motor / Electrical
Electrical requirement	1 Phase 220V • 30 Amps • 60 Hz
Conveyor motor	3/4 HP (0.55 kW)
Flush trimmer motor	3/4 HP (0.55 kW)
End trimmer motor	1/4 HP (0.18 kW)
Glue spindle motor	1/3 HP (0.25 kW)
Top buffing motor	1/4 HP (0.18 kW)
Bottom buffing motor	1/4 HP (0.18 kW)
Sound rating	80 dB

Note: The Maksiwa Edgebander CBC.T includes a pre-heated infeed fence, dual pressure rollers, digital temperature control, front/rear trimming, top/bottom flush trimming, and dual buffing—built to help you get a cleaner edge with less hand finishing.
