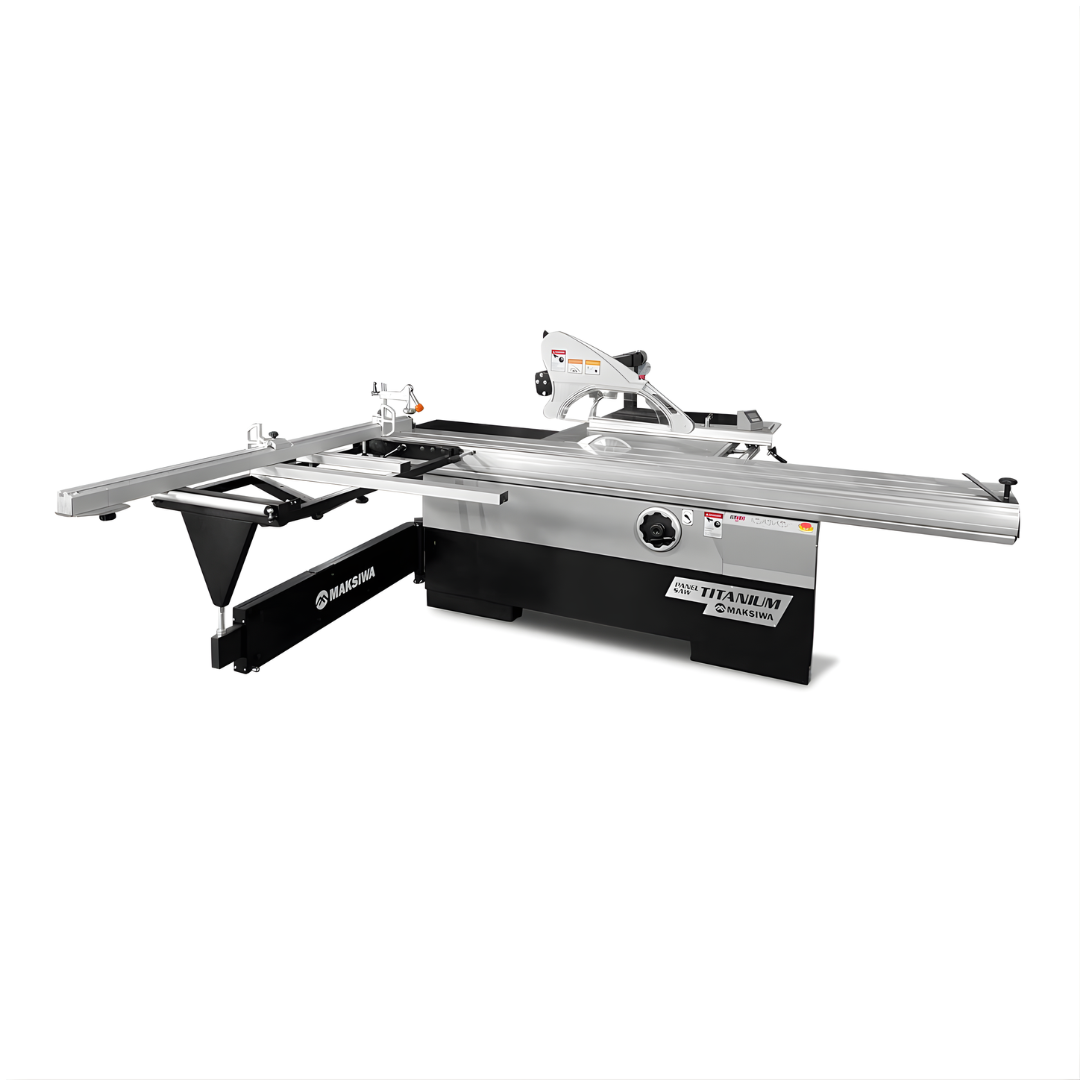

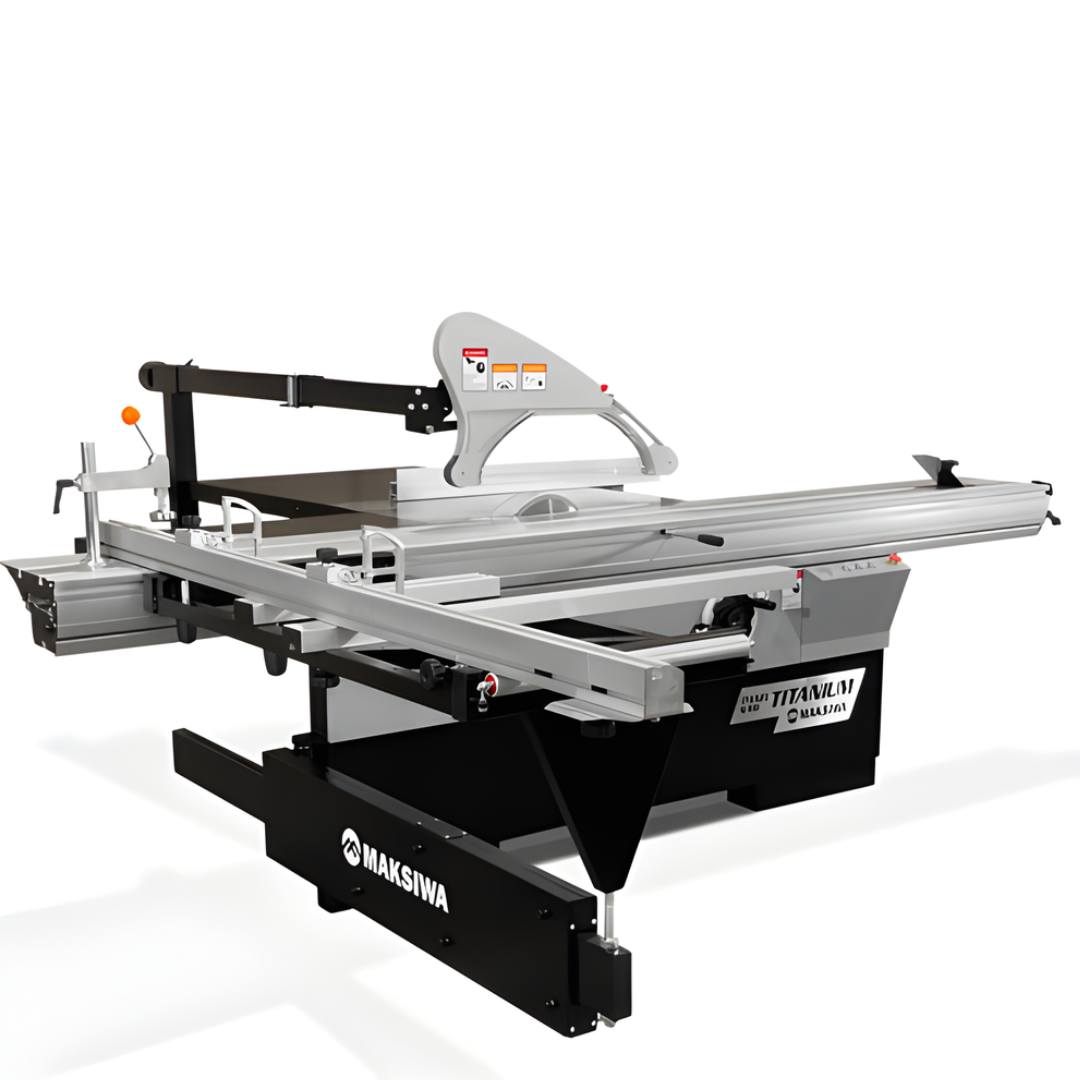

Maksiwa BMT.3200.IR Sliding Panel Saw — Titanium Edition
The Maksiwa BMT.3200.IR Sliding Panel Saw is made to feel smooth, strong, and easy to use. It is built with high quality parts so you can cut every day with less stress.
This is the saw for shops that want: smooth table movement, clean cuts, and safe work. It comes with a dual overhead guard and dust ports to help keep your shop cleaner.
Smooth table
Moves easy, even with heavy panels
Power
5 HP main motor (1-phase 220V)
Clean edges
Scoring motor + conical scoring blade
Big panels
126" crosscut capacity
What the Maksiwa BMT.3200.IR Sliding Panel Saw does for you (simple)
-
It slides smooth.
You push the table and it glides. This helps you cut straighter. -
It holds up.
Strong build and good parts mean it is made for real shop work. -
It cuts cleaner.
The scoring blade helps stop chipping on sheet goods. -
It keeps the shop safer.
Dual overhead guard helps protect you during cuts. -
It helps with dust.

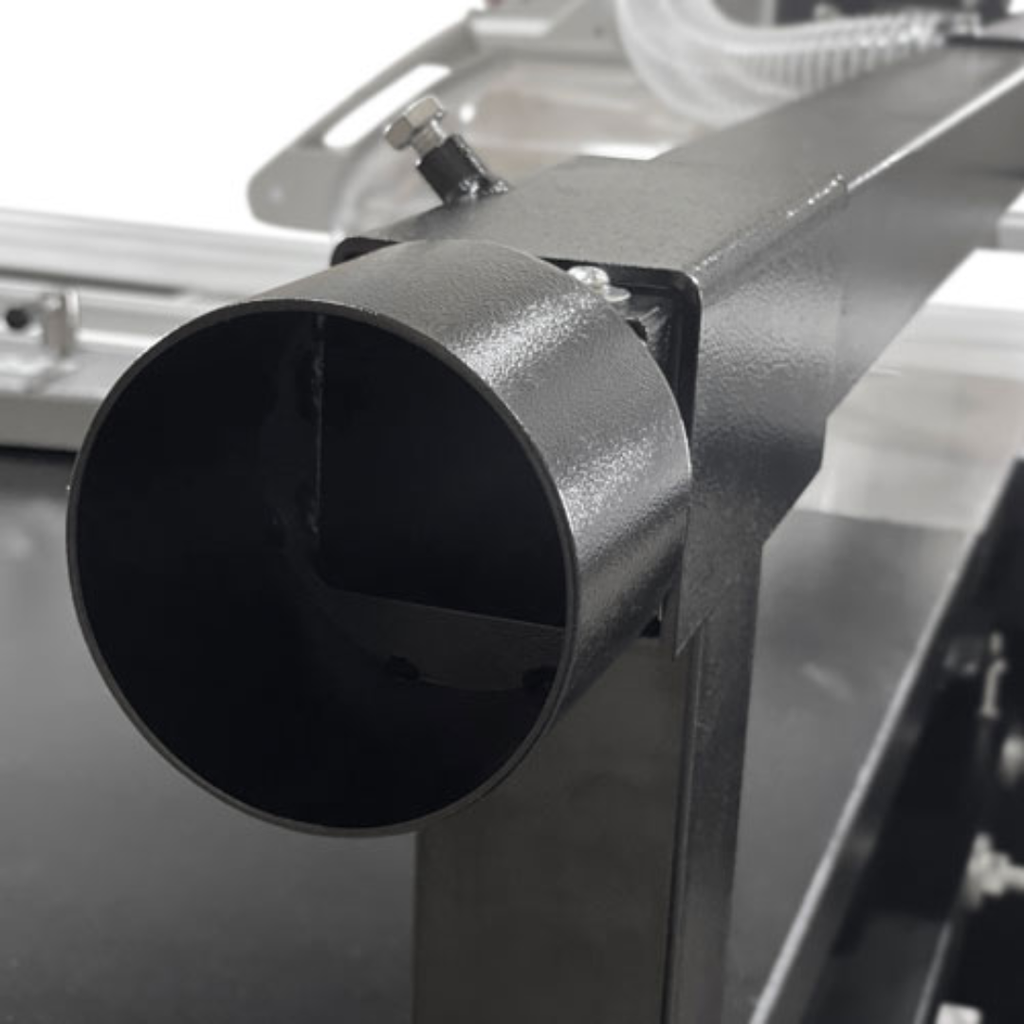

Dual 4" dust ports help pull dust away from the cut.

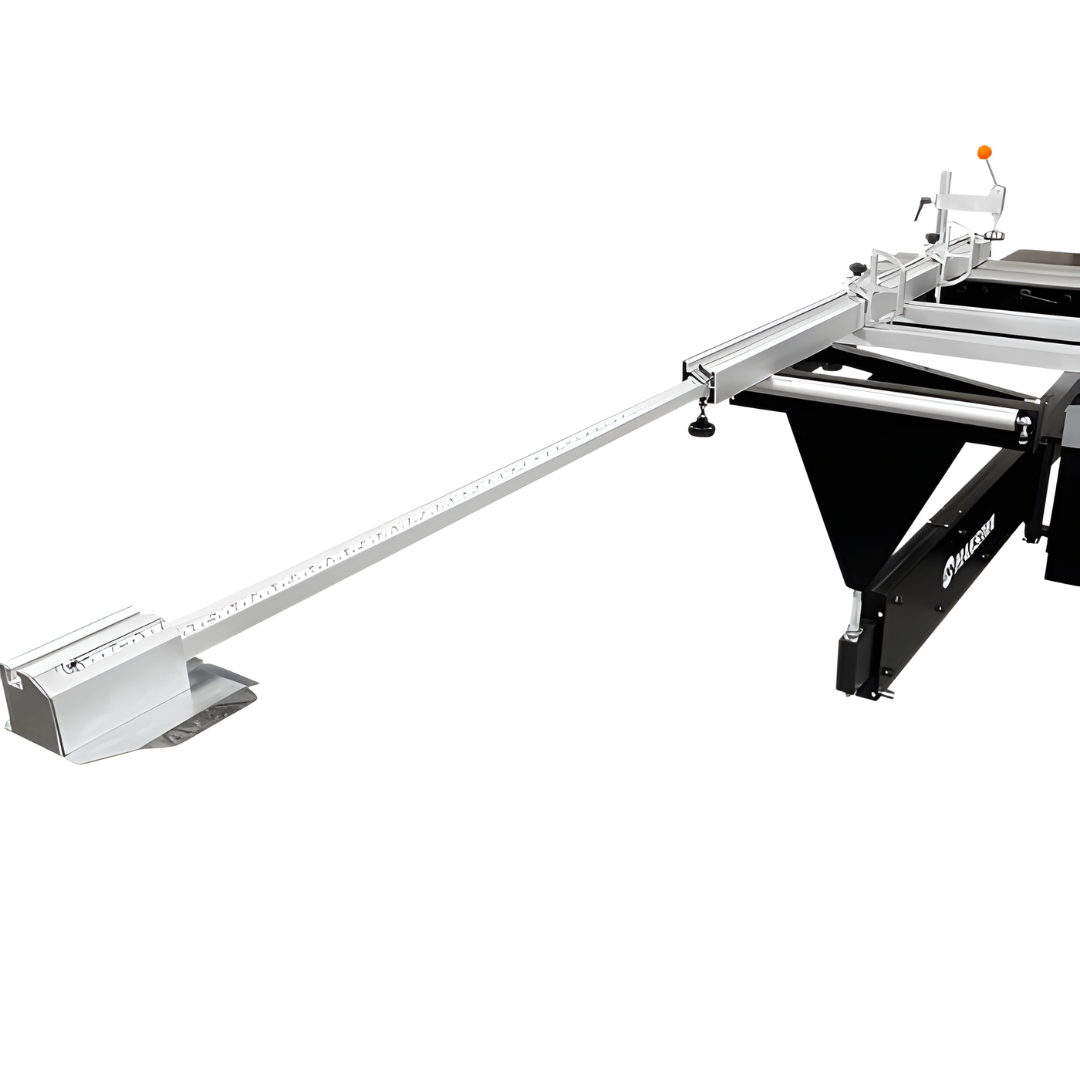

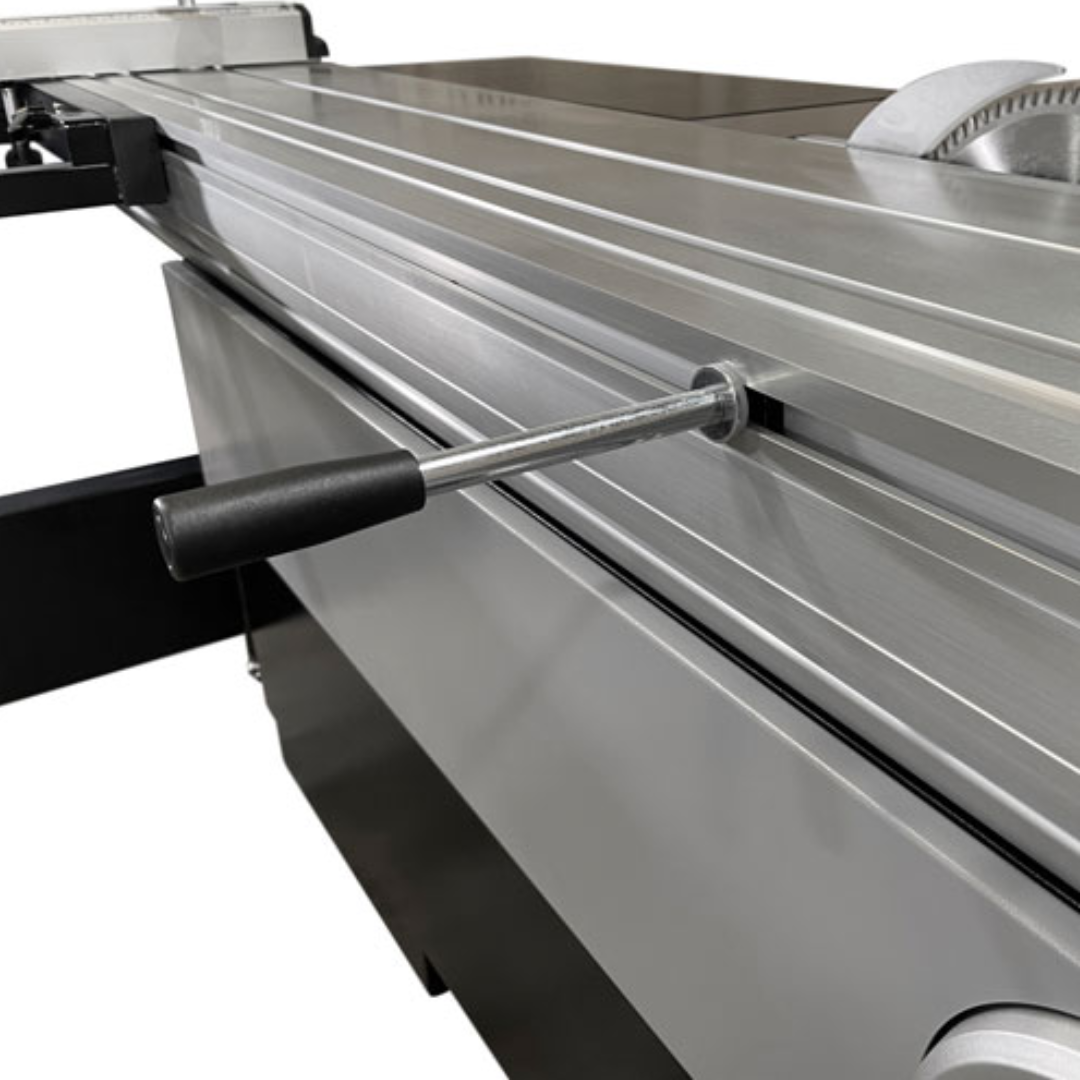

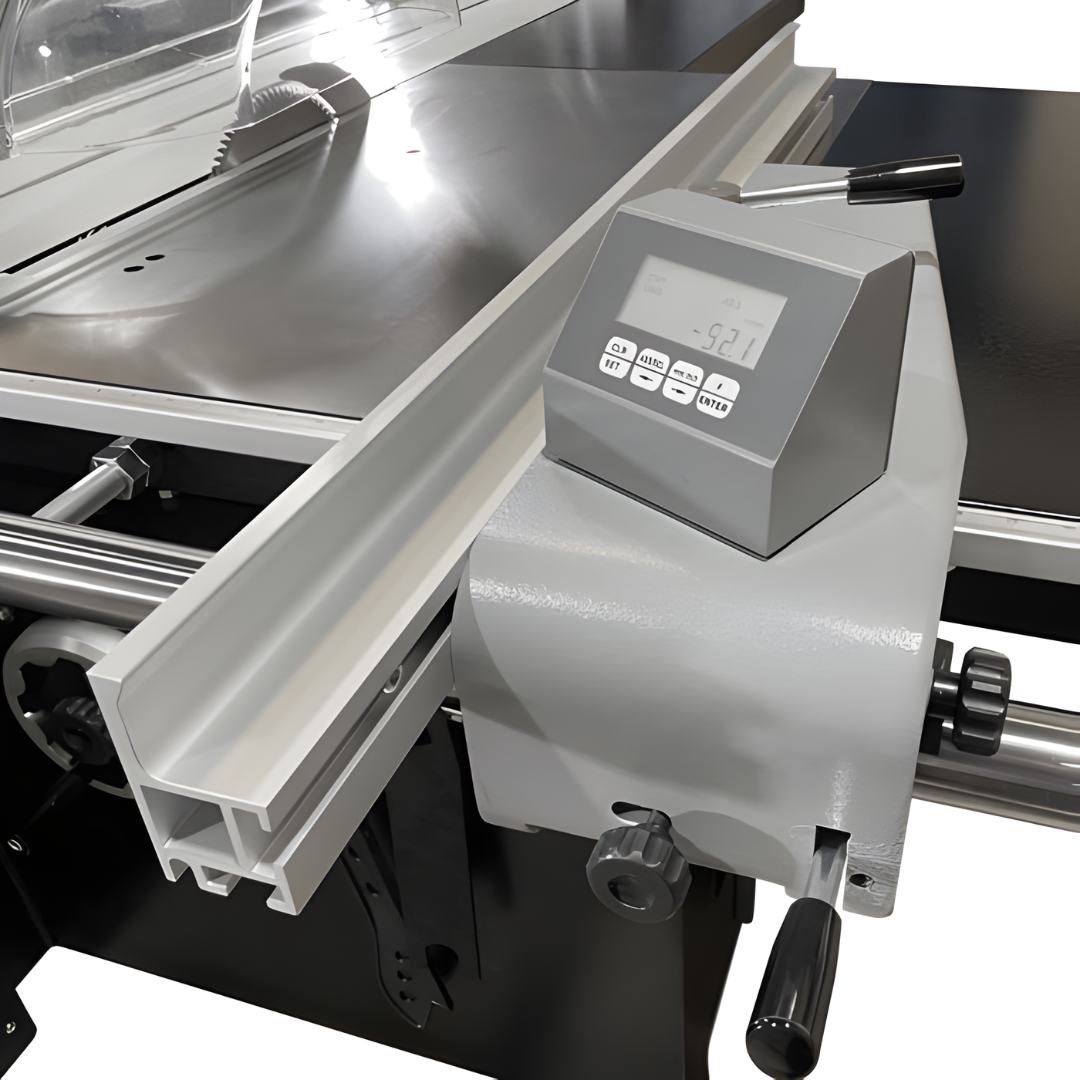

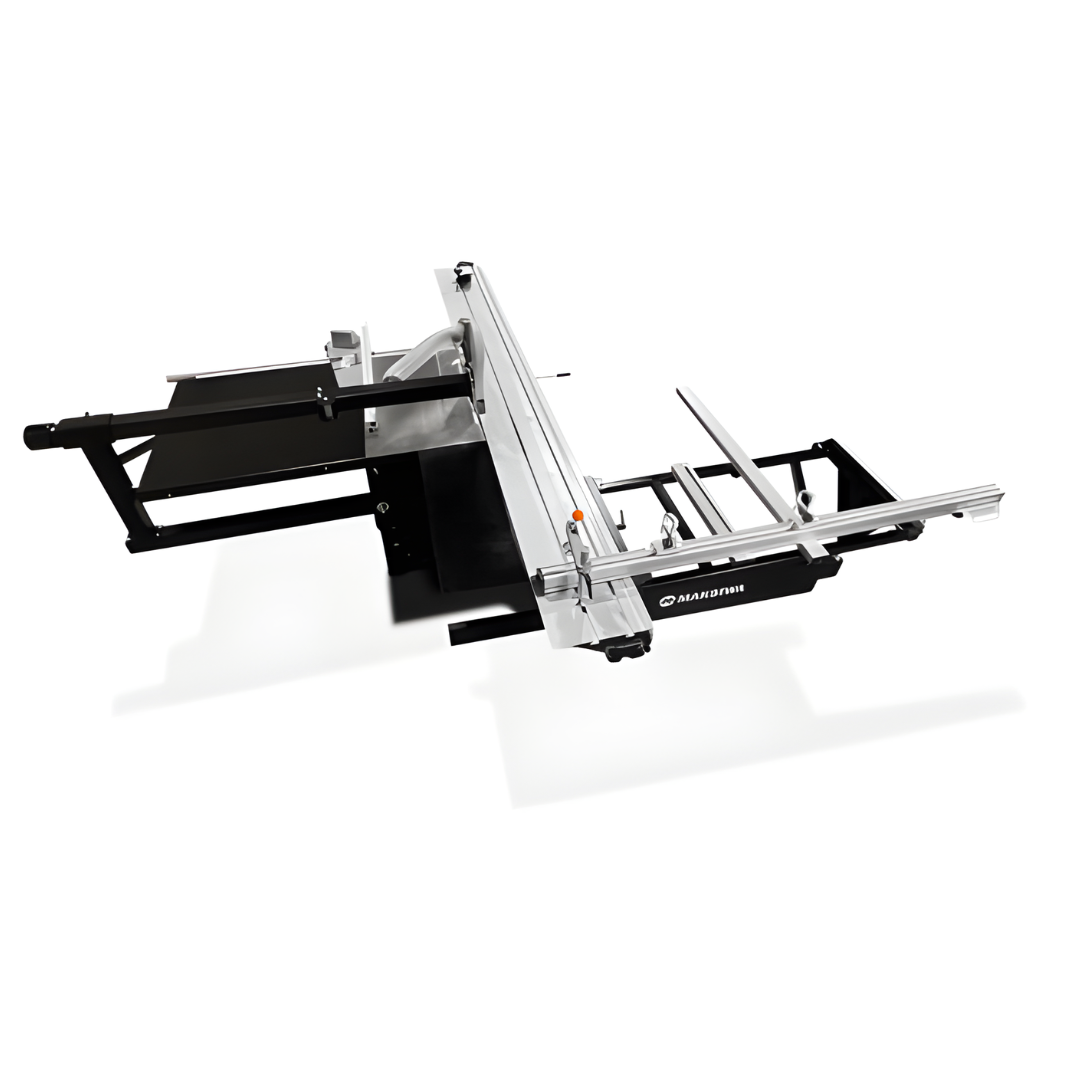

Maksiwa BMT.3200.IR Sliding Panel Saw table system (why it feels “easy”)
This saw is made so the table movement is smooth. Even when your panel is heavy, the table still moves like a breeze.
- Smoother push: less effort from you
- More control: better cuts on big panels
- Less shaking: helps keep cuts straight
Maksiwa BMT.3200.IR Sliding Panel Saw safety + dust (what you get)

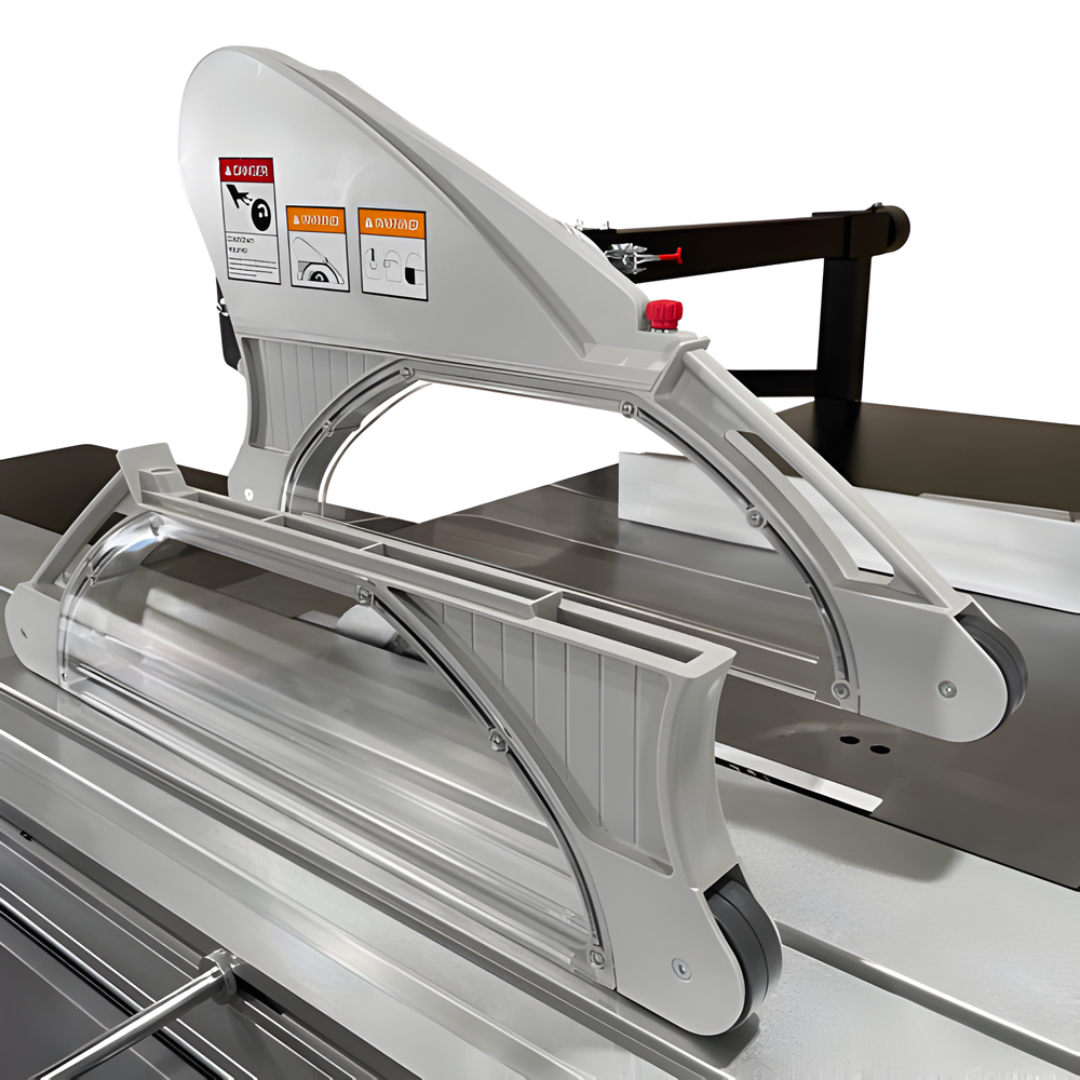

- Dual overhead saw guard (built-in)

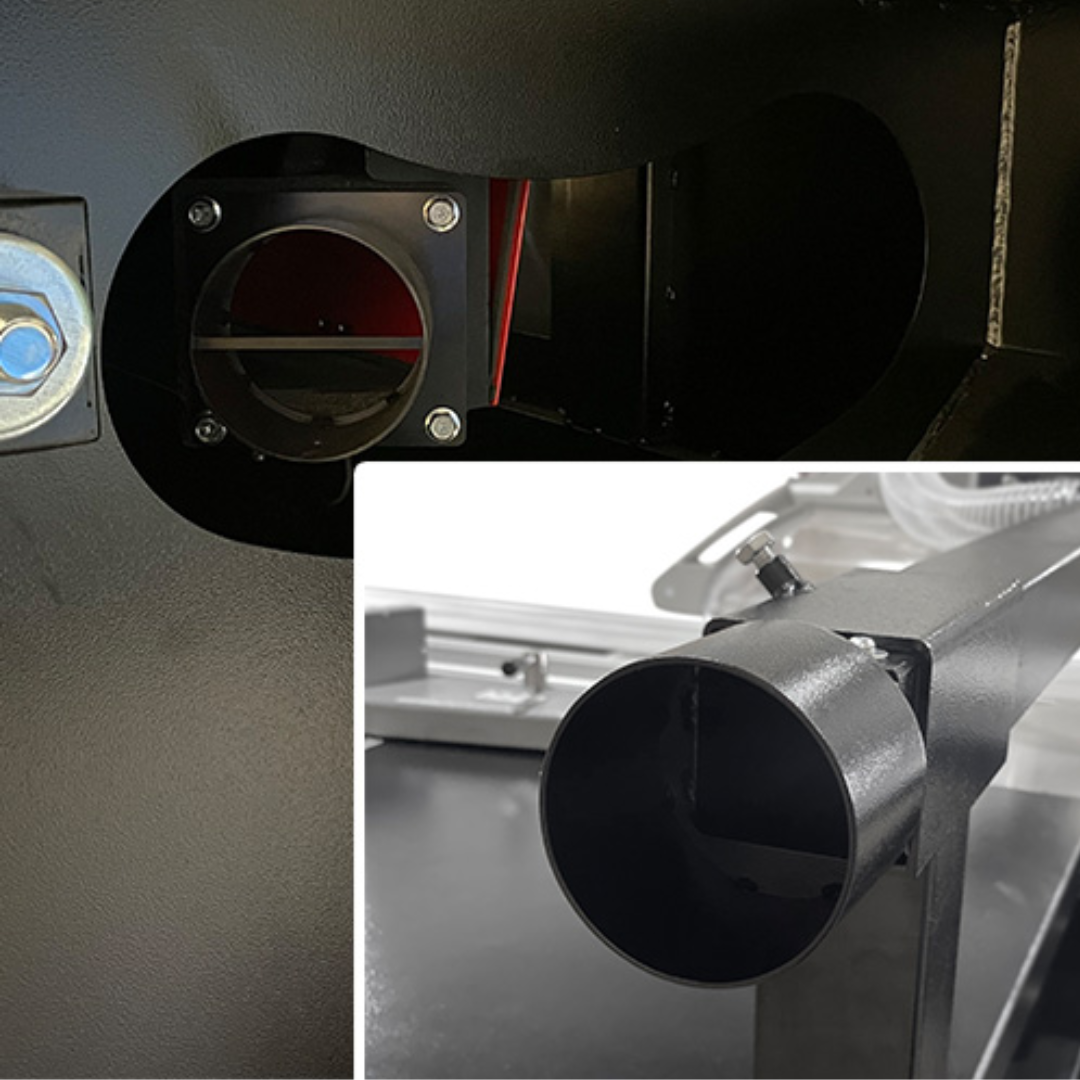

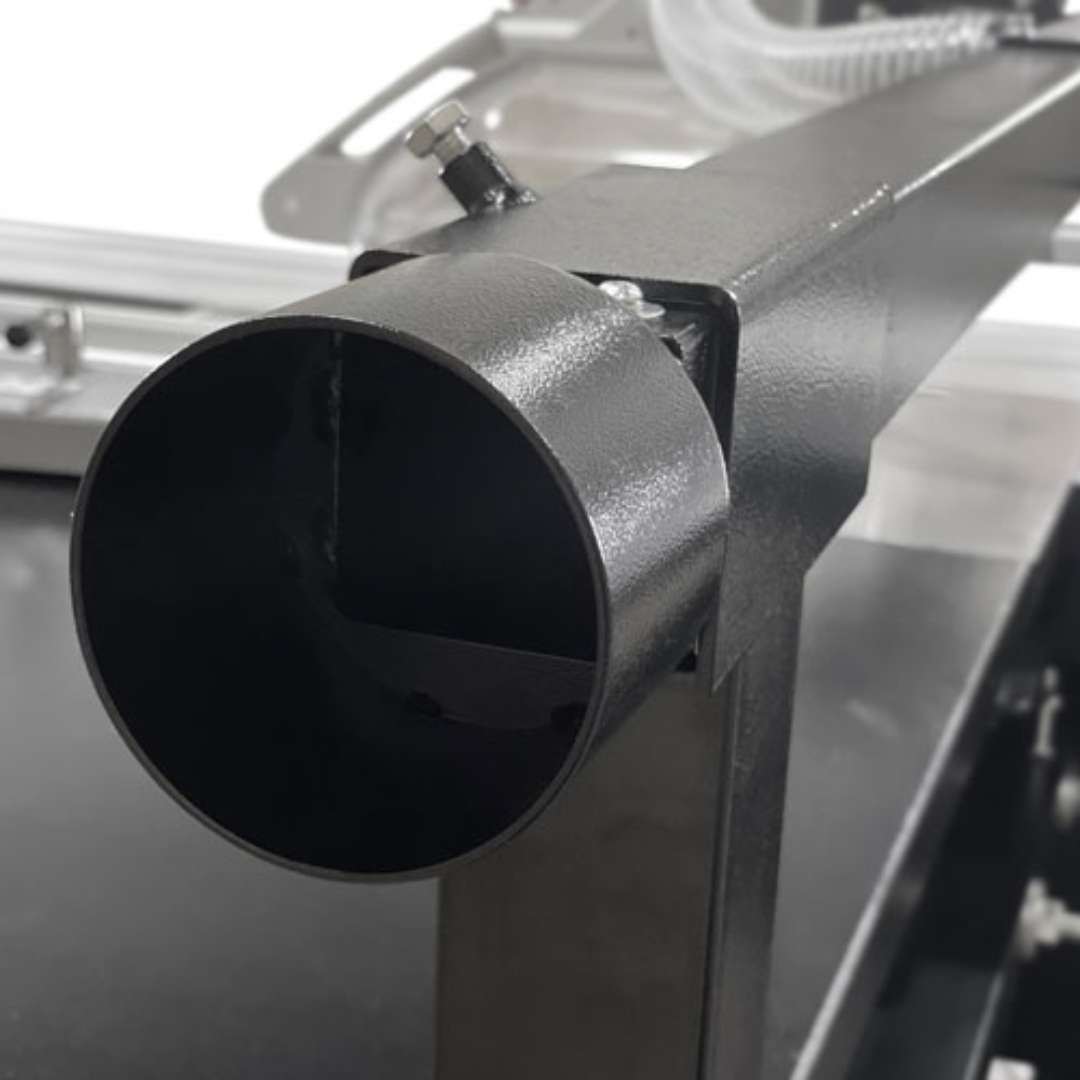

- Dust collection ports: two 4" ports (100 mm)
- Cleaner air: minimum dust need is 1000 CFM

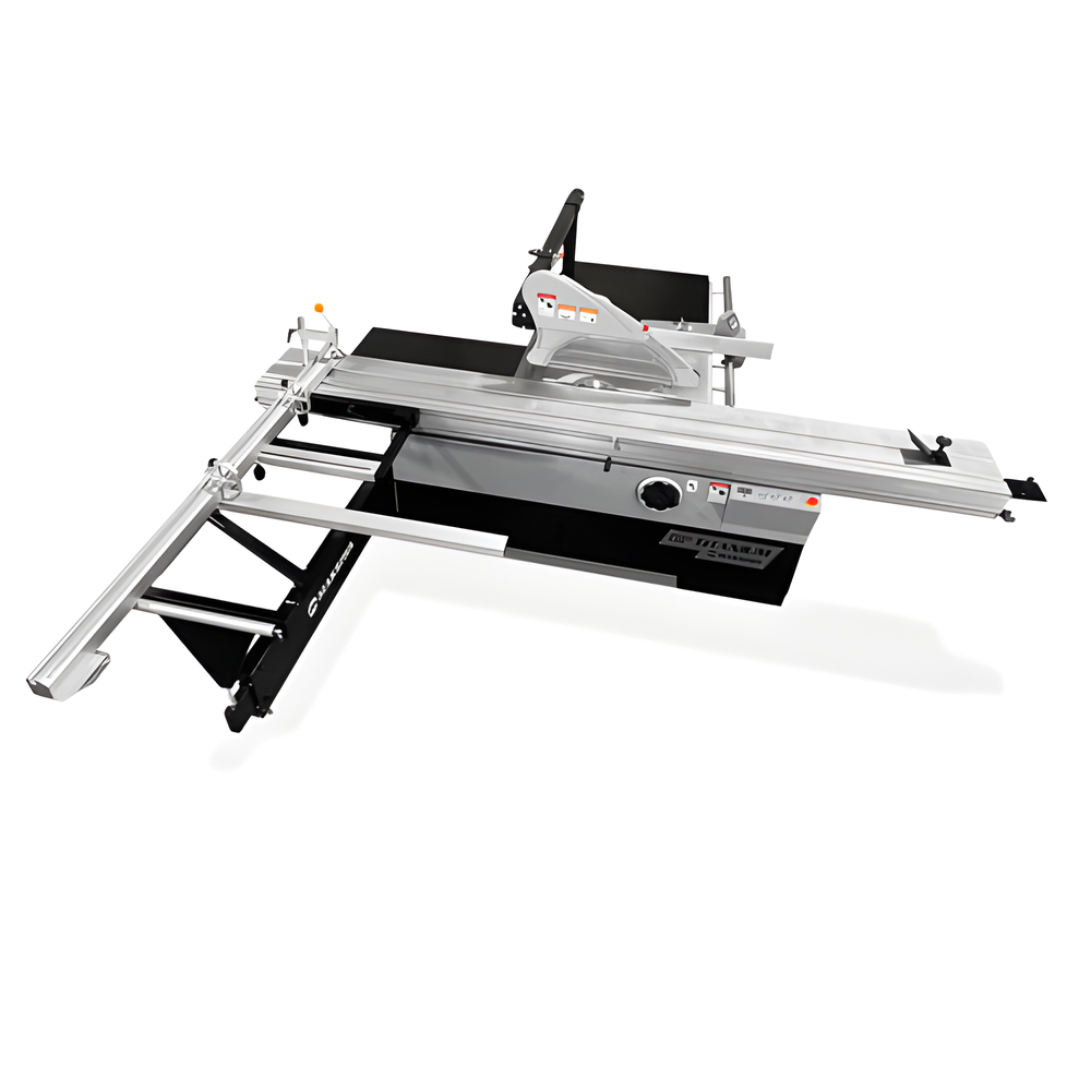

Maksiwa BMT.3200.IR Sliding Panel Saw cutting capacity
These numbers help you know what size work this saw can handle.
A. Manual adjustment cutting width
59"
B. Crosscut fence closed
78"

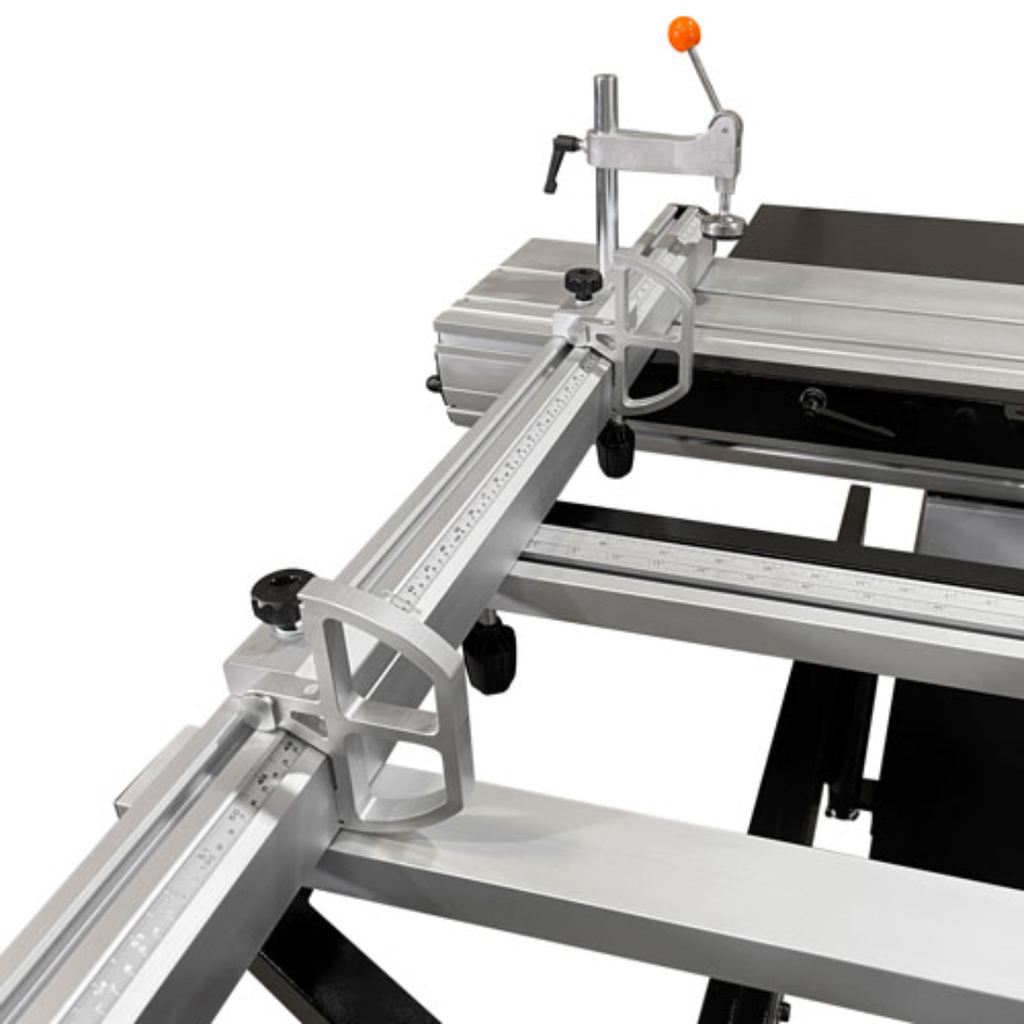

C. Crosscut fence extended
B + C = 135"
D. Sliding table travel (front)
204"
E. Sliding table travel (back)
205"
Maksiwa BMT.3200.IR Sliding Panel Saw who this is for
- Cabinet shops and furniture shops cutting sheet goods
- Shops that want smooth table movement for big panels
- Teams that want a safer setup with overhead guards
- Buyers who want single-phase 220V power (shop-friendly)
Maksiwa BMT.3200.IR Sliding Panel Saw full specifications
| Specification | SAE | Metric |
|---|---|---|
| Main Motor | 5 HP / 4000 RPM 3.7 kw | 5 HP / 4000 RPM 3.7 kw |
| Max Blade Diameter | 12" | 305 MM |
| Main Blade Arbor | 1 3/16 " | 30 MM |
| Main Blade Max cutting Height at 90° | 3 1/2" | 90 MM |
| Main Blade Cutting Height at 45° | 2 7/16" | 63 MM |
| Scoring Motor | 3/4 HP / 8000 RPM .55 kw | 3/4 HP / 8000 RPM .55 kw |
| Scoring Blade | 4 3/4" | 120 MM |
| Scoring Blade Arbor | 25/32" | 20 MM |
| Scoring Blade Type | Conical | Conical |
| Max Ripping Capacity | 51" | 1300 MM |
| Crosscut Capacity | 126 " | 3200 MM |
| Crosscut Fence Capacity Closed/Open | 78"/120" | 1981/ 3048 MM |
| Machine Working Dimensions (LxWxH) | 132" x 137" x 65" | 3352 x 3479 x 1651 MM |
| Cast Iron Table Dimension | 35 " x 21 " | 896 x 548 |
| Sliding Table Dimension | 126" x 14" | 3200 x 358 MM |
| Dust Collection Port (2) | 4" | 100 MM |
| Minimum Dust Collection Requirements | 1000 CFM | 28M/MIN |
| Electrical Specs | 1 Phase 220V 30 Amps 60 Hz | 1 Phase 220V 30 Amps 60 Hz |
| Main Body Crate Dimensions (LxWxH) | 83" x 45" x 45" | 2108 x 1143 x 1143 MM |
| Main Body Crate Weight | 1254 Lbs | 569 Kgs |
| Sliding Table Crate Dimensions (LxWxH) | 133" x 18" x 15" | 3378 x 457 x 381 MM |
| Sliding Table Crate Weight | 274 Lbs | 124 Kgs |
Note: Specs are listed exactly as provided (SAE + Metric).
