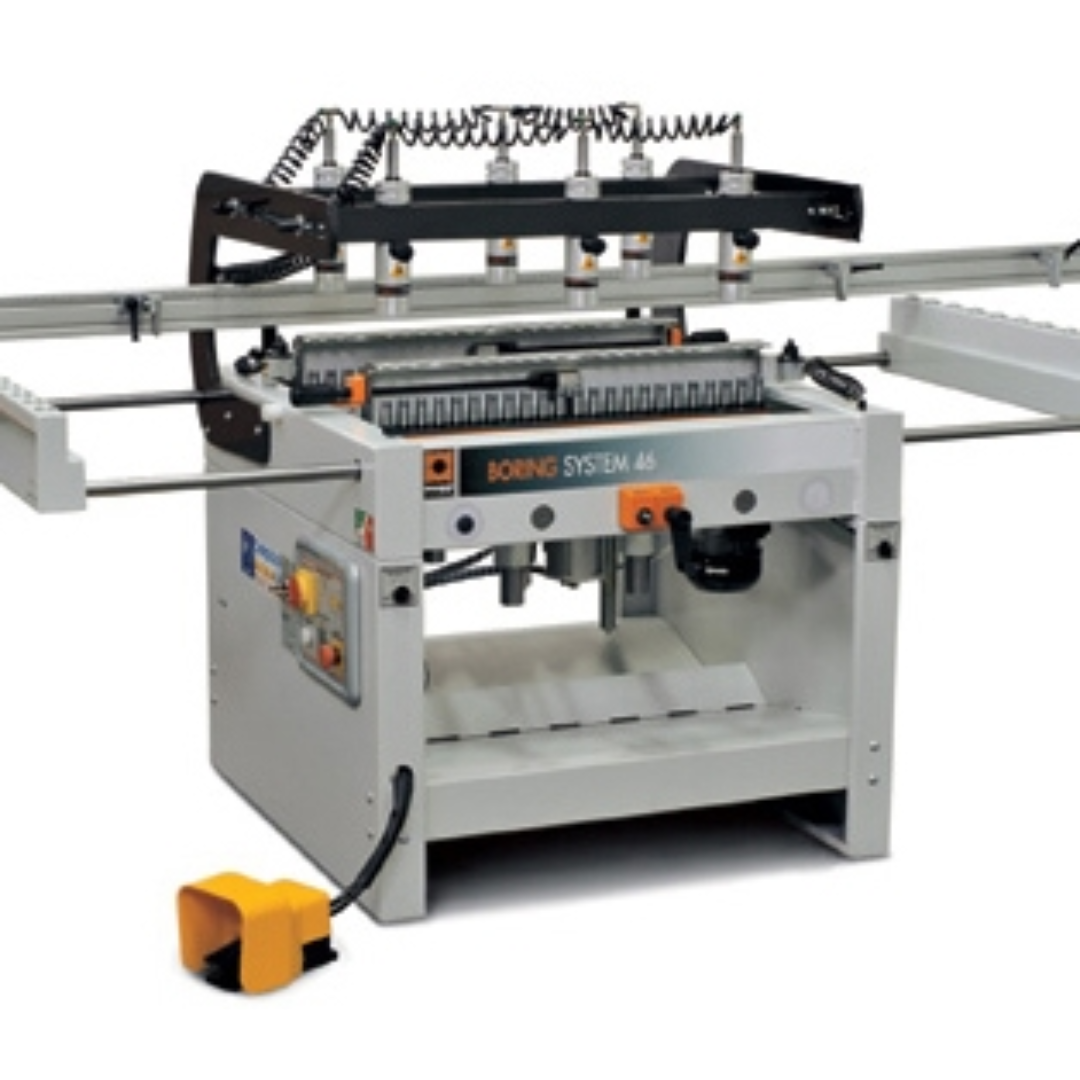

Maggi System 46 Double Row Line Borer MAG-SYSTEM-46 Applications
- Kitchen cabinet side panel drilling
- Closet system and shelving production
- Bookcase and furniture side boring
- Double row line boring for high-efficiency workflows
- Precision panel processing in industrial woodworking environments
Ideal for manufacturers requiring fast, accurate double-row drilling with consistent spacing and high production output.
Maggi System 46 Double Row Line Borer MAG-SYSTEM-46 Specifications
| Spindle Configuration | (2) 23-Spindle Heads (32 mm Centers) |
|---|---|
| Total Spindles | 46 |
| Motor | (2) 2 HP Motors (3,500 RPM) |
| Max Drilling Depth | 2-1/16" (55 mm) |
| Distance Between First & Last Spindle | 27-23/32" (704 mm) |
| Maximum Distance Between Heads | 25-19/32" (650 mm) |
| Minimum Workpiece Width | 5-1/8" (130 mm) |
| Fence to First Head | 15 mm – 494 mm |
| Fence to Second Head | 160 mm – 639 mm |
| Working Air Pressure | 94 psi |
| Dust Outlet | 3" |
| Machine Dimensions | 47.5" x 46.5" x 45.75" Tall |
| Net Weight | 820 lbs |
| Crated Dimensions | 48" x 42" x 45" Tall |
| Crated Weight | 951 lbs |
Maggi System 46 Double Row Line Borer MAG-SYSTEM-46 Performance & Features

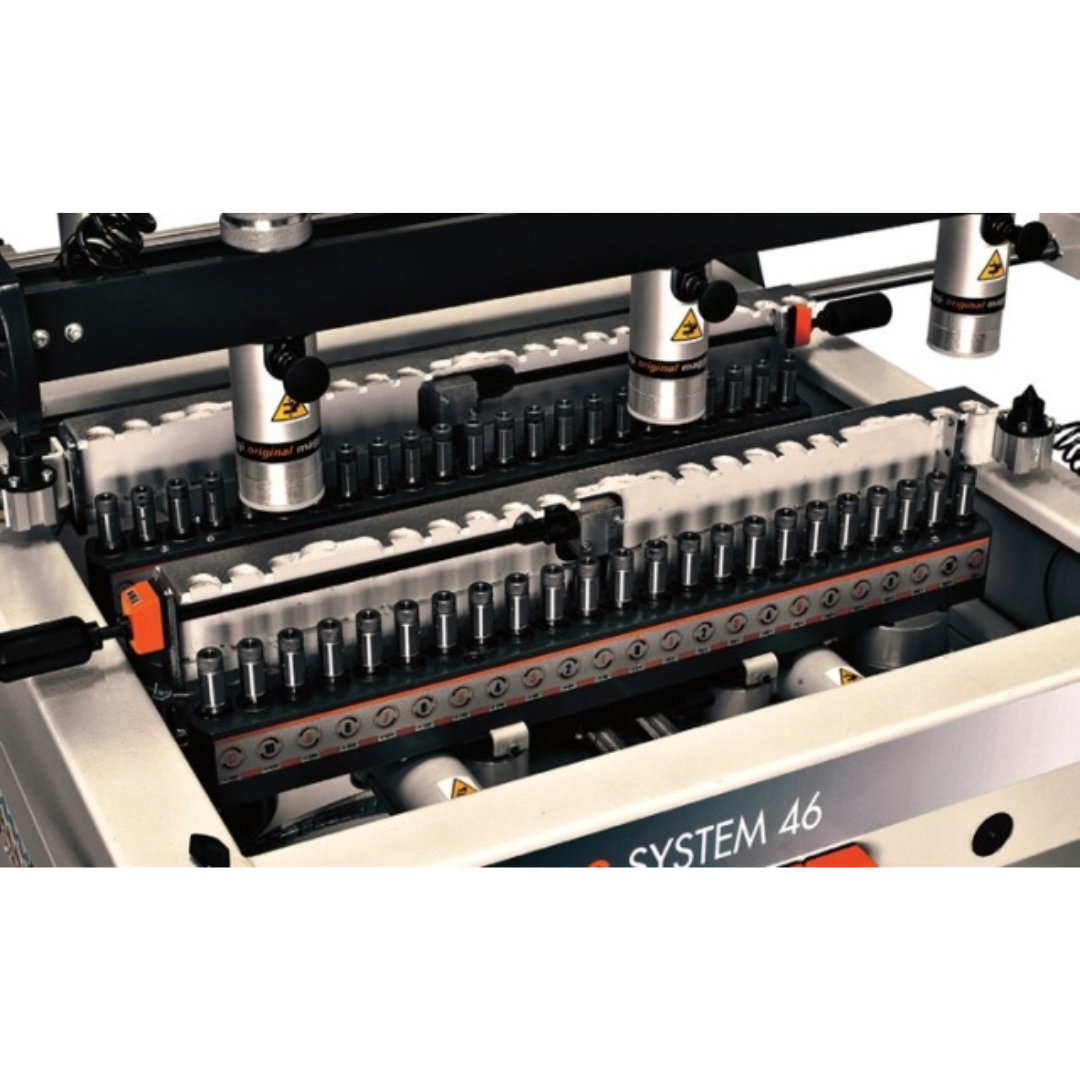

- Dual 23-spindle heads (46 total spindles) enable simultaneous double row drilling for increased productivity.
- 32 mm system spacing ensures compatibility with industry-standard cabinet and furniture construction.

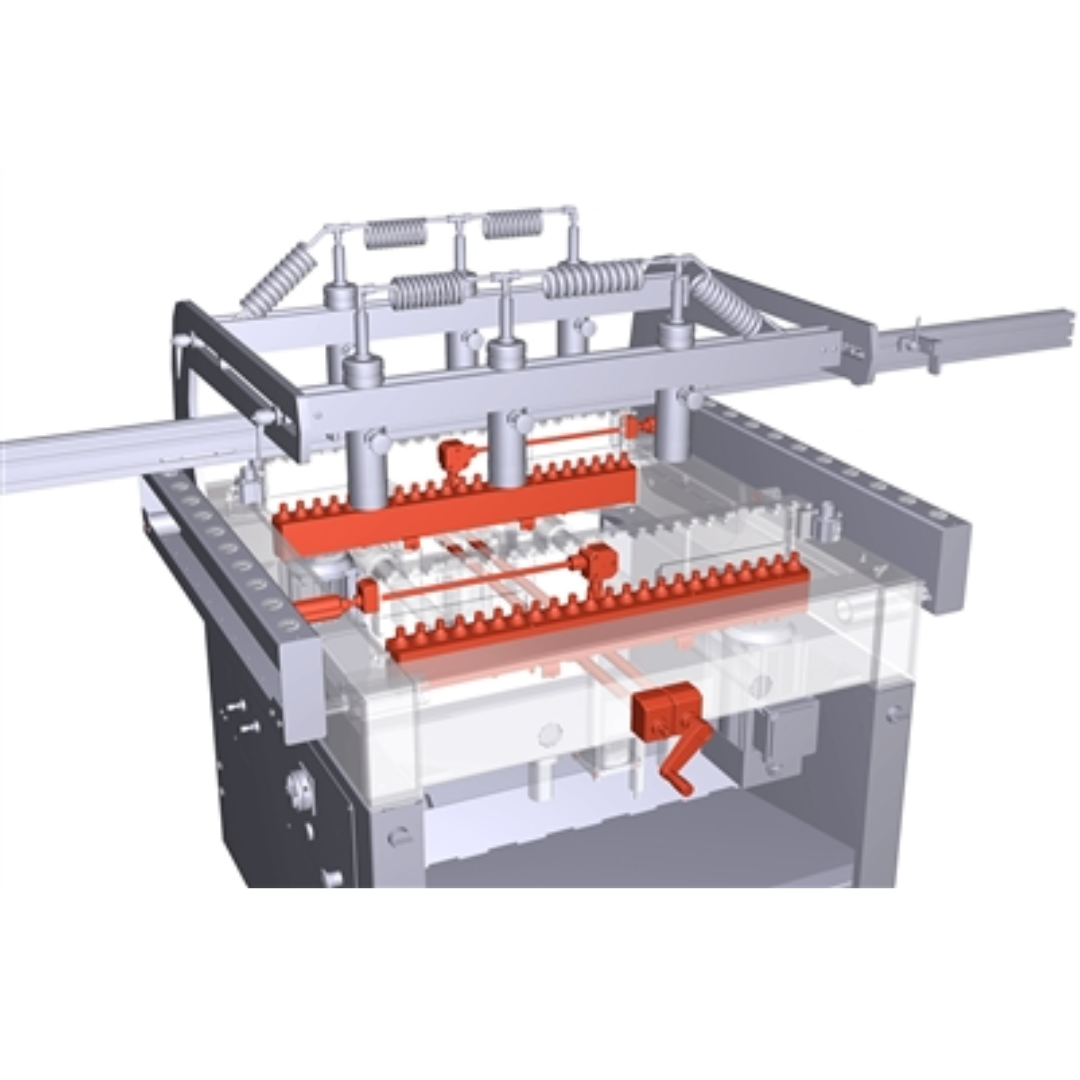

- Front-end head adjustment allows fast and precise setup for different drilling configurations.
- Dual 2 HP motors (3,500 RPM) provide consistent power for demanding applications.
- Side depth counter system enhances accuracy and repeatability of drilling operations.

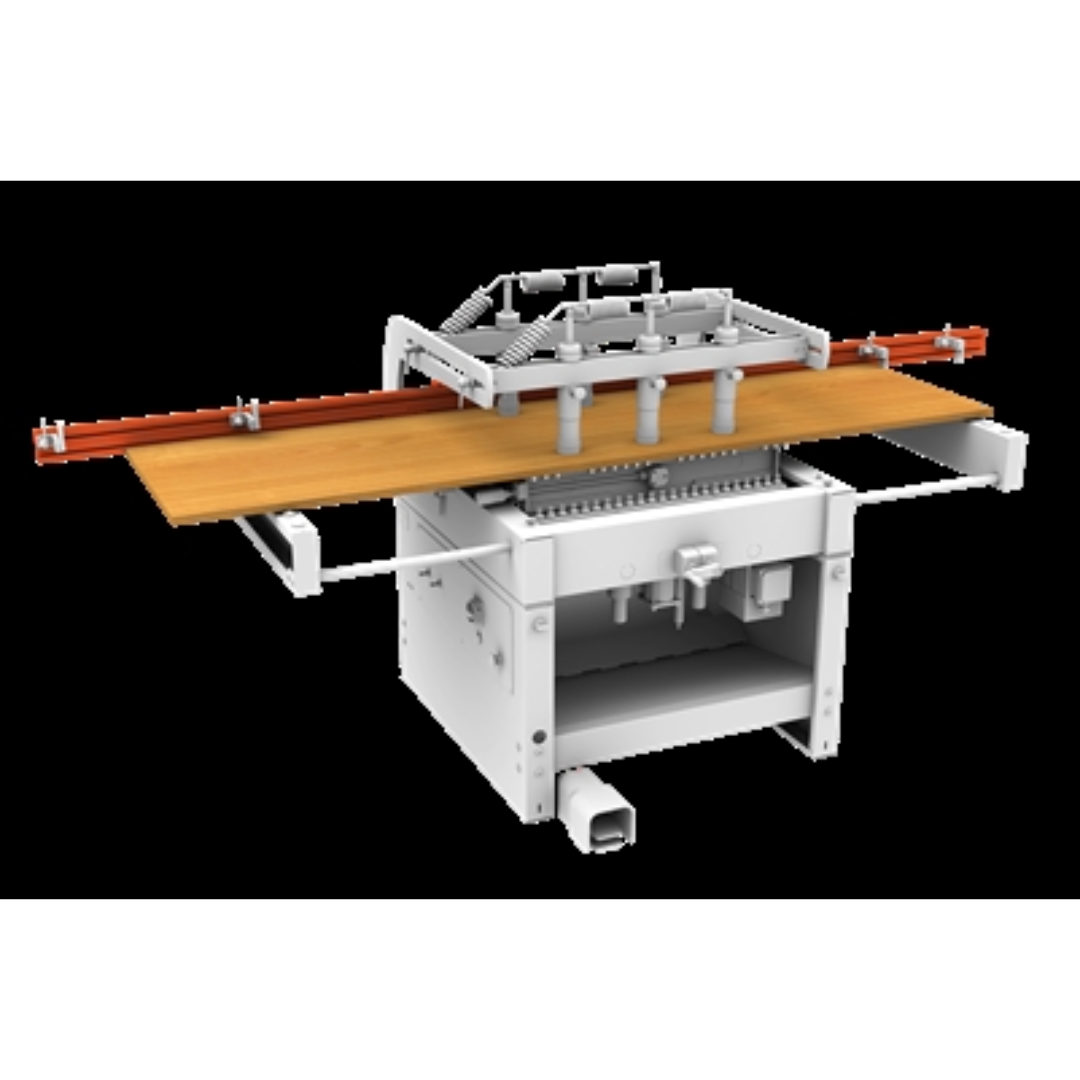

- Extractable 400 mm support rollers improve handling of long panels and large workpieces.

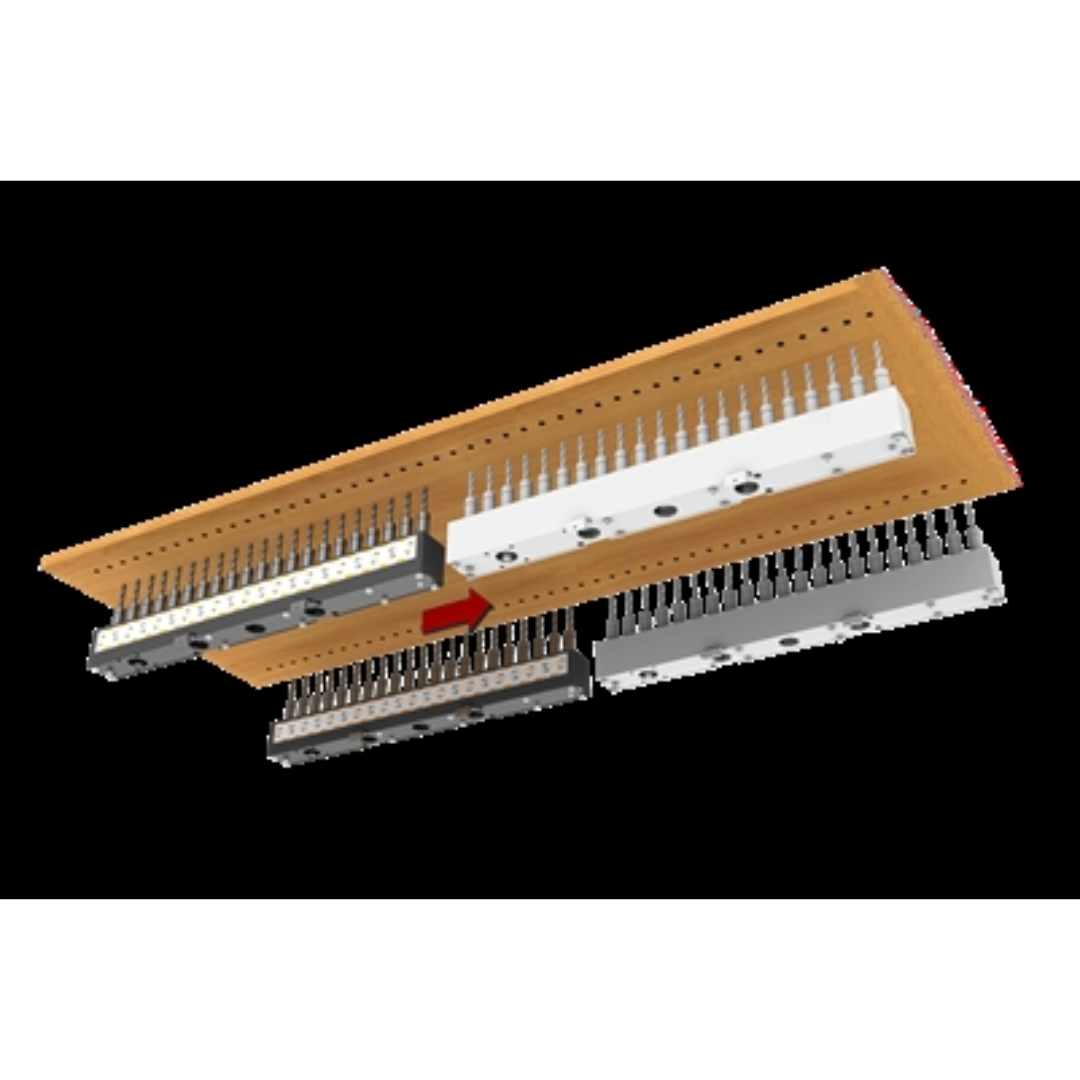

- Adjustable head spacing accommodates a wide range of panel sizes and drilling requirements.
- 10' extension fence with flip-stops ensures accurate positioning for repetitive drilling tasks.
- (2) Pneumatic reference pins provide quick and precise panel alignment.
- (6) Patented safety clamps secure materials firmly during operation for enhanced safety and accuracy.
- Supports single or double row line boring for maximum operational flexibility.
- Includes (46) quick-change chucks for fast tooling changes and reduced downtime.
- Compatible with 24 LH and 22 RH boring bits for complete drilling coverage.
- Heavy-duty construction ensures durability and long-term industrial performance.
- 100% Made in Italy reflecting high manufacturing standards and proven reliability.
Maggi System 46 Double Row Line Borer MAG-SYSTEM-46 Optional Accessories
- Additional quick-change bit adaptors
- Extra holddown cylinder assemblies
- Additional fence stops and extension fences
- Reference gauge for precise fence setup

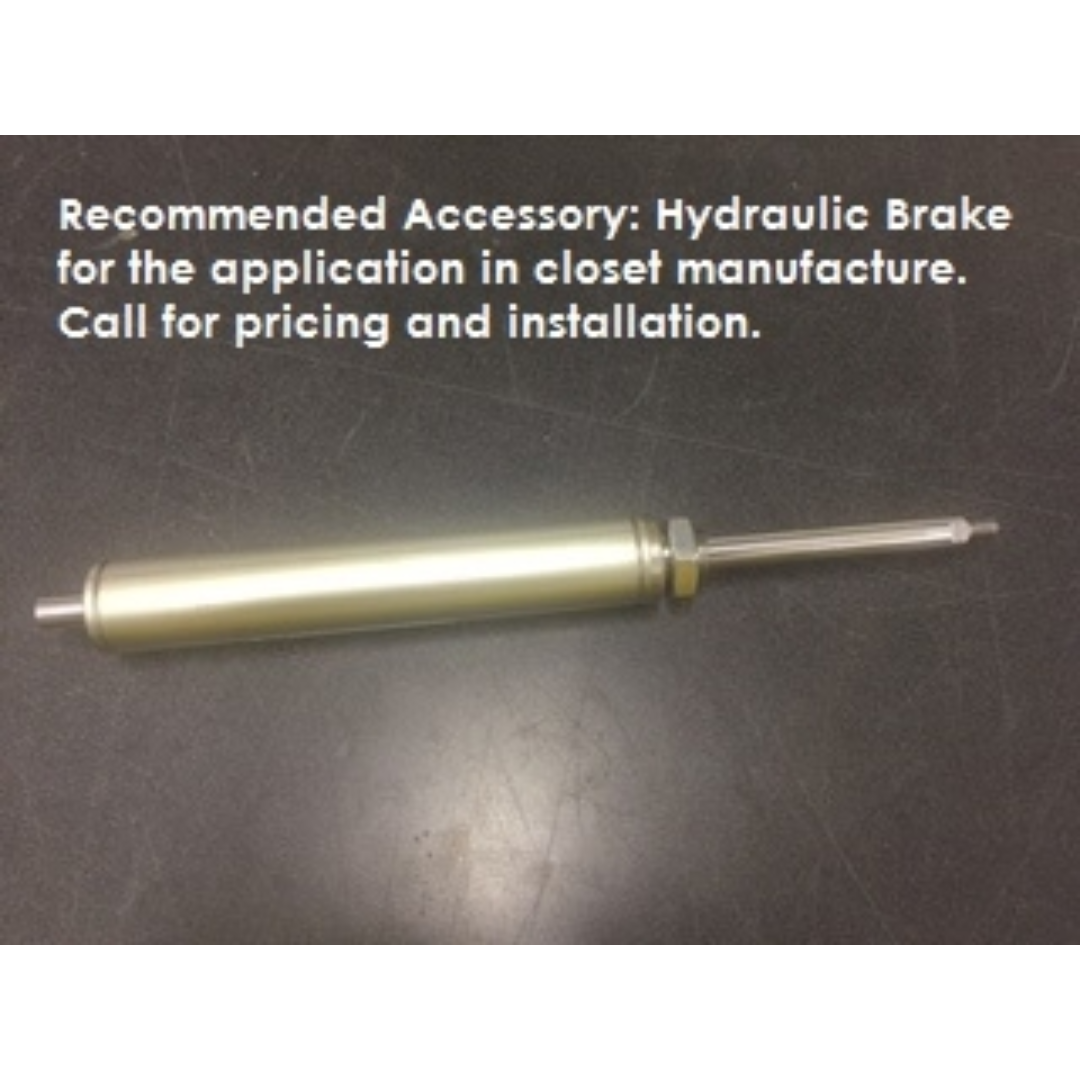

- Hydraulic control for head movement

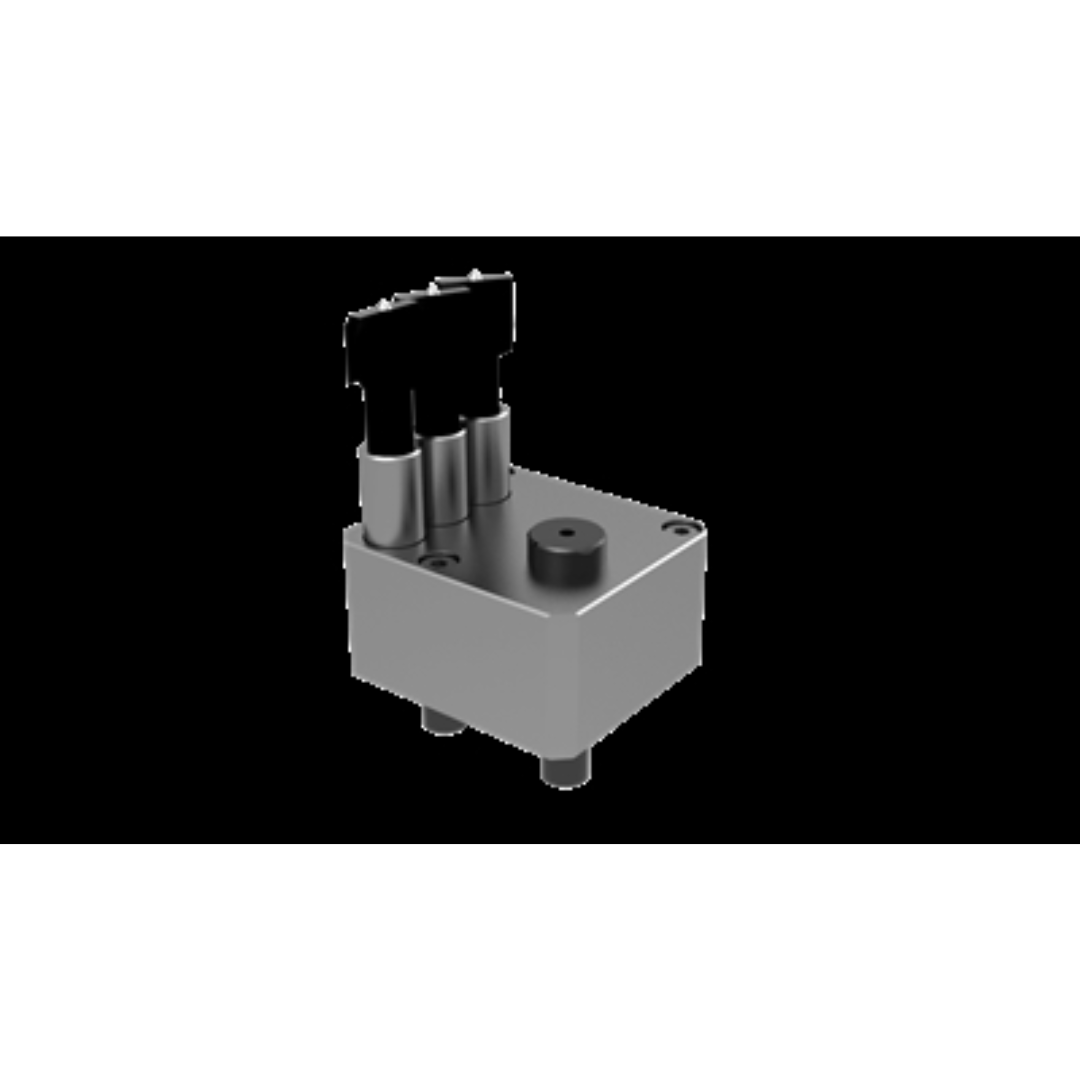

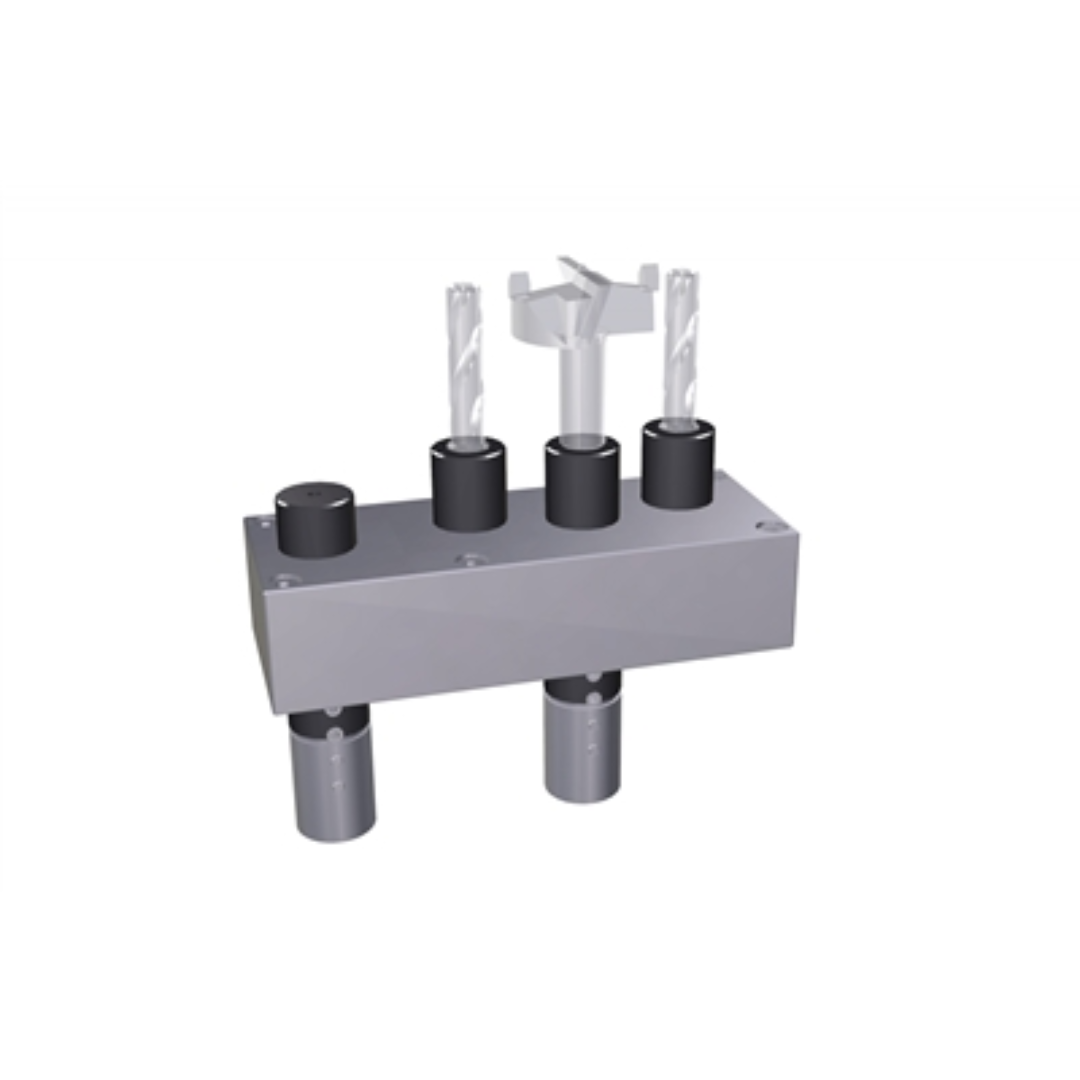

- Hinge boring heads (Blum, Grass, Salice, Hettich, Cabineo)
- Brad point and hinge boring bits in multiple sizes
Maggi System 46 Double Row Line Borer MAG-SYSTEM-46 Shipping & Delivery
- $399 flat rate shipping within the Continental United States
- Additional charges apply for residential and lift gate deliveries
- Secure crating ensures safe transport and delivery
The Maggi System 46 Double Row Line Borer MAG-SYSTEM-46 delivers high-capacity dual-row drilling, precision engineering, and industrial reliability—making it an essential solution for production woodworking operations.
