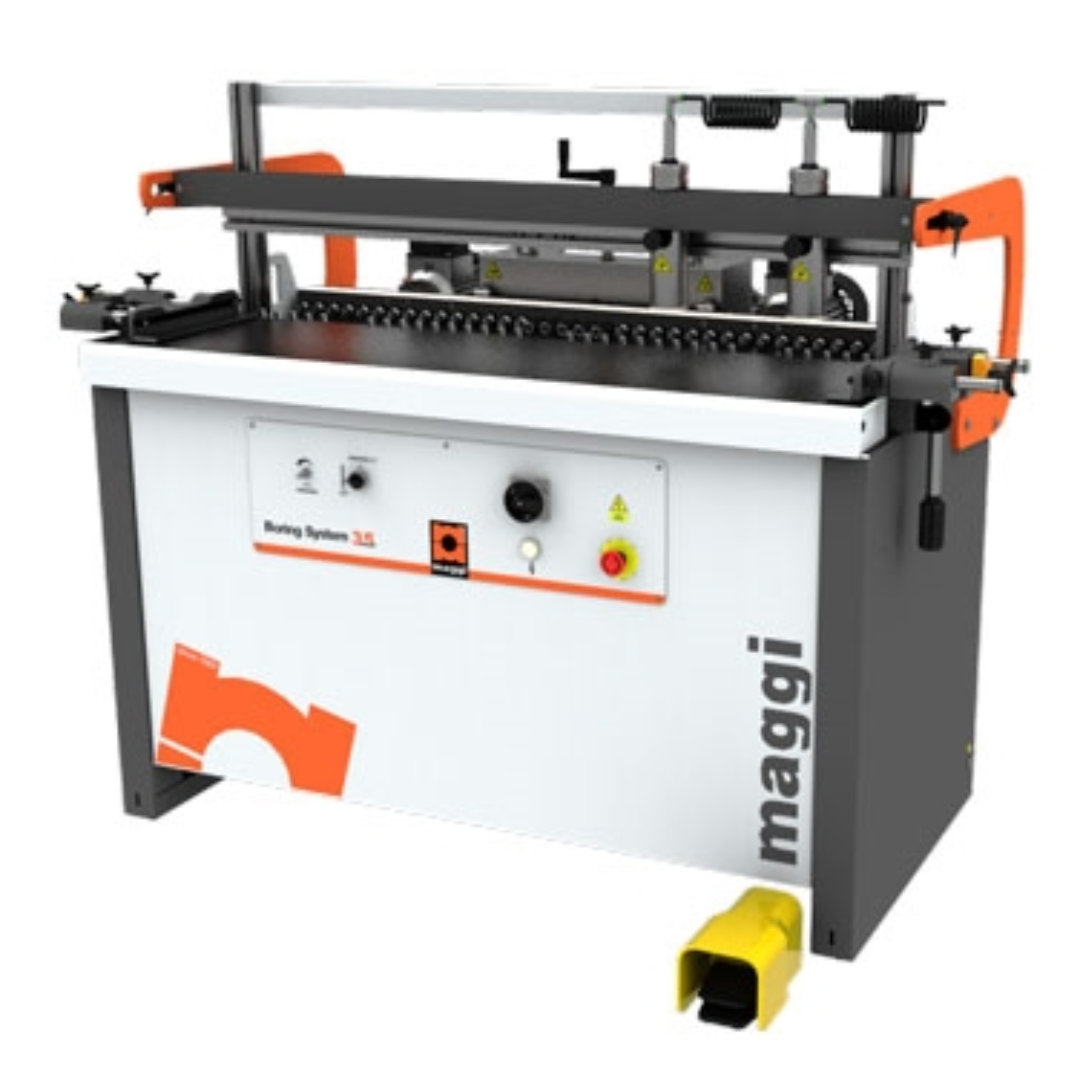

Maggi System 35 Construction/Line Borer MAG-SYSTEM-35 Applications
- High-volume cabinet and casework production
- Furniture manufacturing and panel processing
- Precision line boring for shelving and hardware systems
- Hinge drilling and multi-hole boring applications
- Industrial woodworking and automated production workflows
Designed for shops that require maximum spindle capacity, increased drilling depth, and high-efficiency production output.
Maggi System 35 Construction/Line Borer MAG-SYSTEM-35 Specifications
| Spindles | 35 Spindle (32 mm System) |
|---|---|
| Motor | (2) 2 HP Motors (2,800 RPM) |
| Drilling Capacity | Horizontal & Vertical Boring |
| Drilling Depth | 0" – 3.25" Adjustable |
| Table Size | 52" x 13.5" Cast Iron |
| Fence System | 120" Back Fence with (4) Stops |
| Maximum Stroke | 300 mm (12") |
| Fixed Stop | 37 mm (Hinge Reference) |
| Dust Outlet | 3" |
| Machine Dimensions | 65.75" x 38.9" x 50" Tall |
| Net Weight | 881 lbs |
| Crated Dimensions | 59.8" x 41.7" x 44.1" Tall |
| Crated Weight | 995 lbs |
Maggi System 35 Construction/Line Borer MAG-SYSTEM-35 Performance & Features

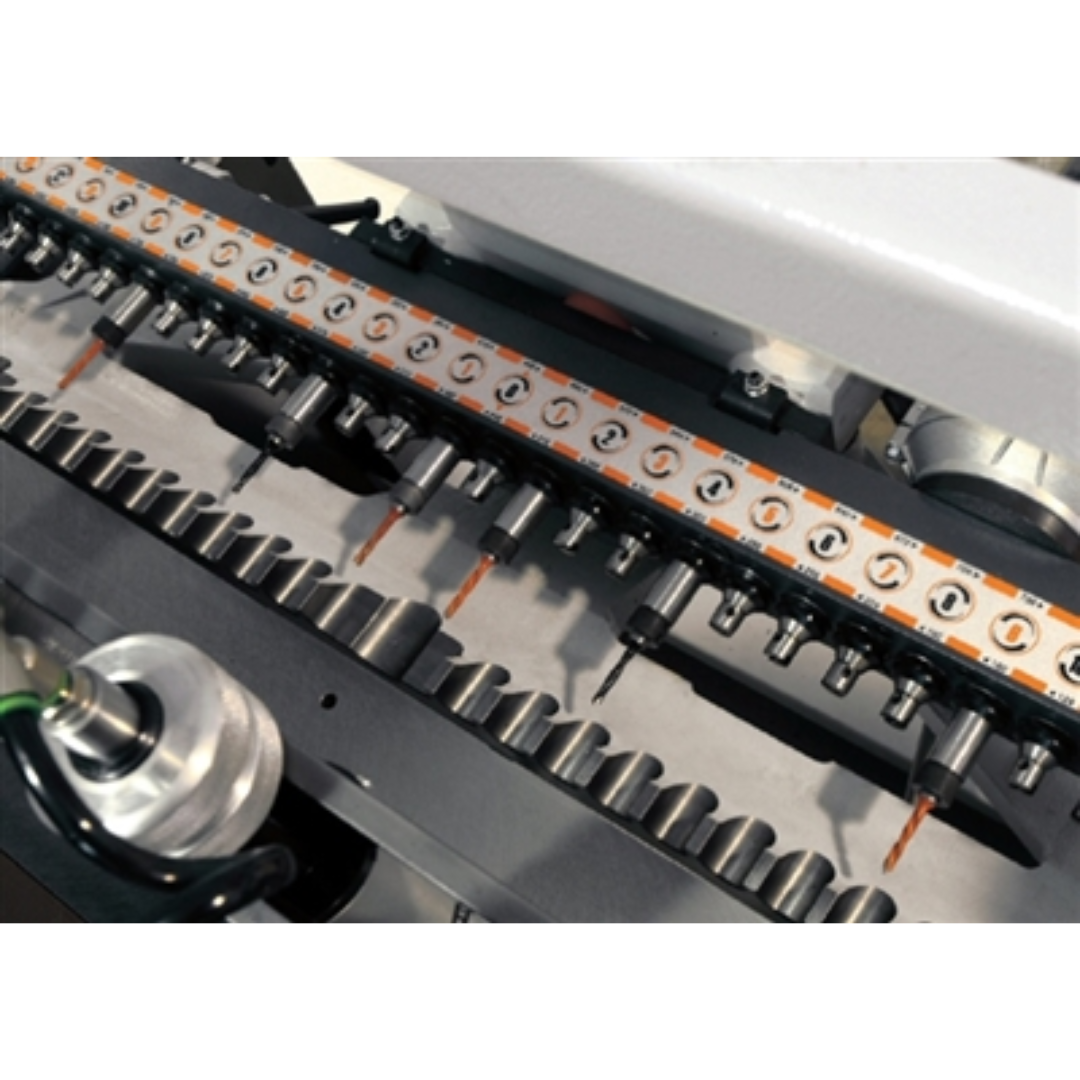

- 35-spindle 32 mm drilling system maximizes productivity with large multi-hole operations in a single cycle.
- Dual 2 HP motors (2,800 RPM) provide increased power for demanding drilling applications.

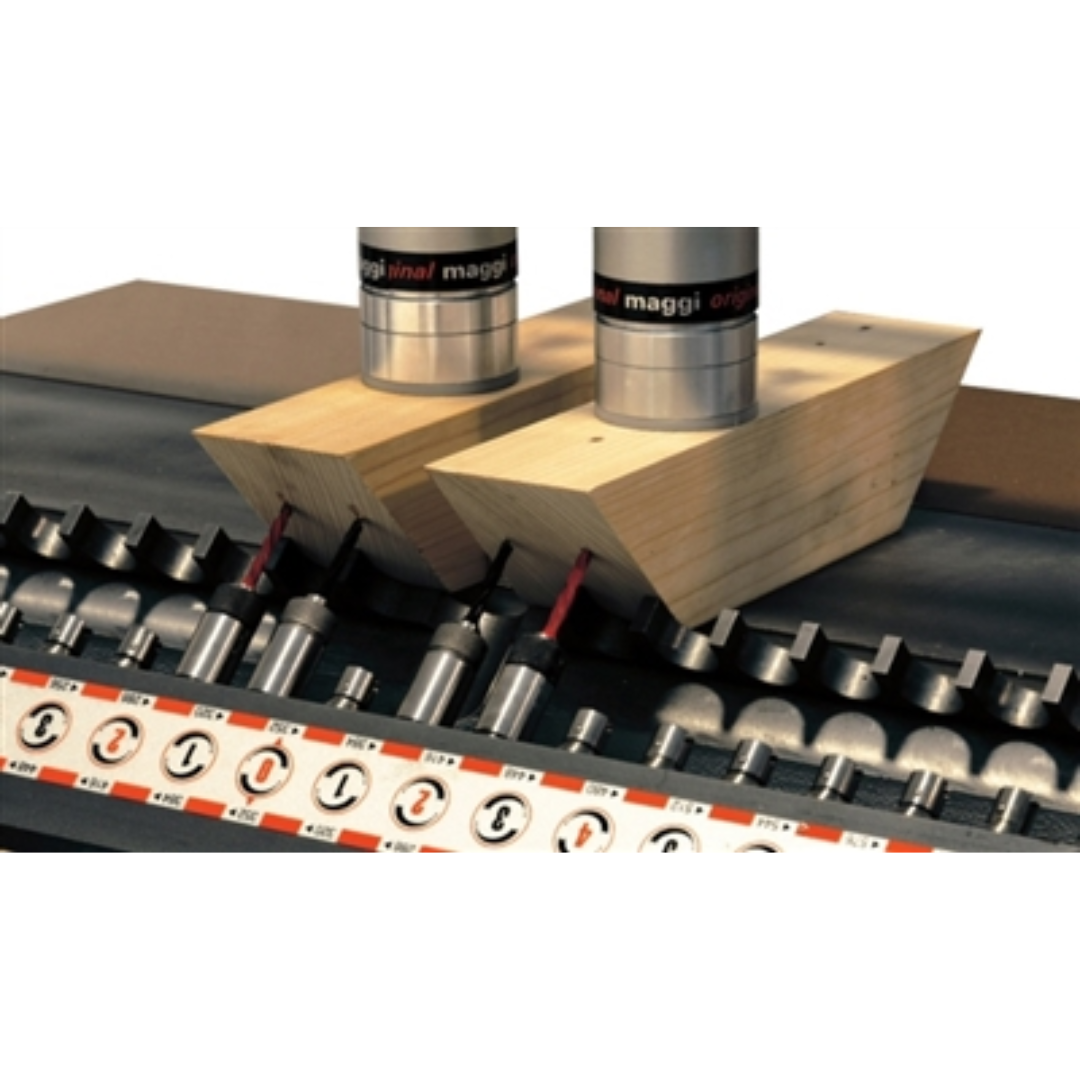

- Horizontal and vertical boring capability supports a wide range of production tasks.

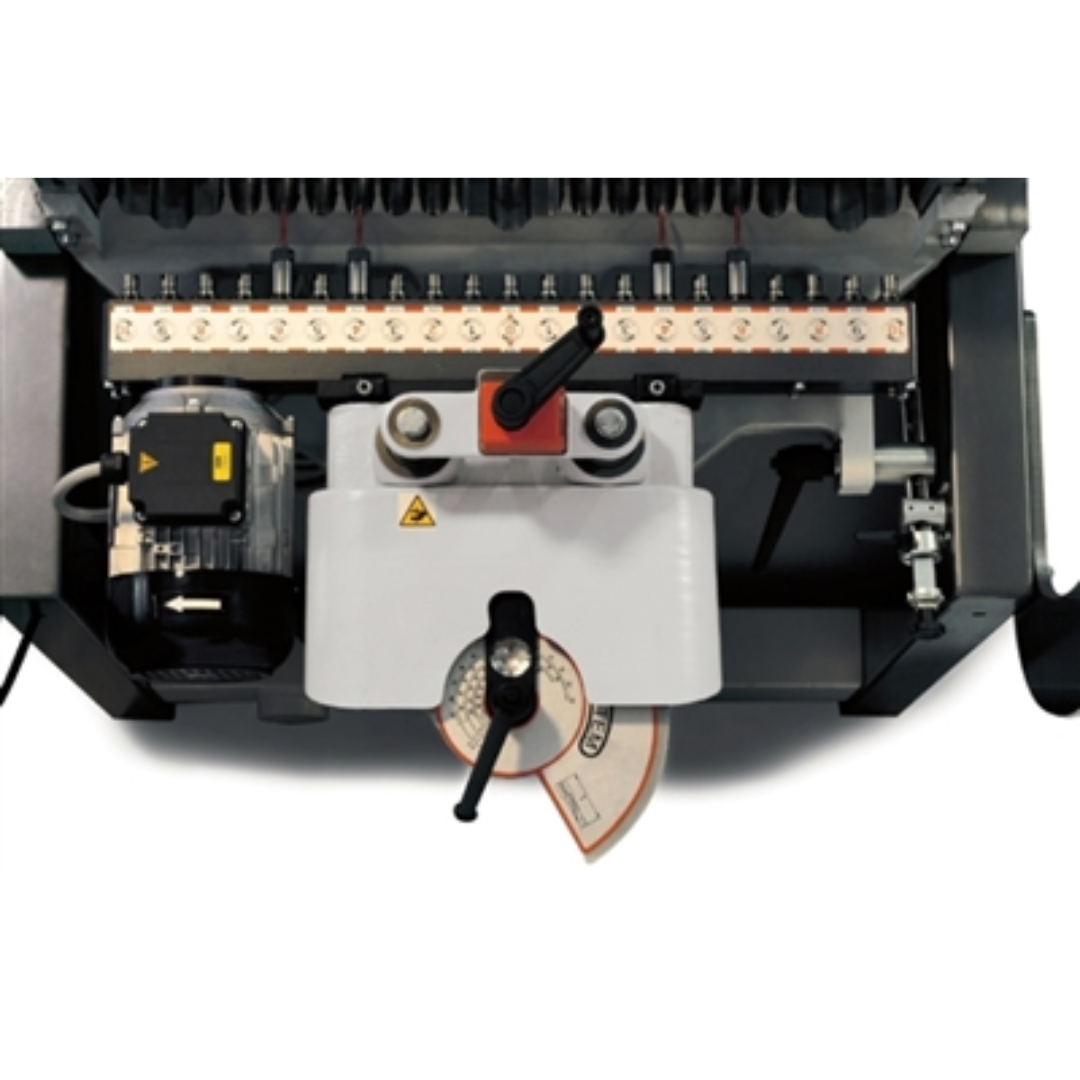

- Pneumatic tilting boring unit (0°–90°) with locking positions for fast angle adjustments.
- Digital readout positioning ensures precise alignment between the boring unit and table.
- Patented spiral depth adjustment system allows fine-tuned drilling control up to 3.25 inches.

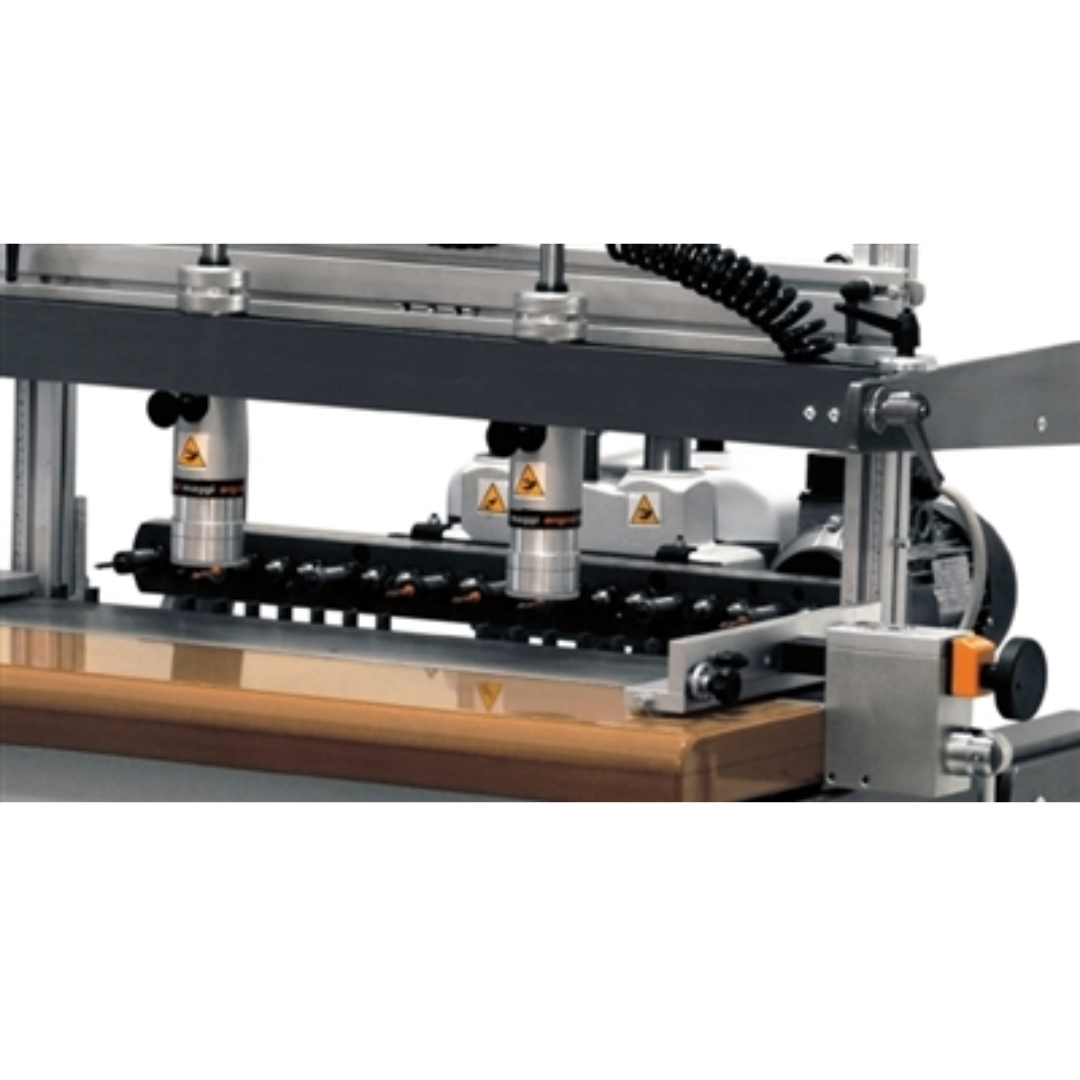

- (4) Quick-release pneumatic clamps with auto-setting ensure secure material hold-down.
- Foot-actuated pneumatic controls streamline clamping and drilling cycles.
- Mechanical digital readout fences enable fast, repeatable setups.

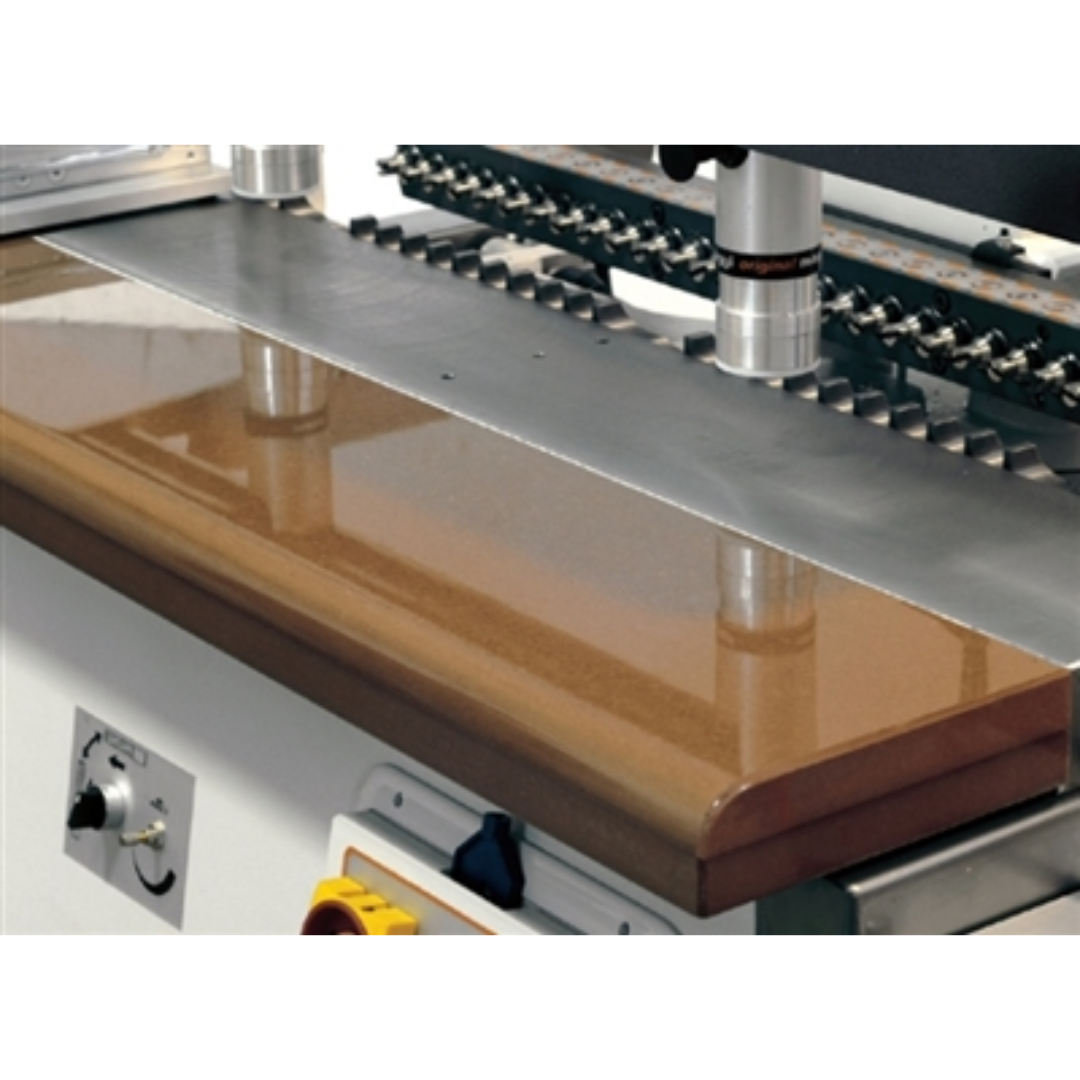

- 120" fence system with stops ensures consistent and accurate line boring.
- Compatible with 17 LH and 18 RH boring bits for full drilling flexibility.

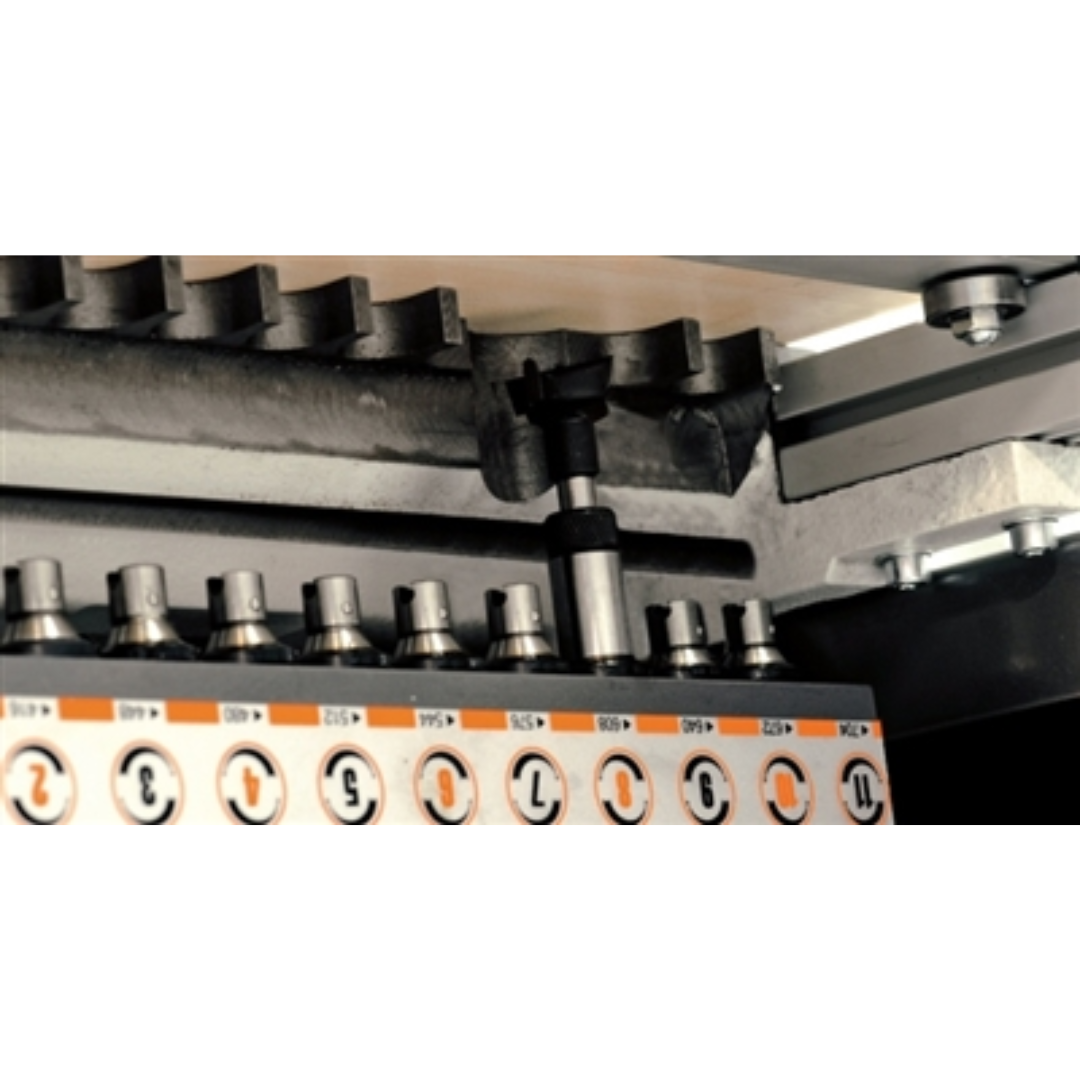

- Includes (35) quick-change chucks for efficient tooling changes.
- Magnetic starter with overload protection enhances operational safety and motor longevity.
- Heavy-duty cast iron table provides superior stability and vibration control.
Maggi System 35 Construction/Line Borer MAG-SYSTEM-35 Optional Accessories
- Stop reference pin for line boring
- Reference fences for 45° and 90° applications
- Additional fence stops and aluminum fence extensions
- Extension fence connector kits
- Additional quick-change bit adaptors
- Extra holddown cylinder assemblies
- Storage clamps and trays for fences and tooling
- Hinge boring heads (Blum, Grass, Salice, Hettich, Cabineo)
- Brad point and hinge boring bits in multiple sizes
Maggi System 35 Construction/Line Borer MAG-SYSTEM-35 Shipping & Delivery
- $399 flat rate shipping within the Continental United States
- Additional charges apply for residential and lift gate deliveries
- Secure crating for safe transport and delivery
The Maggi System 35 Construction/Line Borer MAG-SYSTEM-35 delivers maximum spindle capacity, deeper drilling capability, and industrial-grade performance for high-output woodworking operations.
