Maggi System 29 Construction/Line Borer MAG-SYSTEM-29 Applications
- Cabinet and casework production
- Furniture manufacturing and panel processing
- Line boring for shelving systems and hardware installation
- Hinge drilling and precision joinery operations
- High-volume woodworking and production shops
Perfect for operations requiring increased spindle capacity, faster throughput, and precise repeatable drilling across large workpieces.
Maggi System 29 Construction/Line Borer MAG-SYSTEM-29 Specifications
| Spindles | 29 Spindle (32 mm System) |
|---|---|
| Motor | 2 HP |
| Drilling Capacity | Horizontal & Vertical Boring |
| Drilling Depth | 0" – 2.5" Adjustable |
| Table Size | 45" – 47" x 13" Cast Iron |
| Fence System | 120" Back Fence with (4) Stops & Index Pin |
| Maximum Stroke | 300 mm (12") |
| Fixed Stop | 37 mm (Hinge Reference) |
| Dust Outlet | 3" |
| Machine Dimensions | 59.3" x 37.8" x 50" Tall |
| Net Weight | 705 lbs |
| Crated Dimensions | 59.8" x 37.4" x 40.5" Tall |
| Crated Weight | 815 lbs |
Maggi System 29 Construction/Line Borer MAG-SYSTEM-29 Performance & Features

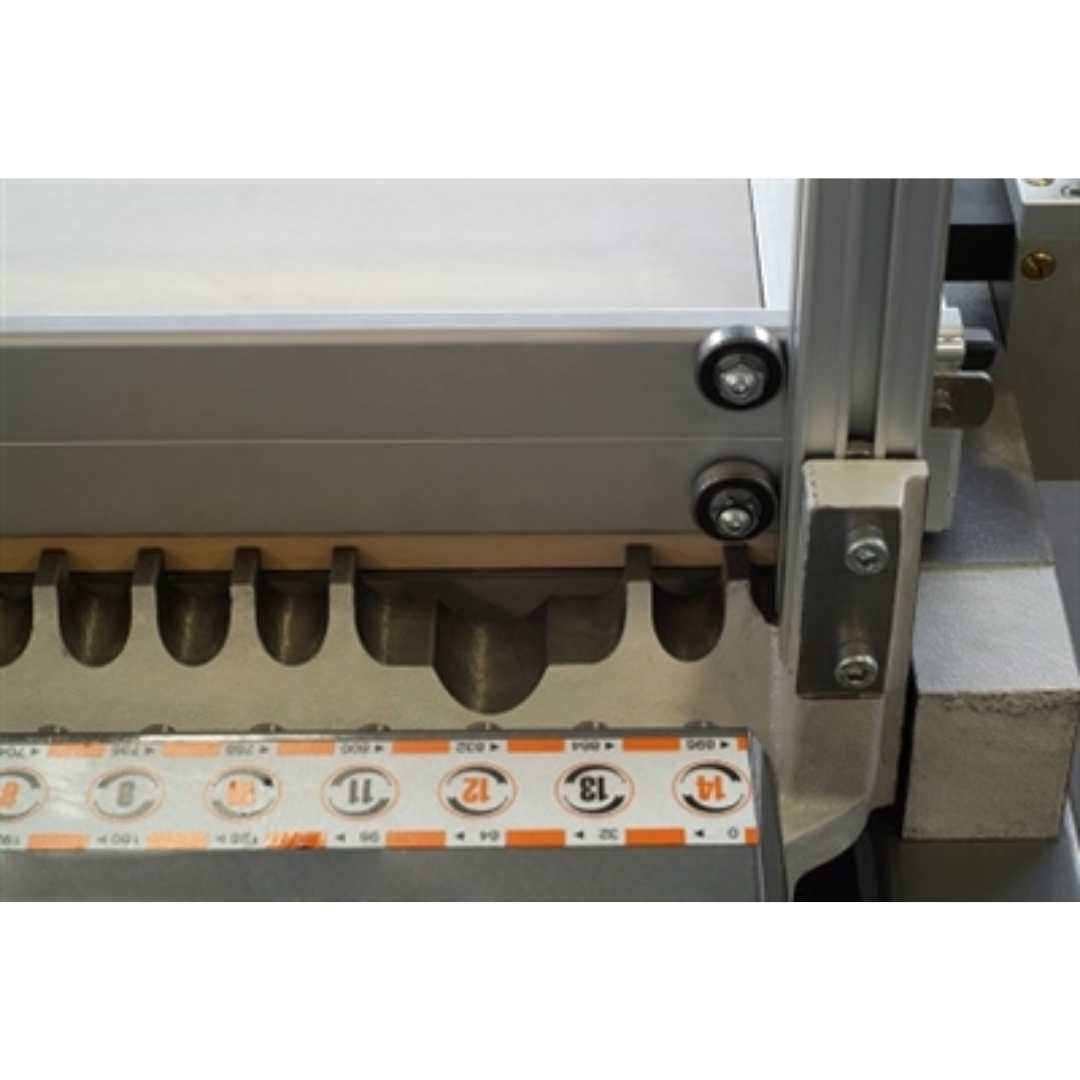

- 29-spindle 32 mm drilling system increases productivity by completing multi-hole operations in one cycle.
- Horizontal and vertical boring functionality supports diverse drilling applications.

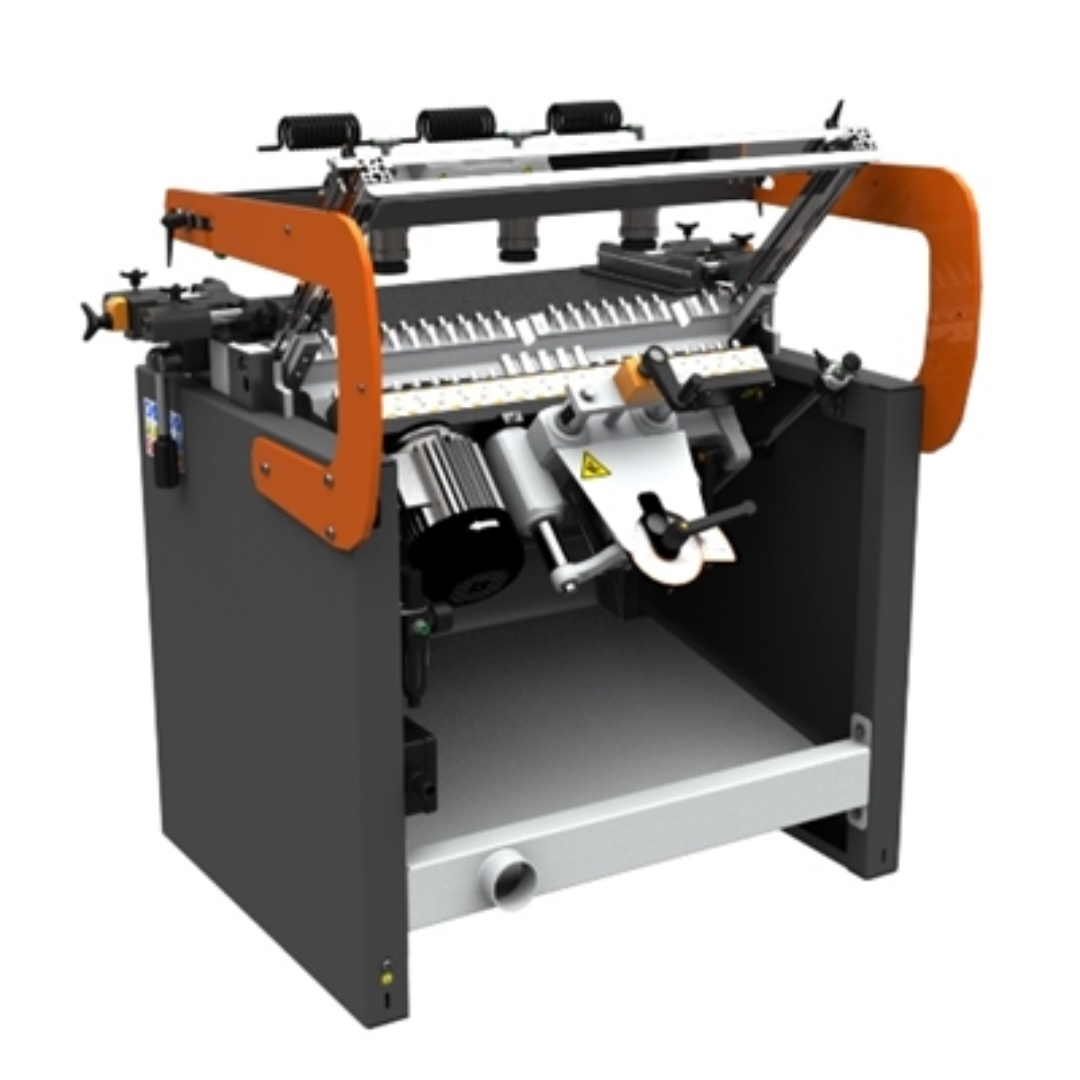

- Pneumatic tilting head (0°–90°) with locking positions for quick angle setup.
- Digital readout positioning system ensures precise alignment of the boring unit.
- Patented spiral depth adjustment allows fine control from 0 to 2.5 inches.

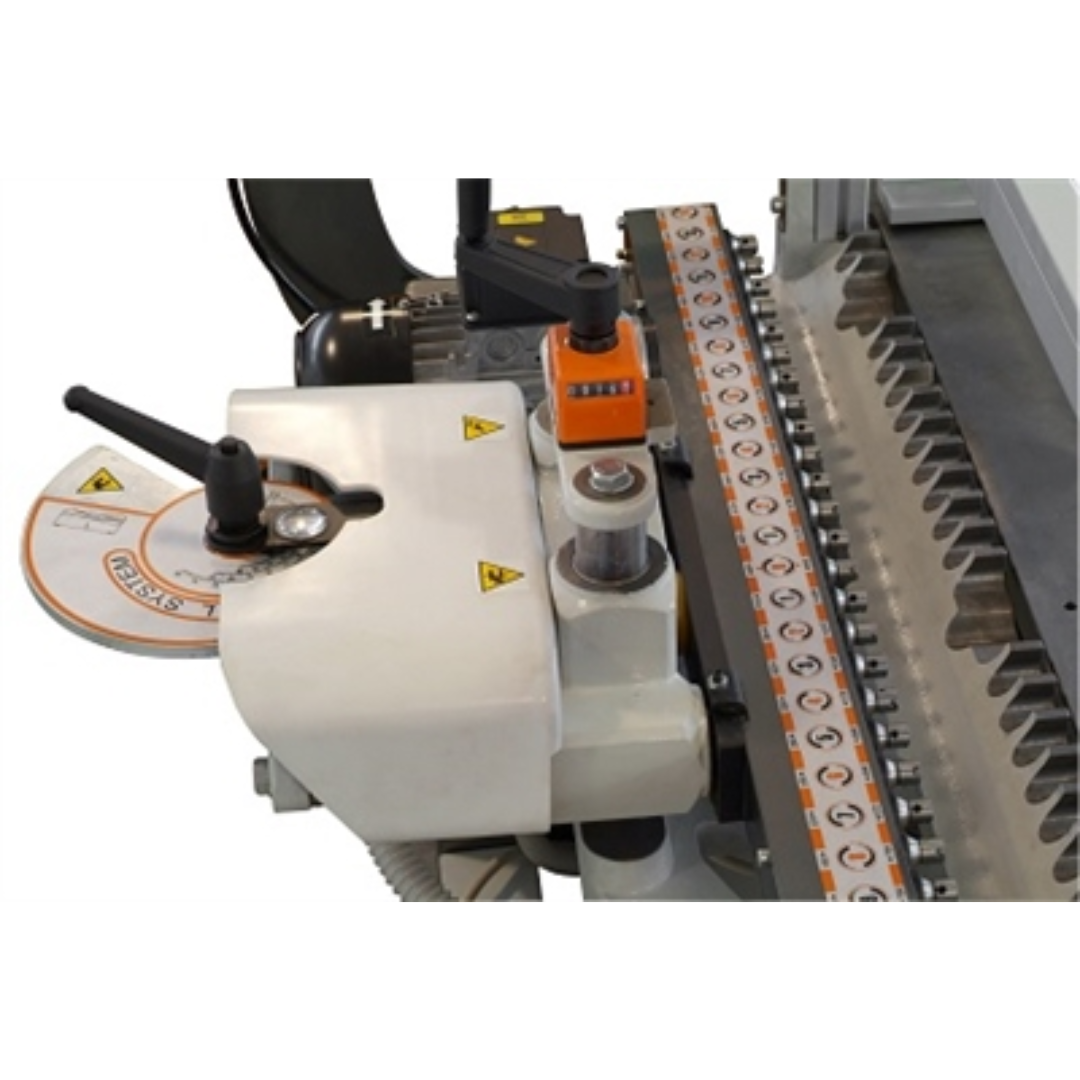

- (3) Quick-release pneumatic clamps with auto-setting provide secure material hold-down.
- Foot-actuated pneumatic system enables efficient clamping and drilling cycles.
- Mechanical digital readout fences for fast, repeatable setups.

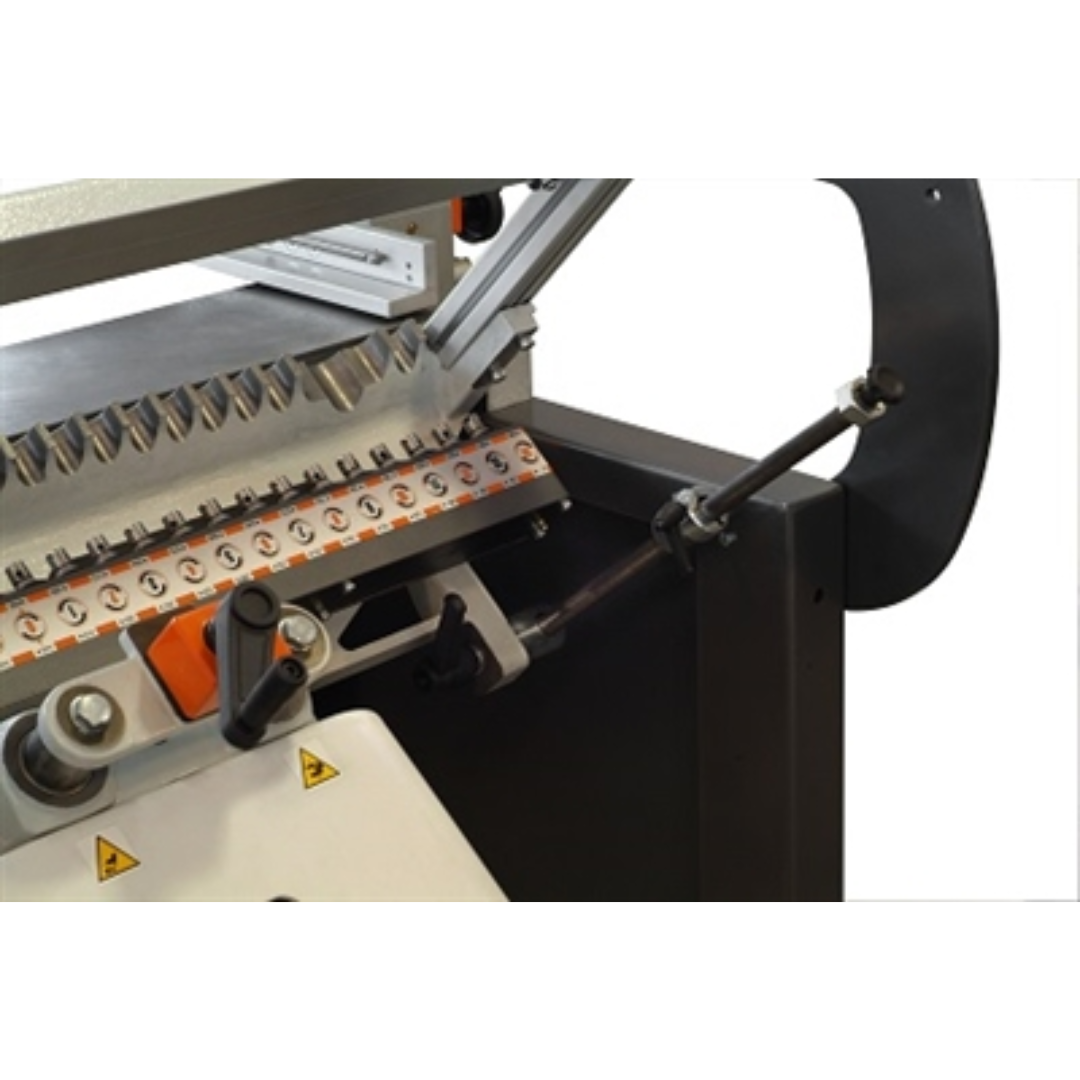

- 120" fence system with stops and index pin ensures consistent line boring accuracy.
- Compatible with 14 LH and 15 RH boring bits for full drilling coverage.
- Includes (29) quick-change chucks for rapid tooling changes.
- Magnetic starter with overload protection enhances safety and motor protection.
- Heavy-duty cast iron table provides stability and vibration control.
Maggi System 29 Construction/Line Borer MAG-SYSTEM-29 Optional Accessories
- Stop reference pin for line boring
- Reference fences for 45° and 90° applications
- Additional aluminum fence stops and extensions
- Fence connector kits for extended setups
- Additional quick-change bit adaptors
- Extra holddown cylinder assemblies
- Storage solutions for fences and tooling
- Hinge boring heads (Blum, Grass, Salice, Hettich, Cabineo)
- Brad point and hinge boring bits in multiple sizes
Maggi System 29 Construction/Line Borer MAG-SYSTEM-29 Shipping & Delivery
- $399 flat rate shipping within the Continental United States
- Additional charges apply for residential and lift gate deliveries
- Secure crating for safe transport and delivery
The Maggi System 29 Construction/Line Borer MAG-SYSTEM-29 is engineered for higher capacity, precision drilling, and dependable performance in demanding woodworking production environments.
