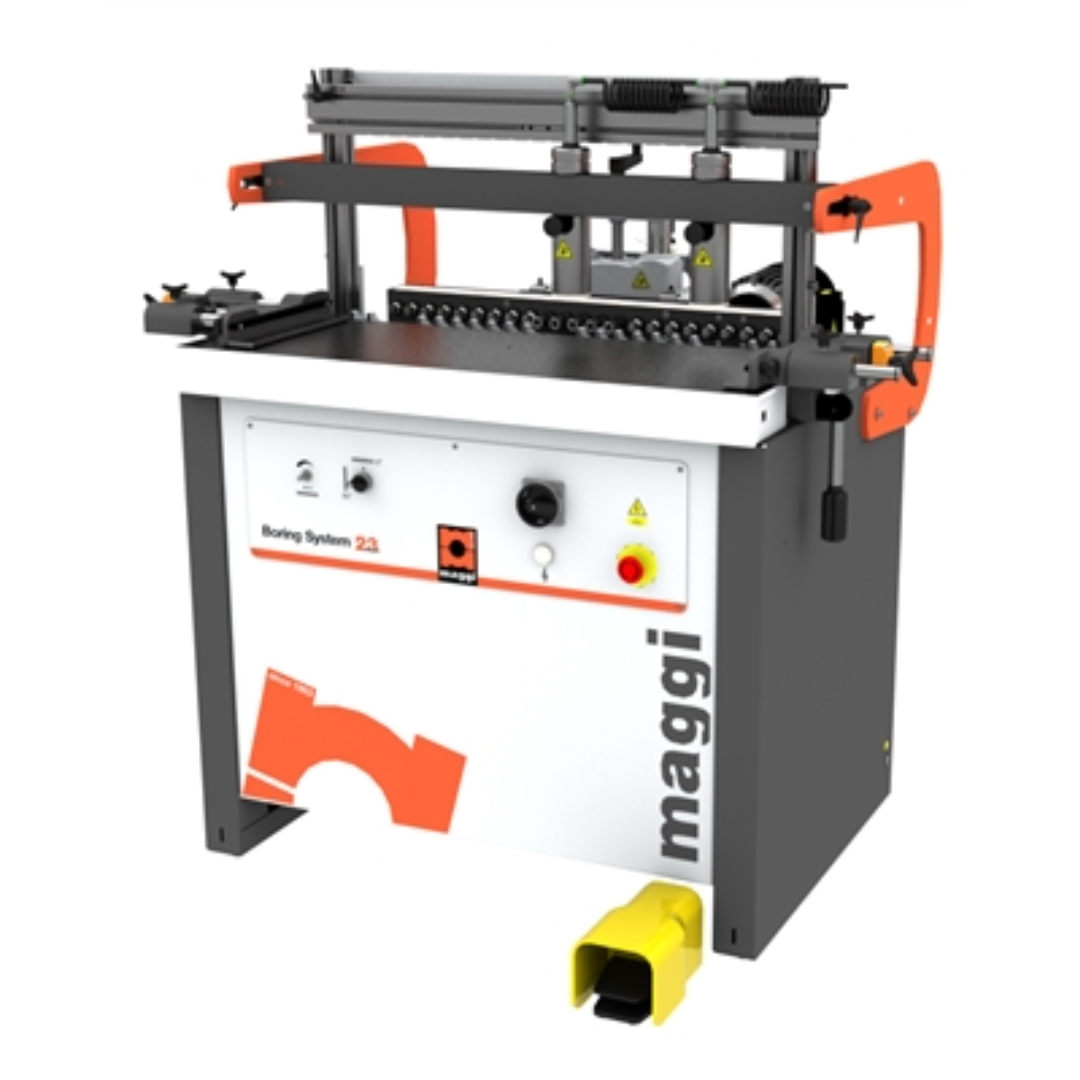

Maggi System 23 Construction/Line Borer MAG-SYSTEM-23 Applications
- Cabinet and furniture manufacturing
- Line boring for panel processing and case goods
- Hinge drilling and hardware installation
- Custom woodworking and millwork shops
- Production environments requiring repeatable drilling accuracy
Ideal for shops requiring fast setup changes, multi-angle boring, and consistent high-precision drilling across multiple panels.
Maggi System 23 Construction/Line Borer MAG-SYSTEM-23 Specifications
| Spindles | 23 Spindle (32 mm System) |
|---|---|
| Motor | 2 HP |
| Voltage | 230V (Single Phase or Three Phase Options) |
| Drilling Depth | 0" – 2.5" Adjustable |
| Table Size | 37" x 13" Cast Iron |
| Fence Length | 120" Line Boring Fence with (4) Stops |
| Dust Outlet | 3" |
| Machine Dimensions | 51.7" x 37.8" x 50" Tall |
| Net Weight | 630 lbs |
| Crated Dimensions | 42.2" x 37.4" x 40.5" Tall |
| Crated Weight | 705 lbs |
Maggi System 23 Construction/Line Borer MAG-SYSTEM-23 Performance & Features
- 23-Spindle 32 mm drilling system delivers precise, multi-hole boring in a single operation.
- Horizontal and vertical boring capability supports a wide range of production needs.

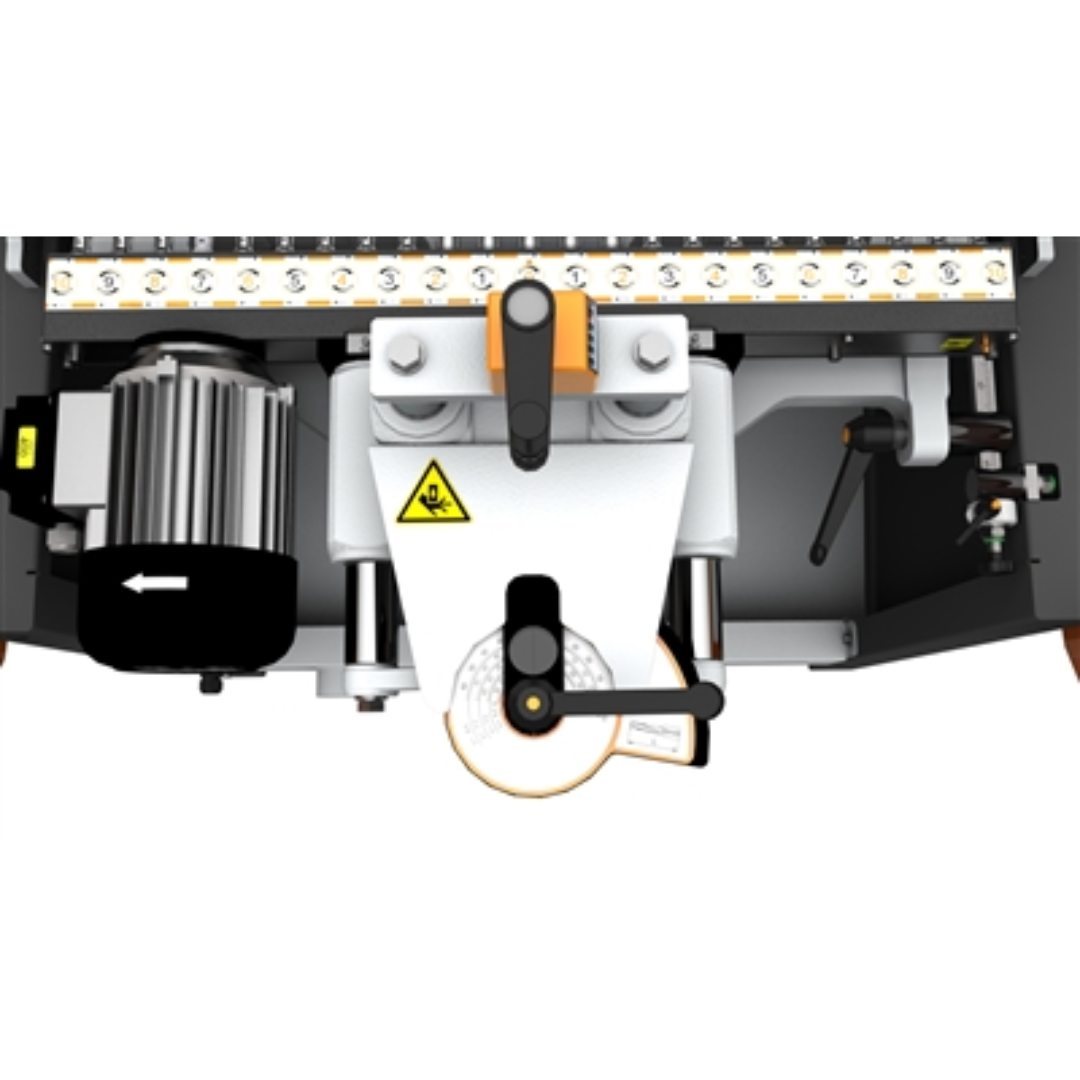

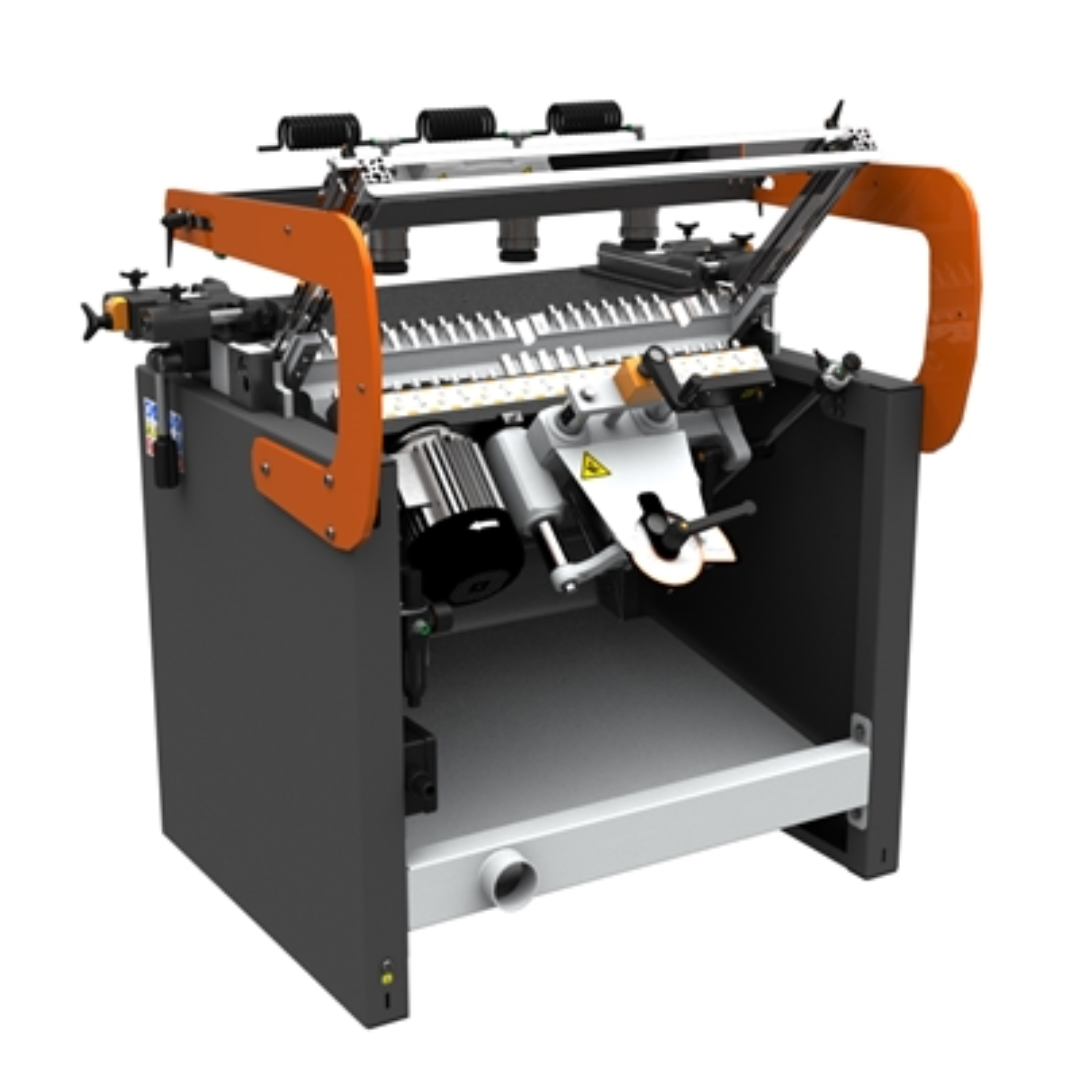

- Pneumatic tilting boring unit (0°–90°) with locking positions for fast angle adjustments.

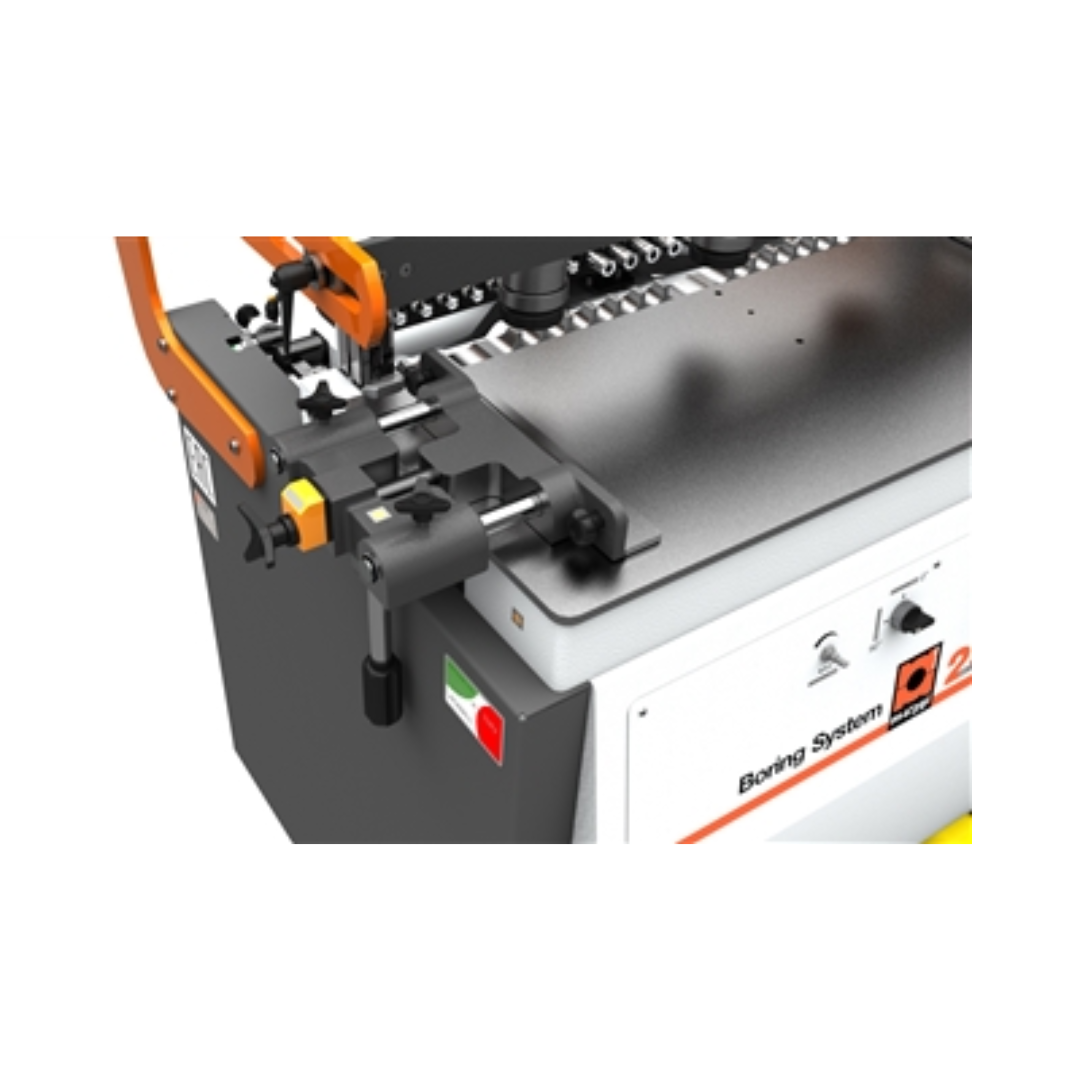

- Digital readout positioning ensures accurate alignment between boring head and table.
- Patented spiral drilling depth adjustment allows fine-tuned control from 0 to 2.5 inches.
- (2) Quick-release pneumatic clamps with auto-setting securely hold materials in place.
- Foot-actuated pneumatic operation streamlines clamping and drilling cycles.
- Side fences with mechanical digital readouts enable fast, repeatable positioning.
- 120" aluminum fence system with stops and index pin for consistent line boring.
- Magnetic starter with overload protection enhances safety and motor longevity.
- Includes (23) quick-change chucks for rapid tooling changes.
- Compatible with 11 LH and 12 RH boring bits for full system flexibility.
- Heavy-duty cast iron table provides stability and vibration reduction.
Maggi System 23 Construction/Line Borer MAG-SYSTEM-23 Optional Accessories
- Stop Reference Pin for Line Boring
- Reference Fences for 45° and 90° setups
- Additional fence stops and fence extensions
- Extension fence connector kits
- Additional quick-change bit adaptors
- Extra holddown cylinder assemblies

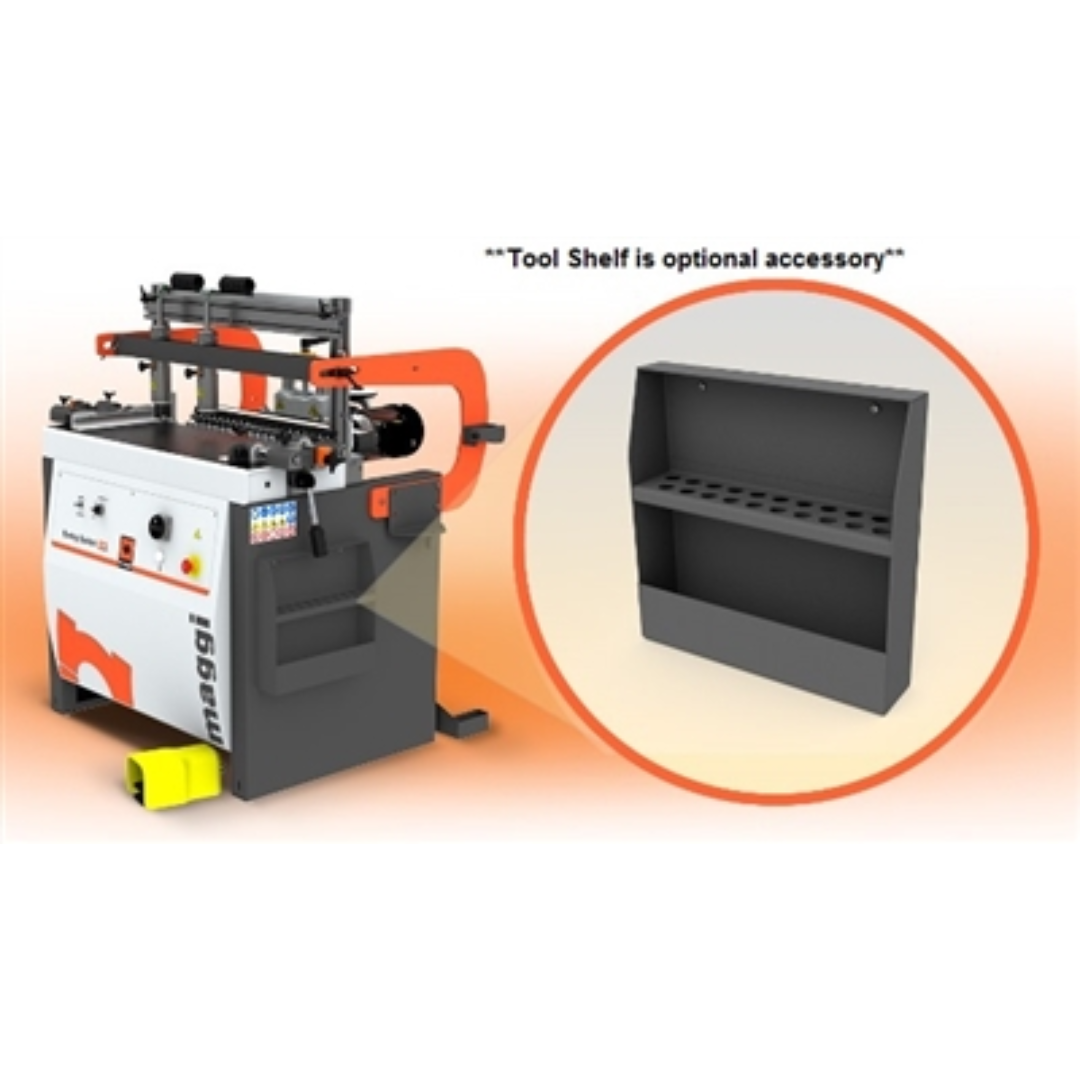

- Storage clamps and trays for fences and tooling
- Hinge boring heads (Blum, Grass, Salice, Hettich, Cabineo options)
- Brad point and hinge boring bits in multiple sizes
Maggi System 23 Construction/Line Borer MAG-SYSTEM-23 Shipping & Delivery
- $349 flat rate shipping within the Continental United States
- Additional charges may apply for residential or lift gate delivery
- Secure crating ensures protection during transport
Built for precision, speed, and durability, the Maggi System 23 Construction/Line Borer MAG-SYSTEM-23 is a professional-grade solution for high-efficiency drilling and line boring operations.
