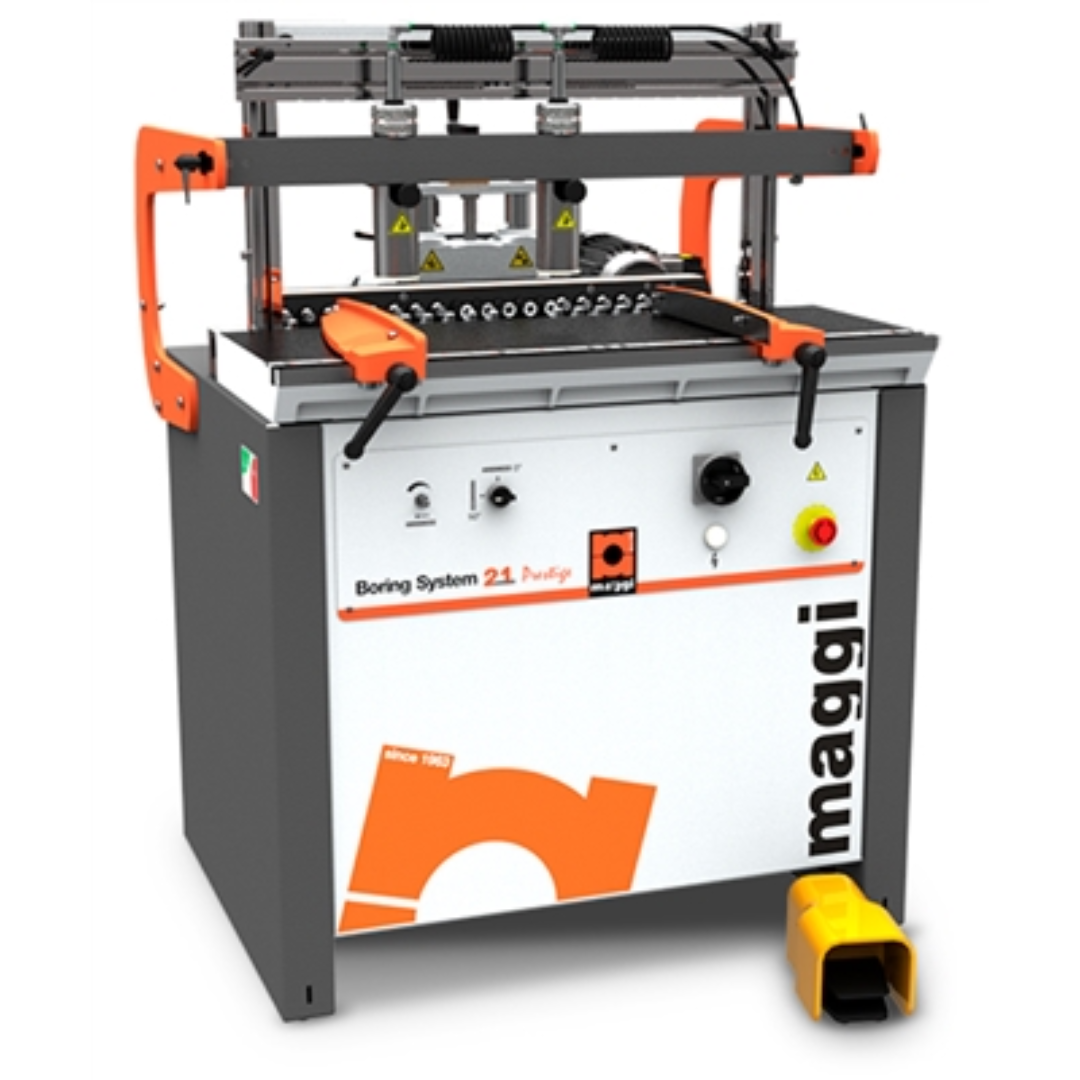

Maggi System 21 Prestige Construction/Line Borer MAG-SYSTEM-21P Applications
- Cabinet box construction and shelving pin hole drilling
- Furniture manufacturing and panel processing
- Hinge boring for Blum, Grass, Salice, and Hettich systems
- Closet systems, modular cabinetry, and millwork production
- High-volume 32 mm system line boring operations
Ideal for shops requiring consistent, repeatable drilling accuracy with fast setup for both vertical and horizontal boring tasks.
Maggi System 21 Prestige Construction/Line Borer MAG-SYSTEM-21P Specifications
| Model | MAG-SYSTEM-21P |
|---|---|
| Spindles | 21 Spindle Configuration (10 LH / 11 RH) |
| Motor | 2 HP |
| Voltage Options | 230V Single Phase or 230V Three Phase |
| Drilling Depth | 0" – 2.5" Adjustable |
| Table Size | 34" x 13" Cast Iron |

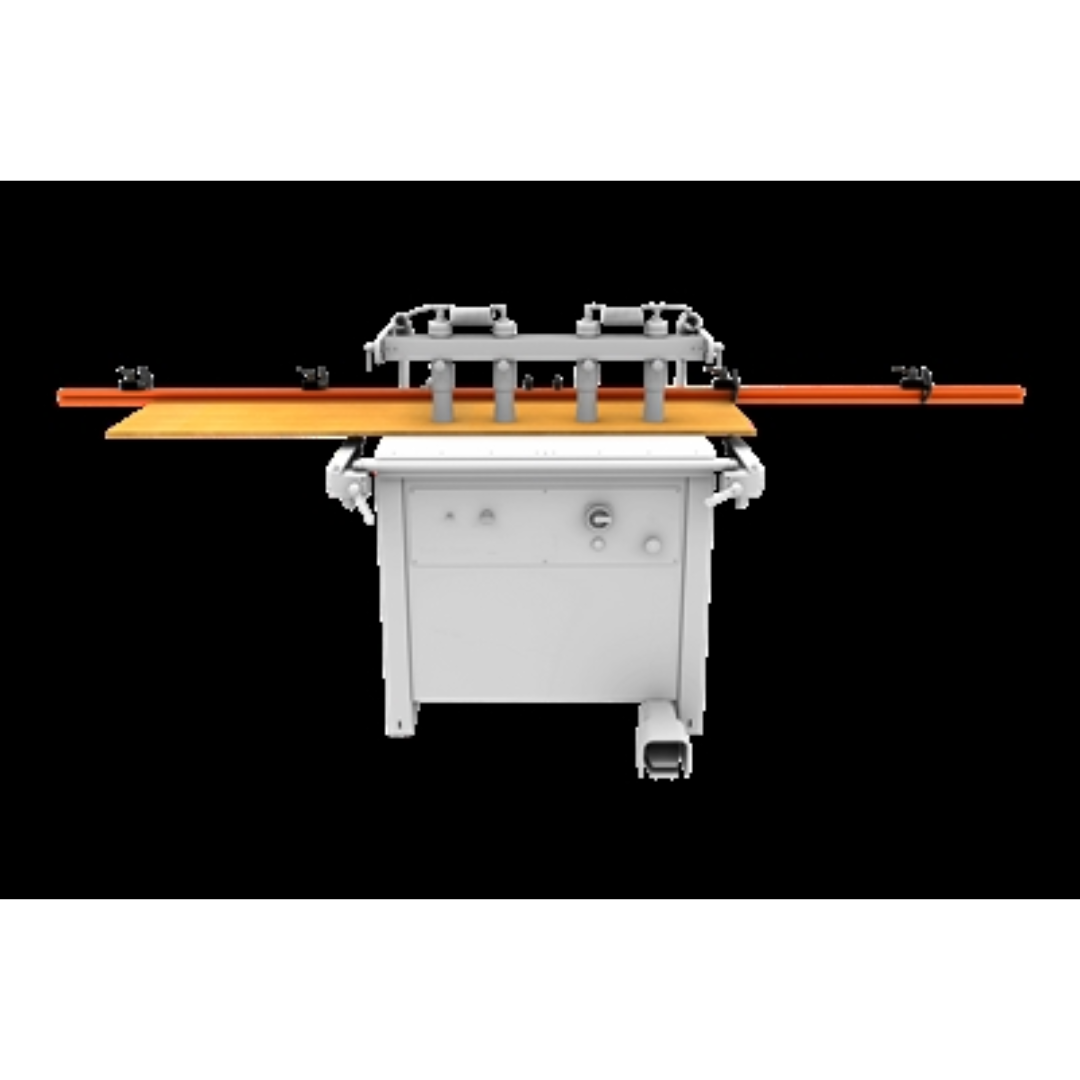

| Fence System | 120" Back Fence with (2) Stops, 300 mm (12") Stroke |

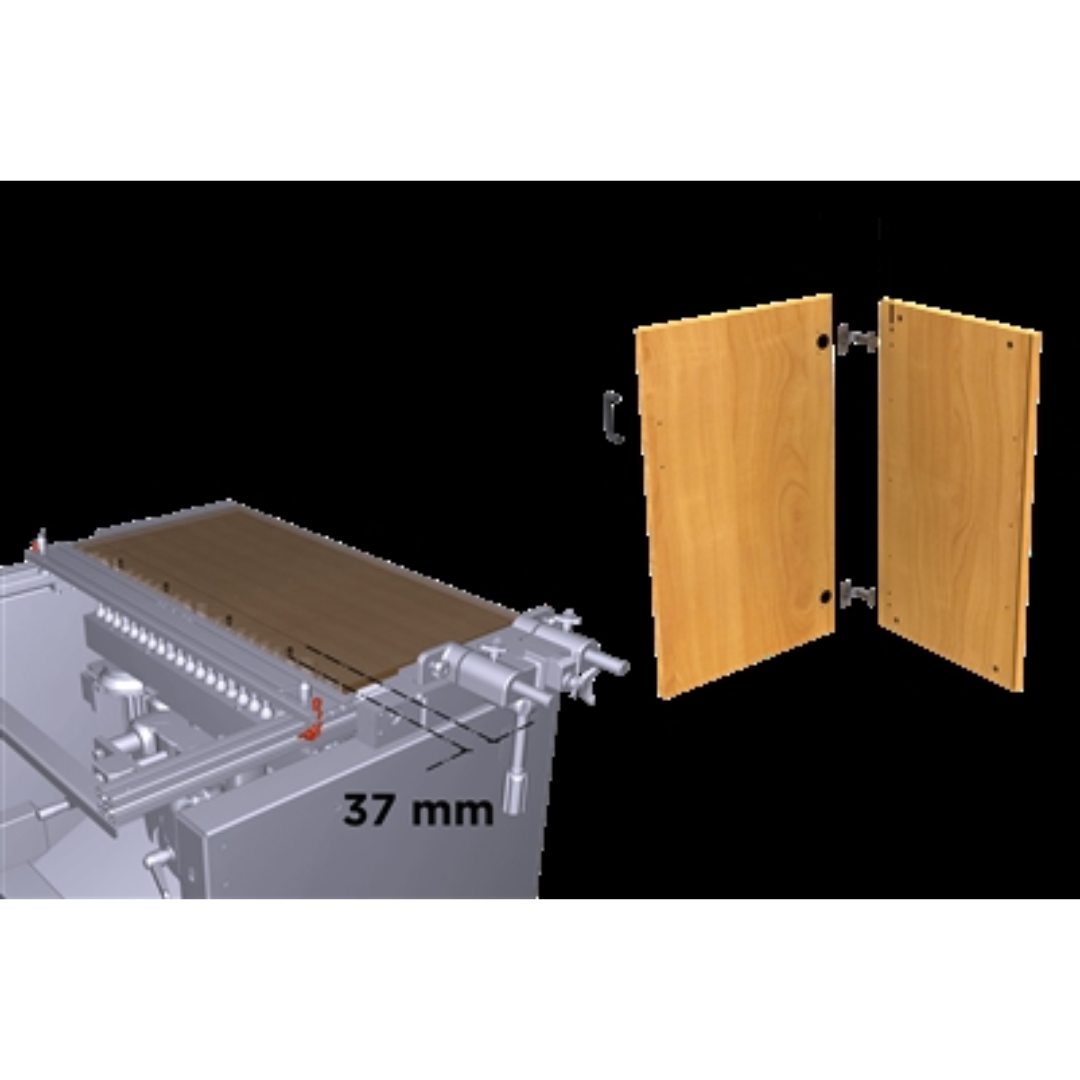

| Fixed Stop | 37 mm (Hinge Reference) |
| Dust Collection Port | 3" |
| Machine Dimensions | 40.5" x 40.5" x 50" Tall |
| Net Weight | 605 lbs. |
| Crated Dimensions | 42.2" x 37.4" x 40.5" Tall |
| Crated Weight | 685 lbs. |
Maggi System 21 Prestige Construction/Line Borer MAG-SYSTEM-21P Performance & Construction

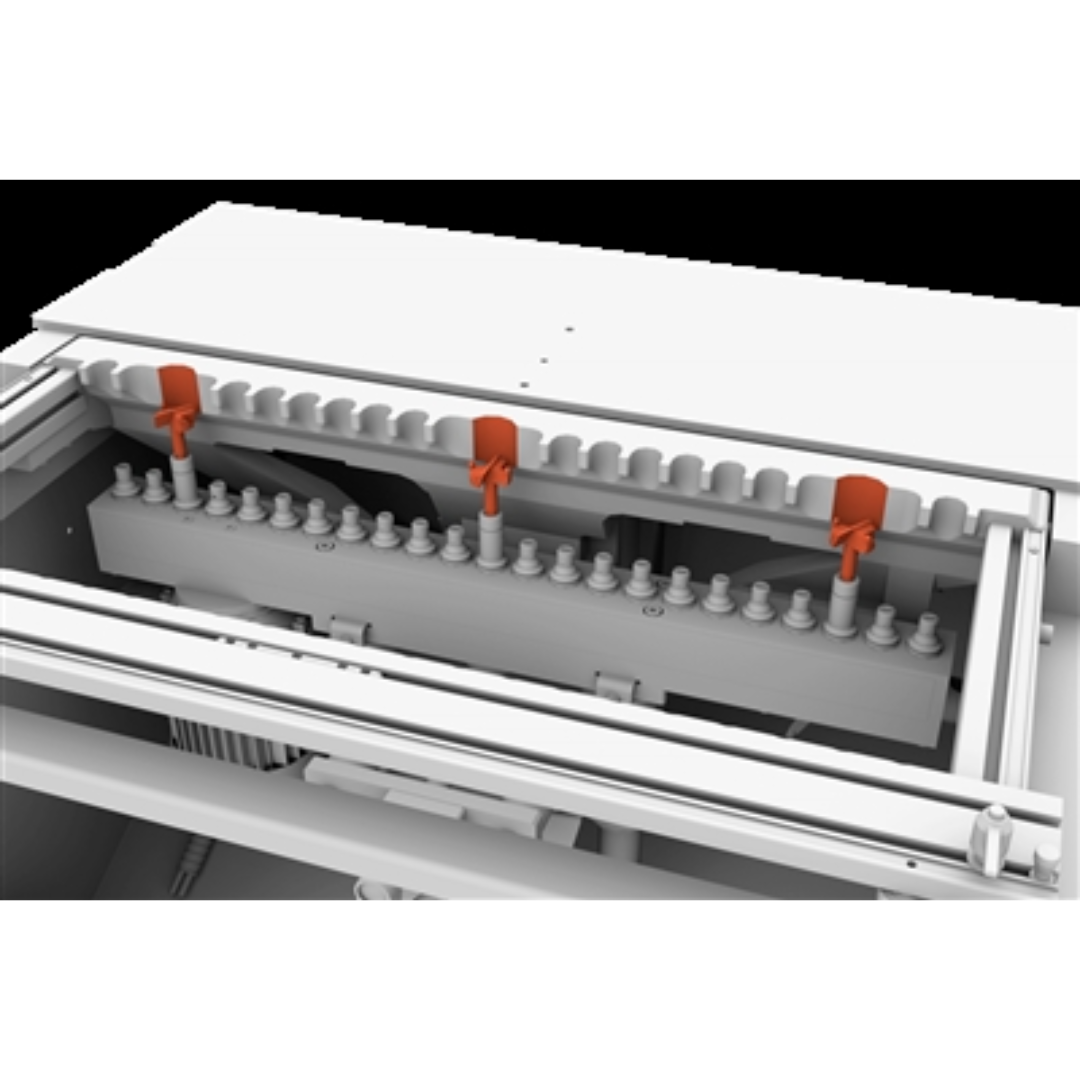

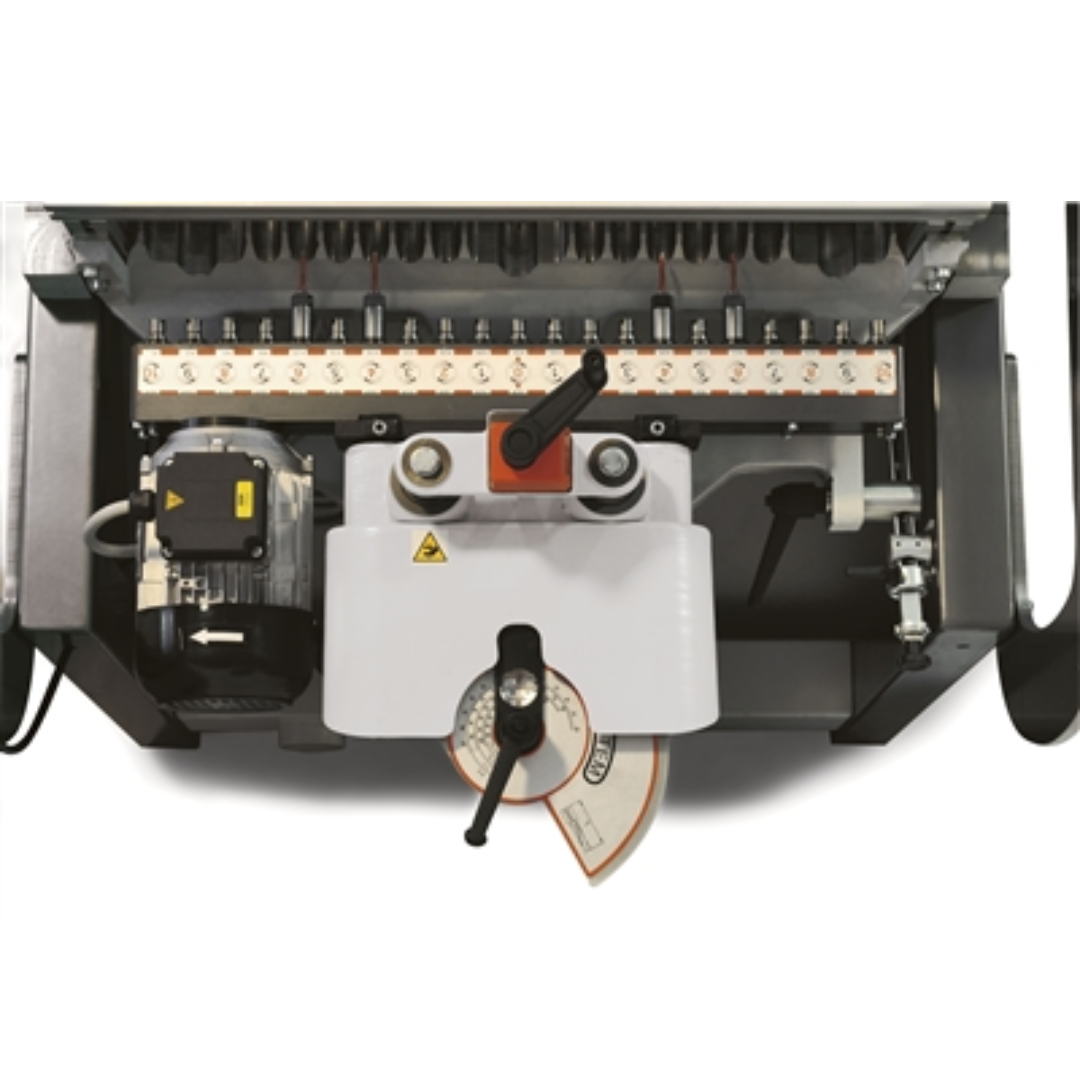

- 21-Spindle Precision Boring Head delivers fast, uniform drilling aligned to the 32 mm system for production efficiency.

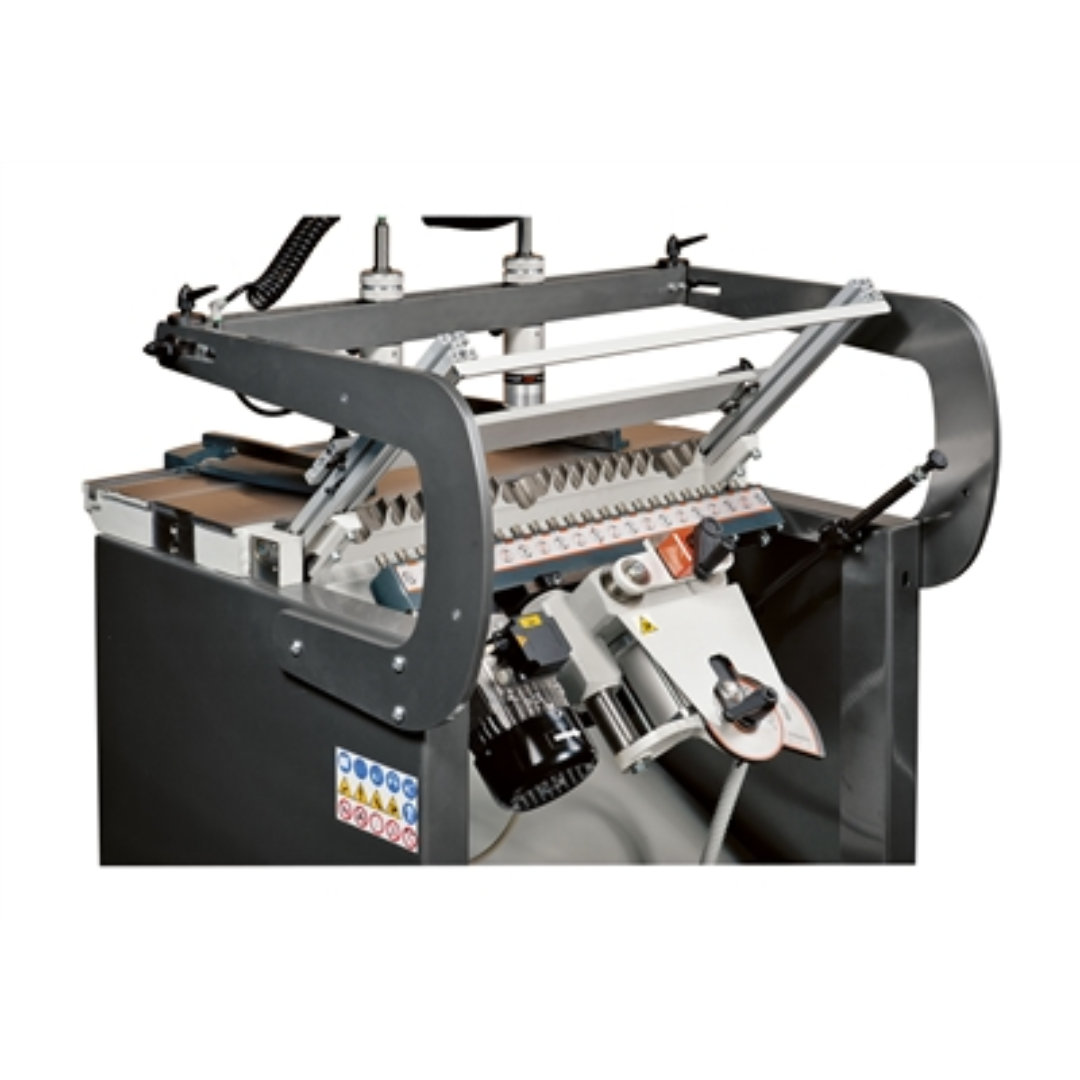

- Pneumatic Tilting Boring Unit (0°–90°) with locking positions allows quick transitions between horizontal and vertical drilling.
- Digital Readout Positioning ensures precise alignment of the boring head to the table for repeatable accuracy.

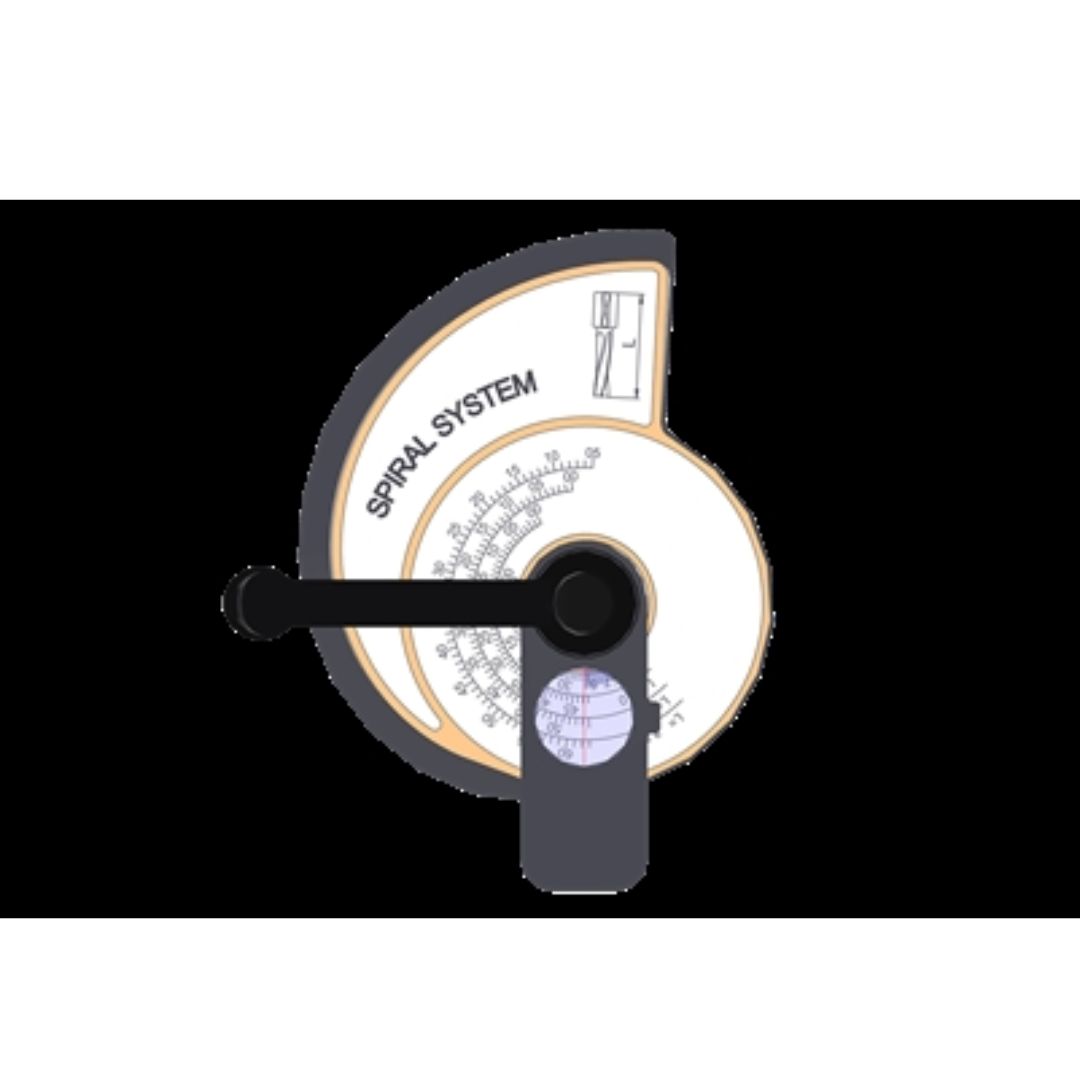

- Patented Spiral Depth Adjustment provides smooth and exact drilling depth control from 0 to 2.5 inches.

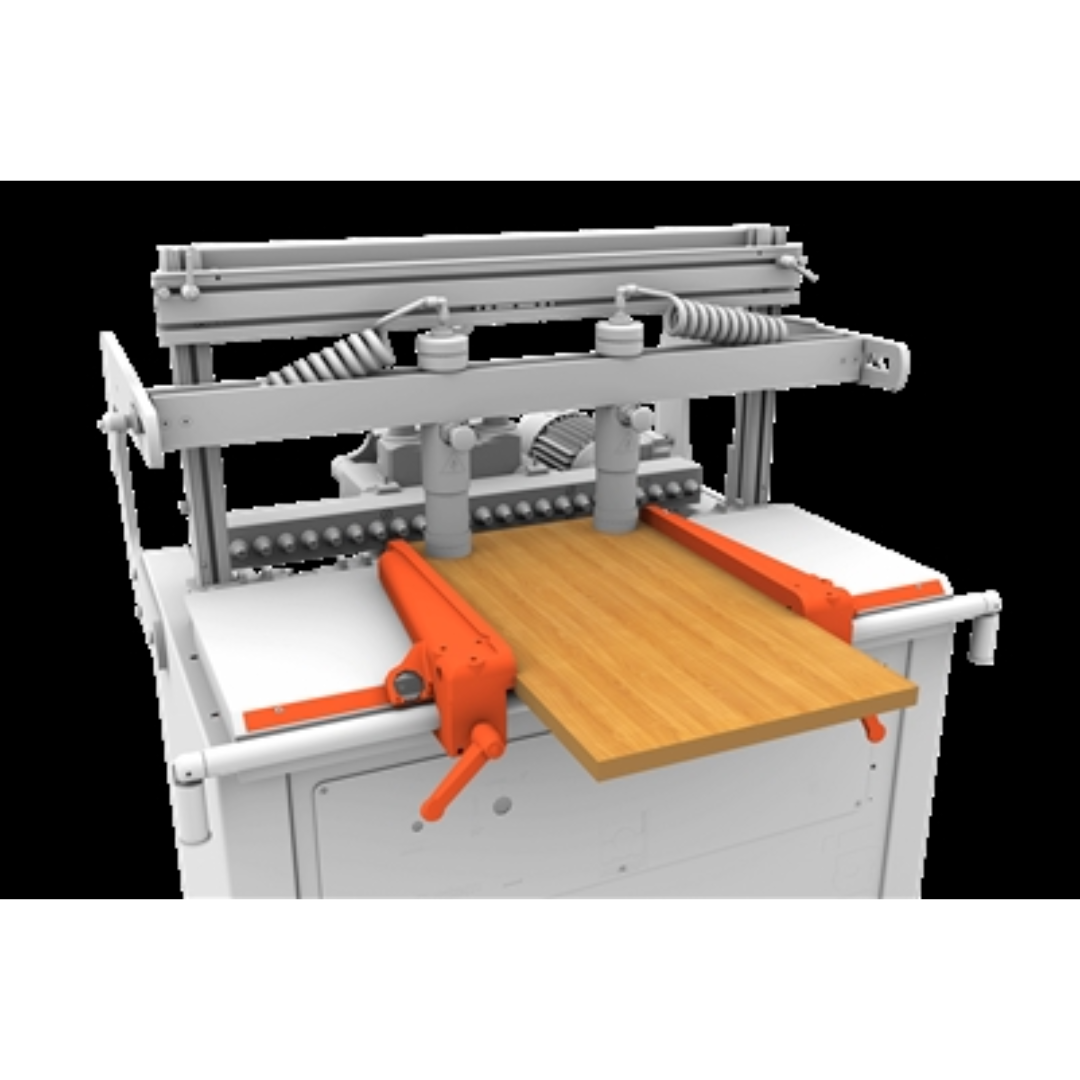

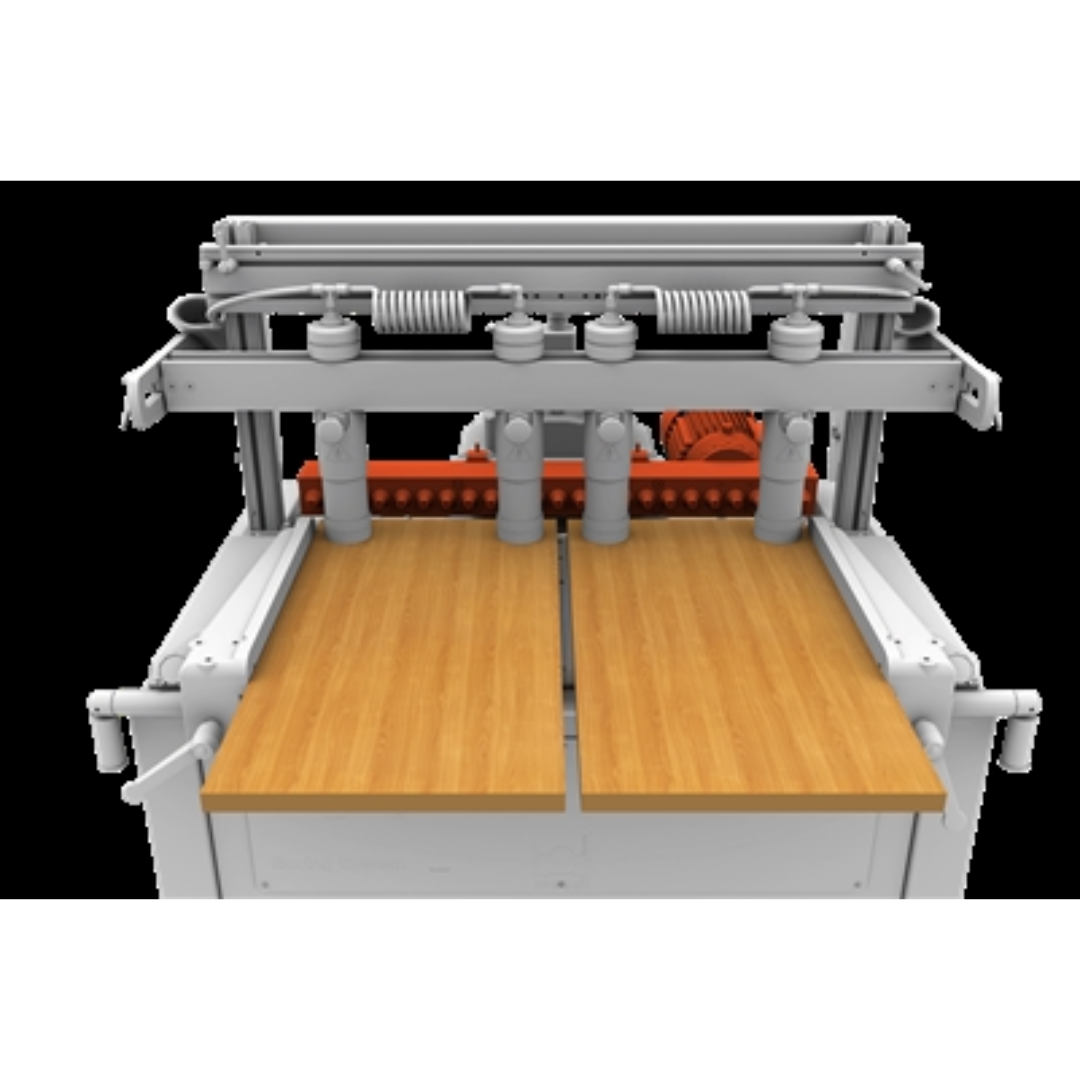

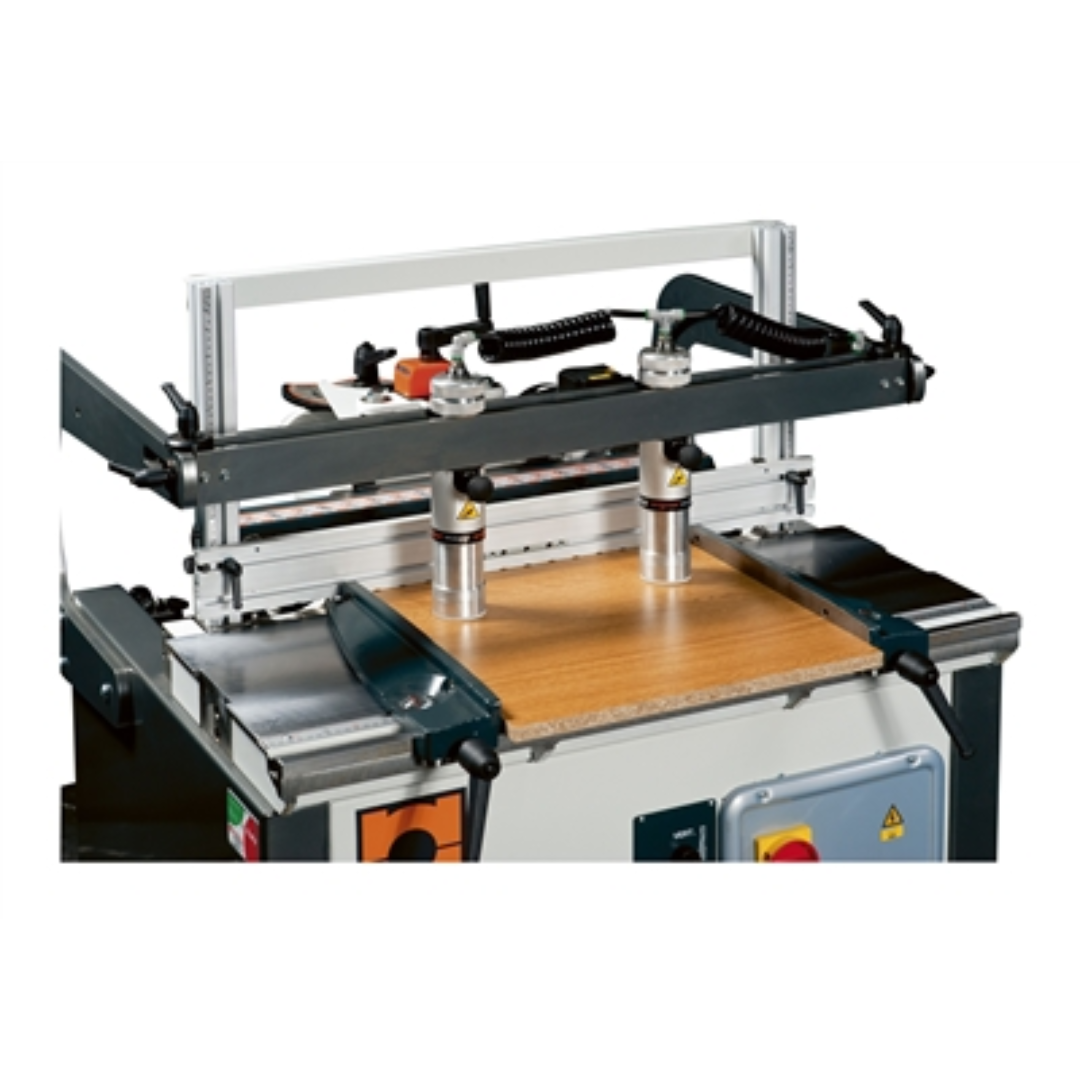

- Dual Quick-Release Pneumatic Clamps automatically adjust to material thickness for secure hold-down during operation.
- Heavy-Duty Cast Iron Table and Fences provide vibration resistance, stability, and long-term durability.

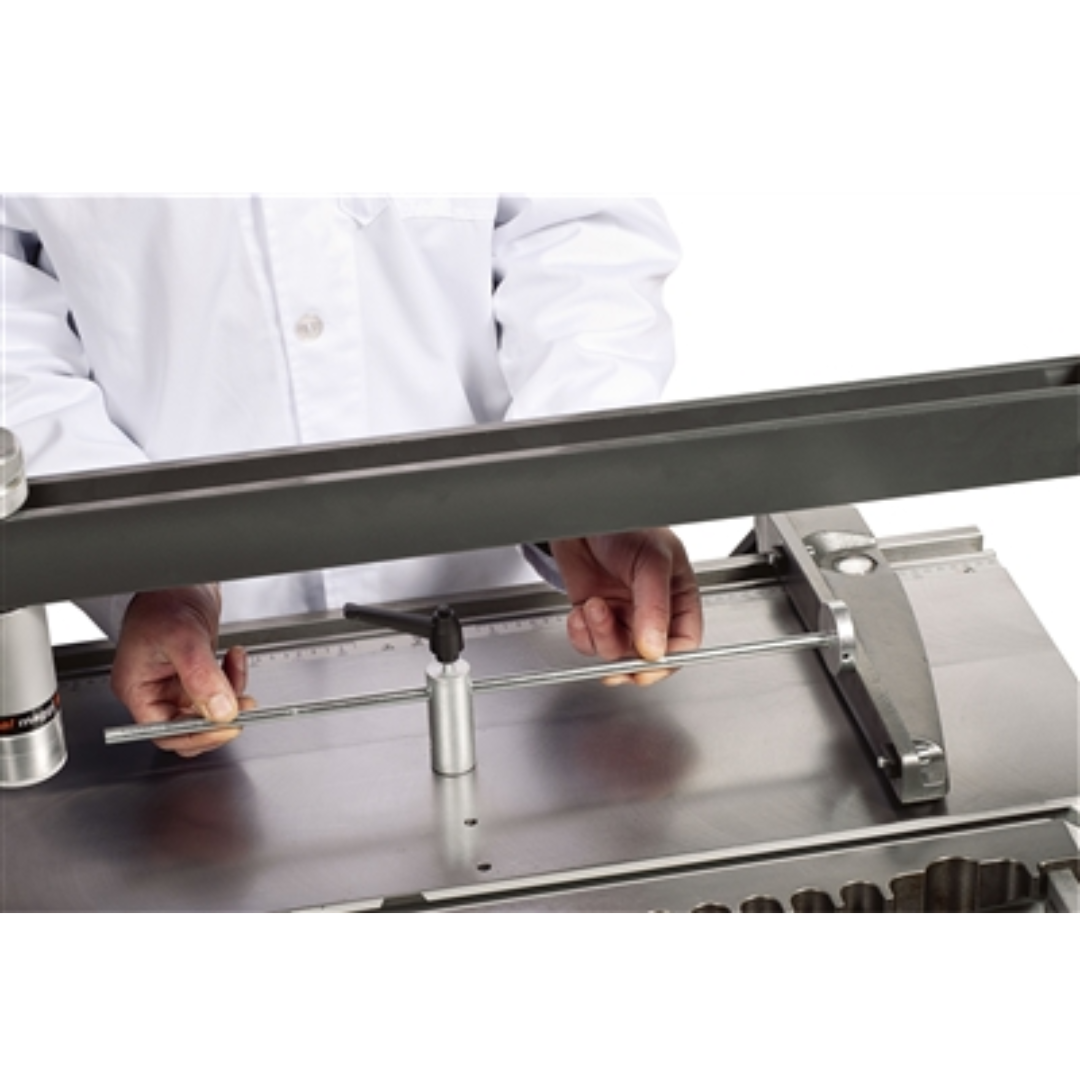

- Mirror Imaging Fence Setup System enables fast and accurate positioning of side fences for symmetrical drilling.
- Foot-Actuated Pneumatic Operation streamlines clamping and drilling cycles for increased productivity.
- Magnetic Starter with Overload Protection enhances safety and motor longevity.
- Quick-Change Chuck System (21 Included) allows rapid bit changes for reduced downtime.
Maggi System 21 Prestige Construction/Line Borer MAG-SYSTEM-21P Available Options & Accessories

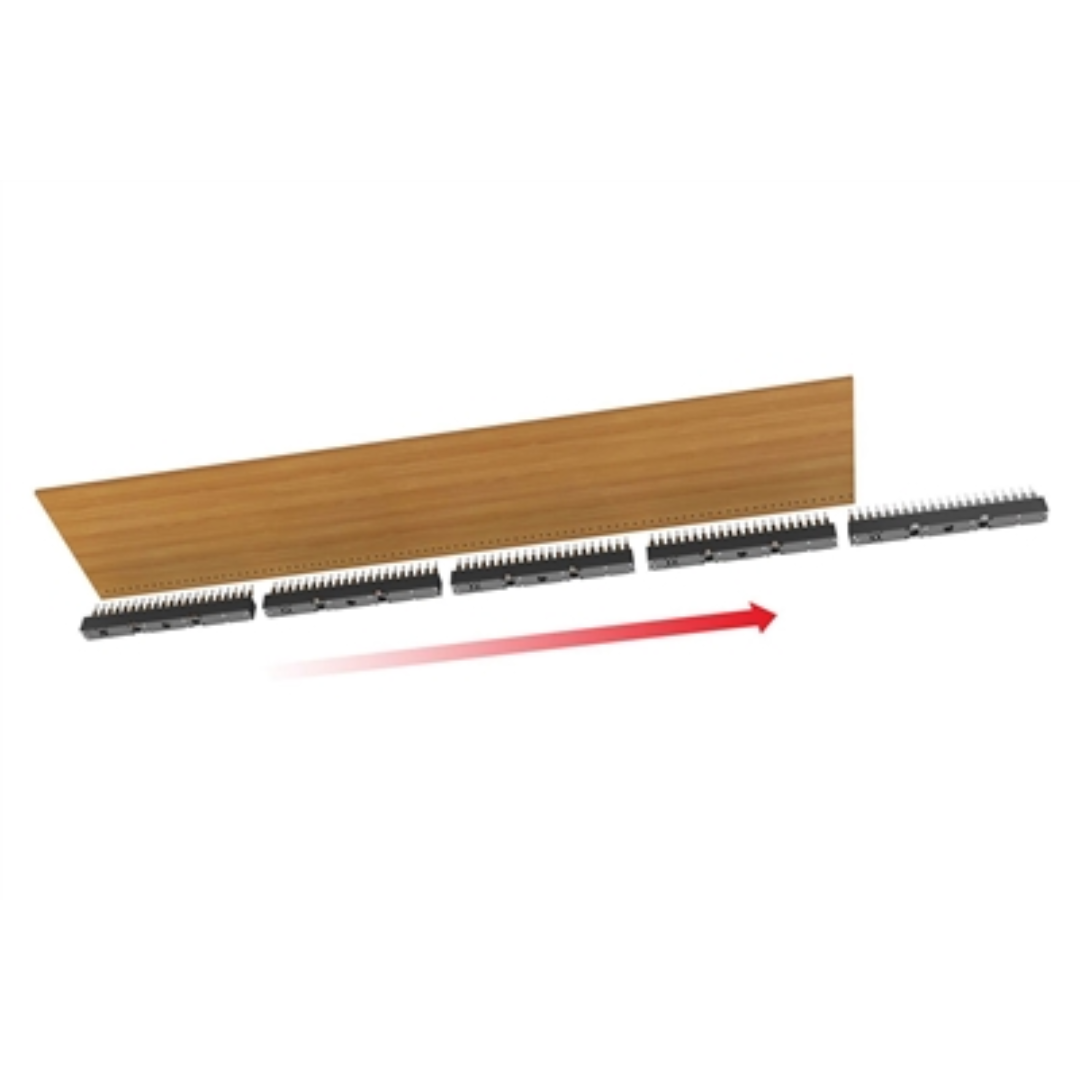

- Stop Reference Pin for Line Boring
- Reference Fence Sets for 45° and 90° Applications
- Additional Aluminum Fence Stops and Extensions
- Fence Extension Systems and Connector Kits
- Additional Quick Change Bit Adaptors
- Extra Holddown Cylinder Assemblies
- Tool Storage Trays and Clamp Storage Systems
- Dedicated Hinge Boring Heads (Blum, Grass, Salice, Hettich)
- Cabineo Hinge Boring Head with Included Bits
- Wide Range of Brad Point and Hinge Boring Bits
Maggi System 21 Prestige Construction/Line Borer MAG-SYSTEM-21P Shipping & Delivery
- $349 flat rate shipping within the Continental United States
- Additional charges apply for residential and lift gate deliveries
- Professionally crated for secure transport
Reliable freight packaging ensures the Maggi System 21 Prestige Construction/Line Borer MAG-SYSTEM-21P arrives protected and ready for installation.
Why Choose the Maggi System 21 Prestige Construction/Line Borer MAG-SYSTEM-21P
- 21-spindle system optimized for 32 mm line boring standards
- Fast pneumatic operation for increased production throughput
- Precision drilling with digital positioning and depth control
- Heavy-duty construction built for daily industrial use
- Flexible configuration for cabinets, furniture, and custom millwork
The Maggi System 21 Prestige Construction/Line Borer MAG-SYSTEM-21P is a professional-grade solution for shops demanding accuracy, speed, and durability in high-volume drilling operations.
