Maggi Big 800CE Radial Arm Saw MAG-BIG800CE Applications
- Large panel crosscutting and sizing
- Rip cutting for wide boards and sheet materials
- Angle cutting for cabinetry, framing, and furniture production
- Industrial woodworking and fabrication shops
- Production environments requiring extended cutting capacity
Ideal for shops handling larger materials that require greater crosscut and rip capacity with consistent precision.
Maggi Big 800CE Radial Arm Saw MAG-BIG800CE Specifications
| Motor | 4 HP (2800 RPM) |
|---|---|
| Blade Diameter | 16" (Not Included) |
| Arbor Diameter | 1" |
| Table Size | 73.23" x 45.08" |
| Max Crosscut Capacity | 27.75" (on 3/4" material at 90°) |
| Rip Capacity | 0" – 40.5" |
| Max Depth of Cut | 4.9" |
| Max Cut Length (45° Right) | 19.68" |
| Max Cut Length (45° Left) | 12.20" |
| Dust Collection | Blade Guard & Rear Table Dust Chutes |
| Machine Dimensions | 73" x 62" x 61" Tall |
| Machine Weight | 495 lbs |
| Crated Dimensions | 56" x 34" x 24" Tall |
| Crated Weight | 523 lbs |
Maggi Big 800CE Radial Arm Saw MAG-BIG800CE Performance & Features
- 4 HP industrial motor (2800 RPM) provides reliable power for heavy-duty cutting applications.
- Heavy-duty cast construction ensures rigidity, stability, and long service life.
- Eight-bearing carriage system delivers smooth, precise cutting motion with minimal deflection.
- Large extended worktable supports oversized panels and long materials.
- Expanded crosscut and rip capacity increases versatility for a wide range of cutting operations.

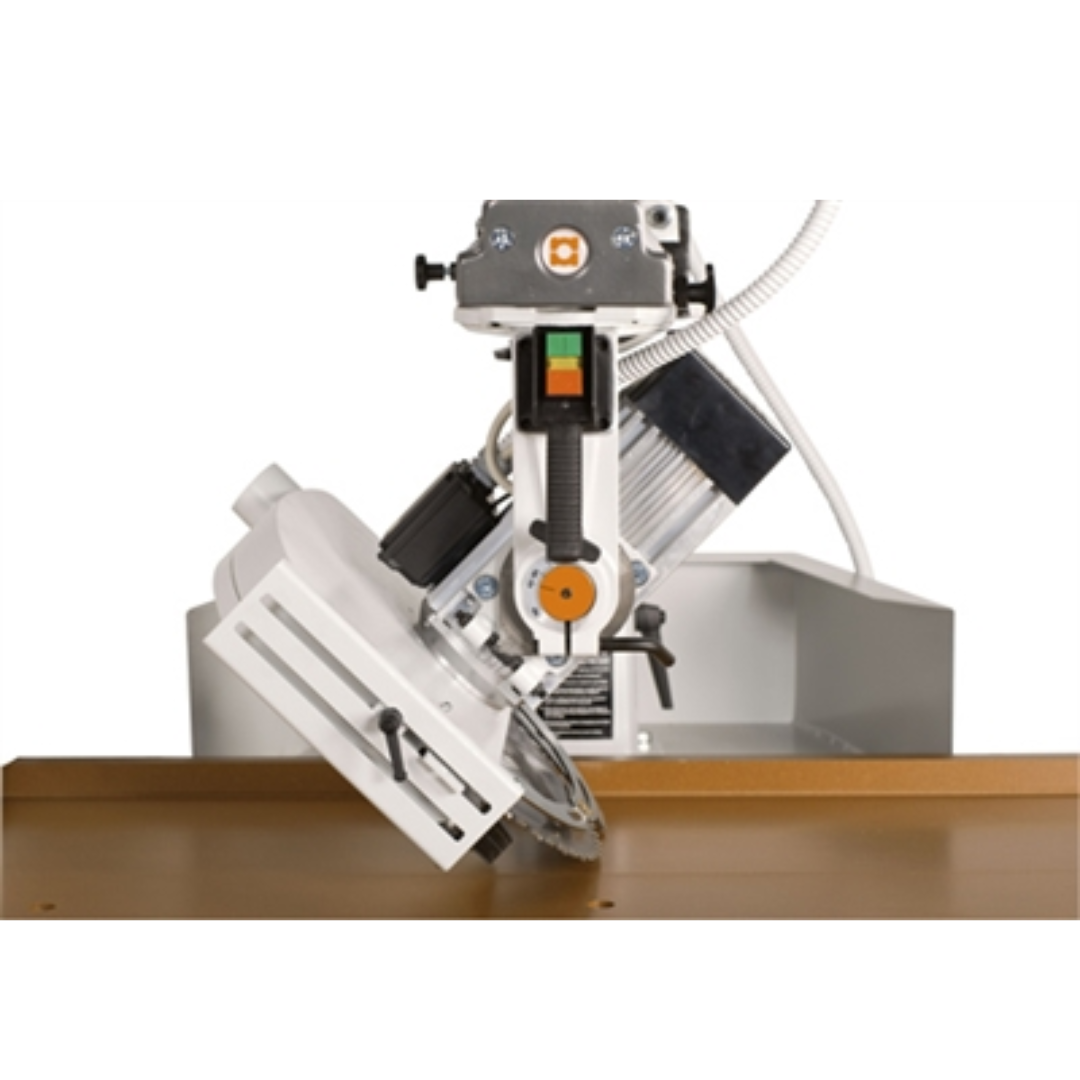

- Precision angle cutting capability allows accurate bevel and miter cuts.

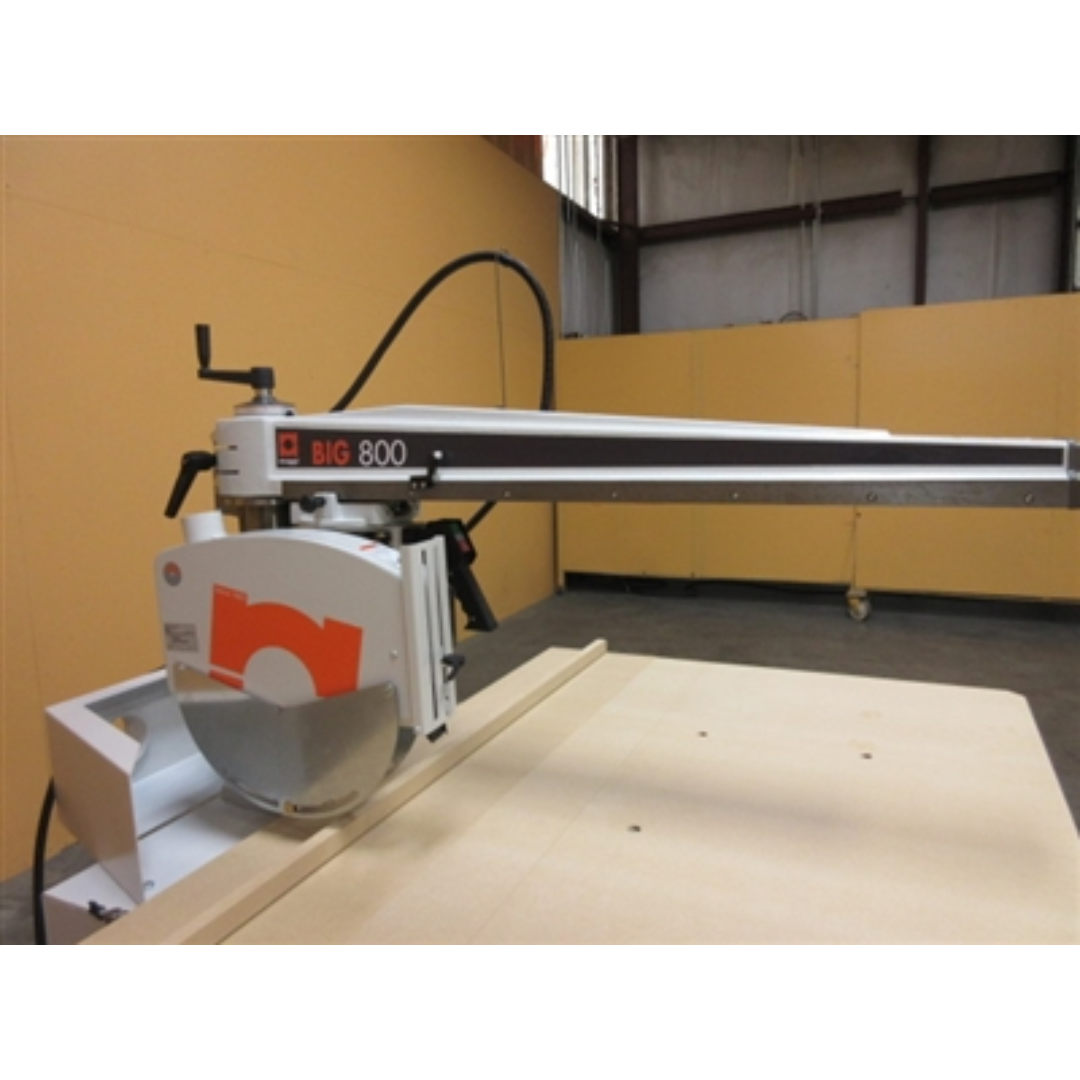

- Dual dust extraction points improve dust control and operator visibility.
- European-engineered design reflects decades of proven manufacturing quality and performance.
Maggi Big 800CE Radial Arm Saw MAG-BIG800CE Optional Accessories
- 16" radial arm saw blade (ATB configuration)
- Laser alignment system with mounting bracket for enhanced cutting accuracy
- Optional assembly service (excluding legs and table top)
Maggi Big 800CE Radial Arm Saw MAG-BIG800CE Shipping & Delivery
- $349 flat rate shipping within the Continental United States (unassembled)
- $449 flat rate shipping within the Continental United States (assembled)
- Additional charges may apply for residential and lift gate deliveries
- Machine requires assembly upon delivery
The Maggi Big 800CE Radial Arm Saw MAG-BIG800CE delivers expanded cutting capacity, precision engineering, and industrial durability—making it a powerful solution for demanding woodworking applications.
