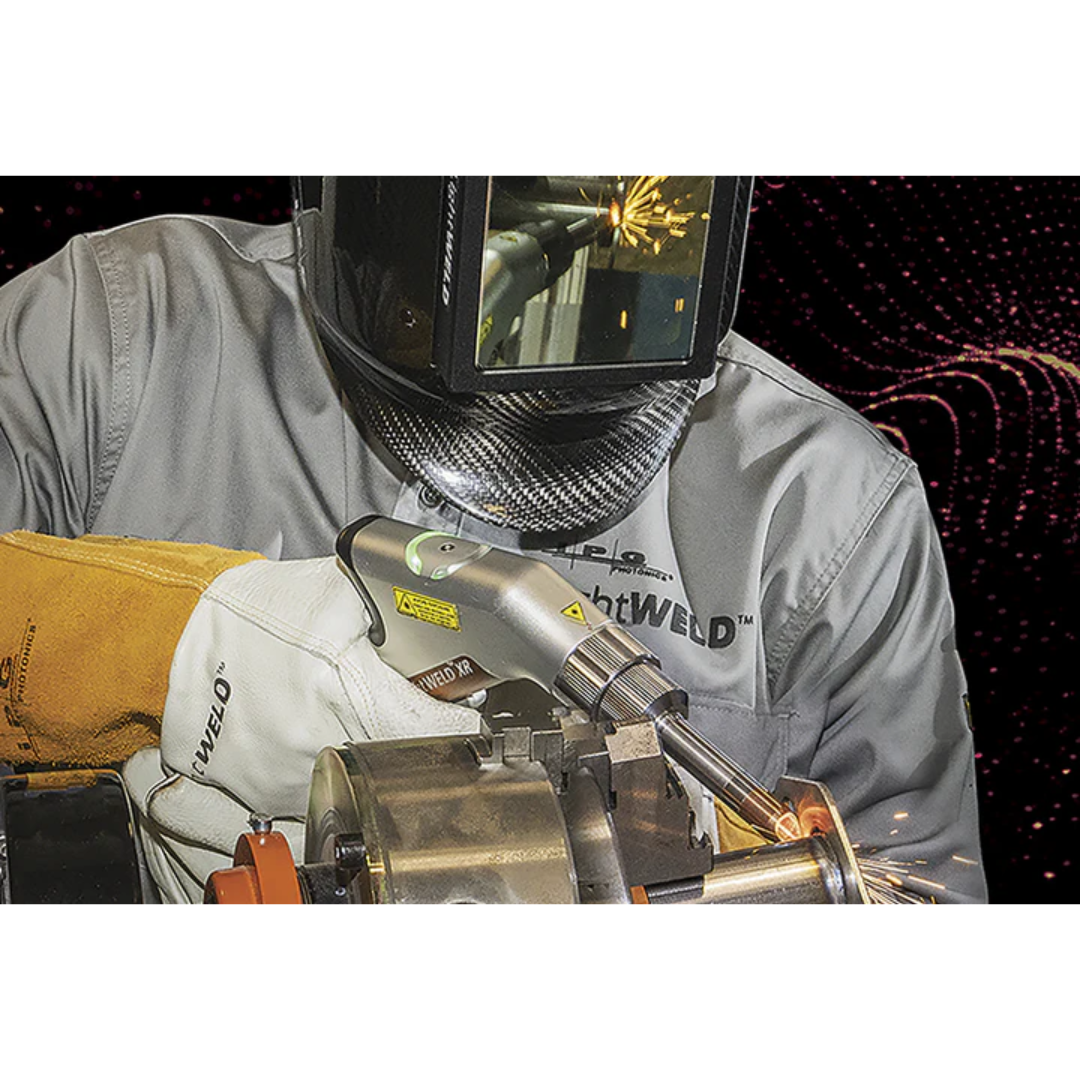

LightWELD 2000 XR Handheld Laser Welding and Cleaning System SYSHHWXR2000001U Applications
- Metal fabrication and production welding shops
- Automotive body repair and manufacturing
- Construction, structural steel, and piping applications
- Maintenance, repair, and field service operations
- Farm equipment, furniture, and appliance manufacturing
- Aerospace, transportation, and high-performance industries
Designed for high-demand environments requiring powerful welding performance and integrated surface cleaning.
LightWELD 2000 XR Handheld Laser Welding and Cleaning System SYSHHWXR2000001U Specifications
| Model | SYSHHWXR2000001U |
|---|---|
| Laser Power | 2000 W Max Average Power / 3000 W Peak Pulse Power |
| Duty Cycle | 100% |
| Functionality | Laser Welding & Cleaning (Dual Mode) |
| Cleaning Width | Up to 15 mm |
| Cleaning Power | Up to 3000 W Peak |
| Operation Type | Handheld |
| Material Capability | Stainless, Galvanized & Mild Steel up to 8 mm; Aluminum (3 & 5 Series) up to 8 mm; Aluminum (6 Series) up to 5 mm; Titanium & Nickel Alloys up to 7 mm; Copper up to 3 mm |
LightWELD 2000 XR Handheld Laser Welding and Cleaning System SYSHHWXR2000001U Performance & Technology
- High-power 2000 W system with 3000 W peak pulse delivers superior welding penetration and speed.
- Faster than MIG and TIG welding with improved efficiency and reduced labor time.
- Integrated welding and cleaning functionality for complete workflow optimization.
- Pre- and post-weld cleaning removes contaminants and improves weld quality.
- 100% duty cycle ensures continuous operation in production environments.
- Wide 15 mm cleaning field enables efficient surface preparation and finishing.
- Low heat input reduces distortion and improves final part quality.
- Factory preset modes simplify setup and ensure repeatable results.
LightWELD 2000 XR Handheld Laser Welding and Cleaning System SYSHHWXR2000001U Included Components
- LightWELD 2000 XR Unit
- 10 m Gun Cable
- 10 m Workpiece Clamp
- (4) Welding Nozzle Tips
- (3) Cleaning Nozzle Tips
- (5) Cover Slides
- Welding Helmet with IR Shield
- Laser Safety Glasses (OD 7+)
- 3 m CAT 6 Ethernet Cable
- User Guide
Complete turnkey system with all required accessories for immediate industrial deployment.
LightWELD 2000 XR Handheld Laser Welding and Cleaning System SYSHHWXR2000001U Safety & Protection
- Key switch control ensures deliberate activation of the laser source.
- Emergency-stop button provides immediate shutdown capability.
- Fiber laser interlock system verifies safe laser delivery to the welding gun.
- 2-step trigger operation prevents accidental firing.
- Part contact interlock disables laser when not in contact with material.
- Class IV laser system requires proper PPE including provided safety glasses and helmet.
Operators must follow all safety protocols and wear proper protective equipment during operation.
Why Choose the LightWELD 2000 XR Handheld Laser Welding and Cleaning System SYSHHWXR2000001U
- High-power performance for demanding industrial applications.
- Handles a wide range of materials and thicknesses.
- Integrated cleaning improves weld quality and efficiency.
- Continuous duty cycle for production-level output.
- Advanced safety features for secure operation.
The LightWELD 2000 XR Handheld Laser Welding and Cleaning System SYSHHWXR2000001U delivers unmatched power, versatility, and productivity, making it the ultimate solution for high-performance industrial welding and cleaning applications.
