LightWELD 1500 XR Handheld Laser Welding and Cleaning System SYSHHWXR0000002U Applications
- Advanced industrial metal fabrication and precision welding
- Pre-weld cleaning of oxides, rust, oils, and surface contaminants
- Post-weld cleaning and polishing of weld seams
- Automotive, aerospace, and high-performance manufacturing sectors
- Processing of aluminum, nickel alloys, titanium, and copper
- Maintenance, repair, and field service operations
Designed for operations requiring expanded material capability, ultra-clean welds, and reduced thermal impact.
LightWELD 1500 XR Handheld Laser Welding and Cleaning System SYSHHWXR0000002U Specifications
| Model | SYSHHWXR0000002U |
|---|---|
| Laser Type | High Frequency Pulsed Fiber Laser |
| Peak Power | 2500 W |
| Functionality | Laser Welding & Cleaning (Dual Mode) |
| Scan Field | 15 mm Wide Cleaning Coverage |
| Cable Length | 10 m (32 ft) |
| Operation Type | Handheld |
| Material Capability | Aluminum & Nickel Alloys up to .250” (6.35 mm), Titanium up to .200” (5 mm), Copper up to .080” (2.0 mm) |
| Heat Input | Lower than LightWELD 1500 and XC Models |
| Software | Expanded Factory Preset Welding & Cleaning Modes |
LightWELD 1500 XR Handheld Laser Welding and Cleaning System SYSHHWXR0000002U Performance & Technology
- Full welding and cleaning integration combining capabilities of LightWELD 1500 and XC systems.
- Lower heat input technology reduces distortion and enables processing of sensitive materials.
- Expanded material compatibility including aluminum, nickel alloys, titanium, and copper.
- Simple nozzle change allows quick switching between welding and cleaning modes.
- Factory preset modes ensure consistent results and reduce operator training time.
- High-speed laser processing significantly faster than traditional MIG and TIG welding.
- Minimal material preparation and reduced post-processing increase productivity.
- Wide 15 mm scan field enables efficient and uniform cleaning coverage.

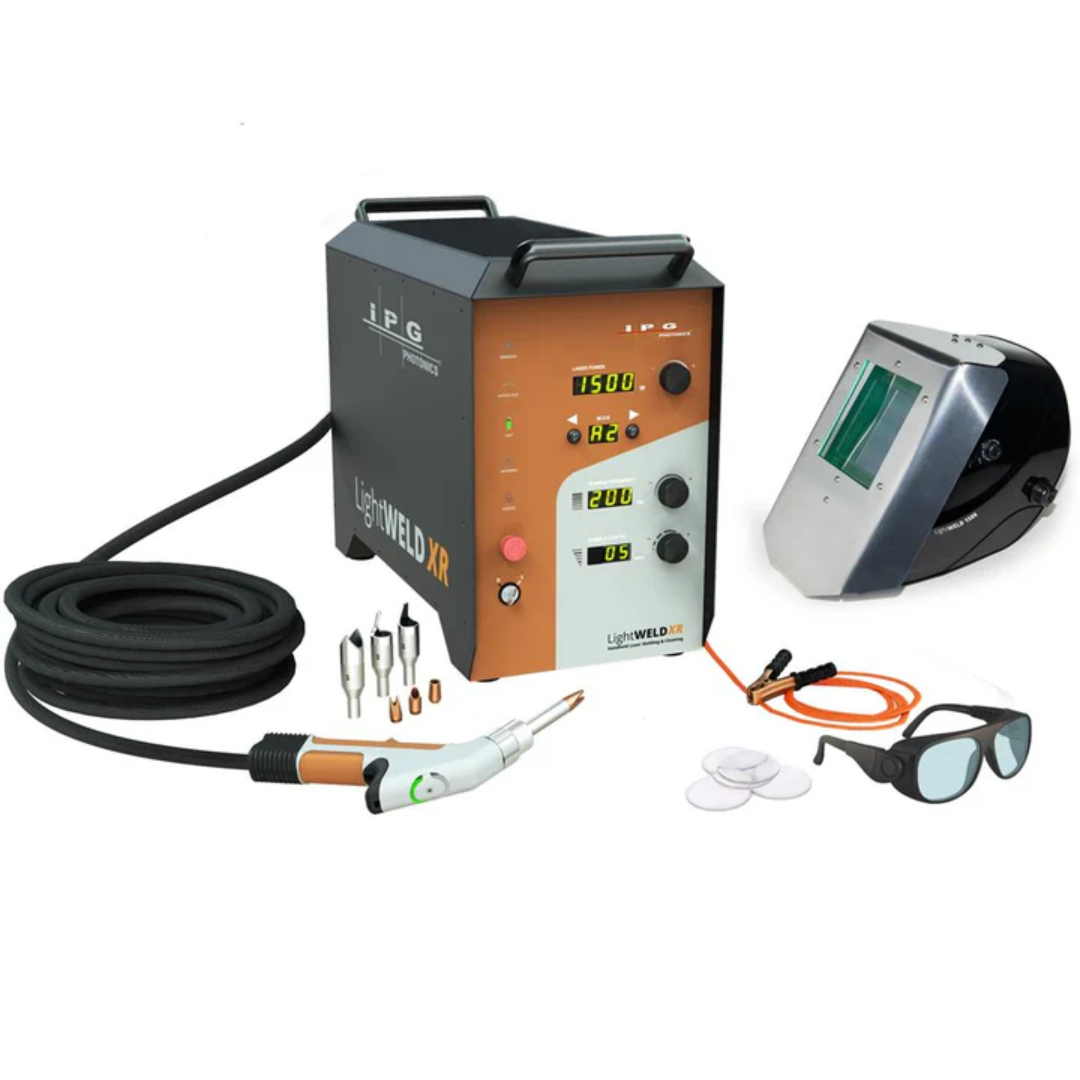

LightWELD 1500 XR Handheld Laser Welding and Cleaning System SYSHHWXR0000002U Included Components

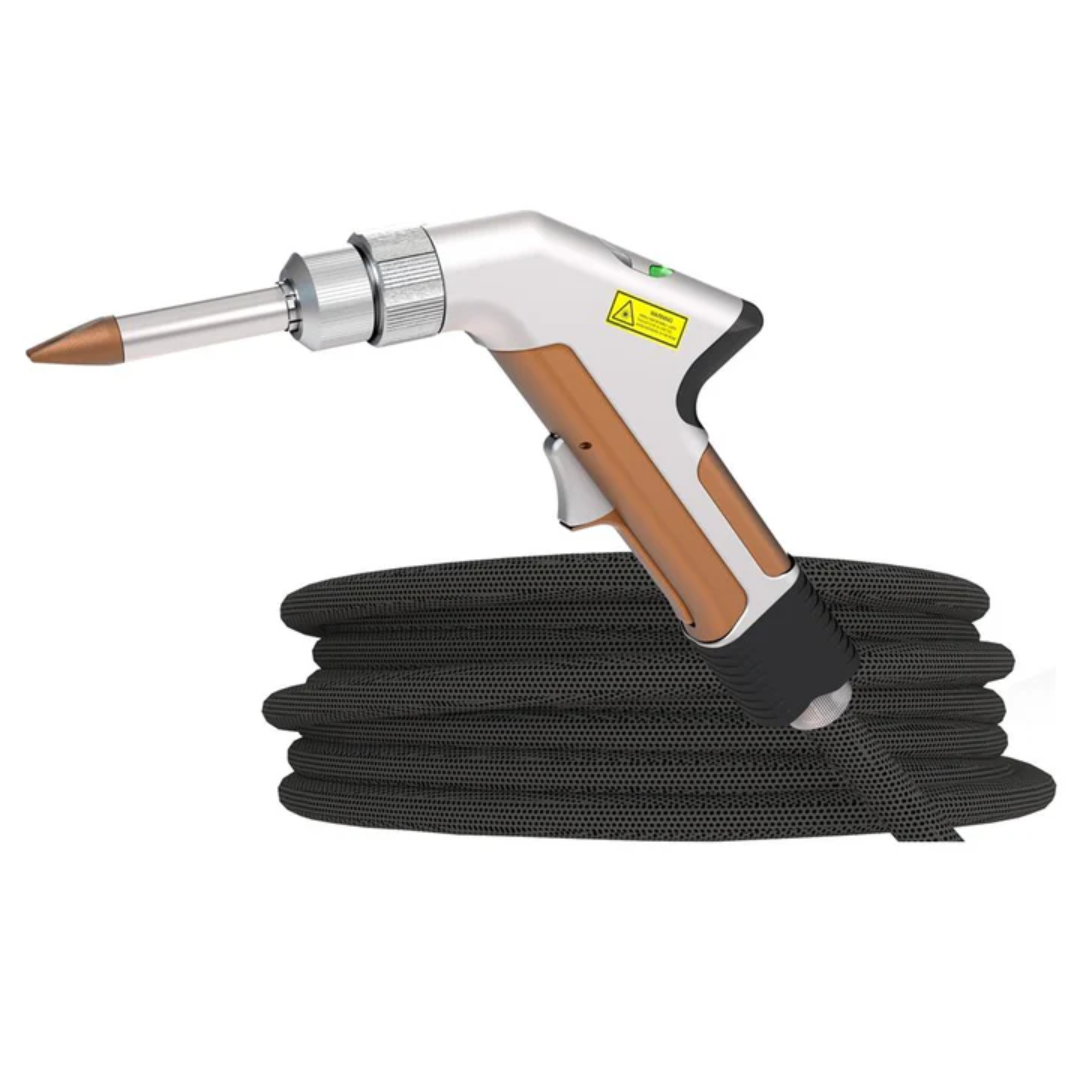

- 10 m (32 ft) IPG Laser Welding Gun
- 10 m (32 ft) Workpiece Clamp

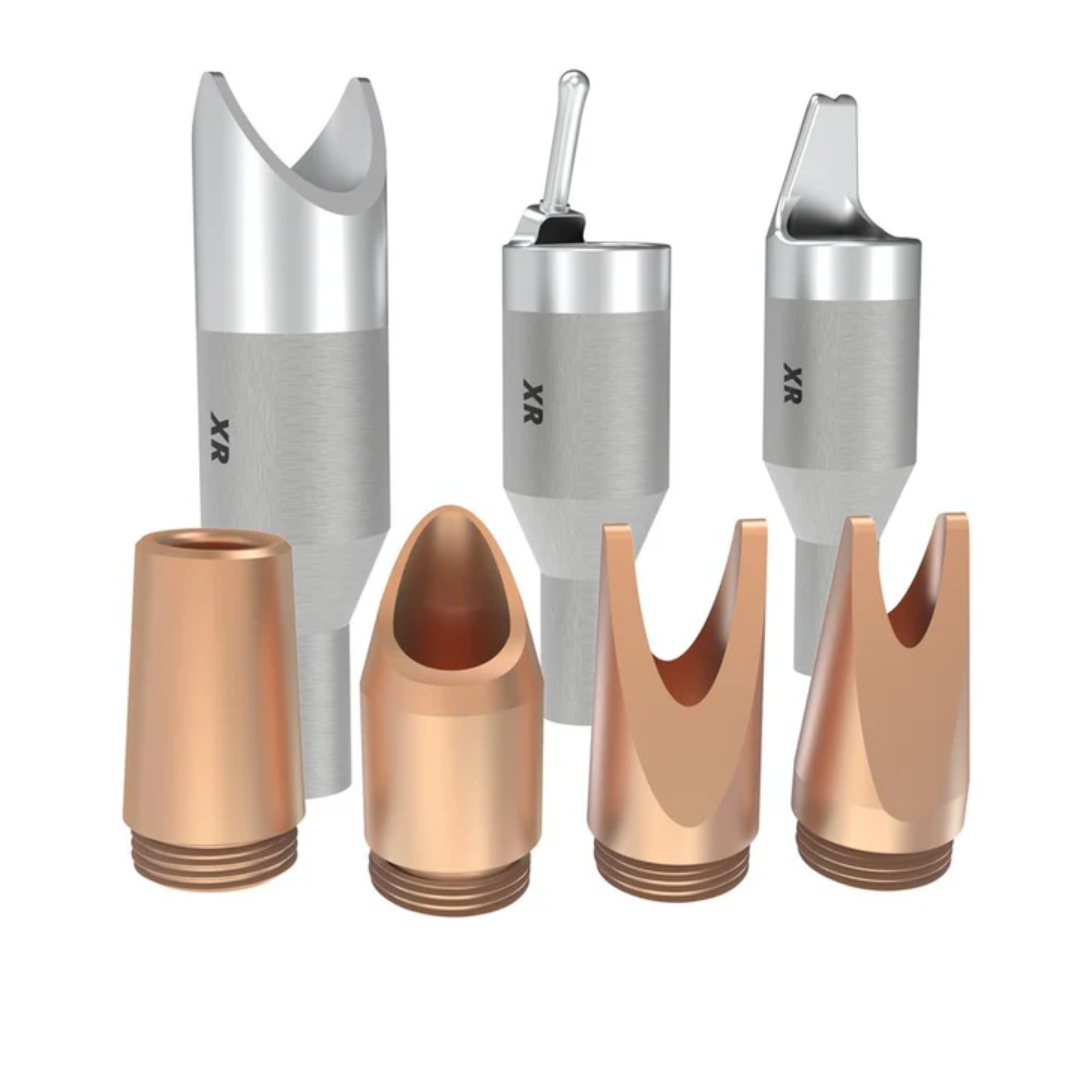

- (4) Welding Nozzle Tips
- (3) Cleaning Nozzle Tips
- (5) Cover Slides
- Welding Helmet with IR Shield
- Laser Safety Glasses (OD 6+)
- 3 m (10 ft) CAT 6 Ethernet Cable
- Getting Started Guide
Complete industrial-ready system with expanded welding and cleaning functionality for immediate deployment.
Why Choose the LightWELD 1500 XR Handheld Laser Welding and Cleaning System SYSHHWXR0000002U
- Combines full welding and cleaning capabilities in one advanced system.
- Handles a broader range of materials and thicknesses than previous models.
- Lower heat input for improved precision and reduced distortion.
- Faster processing speeds with minimal setup and post-processing.
- Portable, user-friendly solution for modern industrial fabrication.
The LightWELD 1500 XR Handheld Laser Welding and Cleaning System SYSHHWXR0000002U is the ultimate all-in-one laser solution for professionals who demand maximum versatility, precision, and productivity in advanced fabrication environments.
