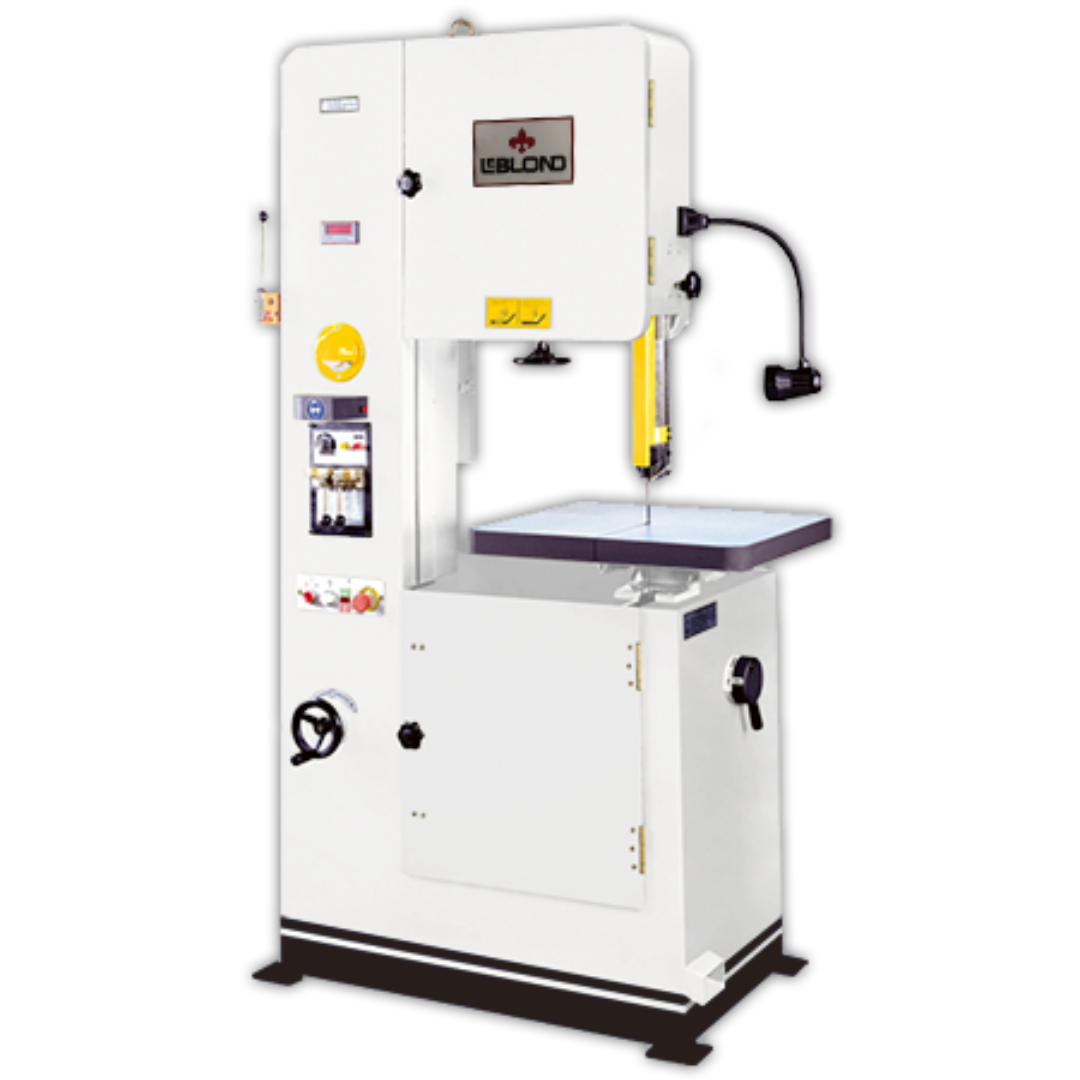

LeBlond Vertical Band Saws LVS-50 Applications
- Contour cutting of complex shapes and profiles
- Fabrication of custom parts and components
- Tool rooms and prototype development
- Metalworking shops requiring precision cutting
- Cutting intricate angles and curved geometries
Ideal for precision contour cutting where flexibility and control are critical.
LeBlond Vertical Band Saws LVS-50 Specifications
| Machine Type | Vertical Band Saw (Contour Saw) |
|---|---|
| Table Size | 23.6" × 19.6" |
| Maximum Throat Capacity | 20" |
| Maximum Work Height | 12.2" |
| Blade Length | 153" |
| Blade Width Range | 0.118" – 0.629" |
| Blade Speed (Low Range) | 20 – 85 m/min |
| Blade Speed (High Range) | 120 – 500 m/min |
| Main Drive Motor | 2.0 HP |
| Table Tilt | 4-Way ±15° |
| Butt Welder Capacity | 2.4 kVA |
| Electrical Requirements | 230V / 460V / 3 Phase / 60Hz |
| Net Weight | 794 lbs |
LeBlond Vertical Band Saws LVS-50 Performance & Features
- Contour cutting design allows the operator to move the workpiece for precise shaping and detailed cuts.
- Integrated blade butt welder with annealing unit enables fast blade repair and custom blade fabrication.
- Blade shear and grinder system simplifies blade preparation and maintenance.
- Power-assisted feed capability improves control and reduces operator fatigue during cutting operations.
- Wide blade speed range supports cutting of various materials and thicknesses.
- Tilting work table allows angled and compound cuts with precision.
- Heavy-duty construction ensures stability and long-term reliability.
LeBlond Vertical Band Saws LVS-50 Additional Features
- Low voltage LED work light for enhanced visibility
- Brush system for cleaning lower wheel drive
- Integrated blade welding and finishing tools
- Designed for cutting complex shapes and angles efficiently
Why Choose the LeBlond Vertical Band Saws LVS-50
- Exceptional precision for contour and complex cutting tasks.
- Integrated blade welding system reduces downtime.
- Versatile speed ranges for multiple materials.
- Durable construction for industrial environments.
- Enhanced operator control for detailed machining work.
The LeBlond Vertical Band Saws LVS-50 is a versatile and powerful contour cutting solution designed to deliver precision, efficiency, and reliability in demanding fabrication and machining applications.
