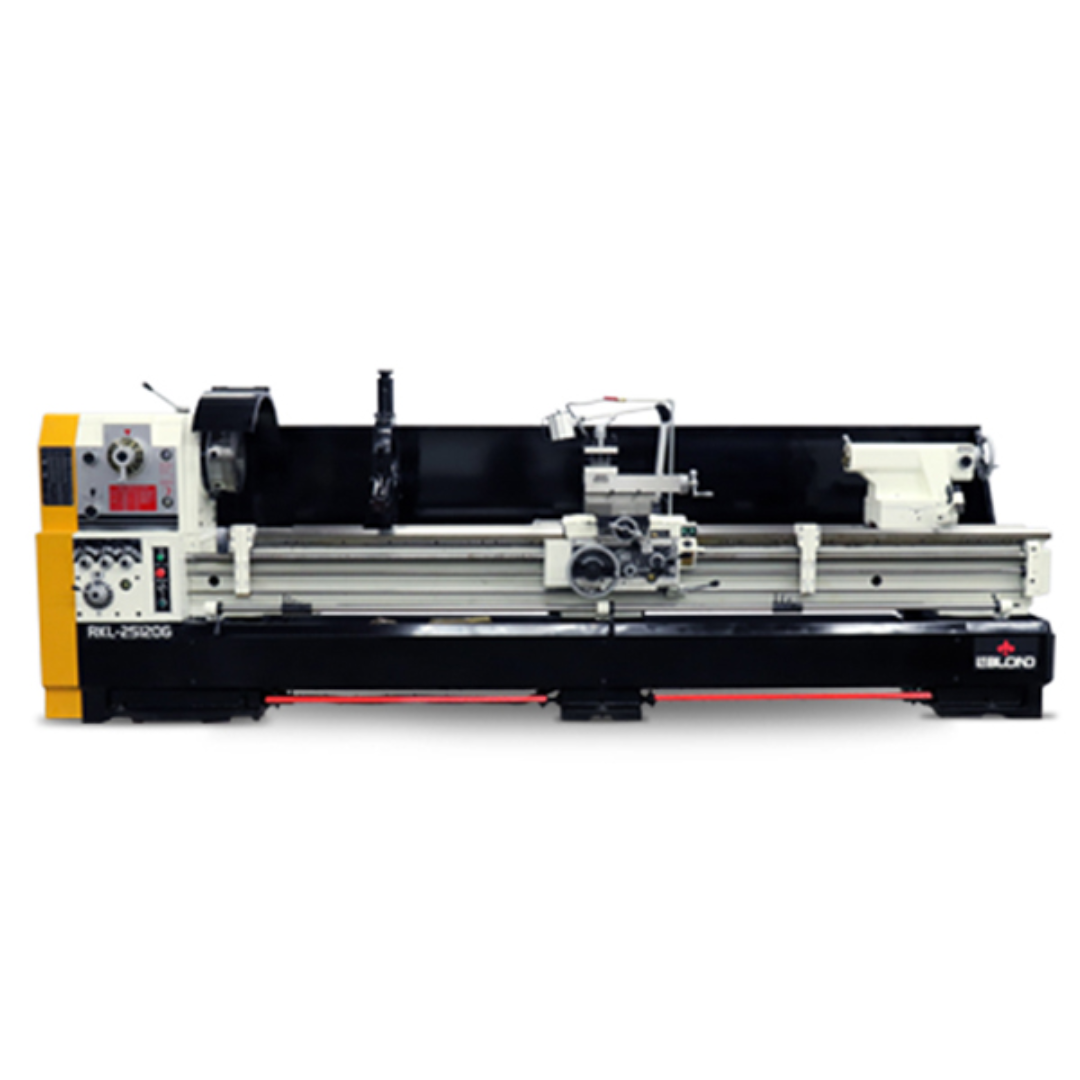

LeBlond RKL2500G Series Geared Head High Speed Heavy Duty Lathe Applications
- Heavy-duty metal turning and precision machining operations
- Oil & gas, mining, and heavy equipment manufacturing industries
- Machining large shafts, cylinders, and industrial components
- Maintenance, repair, and toolroom environments
- Custom fabrication and production machining requiring high torque output
Ideal for machining large diameter workpieces where rigidity, power, and precision are critical.
LeBlond RKL2500G Series Geared Head High Speed Heavy Duty Lathe Specifications
| Model | RKL-2500G |
|---|---|
| Swing Over Bed | 26" |
| Distance Between Centers | 57" – 157" |
| Swing Over Cross Slide | 17.5" |
| Swing in Gap | 35.1" |
| Spindle Bore | 4.09" |
| Spindle Nose | D1-11 |
| Spindle Taper | MT 7 |
| Spindle Speeds | 12 Speeds (13 – 1200 RPM) |
| Main Motor | 15 HP |
| Voltage | 480V / 3PH / 60Hz |
| Inch Threads | 2 – 72 TPI (45 selections) |
| Metric Threads | 0.2 – 14 mm (39 selections) |
| Feed Range (Longitudinal) | 0.0012 – 0.039 IPR |
| Feed Range (Cross) | 0.0004 – 0.0117 IPR |
| Tailstock Quill Diameter | 3.1" |
| Tailstock Quill Travel | 9.8" |
| Tailstock Taper | MT 5 |
| Bed Width | 15.75" |
LeBlond RKL2500G Series Geared Head High Speed Heavy Duty Lathe Performance & Construction
- Forged alloy steel spindle that is hardened, precision ground, and dynamically balanced for optimal performance and longevity.
- Heavy-duty headstock design with constant oil bath lubrication to ensure smooth operation and extended bearing life.
- 12-speed geared headstock delivering high torque across a wide RPM range up to 1200 RPM.
- Meehanite cast iron bed with induction hardened and precision ground ways (HRC 50) for superior wear resistance and accuracy.
- Wide bed with one-piece base providing maximum rigidity and vibration dampening during heavy cuts.
- Removable gap bed allowing increased swing capacity up to 35.1″ for oversized parts.
- Precision hand-scraped bed ways ensure smooth carriage movement and long-term accuracy.
- Advanced lubrication system maintains continuous oil flow to gears and bearings.
- Full threading capability including inch, metric, modular, and diametral threads.
LeBlond RKL2500G Series Geared Head High Speed Heavy Duty Lathe Standard Equipment & Features
- Coolant system with pump
- Chuck guard with operator safety interlock
- Removable front chip pan and full-length splash guard
- Lockable main disconnect switch and electrical cabinet
- Adjustable apron infeed overload safety clutch
- LED work light for enhanced visibility
- Leveling pads for precise installation
- Operation manual and parts list
- Tool box with tools and touch-up paint
- Steady rest with roller jaws (1.6″ – 10.0″ capacity)
- Follow rest with bronze jaws (1.2″ – 6.3″ capacity)
- Spindle back plate and thread indicator
- Telescopic taper attachment
- 4-way quick turn tool post with 12″ backplate
- Safety red spindle brake pedal
- Dead center and spindle center sleeve (MT7 × MT5)
Why Choose the LeBlond RKL2500G Series Geared Head High Speed Heavy Duty Lathe
- Large 26″ swing capacity for handling oversized workpieces.
- Powerful 15 HP motor delivers consistent torque for heavy-duty cutting.
- Wide speed range with 12 geared selections for versatile machining.
- Precision-engineered construction ensures long-term durability and accuracy.
- Comprehensive threading and feed capabilities for diverse applications.
The LeBlond RKL2500G Series Geared Head High Speed Heavy Duty Lathe is built for serious machinists who demand power, precision, and rugged durability in industrial turning operations.
