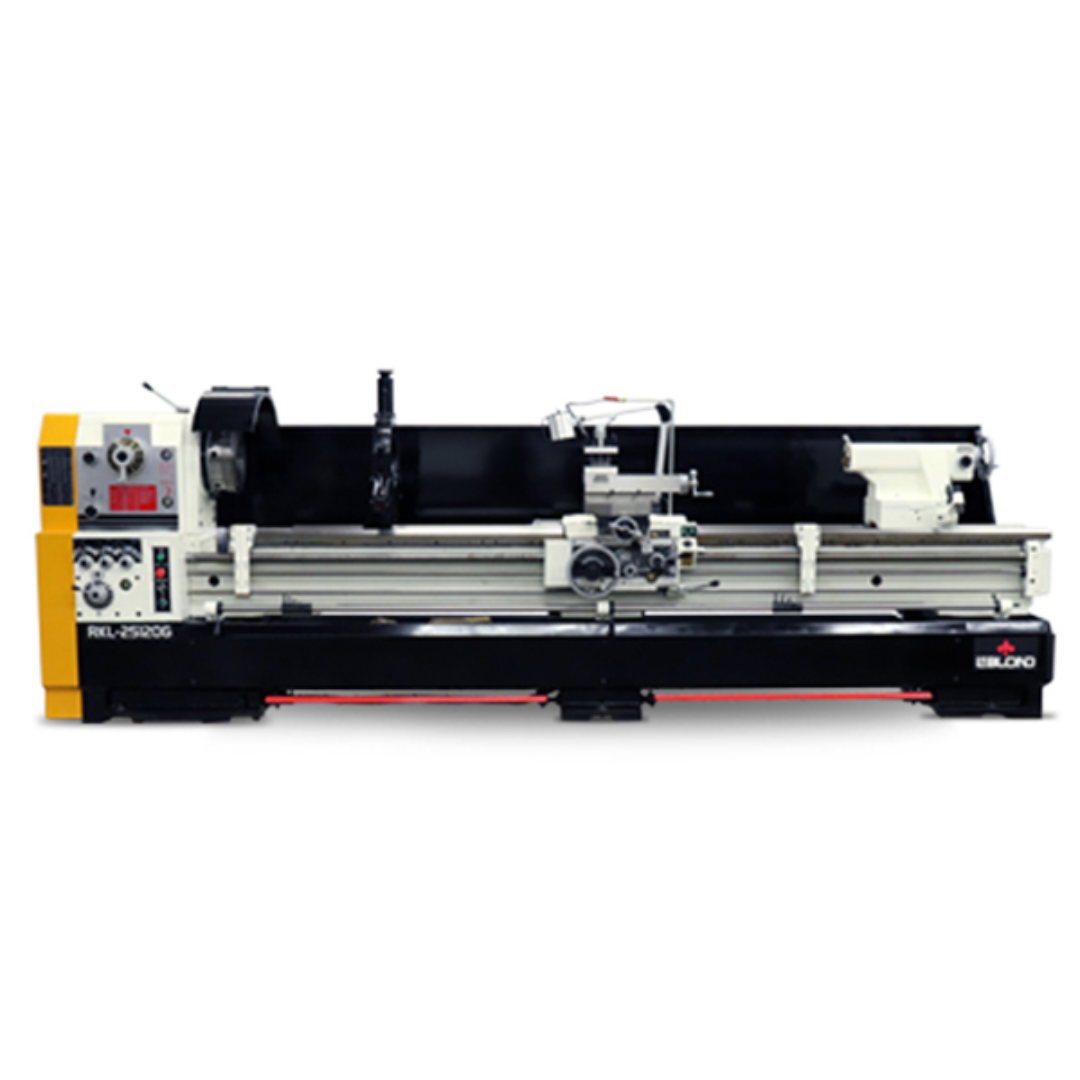

LeBlond RKL2100G Series Geared Head High Speed Heavy Duty Lathe Applications
- General purpose metalworking and precision turning operations
- Oil & gas, aerospace, and heavy equipment manufacturing
- Shafts, bushings, and large cylindrical component machining
- Maintenance shops, tool rooms, and production facilities
- Custom fabrication and repair operations requiring high torque and stability
Engineered for shops that require heavy-duty cutting power, precision threading, and long-term durability.
LeBlond RKL2100G Series Geared Head High Speed Heavy Duty Lathe Specifications
| Model | RKL-2100G |
|---|---|
| Swing Over Bed | 22" |
| Distance Between Centers | 57" – 157" |
| Swing Over Cross Slide | 13.4" |
| Swing in Gap | 31.4" |
| Spindle Bore | 4.09" |
| Spindle Nose | D1-11 |
| Spindle Taper | MT 7 |
| Spindle Speeds | 12 Speeds (13 – 1200 RPM) |
| Main Motor | 15 HP |
| Voltage | 480V / 3PH / 60Hz |
| Inch Threads | 2 – 72 TPI (45 selections) |
| Metric Threads | 0.2 – 14 mm (39 selections) |
| Feed Range (Longitudinal) | 0.0012 – 0.039 IPR |
| Feed Range (Cross) | 0.0004 – 0.0117 IPR |
| Tailstock Quill Travel | 9.8" |
| Bed Width | 15.75" |
LeBlond RKL2100G Series Geared Head High Speed Heavy Duty Lathe Performance & Construction
- Heavy duty forged alloy steel spindle that is hardened, ground, and dynamically balanced for superior accuracy and longevity.
- Precision tapered roller bearings with continuous oil bath lubrication for reduced wear and extended service life.
- 12-speed geared headstock delivers high torque across a wide RPM range up to 1200 RPM for versatile machining capability.
- Meehanite cast iron bed with induction hardened ways (HRC 50) ensures maximum rigidity, vibration resistance, and machining accuracy.
- Wide bed and one-piece base design enhances structural stability during heavy cuts and large workpiece operations.
- Removable gap bed expands swing capacity to 31.4″ for larger diameter parts.
- Advanced lubrication system provides consistent oil flow to gears and bearings for smooth operation.
- Integrated control panel with emergency stop, spindle jog, coolant control, and power indicator for operator convenience.
- Threading versatility supports inch, metric, modular, and diametral threading operations.
LeBlond RKL2100G Series Geared Head High Speed Heavy Duty Lathe Standard Equipment & Features
- Coolant system with pump
- Chuck guard with safety interlock
- Removable chip pan and full-length splash guard
- Lockable electrical cabinet and main disconnect switch
- Adjustable apron overload safety clutch
- LED work light for improved visibility
- Leveling pads for stable installation
- Toolbox with tools and touch-up paint
- Steady rest (1.6″ – 10.0″ capacity)
- Follow rest (1.2″ – 6.3″ capacity)
- 4-way quick turn tool post
- Thread indicator and telescopic taper attachment
- Spindle back plate and center sleeves (MT7 × MT5)
- Safety red spindle brake pedal
Why Choose the LeBlond RKL2100G Series Geared Head High Speed Heavy Duty Lathe
- Powerful 15 HP motor for heavy-duty cutting and consistent performance.
- Wide 22″ swing and extended between centers capacity for large workpieces.
- High-precision construction with hardened and ground components.
- Versatile threading and feed capabilities for diverse machining tasks.
- Built with industry-proven LeBlond engineering for long-term reliability.
The LeBlond RKL2100G Series Geared Head High Speed Heavy Duty Lathe is a premium industrial solution designed for machinists who demand power, precision, and durability in every operation.
