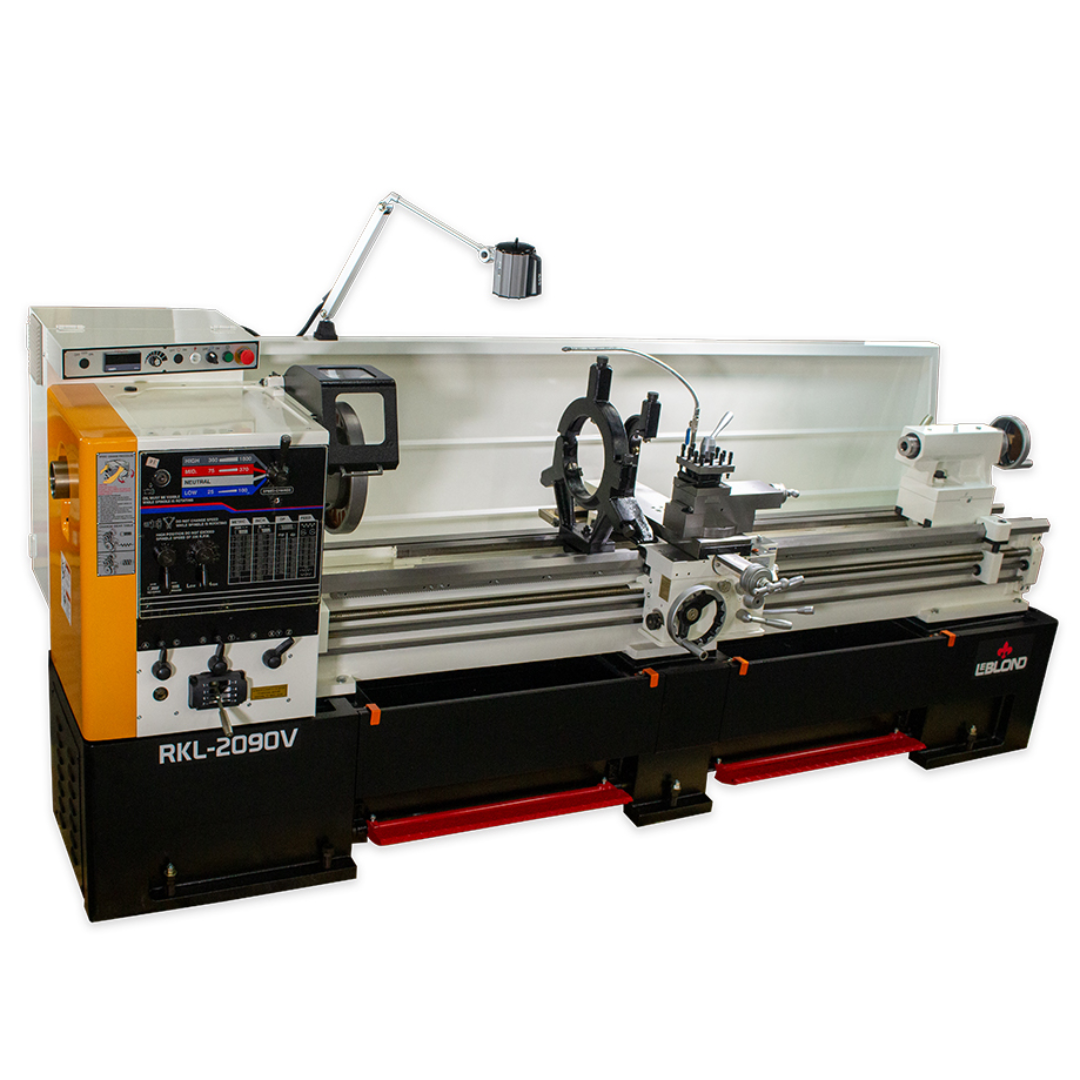

LeBlond RKL2000V Series Variable Speed Lathe with Electronic Control Applications
- Heavy-duty turning, facing, threading, and boring operations
- Machining large shafts, rollers, and oversized industrial components
- Production shops, repair facilities, and toolrooms
- Processing steel, alloys, and high-strength materials
Ideal for operations requiring large swing capacity, extended between centers, and precise variable speed control for optimal cutting performance.
LeBlond RKL2000V Series Variable Speed Lathe with Electronic Control Specifications
| Model | RKL-2000V |
|---|---|
| Swing Over Bed | 21.34″ |
| Distance Between Centers | 40″ / 60″ / 83.46″ |
| Swing Over Cross Slide | 15.23″ |
| Swing in Gap | 28.74″ |
| Cross Slide Travel | 11.81″ |
| Top Slide Travel | 5.9″ |
| Bed Width | 12.5″ |
| Spindle Nose | D1-8 |
| Spindle Bore | 3.149″ |
| Spindle Taper Adapter | MT 5 |
| Spindle Speed Range | 25 – 1800 RPM |
| Speed Control | Three Infinite Speed Ranges |
| Main Motor | 12.5 HP |
| Voltage | 480V / 3PH / 60Hz (other voltages available) |
| Coolant Motor | 1/8 HP |
LeBlond RKL2000V Series Variable Speed Lathe with Electronic Control Threading & Feed Capacity
| Inch Threads | (45) 2 to 72 TPI |
|---|---|
| Metric Threads | (39) 0.2 to 14 mm |
| Modular Threads | (18) 0.3 to 3.5 |
| Diametral Threads | (21) 8 to 44 |
| Lead Screw Diameter | 1.25″ |
| Lead Screw Pitch | 4 TPI |
| Longitudinal Feed | 0.0015 to 0.04 IPR |
| Cross Feed | 0.00075 to 0.02 IPR |
LeBlond RKL2000V Series Variable Speed Lathe with Electronic Control Variable Speed System
- Three gear ranges deliver optimal torque and performance across all machining conditions
- Low Range: 25 – 100 RPM for heavy cuts and large diameters
- Mid Range: 75 – 370 RPM for general-purpose machining
- High Range: 360 – 1800 RPM for finishing and high-speed work
- Electronic variable speed control enables precise RPM adjustments
- LED RPM display provides real-time speed monitoring
- AC inverter duty motor ensures smooth, consistent torque delivery
- Forced lubrication system maintains headstock performance and longevity
LeBlond RKL2000V Series Variable Speed Lathe with Electronic Control Headstock & Spindle
- Forged alloy steel spindle hardened, ground, and dynamically balanced
- D1-8 cam-lock spindle mount supports heavy-duty workholding
- 3.149″ spindle bore accommodates larger workpieces
- Precision bearing system ensures long-term accuracy and durability
- Constant oil bath lubrication protects internal components during continuous operation
LeBlond RKL2000V Series Variable Speed Lathe with Electronic Control Bed & Construction
- One-piece cast iron base provides maximum rigidity and vibration control
- Meehanite cast wide bed is stress relieved for structural stability
- Induction hardened bed ways (HRC 48–55) ensure long service life
- Precision ground and hand-scraped bed enhances machining accuracy
- Removable gap bed allows for larger diameter turning when required
- Large removable chip tray simplifies cleanup and maintenance
LeBlond RKL2000V Series Variable Speed Lathe with Electronic Control Tailstock Specifications
| Quill Diameter | 2.322″ |
|---|---|
| Quill Travel | 5.0″ |
| Quill Inside Taper | MT 4 |
LeBlond RKL2000V Series Variable Speed Lathe with Electronic Control Standard Equipment
- Coolant system with electric pump
- Chuck guard with operator safety interlock
- Removable front chip pan
- Adjustable apron infeed overload safety clutch
- Lockable main disconnect switch
- LED work light
- Leveling pads
- Operation manual and parts list
- Tool box and tools
- Steady rest with roller jaws (1.6″–8.7″ capacity)
- Follow rest with roller jaws (0.6″–3.3″ capacity)
- Telescopic taper attachment
- 4-way quick turn tool post
- 14″ face plate
- Safety red spindle brake pedal
- Full-length splash guard
- Dead centers (2)
- Spindle center sleeve (MT5)
Why Choose the LeBlond RKL2000V Series Variable Speed Lathe with Electronic Control
- Large 21″ swing capacity for heavy and oversized workpieces
- Extended between centers up to 90″ for long shaft machining
- Advanced variable speed system for precision control
- Powerful 12.5 HP motor for demanding industrial applications
- Rigid construction ensures consistent accuracy and long-term reliability
The LeBlond RKL2000V Series Variable Speed Lathe with Electronic Control is engineered for machinists who require maximum capacity, precision speed control, and dependable performance in large-scale turning operations.
