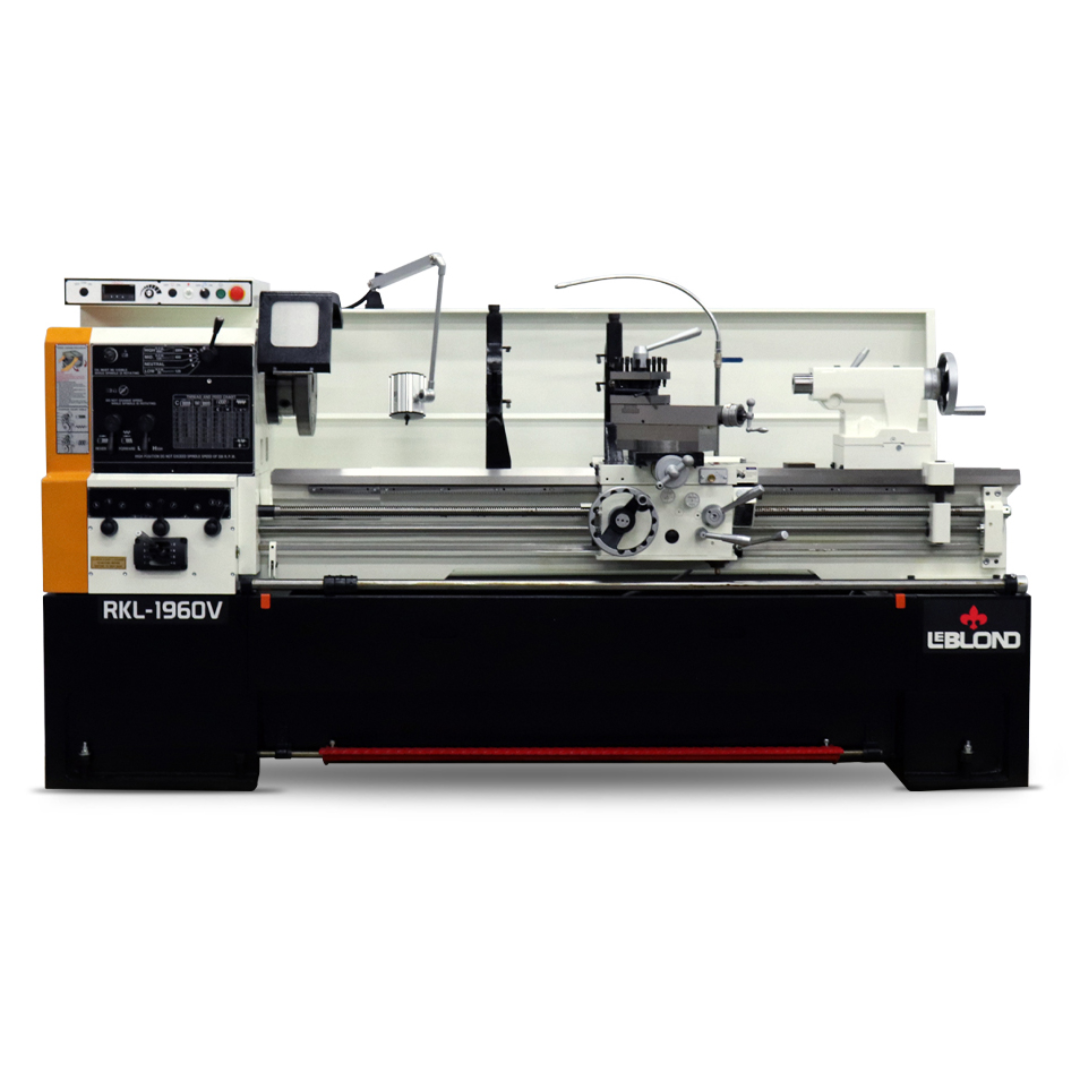

LeBlond RKL1900V Series Variable Speed Lathe with Electronic Control Applications
- Heavy-duty turning, facing, threading, boring, and taper operations
- Machining large shafts, rollers, bushings, and industrial components
- Toolrooms, maintenance facilities, and production machine shops
- Processing steel, alloys, aluminum, and engineered materials
Ideal for machinists who require precise variable speed control, high torque at low RPM, and the capacity to handle larger diameter workpieces.
LeBlond RKL1900V Series Variable Speed Lathe with Electronic Control Specifications
| Model | RKL-1900V |
|---|---|
| Swing Over Bed | 20″ |
| Distance Between Centers | 40″ / 60″ |
| Swing Over Cross Slide | 13.89″ |
| Swing in Gap | 27.48″ |
| Carriage Size (W × L) | 18.77″ × 17.32″ |
| Cross Slide Travel | 10.7″ |
| Top Slide Travel | 6.3″ |
| Bed Width | 12″ |
| Spindle Nose | D1-6 |
| Spindle Bore | 3.149″ |
| Spindle Taper Adapter | MT 6 |
| Spindle Speed Range | 30 – 2200 RPM |
| Speed Control | Three Infinite Speed Ranges |
| Main Motor | 7.5 HP Inverter Duty |
| Voltage | 480V / 3PH / 60Hz (other voltages available) |
| Coolant Motor | 1/8 HP |
LeBlond RKL1900V Series Variable Speed Lathe with Electronic Control Threading & Feed Capacity
| Inch Threads | (45) 2 to 72 TPI |
|---|---|
| Metric Threads | (39) 0.2 to 14 mm |
| Modular Threads | (18) 0.3 to 3.5 |
| Diametral Threads | (21) 8 to 44 |
| Longitudinal Feed | 0.0015 to 0.04 IPR |
| Cross Feed | 0.00075 to 0.02 IPR |
LeBlond RKL1900V Series Variable Speed Lathe with Electronic Control Variable Speed System
- Three gear ranges optimize torque and performance across all machining conditions.
- Low Range: 30 – 125 RPM for heavy cuts and large diameters
- Mid Range: 125 – 450 RPM for general-purpose machining
- High Range: 450 – 2200 RPM for finishing and smaller workpieces
- Electronic variable speed control with precision adjustment via control knob
- LED RPM display for accurate real-time spindle speed monitoring
- AC inverter duty motor provides smooth acceleration and consistent torque
- Forced lubrication system with electric pump ensures optimal headstock performance
LeBlond RKL1900V Series Variable Speed Lathe with Electronic Control Headstock & Spindle
- Forged alloy steel spindle is hardened, ground, and dynamically balanced
- D1-6 cam-lock spindle mount allows quick and secure workholding
- 3.149″ spindle bore accommodates larger stock diameters
- Precision bearing configuration ensures long-term accuracy and smooth operation
- Constant oil bath lubrication extends gear and bearing life
LeBlond RKL1900V Series Variable Speed Lathe with Electronic Control Bed & Construction
- One-piece cast iron base delivers maximum rigidity and stability
- Meehanite cast wide bed is vibration stress relieved for consistent performance
- Induction hardened bed ways (HRC 50) maintain long-term precision
- Precision ground and hand-scraped bed enhances carriage accuracy
- Removable gap bed increases swing capacity for large diameter work
- Large removable chip tray simplifies maintenance and chip removal
LeBlond RKL1900V Series Variable Speed Lathe with Electronic Control Tailstock Specifications
| Quill Diameter | 2.322″ |
|---|---|
| Quill Travel | 5.0″ |
| Quill Inside Taper | MT 4 |
LeBlond RKL1900V Series Variable Speed Lathe with Electronic Control Standard Equipment
- Coolant system with electric pump
- Manual chuck guard with safety interlock
- Full-length splash guard
- Safety red spindle brake pedal
- Removable chip tray
- Lockable main disconnect switch
- LED work light
- Leveling pads (set of 6)
- Operation manual and parts list
- Tool box and tools including touch-up paint
- Steady rest with roller jaws (0.4″–5.5″ capacity)
- Follow rest with roller jaws (0.6″–3.3″ capacity)
- Telescopic taper attachment
- 4-way quick turn tool post
- Adjustable apron infeed overload safety clutch
- Thread indicator
- 12″ face plate
- Dead centers (2)
- Spindle center sleeve
Why Choose the LeBlond RKL1900V Series Variable Speed Lathe with Electronic Control
- Large 20″ swing capacity for heavy-duty machining applications
- Infinitely variable speed control with three torque ranges
- 7.5 HP inverter-driven motor for smooth and powerful operation
- Rigid Meehanite bed and precision spindle system for accuracy
- Comprehensive standard equipment package for immediate productivity
The LeBlond RKL1900V Series Variable Speed Lathe with Electronic Control is built for machinists who demand power, precision, and flexible speed control in a rugged, industrial-grade lathe.
