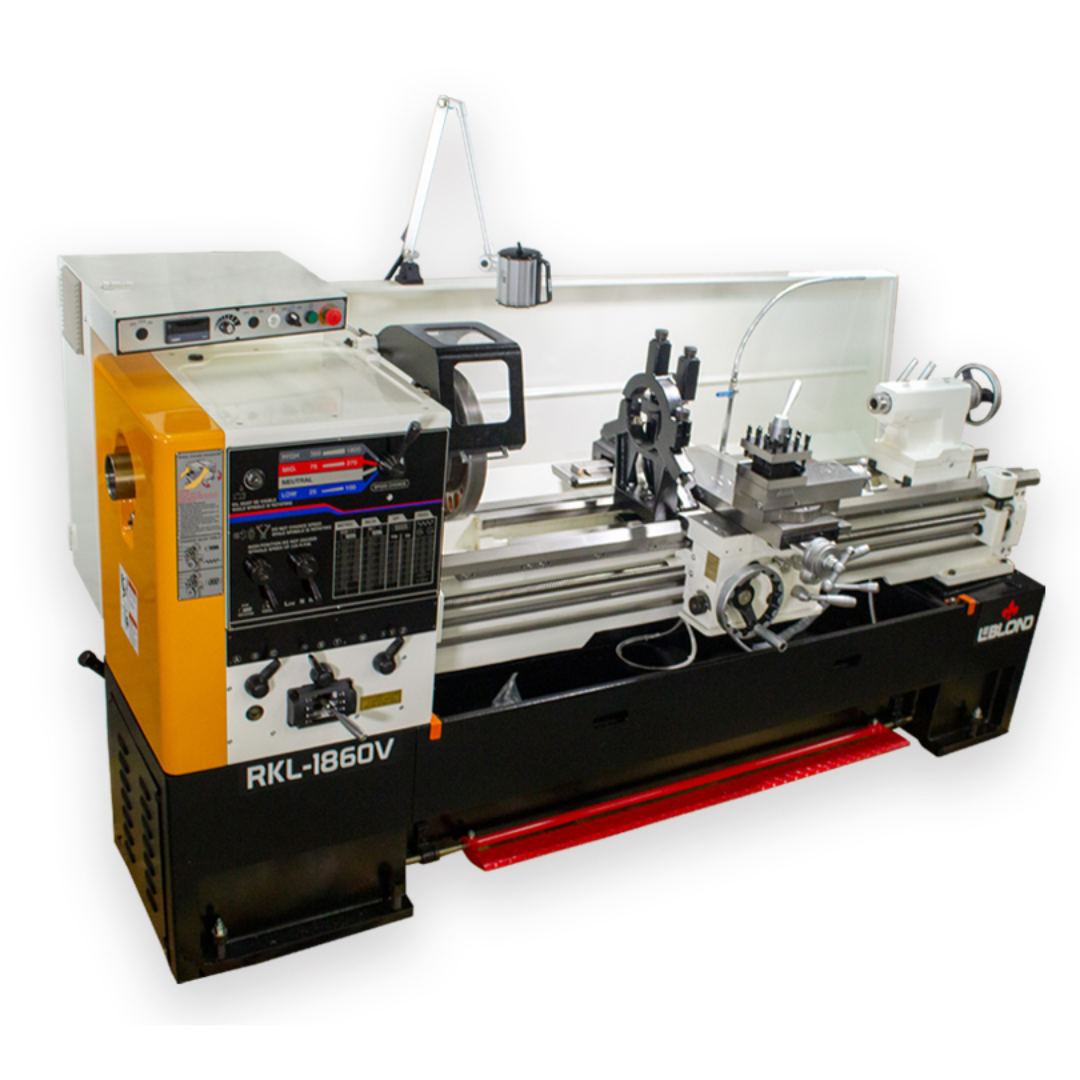

LeBlond RKL1800V Series Variable Speed Lathe with Electronic Control Applications
- Heavy-duty turning, facing, threading, and boring operations
- Machining long shafts, rollers, and large cylindrical components
- Toolrooms, repair facilities, and production machine shops
- Precision machining of steel, alloys, and high-strength materials
Best suited for shops requiring smooth speed variation, high torque across ranges, and the ability to machine larger and longer workpieces with precision.
LeBlond RKL1800V Series Variable Speed Lathe with Electronic Control Specifications
| Model | RKL-1800V |
|---|---|
| Swing Over Bed | 18.11″ |
| Distance Between Centers | 40″ / 60″ / 90″ |
| Swing Over Cross Slide | 12″ |
| Swing in Gap | 25.59″ |
| Cross Slide Travel | 11.81″ |
| Top Slide Travel | 5.9″ |
| Bed Width | 12.5″ |
| Spindle Nose | D1-8 |
| Spindle Bore | 3.149″ |
| Spindle Taper Adapter | MT 5 |
| Spindle Speed Range | 25 – 1800 RPM |
| Speed Control | Three Infinite Speed Ranges |
| Main Motor | 12.5 HP |
| Voltage | 480V / 3PH / 60Hz (other voltages available) |
| Coolant Motor | 1/8 HP |
LeBlond RKL1800V Series Variable Speed Lathe with Electronic Control Threading & Feed Capacity
| Inch Threads | (45) 2 to 72 TPI |
|---|---|
| Metric Threads | (39) 0.2 to 14 mm |
| Modular Threads | (18) 0.3 to 3.5 |
| Diametral Threads | (21) 8 to 44 |
| Lead Screw Diameter | 1.25″ |
| Lead Screw Pitch | 4 TPI |
| Longitudinal Feed | 0.0015 to 0.04 IPR |
| Cross Feed | 0.00075 to 0.02 IPR |
LeBlond RKL1800V Series Variable Speed Lathe with Electronic Control Variable Speed System
- Three gear ranges provide optimal torque and precision across all machining conditions
- Low Range: 30 – 100 RPM for heavy cuts and large diameters
- Mid Range: 75 – 370 RPM for general machining
- High Range: 360 – 1800 RPM for finishing and high-speed work
- Electronic variable speed control allows fine adjustments for optimal cutting performance
- LED RPM display provides real-time speed monitoring
- AC inverter duty motor ensures smooth operation and consistent torque output
- Forced lubrication system maintains headstock performance and longevity
LeBlond RKL1800V Series Variable Speed Lathe with Electronic Control Headstock & Spindle
- Forged alloy steel spindle hardened, ground, and dynamically balanced
- D1-8 cam-lock spindle mount supports secure and heavy-duty workholding
- 3.149″ spindle bore allows larger material capacity
- Precision bearing system enhances stability and machining accuracy
- Constant oil bath lubrication ensures long service life under demanding conditions
LeBlond RKL1800V Series Variable Speed Lathe with Electronic Control Bed & Construction
- One-piece cast iron base delivers superior rigidity and vibration control
- Meehanite cast wide bed stress relieved for dimensional stability
- Induction hardened bed ways (HRC 53) provide extended wear resistance
- Precision ground and hand-scraped bed ensures smooth carriage movement
- Removable gap bed expands turning capacity for larger diameters
- Large removable chip tray simplifies cleanup and maintenance
LeBlond RKL1800V Series Variable Speed Lathe with Electronic Control Tailstock Specifications
| Quill Diameter | 2.322″ |
|---|---|
| Quill Travel | 5.0″ |
| Quill Inside Taper | MT 4 |
LeBlond RKL1800V Series Variable Speed Lathe with Electronic Control Standard Equipment
- Coolant system with electric pump
- Chuck guard with operator safety interlock
- Removable front chip pan
- Adjustable apron infeed overload safety clutch
- Lockable main disconnect switch
- LED work light
- Leveling pads
- Operation manual and parts list
- Tool box and tools
- Steady rest with roller jaws (1.6″–8.7″ capacity)
- Follow rest with roller jaws (0.6″–3.3″ capacity)
- Telescopic taper attachment
- 4-way quick turn tool post
- 14″ face plate
- Safety red spindle brake pedal
- Full-length splash guard
- Dead centers (2)
- Spindle center sleeve (MT5)
Why Choose the LeBlond RKL1800V Series Variable Speed Lathe with Electronic Control
- 18″ swing with extended up to 90″ between centers for large workpieces
- Advanced variable speed system for precision control and flexibility
- Powerful 12.5 HP motor for heavy-duty industrial applications
- Rigid construction ensures long-term accuracy and stability
- Comprehensive tooling and safety features included
The LeBlond RKL1800V Series Variable Speed Lathe with Electronic Control is engineered for machinists who demand precision speed control, heavy-duty performance, and the flexibility to handle a wide range of turning applications.
