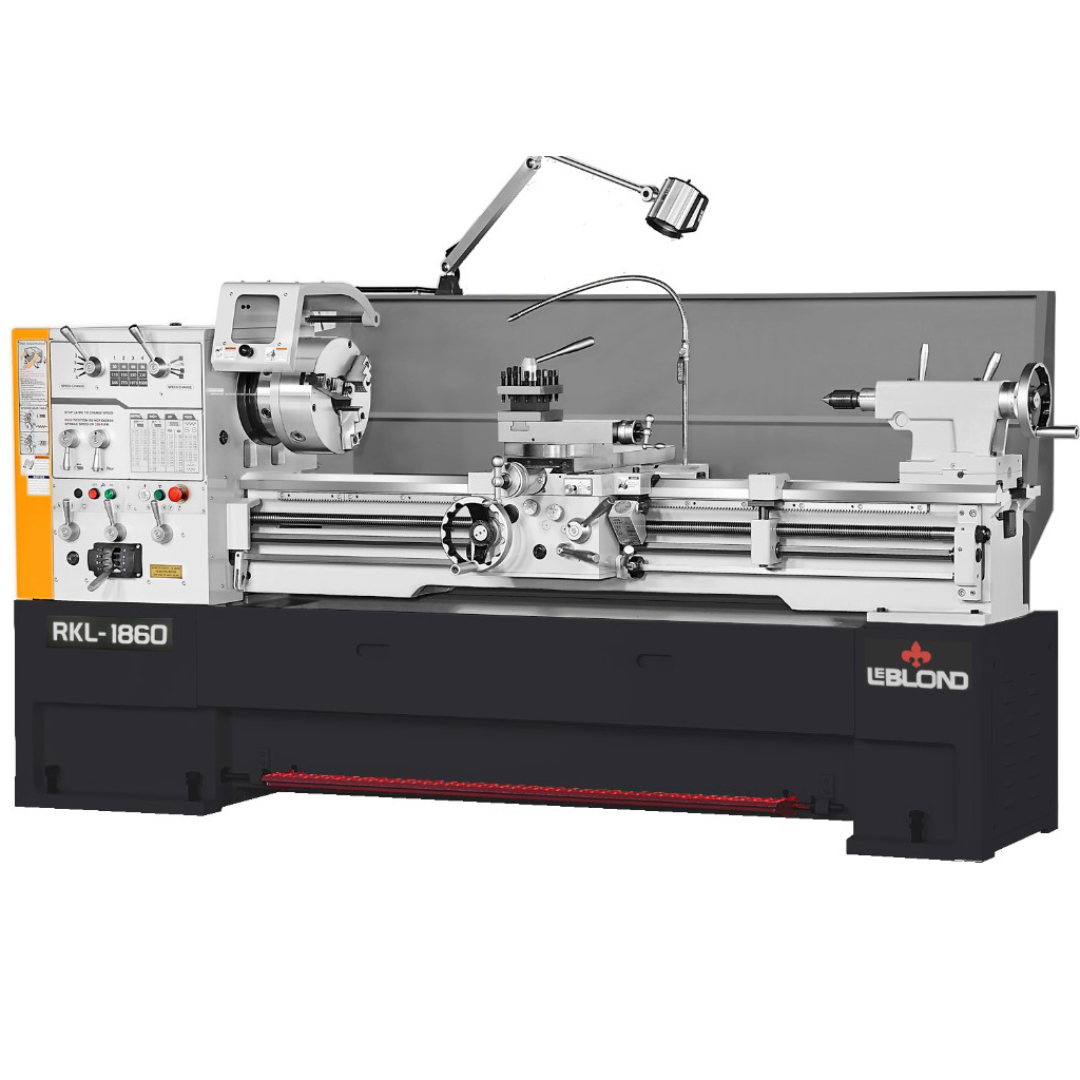

LeBlond RKL1800G Series Geared Head High Speed Heavy Duty Lathe Applications
- Heavy-duty turning, facing, threading, boring, and taper operations
- Machining long shafts, rollers, and large industrial components
- Toolrooms, maintenance departments, and production machine shops
- High-strength material machining including steel and alloy components
Ideal for shops requiring extended between-centers capacity, high torque output, and stable machining of larger and longer workpieces.
LeBlond RKL1800G Series Geared Head High Speed Heavy Duty Lathe Specifications
| Model | RKL-1800G |
|---|---|
| Swing Over Bed | 18″ |
| Distance Between Centers | 40″ / 60″ / 90″ |
| Swing Over Cross Slide | 12″ |
| Swing in Gap | 25.59″ |
| Cross Slide Travel | 11.81″ |
| Top Slide Travel | 5.9″ |
| Bed Width | 12.5″ |
| Spindle Nose | D1-8 |
| Spindle Bore | 3.149″ |
| Spindle Taper Adapter | MT 5 |
| Spindle Speeds | 12 Speed Selections |
| Spindle Speed Range | 26 – 1500 RPM |
| Main Motor | 12.5 HP |
| Voltage | 480V / 3PH / 60Hz (other voltages available) |
| Coolant Motor | 1/8 HP |
LeBlond RKL1800G Series Geared Head High Speed Heavy Duty Lathe Threading & Feed Capacity
| Inch Threads | (45) 2 to 72 TPI |
|---|---|
| Metric Threads | (39) 0.2 to 14 mm |
| Modular Threads | (18) 0.3 to 3.5 |
| Diametral Threads | (21) 8 to 44 |
| Lead Screw Diameter | 1.25″ |
| Lead Screw Pitch | 4 TPI |
| Longitudinal Feed | 0.0015 to 0.04 IPR |
| Cross Feed | 0.00075 to 0.02 IPR |
LeBlond RKL1800G Series Geared Head High Speed Heavy Duty Lathe Headstock & Spindle
- Forged alloy steel spindle is hardened, ground, and dynamically balanced for precision and durability.
- D1-8 cam-lock spindle mount ensures secure heavy-duty workholding.
- 3.149″ spindle bore supports larger stock for increased machining versatility.
- 12-speed geared headstock delivers consistent torque across all machining operations.
- Precision bearing system enhances spindle stability and long-term performance.
- Constant oil bath lubrication protects gears and bearings during continuous operation.
LeBlond RKL1800G Series Geared Head High Speed Heavy Duty Lathe Bed & Construction
- One-piece cast iron base provides superior rigidity and machine stability.
- Meehanite cast wide bed is vibration stress relieved for consistent accuracy.
- Induction hardened bed ways (HRC 50) ensure long-term wear resistance.
- Precision ground and hand-scraped bed enhances carriage alignment and smooth travel.
- Removable gap bed allows larger diameter workpieces to be machined when needed.
- Large removable chip tray simplifies maintenance and chip removal.
LeBlond RKL1800G Series Geared Head High Speed Heavy Duty Lathe Tailstock Specifications
| Quill Diameter | 2.322″ |
|---|---|
| Quill Travel | 5.0″ |
| Quill Inside Taper | MT 4 |
LeBlond RKL1800G Series Geared Head High Speed Heavy Duty Lathe Standard Equipment
- Coolant system with electric pump
- Chuck guard with operator safety interlock
- Removable front chip pan
- Full-length splash guard
- Safety red spindle brake pedal
- Lockable main disconnect switch
- LED work light
- Leveling pads
- Operation manual and parts list
- Tool box and tools
- Steady rest with roller jaws (0.4″–8.7″ capacity)
- Follow rest with roller jaws (0.6″–3.3″ capacity)
- Telescopic taper attachment
- 4-way quick turn tool post
- 14″ face plate
- Dead centers (2)
- Spindle center sleeve (MT5)
Why Choose the LeBlond RKL1800G Series Geared Head High Speed Heavy Duty Lathe
- 18″ swing with extended 40″, 60″, or 90″ between centers for long workpieces
- Powerful 12.5 HP motor for heavy-duty cutting applications
- 12-speed geared headstock providing high torque up to 1500 RPM
- Rigid Meehanite bed and precision spindle system for consistent accuracy
- Comprehensive standard equipment package for immediate shop productivity
The LeBlond RKL1800G Series Geared Head High Speed Heavy Duty Lathe is designed for machinists who need increased capacity, superior rigidity, and dependable performance in demanding industrial turning applications.
