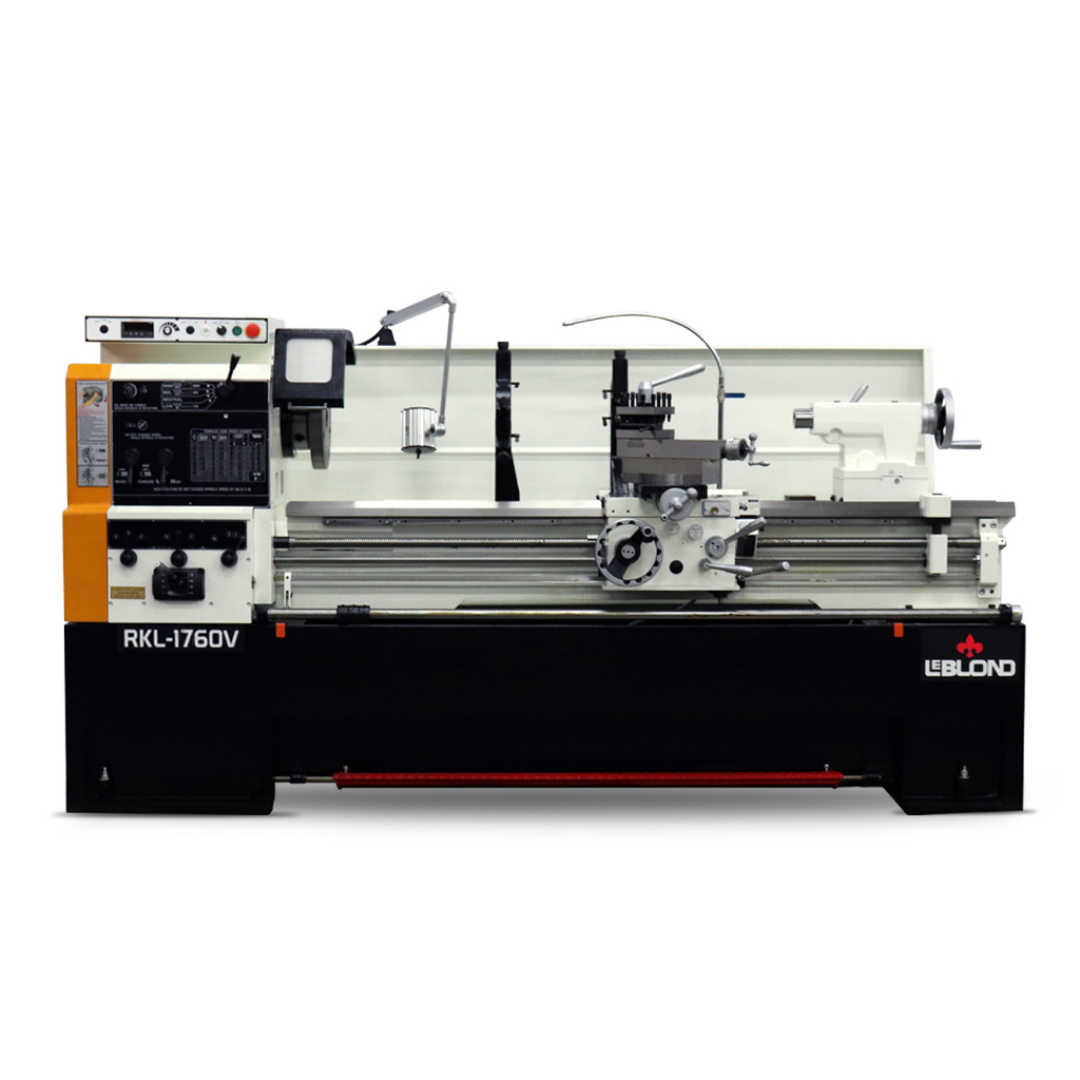

LeBlond RKL1700V Series Variable Speed Lathe with Electronic Control Applications
- Precision turning, facing, threading, boring, and taper operations
- Toolrooms, repair facilities, and maintenance departments
- Fabrication shops and production machining environments
- Machining of steel, alloys, aluminum, and engineered materials
Ideal for operators who need precise spindle speed control, high torque at low RPM, and flexibility across varying material types and machining requirements.
LeBlond RKL1700V Series Variable Speed Lathe with Electronic Control Specifications
| Model | RKL-1700V |
|---|---|
| Swing Over Bed | 17″ |
| Distance Between Centers | 40″ / 60″ |
| Swing Over Cross Slide | 10.9″ |
| Swing in Gap | 24.48″ |
| Gap Length | 13.2″ |
| Cross Slide Travel | 9.25″ |
| Top Slide Travel | 6.1″ |
| Bed Width | 12″ |
| Spindle Nose | D1-6 |
| Spindle Bore | 3.149″ |
| Spindle Taper Adapter | MT 5 |
| Spindle Speed Range | 30 – 2200 RPM |
| Speed Control | Three Infinite Speed Ranges (Low, Mid, High) |
| Main Motor | 7.5 HP Inverter Duty |
| Voltage | 480V / 3PH / 60Hz (Single phase available) |
| Coolant Motor | 1/8 HP |
LeBlond RKL1700V Series Variable Speed Lathe with Electronic Control Threading & Feed Capacity
| Inch Threads | (45) 2 to 72 TPI |
|---|---|
| Metric Threads | (39) 0.2 to 14 mm |
| Modular Threads | (18) 0.3 to 3.5 |
| Diametral Threads | (21) 8 to 44 |
| Longitudinal Feed | 0.0015 to 0.04 IPR |
| Cross Feed | 0.00075 to 0.02 IPR |
LeBlond RKL1700V Series Variable Speed Lathe with Electronic Control Variable Speed System
- Three gear ranges deliver optimized torque and control across all machining conditions.
- Low Range: 30 – 125 RPM for heavy cuts and large diameters
- Mid Range: 125 – 450 RPM for general-purpose turning
- High Range: 450 – 2200 RPM for fine finishing and smaller workpieces
- Electronic variable speed control allows precise RPM adjustment via control knob
- LED digital RPM display provides accurate real-time spindle speed feedback
- AC inverter duty motor ensures smooth acceleration and consistent torque delivery
- Forced lubrication system with electric pump maintains optimal headstock performance
LeBlond RKL1700V Series Variable Speed Lathe with Electronic Control Headstock & Spindle
- Forged alloy steel spindle is hardened, ground, and dynamically balanced
- D1-6 cam-lock spindle mount for secure and efficient workholding
- 3.149″ spindle bore accommodates larger diameter stock
- Precision bearing system with tapered roller and ball bearings for long-term accuracy
- Constant oil bath lubrication ensures extended component life
LeBlond RKL1700V Series Variable Speed Lathe with Electronic Control Bed & Construction
- One-piece cast iron base provides maximum structural rigidity
- Meehanite cast wide bed is vibration stress relieved for stability
- Induction hardened bed ways (HRC 53) ensure long-lasting precision
- Precision ground and hand-scraped surfaces improve carriage accuracy
- Removable gap bed expands turning capacity for large diameter parts
- Large removable chip tray simplifies cleaning and maintenance
LeBlond RKL1700V Series Variable Speed Lathe with Electronic Control Tailstock Specifications
| Quill Diameter | 2.322″ |
|---|---|
| Quill Travel | 5.0″ |
| Quill Inside Taper | MT 4 |
LeBlond RKL1700V Series Variable Speed Lathe with Electronic Control Standard Equipment
- Coolant system with electric pump
- Chuck guard with safety interlock
- Full-length splash guard
- Safety red spindle brake pedal
- Removable chip tray
- Lockable main disconnect switch
- LED work light
- Leveling pads (set of 6)
- Operation manual and parts list
- Toolbox with tools and touch-up paint
- Steady rest with roller jaws (0.4″–5.5″ capacity)
- Follow rest with roller jaws (0.6″–3.3″ capacity)
- Telescopic taper attachment
- 4-way quick turn tool post
- 12″ face plate
- Dead centers (2)
- Adjustable apron infeed overload safety clutch
- Thread indicator
- Spindle center sleeve
LeBlond RKL1700V Series Variable Speed Lathe with Electronic Control Weight & Shipping
| Approximate Machine Weight | 3750 / 4080 lbs |
|---|---|
| Approximate Shipping Weight | 4060 / 4435 lbs |
| Shipping Skid Width x Height | 45.5″ x 75″ |
| Shipping Skid Length | 95″ / 158″ |
Why Choose the LeBlond RKL1700V Series Variable Speed Lathe with Electronic Control
- Infinitely variable speed control across three torque ranges for maximum flexibility
- 7.5 HP inverter-driven motor for smooth, powerful cutting performance
- Heavy-duty spindle and rigid Meehanite bed for precision and durability
- Wide speed range from 30 to 2200 RPM for roughing to finishing operations
- Complete package with tooling, safety systems, and production-ready features
The LeBlond RKL1700V Series Variable Speed Lathe with Electronic Control is engineered for machinists who demand precise speed control, high torque, and consistent performance in a rugged, industrial-grade lathe platform.
