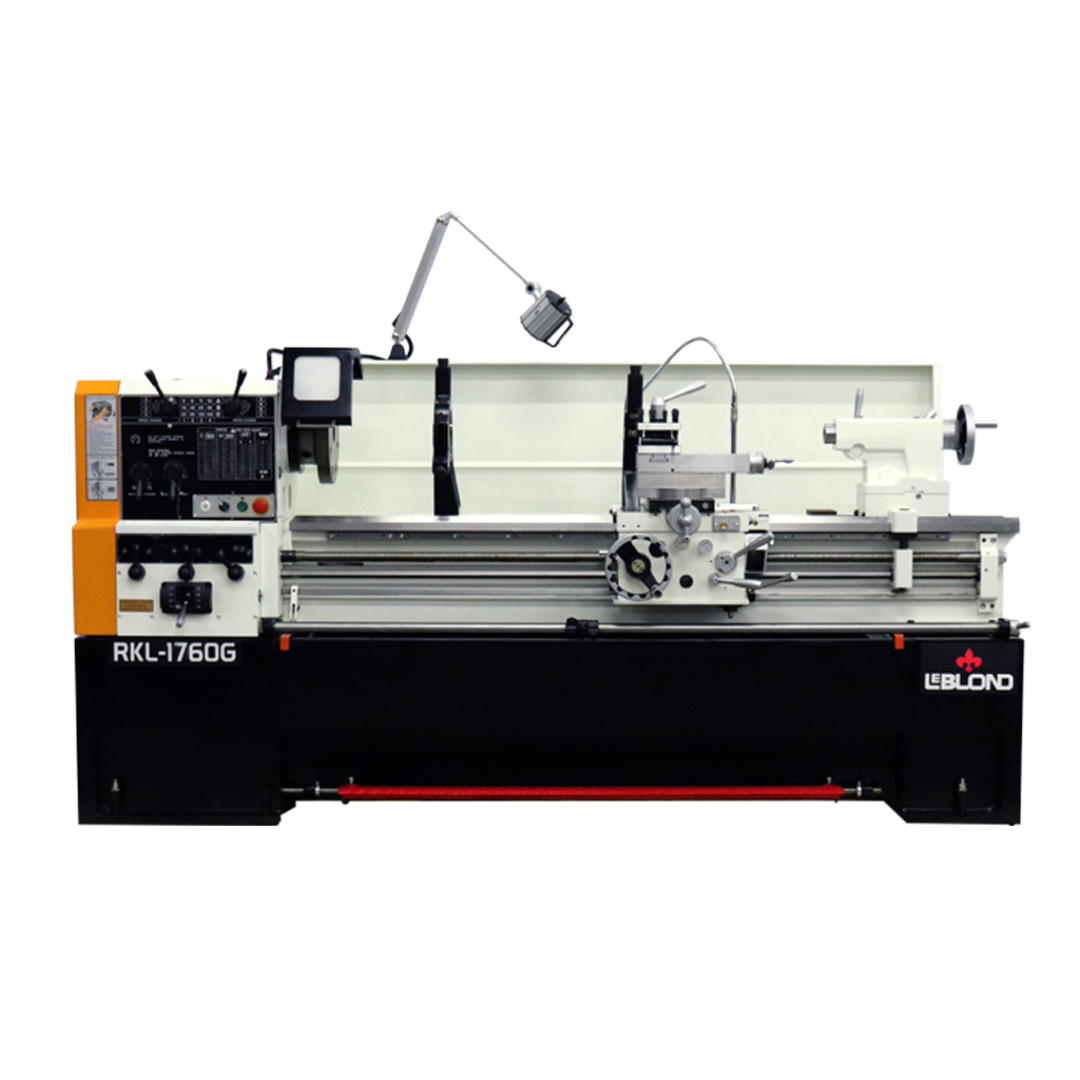

LeBlond RKL1700G Series Geared Head High Speed Precision Lathe Applications
- Precision metal turning, facing, boring, threading, and taper turning operations
- Toolrooms, maintenance departments, fabrication shops, and machine shops
- Industrial repair work, shaft machining, bushings, sleeves, and prototype parts
- Manufacturing environments requiring repeatable accuracy and heavy-duty construction
Best for shops that need a rigid, high-performance manual lathe with a 17″ swing, large spindle bore, removable gap bed, and 12 spindle speed selections up to 1800 RPM.
LeBlond RKL1700G Series Geared Head High Speed Precision Lathe Specifications
| Model | RKL-1700G |
|---|---|
| Swing Over Bed | 17″ |
| Distance Between Centers | 40″ / 60″ |
| Swing Over Cross Slide | 10.9″ |
| Swing in Gap | 24.48″ |
| Gap Length | 13.2″ |
| Cross Slide Travel | 9.25″ |
| Top Slide Travel | 6.1″ |
| Bed Width | 12″ |
| Spindle Nose | D1-6 |
| Spindle Bore | 3.149″ |
| Spindle Taper Adapter | MT 5 |
| Spindle Speeds | 12 Speed Selections |
| Spindle Speed Range | 36 – 1800 RPM |
| Main Motor | 7.5 HP |
| Voltage | 480V / 3PH / 60Hz, other voltages available |
| Coolant Motor | 1/8 HP |
LeBlond RKL1700G Series Geared Head High Speed Precision Lathe Threading & Feed Capacity
| Inch Threads | (45) 2 to 72 TPI |
|---|---|
| Metric Threads | (39) 0.2 to 14 mm |
| Modular Threads | (18) 0.3 to 3.5 |
| Diametral Threads | (21) 8 to 44 |
| Longitudinal Feed | 0.0015 to 0.04 IPR |
| Cross Feed | 0.00075 to 0.02 IPR |
LeBlond RKL1700G Series Geared Head High Speed Precision Lathe Headstock & Spindle Performance
- Forged alloy steel spindle is hardened, ground, and dynamically balanced for smooth, accurate rotation.
- D1-6 cam-lock spindle nose provides convenient and secure chuck mounting.
- 3.149″ spindle bore allows larger workpieces and bar stock to pass through the spindle.
- 12 fixed turning speeds provide strong torque and controlled spindle performance from 36 to 1800 RPM.
- Precision bearing support includes high-grade tapered roller bearings and a precision ball bearing for stability and long service life.
- Constant oil bath lubrication supports gears and bearings for reduced wear during demanding operation.
LeBlond RKL1700G Series Geared Head High Speed Precision Lathe Bed & Construction
- One-piece cast iron floor base provides a stable foundation for heavy machining.
- Meehanite wide bed casting is vibration stress relieved for improved rigidity and accuracy.
- Induction hardened bed ways are hardened to HRC 50 and precision ground for long-term precision.
- Precision hand-scraped bed promotes accurate carriage movement and consistent alignment.
- Removable gap bed increases swing capacity for larger diameter workpieces.
- Large removable chip tray simplifies cleanup and shop maintenance.
LeBlond RKL1700G Series Geared Head High Speed Precision Lathe Tailstock Specifications
| Quill Diameter | 2.322″ |
|---|---|
| Quill Travel | 5.0″ |
| Quill Inside Taper | MT 4 |
LeBlond RKL1700G Series Geared Head High Speed Precision Lathe Standard Equipment
- Coolant system with electric pump
- Chuck guard with spindle safety interlock
- Manual chuck guard with safety interlock
- Full-length splash guard
- Lockable main disconnect switch
- LED work light
- Leveling pads, quantity 6
- Operation manual and parts list
- Tool box and tools including touch-up paint
- Steady rest with roller jaws, 0.4″–5.5″ capacity
- Follow rest with roller jaws, 0.6″–3.3″ capacity
- Adjustable apron infeed overload safety clutch
- Safety red spindle brake pedal
- Telescopic taper attachment
- 4-way quick turn tool post
- 12″ face plate
- Dead centers, quantity 2
- Thread indicator
- Spindle center sleeve, quantity 1
LeBlond RKL1700G Series Geared Head High Speed Precision Lathe Weight & Shipping
| Approximate Machine Weight | 3750 / 4080 lbs |
|---|---|
| Approximate Shipping Weight | 4060 / 4435 lbs |
| Shipping Skid Width x Height | 45.5″ x 75″ |
| Shipping Skid Length | 95″ / 158″ |
Why Choose the LeBlond RKL1700G Series Geared Head High Speed Precision Lathe
- 17″ swing capacity with 40″ or 60″ between centers for versatile turning work.
- 7.5 HP motor and 12 spindle speed selections for strong cutting performance.
- Heavy-duty forged alloy steel spindle with D1-6 cam-lock mount and 3.149″ bore.
- Rigid Meehanite cast bed with induction hardened, precision ground ways.
- Removable gap bed, safety guarding, coolant system, taper attachment, rests, and tooling included.
The LeBlond RKL1700G Series Geared Head High Speed Precision Lathe is a dependable industrial lathe built for shops that require accuracy, rigidity, operator safety, and long-term machine tool performance.
