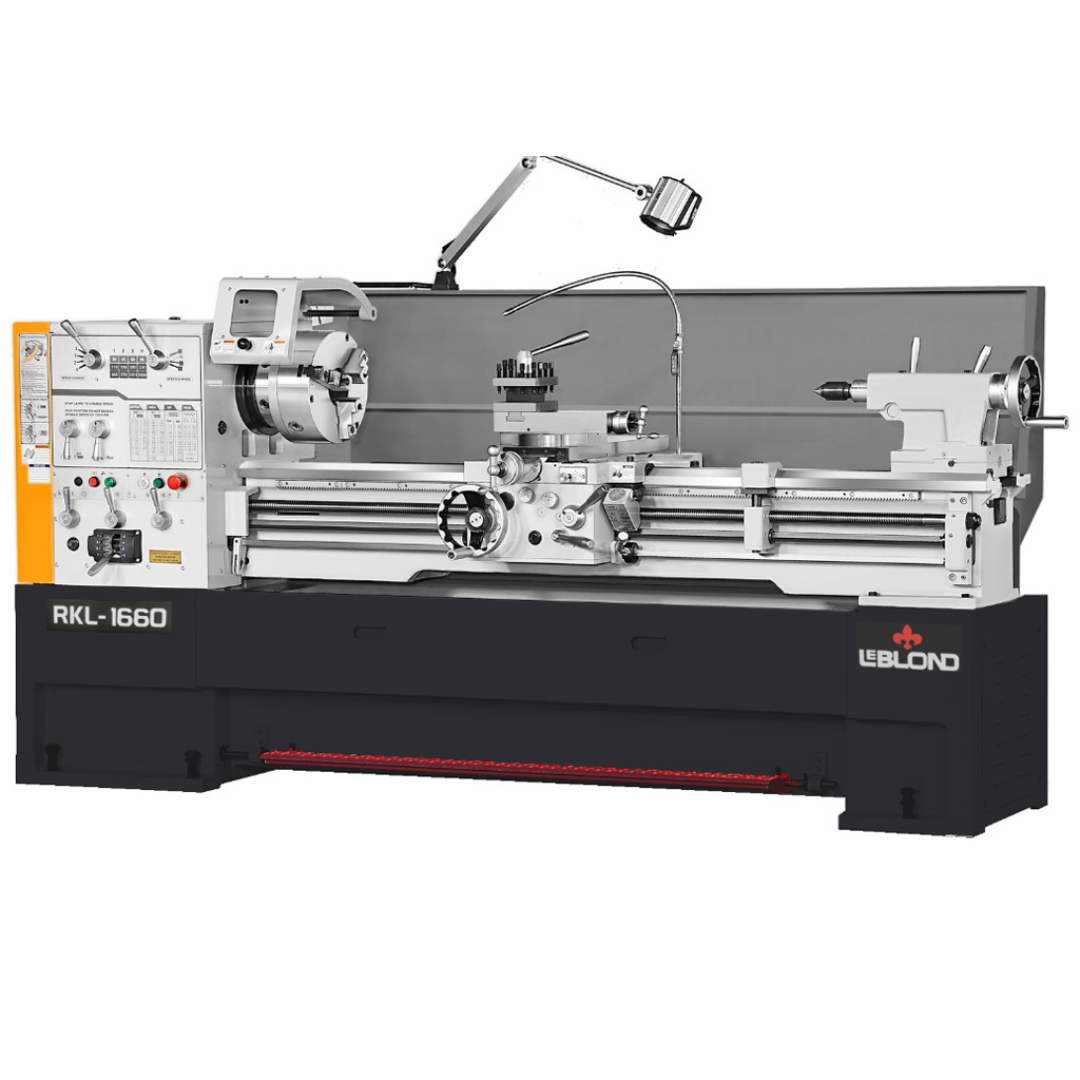

LeBlond RKL1600V Series Variable Speed Lathe with Electronic Control Applications
- Precision turning, threading, boring, facing, and taper operations
- Toolrooms, maintenance departments, and fabrication shops
- Machining shafts, bushings, and medium to large components
- Processing steel, alloys, aluminum, and engineered materials
Ideal for machinists who require smooth variable speed control, strong torque at low RPM, and reliable performance in a compact heavy-duty lathe platform.
LeBlond RKL1600V Series Variable Speed Lathe with Electronic Control Specifications
| Model | RKL-1600V |
|---|---|
| Swing Over Bed | 16.14″ |
| Distance Between Centers | 40″ / 60″ |
| Swing Over Cross Slide | 10.3″ |
| Swing in Gap | 22.95″ |
| Cross Slide Travel | 9.84″ |
| Top Slide Travel | 5.9″ |
| Bed Width | 12.5″ |
| Spindle Nose | D1-8 |
| Spindle Bore | 3.149″ |
| Spindle Taper Adapter | MT 5 |
| Spindle Speed Range | 25 – 1800 RPM |
| Speed Control | Three Infinite Speed Ranges |
| Main Motor | 10.0 HP Inverter Duty |
| Voltage | 480V / 3PH / 60Hz (other selections available) |
| Coolant Motor | 1/8 HP |
LeBlond RKL1600V Series Variable Speed Lathe with Electronic Control Threading & Feed Capacity
| Inch Threads | (45) 2 to 72 TPI |
|---|---|
| Metric Threads | (39) 0.2 to 14 mm |
| Modular Threads | (18) 0.3 to 3.5 |
| Diametral Threads | (21) 8 to 44 |
| Lead Screw Diameter | 1.25″ |
| Lead Screw Pitch | 4 TPI |
| Longitudinal Feed | 0.0015 to 0.04 IPR |
| Cross Feed | 0.00075 to 0.02 IPR |
LeBlond RKL1600V Series Variable Speed Lathe with Electronic Control Variable Speed System
- Three gear ranges provide optimized torque and speed control across all machining conditions.
- Low Range: 25 – 100 RPM for heavy-duty cuts and large diameters
- Mid Range: 75 – 370 RPM for general machining operations
- High Range: 360 – 1800 RPM for finishing and precision work
- Electronic variable speed control allows fine-tuned RPM adjustments
- LED digital RPM display provides real-time spindle speed monitoring
- AC inverter duty motor ensures smooth operation and consistent torque delivery
- Forced lubrication system with electric pump maintains headstock performance
LeBlond RKL1600V Series Variable Speed Lathe with Electronic Control Headstock & Spindle
- Forged alloy steel spindle is hardened, ground, and dynamically balanced
- D1-8 cam-lock spindle mount supports heavy-duty workholding
- 3.149″ spindle bore accommodates larger stock diameters
- Precision bearing configuration ensures long-term accuracy and durability
- Constant oil bath lubrication extends component life under continuous use
LeBlond RKL1600V Series Variable Speed Lathe with Electronic Control Bed & Construction
- One-piece cast iron base provides maximum rigidity and stability
- Meehanite cast wide bed is vibration stress relieved for consistent machining
- Induction hardened bed ways (HRC 48–55) ensure long-term wear resistance
- Precision ground and hand-scraped bed enhances accuracy and smooth carriage travel
- Removable gap bed expands capacity for larger diameter parts
- Large removable chip tray simplifies cleanup and maintenance
LeBlond RKL1600V Series Variable Speed Lathe with Electronic Control Tailstock Specifications
| Quill Diameter | 2.322″ |
|---|---|
| Quill Travel | 5.0″ |
| Quill Inside Taper | MT 4 |
LeBlond RKL1600V Series Variable Speed Lathe with Electronic Control Standard Equipment
- Coolant system with electric pump
- Chuck guard with operator safety interlock
- Adjustable apron infeed overload safety clutch
- Removable front chip pan
- Lockable main disconnect switch
- LED work light
- Leveling pads
- Operation manual and parts list
- Tool box and tools
- Steady rest with roller jaws (0.4″–5.5″ capacity)
- Follow rest with roller jaws (0.6″–3.3″ capacity)
- Telescopic taper attachment
- 4-way quick turn tool post
- 14″ face plate
- Safety red spindle brake pedal
- Full-length splash guard
- Dead centers (2)
- Spindle center sleeve (MT5)
Why Choose the LeBlond RKL1600V Series Variable Speed Lathe with Electronic Control
- 16.14″ swing capacity with compact footprint and heavy-duty capability
- Three-range variable speed system for precise control and flexibility
- Powerful 10 HP inverter-driven motor for demanding machining tasks
- Rigid Meehanite bed and precision spindle for consistent accuracy
- Fully equipped with essential tooling and safety features for immediate use
The LeBlond RKL1600V Series Variable Speed Lathe with Electronic Control is a high-performance solution for machinists who need precise speed control, durability, and reliable results in industrial turning applications.
