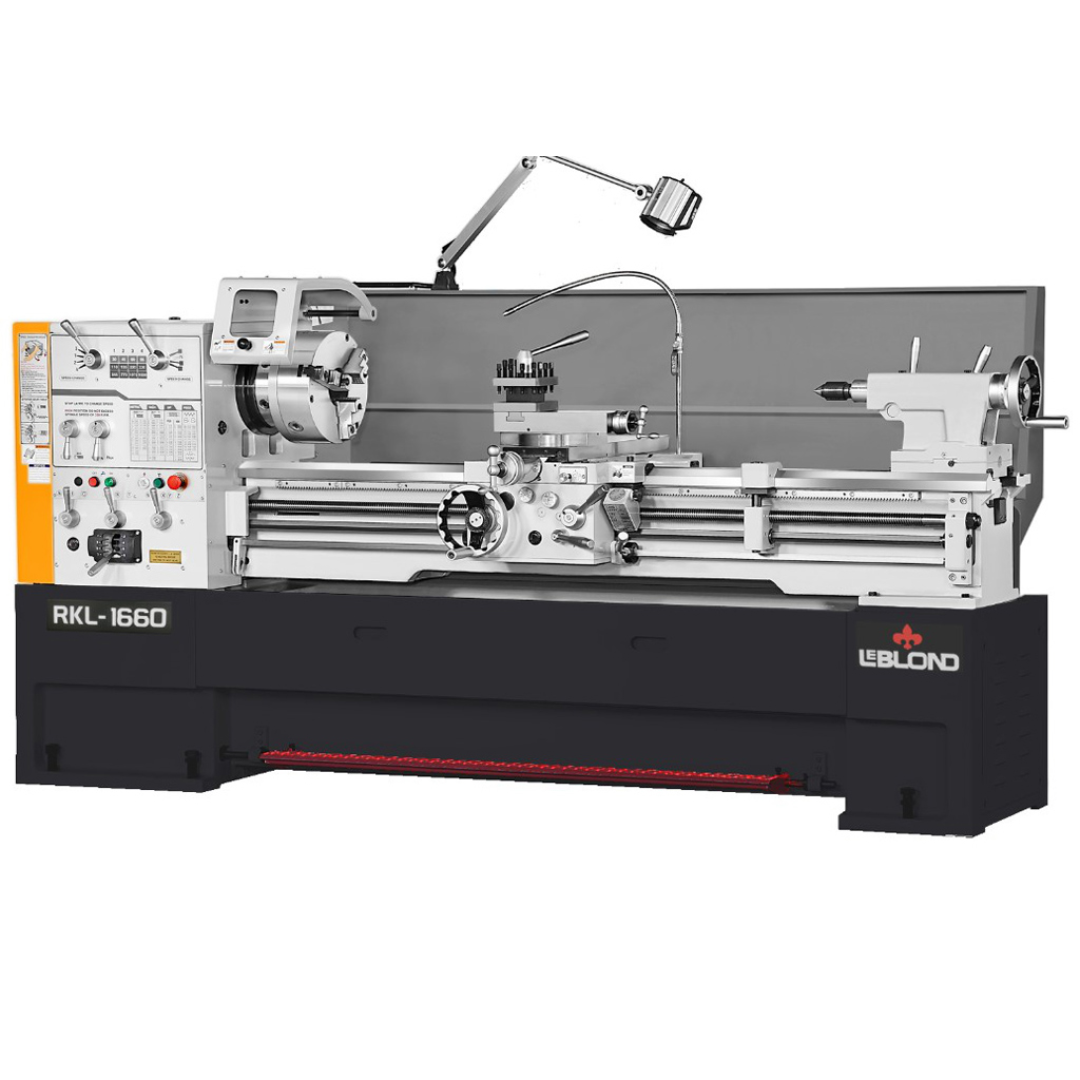

LeBlond RKL1600G Series Geared Head High Speed Heavy Duty Lathe Applications
- Precision turning, threading, facing, and boring operations
- Toolrooms, maintenance departments, and production machine shops
- Machining shafts, bushings, and medium to large components
- Processing steel, alloys, and general industrial materials
Ideal for machinists who need a compact yet powerful lathe with high torque, rigid construction, and dependable performance.
LeBlond RKL1600G Series Geared Head High Speed Heavy Duty Lathe Specifications
| Model | RKL-1600G |
|---|---|
| Swing Over Bed | 16.14″ |
| Distance Between Centers | 40″ / 60″ |
| Swing Over Cross Slide | 10.3″ |
| Swing in Gap | 22.95″ |
| Cross Slide Travel | 9.84″ |
| Top Slide Travel | 5.9″ |
| Bed Width | 12.5″ |
| Spindle Nose | D1-8 |
| Spindle Bore | 3.149″ |
| Spindle Taper Adapter | MT 5 |
| Spindle Speeds | 12 Speed Selections |
| Spindle Speed Range | 26 – 1500 RPM |
| Main Motor | 10.0 HP |
| Voltage | 480V / 3PH / 60Hz (other voltages available) |
| Coolant Motor | 1/8 HP |
LeBlond RKL1600G Series Geared Head High Speed Heavy Duty Lathe Threading & Feed Capacity
| Inch Threads | (45) 2 to 72 TPI |
|---|---|
| Metric Threads | (39) 0.2 to 14 mm |
| Modular Threads | (18) 0.3 to 3.5 |
| Diametral Threads | (21) 8 to 44 |
| Lead Screw Diameter | 1.25″ |
| Lead Screw Pitch | 4 TPI |
| Longitudinal Feed | 0.0015 to 0.04 IPR |
| Cross Feed | 0.00075 to 0.02 IPR |
LeBlond RKL1600G Series Geared Head High Speed Heavy Duty Lathe Headstock & Spindle
- Forged alloy steel spindle is hardened, ground, and dynamically balanced for precision performance.
- D1-8 cam-lock spindle mount provides secure, heavy-duty workholding capability.
- 3.149″ spindle bore supports larger stock and increased versatility.
- 12-speed geared headstock delivers consistent torque across the full RPM range.
- Precision bearing system ensures smooth operation and long service life.
- Constant oil bath lubrication protects gears and bearings under continuous operation.
LeBlond RKL1600G Series Geared Head High Speed Heavy Duty Lathe Bed & Construction
- One-piece cast iron base ensures maximum rigidity and structural integrity.
- Meehanite cast wide bed is vibration stress relieved for stable machining.
- Induction hardened bed ways (HRC 50) maintain long-term accuracy and durability.
- Precision ground and hand-scraped bed enhances alignment and carriage performance.
- Removable gap bed increases flexibility for larger diameter workpieces.
- Large removable chip tray allows efficient cleanup and maintenance.
LeBlond RKL1600G Series Geared Head High Speed Heavy Duty Lathe Tailstock Specifications
| Quill Diameter | 2.322″ |
|---|---|
| Quill Travel | 5.0″ |
| Quill Inside Taper | MT 4 |
LeBlond RKL1600G Series Geared Head High Speed Heavy Duty Lathe Standard Equipment
- Coolant system with electric pump
- Chuck guard with operator safety interlock
- Removable front chip pan
- Full-length splash guard
- Safety red spindle brake pedal
- Lockable main disconnect switch
- LED work light
- Leveling pads
- Operation manual and parts list
- Tool box and tools
- Steady rest with roller jaws (0.4″–5.5″ capacity)
- Follow rest with roller jaws (0.6″–3.3″ capacity)
- Telescopic taper attachment
- 4-way quick turn tool post
- 14″ face plate
- Dead centers (2)
- Adjustable apron infeed overload safety clutch
- Spindle center sleeve (MT5)
Why Choose the LeBlond RKL1600G Series Geared Head High Speed Heavy Duty Lathe
- Compact 16.14″ swing with strong 10 HP motor for powerful machining capability
- 12-speed geared headstock delivering torque up to 1500 RPM
- Heavy-duty spindle with D1-8 mount for demanding applications
- Rigid Meehanite bed and precision-ground ways for consistent accuracy
- Comprehensive standard equipment package for immediate shop integration
The LeBlond RKL1600G Series Geared Head High Speed Heavy Duty Lathe is a reliable, high-performance solution for machinists who demand precision, durability, and consistent results in industrial turning operations.
