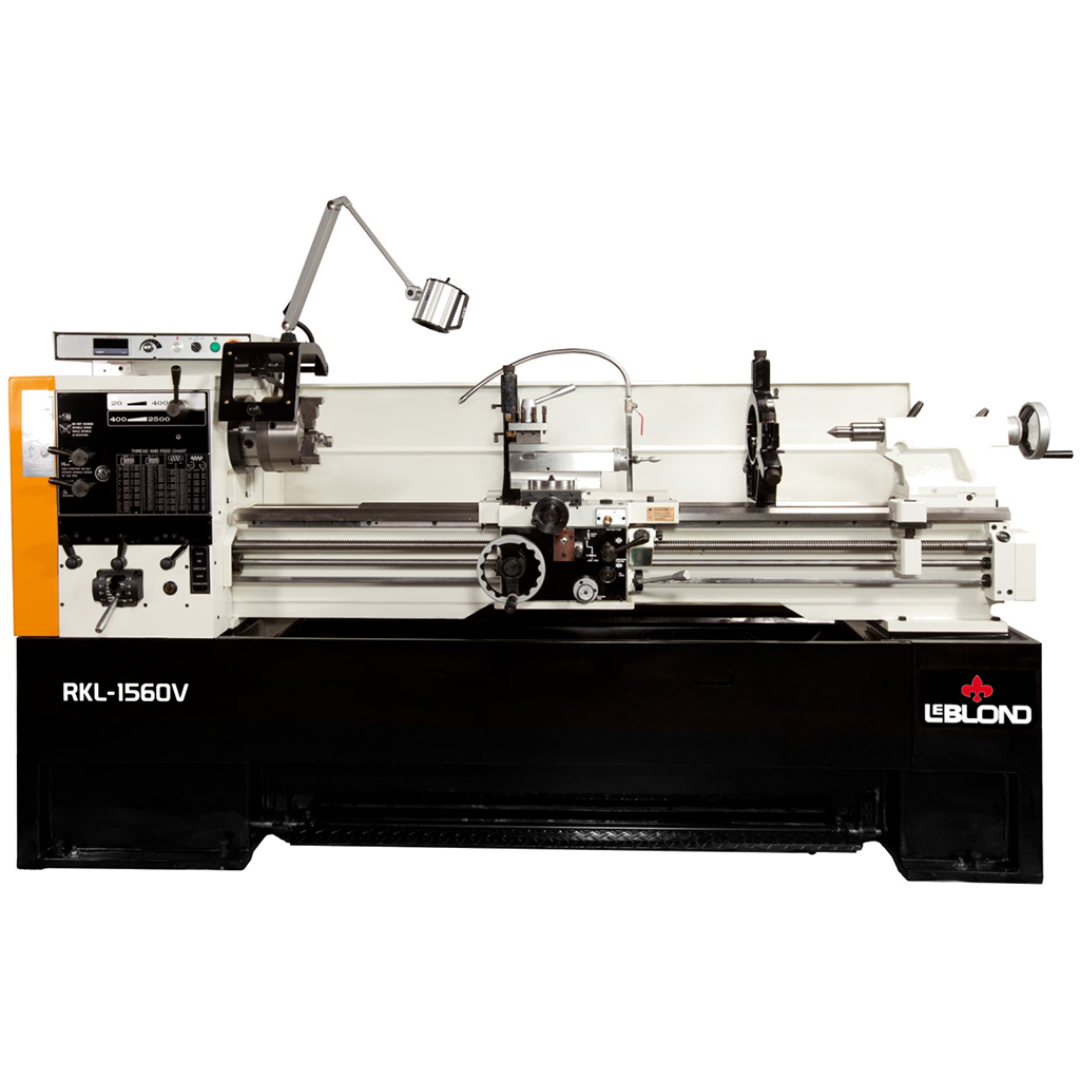

LeBlond RKL1500V Series Variable Speed Lathe with Electronic Control Applications
- Heavy-duty turning, facing, boring, and threading operations
- Industrial production and fabrication environments
- Tool rooms, maintenance facilities, and repair shops
- Precision machining of large shafts and components
- General metalworking across a wide range of materials
Ideal for machinists who demand high torque, precise speed control, and consistent performance for larger workpieces.
LeBlond RKL1500V Series Variable Speed Lathe with Electronic Control Specifications
| Swing Over Bed | 16.14" |
|---|---|
| Distance Between Centers | 40" / 60" |
| Swing Over Cross Slide | 10.3" |
| Swing in Gap | 22.95" |
| Cross Slide Travel | 8.6" |
| Top Slide Travel | 4.92" |
| Bed Width | 10.236" |
| Spindle Nose | D1-6 |
| Spindle Bore | 2.066" |
| Spindle Taper | MT6 |
| Spindle Speed Range | 20–400 RPM (Low) / 400–2500 RPM (High) – Infinitely Variable |
| Inch Threads | (45) 2 – 72 TPI |
| Metric Threads | (39) 0.2 – 14 mm |
| Lead Screw Diameter | 1.25" |
| Lead Screw Pitch | 4 TPI |
| Longitudinal Feed | 0.002 – 0.067 IPR |
| Cross Feed | 0.001 – 0.034 IPR |
| Tailstock Taper | MT4 |
| Quill Travel | 6" |
| Main Motor | 7.5 HP |
| Voltage | 230V / 3PH / 60Hz (Single Phase Available) |
| Machine Dimensions (L x W x H) | Up to 110" x 45" x 75" |
| Weight | Approx. 3090 – 3310 lbs |
LeBlond RKL1500V Series Variable Speed Lathe with Electronic Control Performance & Construction
- Infinitely variable speed control powered by an inverter-duty motor for precise RPM adjustment.
- Two-speed gear ranges deliver high torque at low speeds and smooth high-speed finishing up to 2500 RPM.
- Forged alloy steel spindle is hardened, precision ground, and dynamically balanced for long-term accuracy.
- Precision bearing system with tapered roller and ball bearings ensures stable and vibration-free operation.
- Electronic control panel with LED RPM display, speed dial, emergency stop, and spindle jog function.
- Forced lubrication system with electric pump maintains optimal temperature and extends component life.
- Meehanite cast iron bed with induction-hardened ways (HRC 50) for maximum durability and wear resistance.
- Wide bed with one-piece base enhances rigidity and machining stability.
- Removable gap bed allows for increased swing capacity for large diameter workpieces.
- Comprehensive safety features including spindle brake pedal, chuck guard with interlock, and overload clutch.
- Complete tooling and accessory package includes steady rest, follow rest, taper attachment, tool post, and faceplate.
Why Choose the LeBlond RKL1500V Series Variable Speed Lathe with Electronic Control
- Powerful 7.5 HP motor for demanding machining applications.
- Infinitely variable speed control for maximum flexibility and precision.
- Heavy-duty construction ensures long-term durability and consistent accuracy.
- Expanded capacity for larger workpieces with 16” swing and gap bed design.
- Trusted LeBlond engineering delivers reliable industrial performance.
The LeBlond RKL1500V Series Variable Speed Lathe with Electronic Control is a robust, high-performance solution for machinists who require precision, power, and advanced control in a manual lathe platform.
