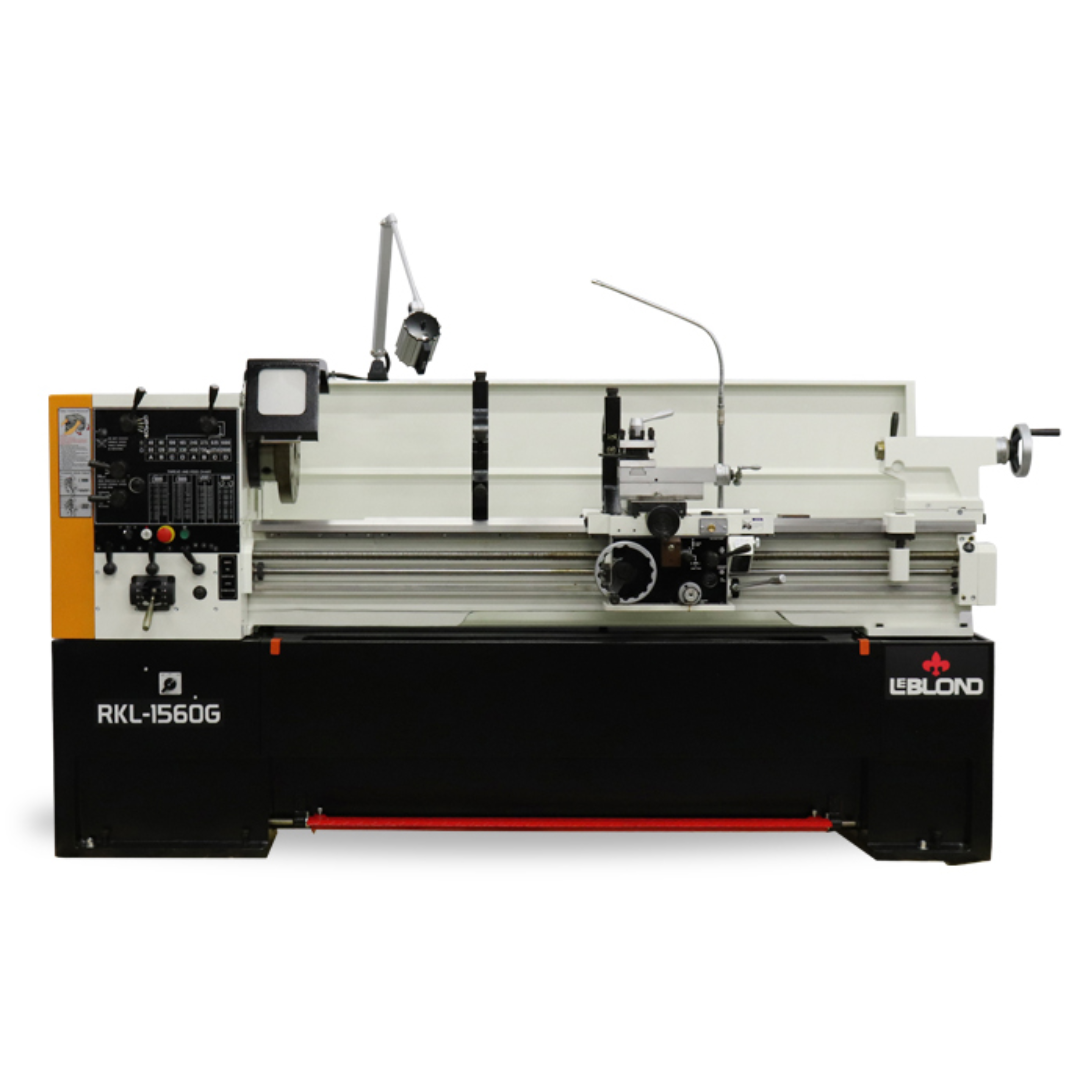

LeBlond RKL1500G Series Geared Head High Speed Precision Lathe Applications
- Heavy-duty metal turning and large workpiece machining
- Tool rooms, maintenance shops, and industrial repair facilities
- Production machining and fabrication environments
- Thread cutting, boring, facing, and precision shaft work
- General machining across ferrous and non-ferrous materials
Designed for machinists requiring higher power, increased swing capacity, and consistent precision in demanding applications.
LeBlond RKL1500G Series Geared Head High Speed Precision Lathe Specifications
| Swing Over Bed | 16.14" |
|---|---|
| Distance Between Centers | 40" / 60" |
| Swing Over Cross Slide | 10.3" |
| Swing in Gap | 22.95" |
| Cross Slide Travel | 8.6" |
| Top Slide Travel | 4.92" |
| Bed Width | 10.236" |
| Spindle Nose | D1-6 |
| Spindle Bore | 2.066" |
| Spindle Taper | MT6 |
| Spindle Speed Range | 40 – 2000 RPM (16 Speeds) |
| Inch Threads | (45) 2 – 72 TPI |
| Metric Threads | (39) 0.2 – 14 mm |
| Lead Screw Diameter | 1.25" |
| Lead Screw Pitch | 4 TPI |
| Longitudinal Feed | 0.002 – 0.067 IPR |
| Cross Feed | 0.001 – 0.034 IPR |
| Tailstock Taper | MT4 |
| Quill Travel | 6" |
| Main Motor | 7.5 HP |
| Voltage | 230V / 3PH / 60Hz (Single Phase Available) |
| Machine Dimensions (L x W x H) | Up to 110" x 45" x 75" |
| Weight | Approx. 3090 – 3310 lbs |
LeBlond RKL1500G Series Geared Head High Speed Precision Lathe Performance & Construction
- Forged alloy steel spindle is hardened, precision ground, and dynamically balanced for durability and accuracy.
- 16-speed geared headstock delivers high torque across a wide RPM range up to 2000 RPM.
- Heavy-duty 7.5 HP motor provides the power required for demanding cutting applications.
- Precision bearing system with tapered roller and ball bearings ensures smooth, stable operation.
- Meehanite cast iron bed with induction-hardened ways (HRC 50) for long-lasting wear resistance.
- Wide bed with one-piece base minimizes vibration and maximizes machining accuracy.
- Removable gap bed increases capacity for larger diameter workpieces.
- Constant lubrication system ensures extended life of gears and bearings.
- Integrated safety features including spindle brake pedal, chuck guard with interlock, and overload clutch.
- Comprehensive tooling package including steady rest, follow rest, taper attachment, faceplate, and tool post.
Why Choose the LeBlond RKL1500G Series Geared Head High Speed Precision Lathe
- High-power 7.5 HP motor for demanding machining operations.
- 16-speed gearbox provides versatility across materials and applications.
- Heavy-duty construction ensures long-term precision and reliability.
- Expanded swing capacity for larger workpieces.
- Trusted LeBlond engineering for consistent industrial performance.
The LeBlond RKL1500G Series Geared Head High Speed Precision Lathe is a powerful, reliable solution for shops that demand precision, durability, and high-performance turning capability.
