LeBlond RKL1300V Series Variable Speed with Electronic Control Applications
- Precision turning, facing, threading, and boring operations
- Tool rooms, maintenance shops, and repair facilities
- Prototype development and small batch production
- General machining across steel, aluminum, and alloy materials
- Industrial and educational machine shop environments
Ideal for machinists who require precise speed control, smooth operation, and versatile machining capability.
LeBlond RKL1300V Series Variable Speed with Electronic Control Specifications
| Swing Over Bed | 14.17" |
|---|---|
| Distance Between Centers | 31.5" / 40" / 60" |
| Swing Over Carriage | 8.35" |
| Swing in Gap | 20.98" |
| Cross Slide Travel | 8.6" |
| Top Slide Travel | 4.92" |
| Bed Width | 10.236" |
| Spindle Nose | D1-6 |
| Spindle Bore | 2.066" |
| Spindle Taper | MT6 |
| Spindle Speed Range | 20–400 RPM (Low) / 400–2500 RPM (High) – Infinitely Variable |
| Inch Threads | (45) 2 – 72 TPI |
| Metric Threads | (39) 0.2 – 14 mm |
| Lead Screw Diameter | 1.25" |
| Lead Screw Pitch | 4 TPI |
| Longitudinal Feed | 0.002 – 0.067 IPR |
| Cross Feed | 0.001 – 0.034 IPR |
| Tailstock Taper | MT4 |
| Quill Travel | 6" |
| Main Motor | 5 HP (Inverter Duty) |
| Voltage | 230V / 3PH / 60Hz (Single Phase Available) |
| Machine Dimensions (L x W x H) | Up to 90" x 45" x 75" |
| Weight | Approx. 2865 – 3000 lbs |
LeBlond RKL1300V Series Variable Speed with Electronic Control Performance & Construction
- Infinitely variable spindle speed controlled by an AC inverter duty motor for precise RPM adjustment.
- Two-speed gear ranges provide high torque at low speeds and high-speed finishing capability up to 2500 RPM.
- Forged alloy steel spindle is hardened, ground, and dynamically balanced for superior accuracy and durability.
- Precision bearing system with tapered roller and ball bearings ensures smooth and stable spindle operation.
- Electronic control panel with LED RPM display, speed dial, emergency stop, and spindle jog function.
- Forced lubrication system with electric pump maintains optimal thermal stability and extends machine life.
- Meehanite cast iron bed with induction-hardened and precision-ground ways for long-lasting accuracy.
- Removable gap bed increases swing capacity for larger diameter workpieces.
- Integrated safety features including spindle brake pedal, chuck guard with interlock, and overload clutch.
- Complete tooling package includes steady rest, follow rest, taper attachment, tool post, faceplate, and more.
Why Choose the LeBlond RKL1300V Series Variable Speed with Electronic Control
- Infinitely variable speed control for precise machining flexibility.
- Heavy-duty construction ensures long-term durability and reliability.
- High torque performance across two speed ranges for versatile applications.
- Advanced electronic controls improve efficiency and ease of operation.
- Trusted LeBlond engineering for consistent accuracy and performance.

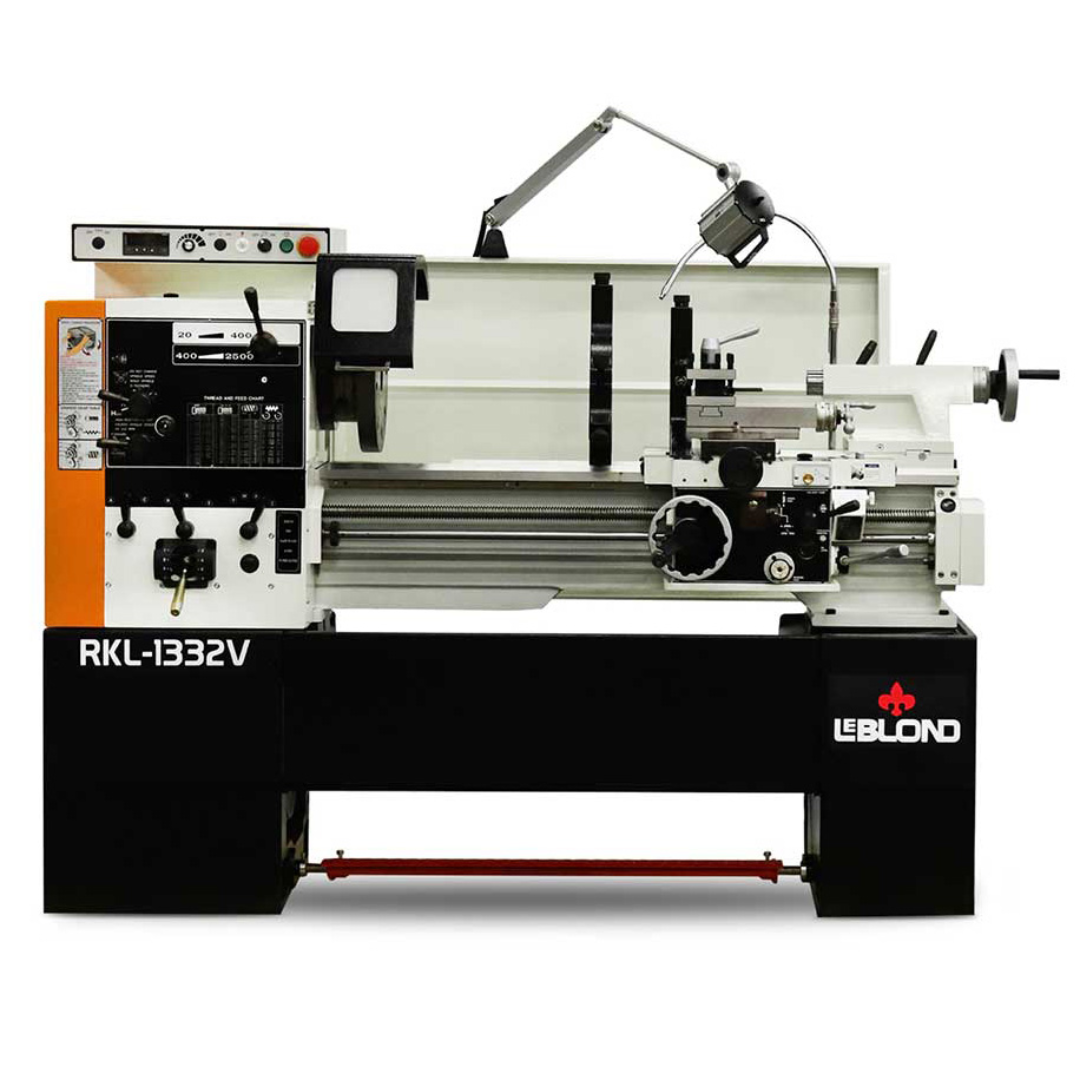

The LeBlond RKL1300V Series Variable Speed with Electronic Control is a powerful and flexible manual lathe designed for machinists who demand precision, control, and reliability in every operation.
