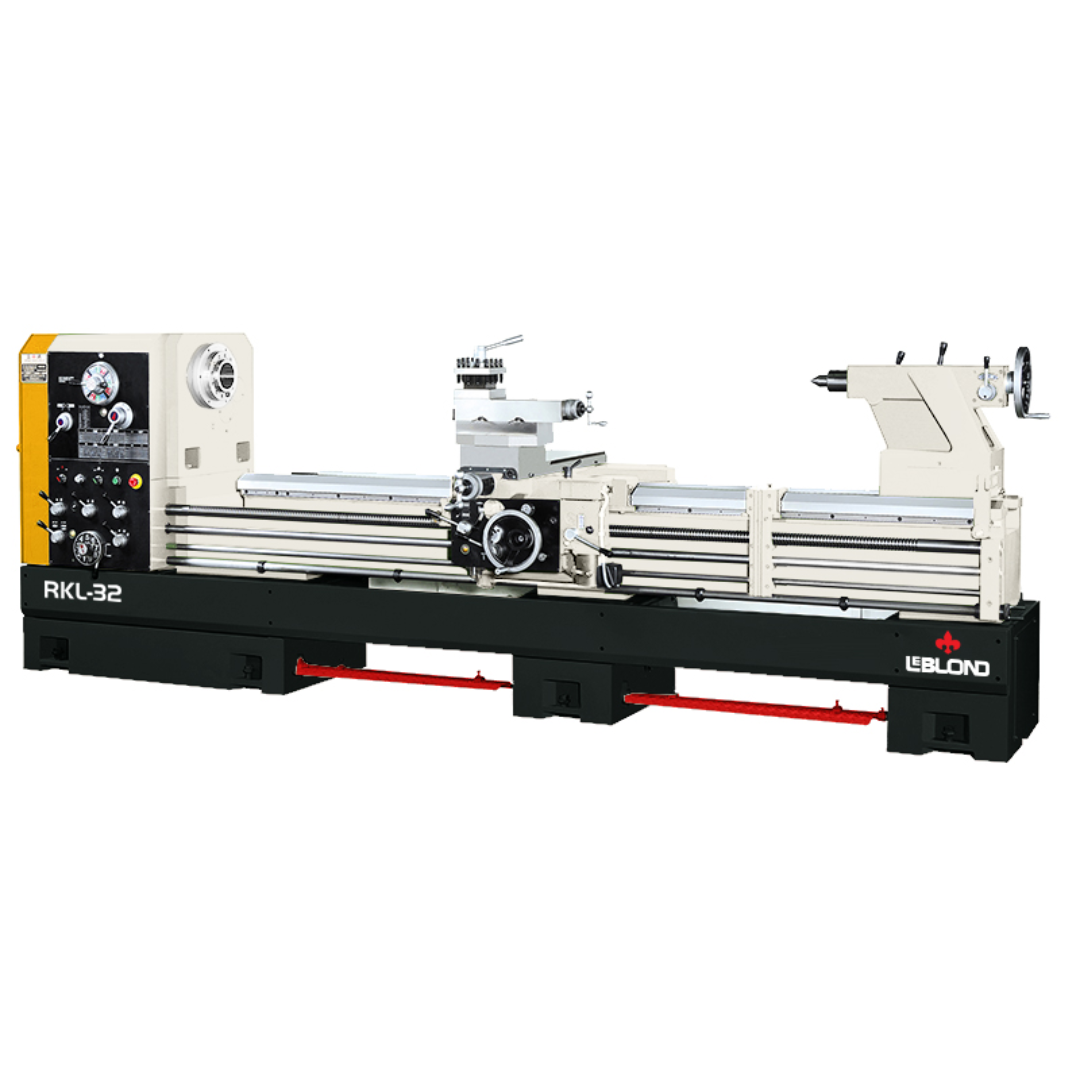

LeBlond RKL-3200G (SE) Series Large Bore Heavy Duty Precision Lathe Applications
- Oil & gas pipe machining and large bore turning operations
- Heavy equipment manufacturing and repair
- Aerospace and defense component production
- Shipbuilding, power generation, and structural fabrication
- Precision threading, boring, facing, and long shaft turning
Designed for operations requiring large swing capacity, extended bed length, and consistent heavy-duty cutting performance.
LeBlond RKL-3200G (SE) Series Large Bore Heavy Duty Precision Lathe Specifications
| Model | SE-32 |
|---|---|
| Swing Over Bed | 32″ |
| Swing Over Cross Slide | 23.5″ |
| Swing in Gap | 44″ |
| Width of Gap | 12″ |
| Distance Between Centers | 39″ – 275″ |
| Spindle Bore Options | 4 1/8″ or 6″ |
| Spindle Nose | A2-8, A2-11, D1-8, or D1-11 |
| Spindle Speed Range | 15–1000 RPM or 10–700 RPM |
| Number of Speeds | 12 Changes |
| Longitudinal Feeds | 0.002″ – 0.028″ / rev |
| Cross Feeds | 0.001″ – 0.014″ / rev |
| Inch Threads | 2 – 28 TPI |
| Metric Threads | 0.8 – 14 mm |
| Leadscrew | 1 3/4″ × 2 TPI |
| Cross Slide Travel | 16.5″ |
| Compound Rest Travel | 10″ |
| Tailstock Quill Diameter | 3.74″ |
| Tailstock Quill Travel | 9″ |
| Bed Width | 18 1/8″ |
| Main Motor | 15 HP or 20 HP |
| Approximate Weight | 6,613 – 14,770 lbs (varies by length) |
LeBlond RKL-3200G (SE) Series Large Bore Heavy Duty Precision Lathe Performance & Construction
- Hardened alloy steel gears and splines deliver long-lasting durability and precision under heavy machining loads.
- Quick-change dial rotary speed control allows efficient adjustment of spindle speeds.
- Heavy ribbed bed with induction hardened ways ensures rigidity, accuracy, and vibration resistance.
- Large bore precision spindle supported by high-precision bearings for superior cutting stability.
- Versatile gearbox system enables inch, metric, module, and diametral threading without gear changes.
- Overload safety protection safeguards internal components during demanding operations.
- Dual lubrication system (manual and automatic) extends machine life and ensures smooth travel.
- Automatic longitudinal feed stopper enhances repeatability and operational safety.
- Tailstock reduction gearing improves drilling control and torque performance.
- Emergency brake pedal system provides immediate shutdown capability for operator safety.
LeBlond RKL-3200G (SE) Series Large Bore Heavy Duty Precision Lathe Standard Equipment
- Coolant system with pump
- Full-length splash guard
- Longitudinal rapid traverse
- LED work light
- Leveling pads
- Spindle center sleeve
- Two-speed tailstock
- Dead centers
- Steady rest with roller jaws (60–300mm capacity)
- 4-way quick turn turret tool post
- Thread indicator
- Operation manual and parts list
- Toolbox with tools and touch-up paint
LeBlond RKL-3200G (SE) Series Large Bore Heavy Duty Precision Lathe Optional Accessories
- Newall digital readout system (installed)
- 5C front-mounted handwheel collet closer
- 5C collet sets (inch and metric)
- Quick change tool post with holders
- Precision live center
- Keyless drill chuck and arbor
- Additional steady rest
- Follow rest
- Taper attachment
- 3-jaw scroll chuck
- 4-jaw independent chuck
Why Choose the LeBlond RKL-3200G (SE) Series Large Bore Heavy Duty Precision Lathe
- 32” swing capacity for large and heavy workpieces
- Extended bed options up to 275” for long shaft machining
- Large spindle bore options for pipe and tube applications
- Heavy-duty construction for precision and durability
- Comprehensive tooling and accessory support for versatility
The LeBlond RKL-3200G (SE) Series Large Bore Heavy Duty Precision Lathe is engineered for high-performance machining where size, strength, and precision are critical.
