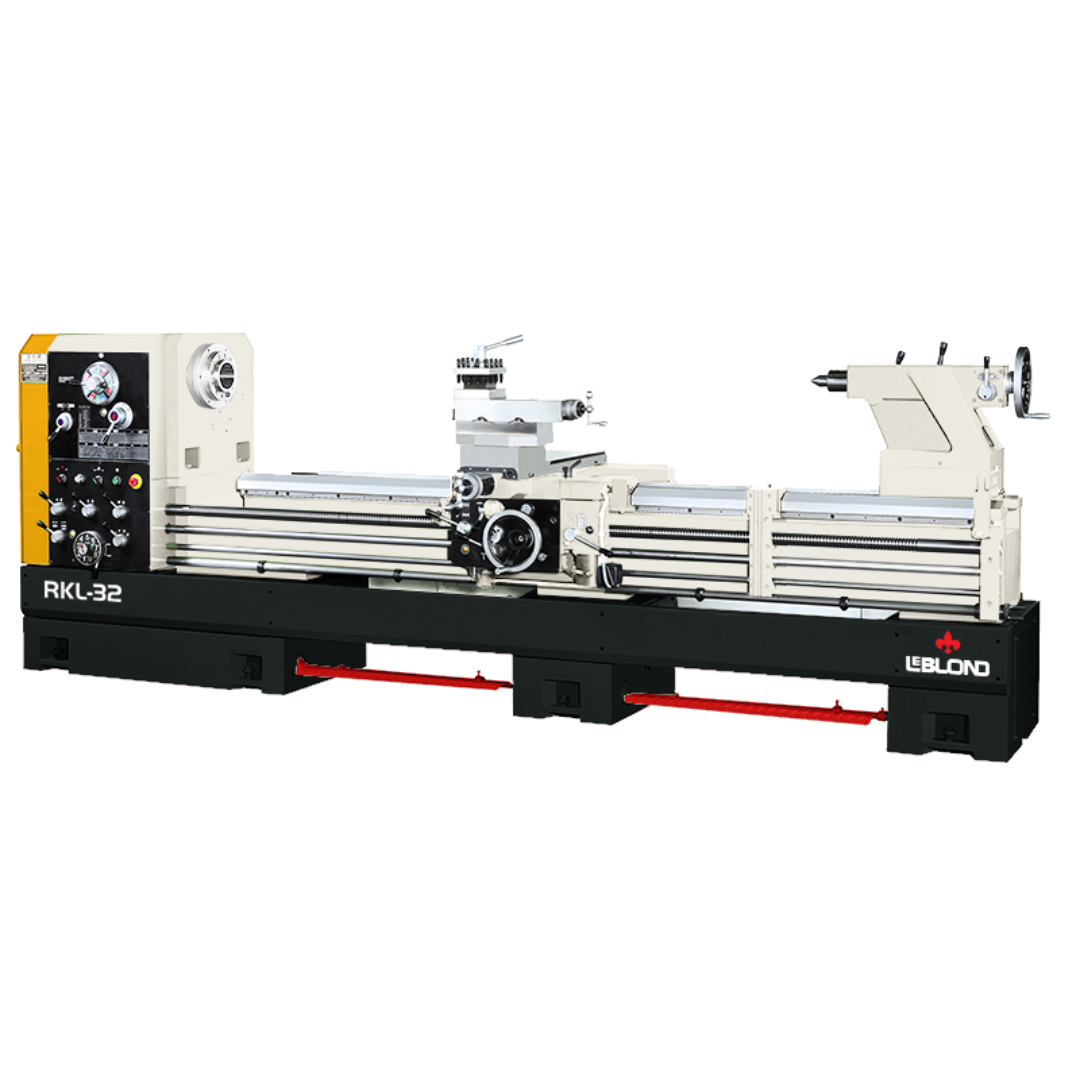

LeBlond RKL-2800G (SE) Large Bore Heavy Duty Precision Lathe Applications
- Oil & gas pipe machining and large diameter shaft turning
- Aerospace, defense, and heavy equipment manufacturing
- Repair and maintenance of large industrial components
- Custom fabrication shops requiring long-bed turning capacity
- Precision threading, boring, and facing operations
Ideal for shops requiring large bore capacity, long turning lengths, and reliable heavy-duty machining performance.
LeBlond RKL-2800G (SE) Large Bore Heavy Duty Precision Lathe Specifications
| Model | SE-28 |
|---|---|
| Swing Over Bed | 28″ |
| Swing Over Cross Slide | 19.5″ |
| Swing in Gap | 40″ |
| Width of Gap | 12″ |
| Distance Between Centers | 39″ – 275″ |
| Spindle Bore Options | 3 1/8″, 4 1/8″, or 6″ |
| Spindle Nose | A2-8, A2-11, D1-8, or D1-11 |
| Spindle Speed Range | 15–1000 RPM or 10–700 RPM |
| Number of Speeds | 12 Changes |
| Longitudinal Feeds | 0.002″ – 0.028″ / rev |
| Cross Feeds | 0.001″ – 0.014″ / rev |
| Inch Threads | 2 – 28 TPI |
| Metric Threads | 0.8 – 14 mm |
| Leadscrew | 1 3/4″ × 2 TPI |
| Cross Slide Travel | 16.5″ |
| Compound Rest Travel | 10″ |
| Tailstock Quill Diameter | 3.74″ |
| Tailstock Quill Travel | 9″ |
| Bed Width | 18 1/8″ |
| Main Motor | 15 HP or 20 HP |
| Approximate Weight | 6,613 – 14,770 lbs (varies by length) |
LeBlond RKL-2800G (SE) Large Bore Heavy Duty Precision Lathe Performance & Construction
- Hardened and precision-ground alloy gears ensure long-term durability and consistent accuracy under heavy loads.
- Dial rotary speed control system enables fast and efficient spindle speed changes.
- Heavily ribbed bed construction with induction-hardened ways provides superior rigidity and vibration damping.
- Large diameter precision spindle supported by high-precision bearings for stable heavy cutting operations.
- Versatile gearbox supports inch, metric, module, and diametral threading without gear changes.
- Adjustable overload safety system protects carriage and internal components during operation.
- Dual lubrication system ensures smooth and extended service life of slideways and moving parts.
- Automatic longitudinal feed stopper improves repeatability and machining safety.
- Tailstock with reduction gearing enhances drilling control and torque.
- Emergency brake system with foot pedal for rapid machine shutdown and operator safety.
LeBlond RKL-2800G (SE) Large Bore Heavy Duty Precision Lathe Standard Equipment
- Coolant system with pump
- Full-length splash guard
- Longitudinal rapid traverse
- LED work light
- Leveling pads
- Spindle center sleeve
- Two-speed tailstock
- Dead centers
- Steady rest with roller jaws (60–300mm capacity)
- 4-way quick turn turret tool post
- Thread indicator
- Operation manual and parts list :contentReference[oaicite:0]{index=0}
- Toolbox with tools and touch-up paint
LeBlond RKL-2800G (SE) Large Bore Heavy Duty Precision Lathe Optional Accessories
- Newall digital readout system (installed)
- 5C front-mounted handwheel collet closer
- 5C collet sets (inch and metric)
- Quick change tool post with holders
- Precision live center
- Keyless drill chuck and arbor
- Additional steady rest and follow rest
- Taper attachment
- 3-jaw scroll chuck
- 4-jaw independent chuck
Why Choose the LeBlond RKL-2800G (SE) Large Bore Heavy Duty Precision Lathe
- Exceptional large bore capacity for pipe and shaft machining
- Extended bed lengths up to 275 inches for oversized workpieces
- High rigidity construction for precision and heavy-duty cutting
- Versatile threading and feed capabilities without gear changes
- Comprehensive standard equipment for immediate productivity
The LeBlond RKL-2800G (SE) Large Bore Heavy Duty Precision Lathe is built for manufacturers who demand power, precision, and versatility in large-scale turning operations.
