Name: LeBlond RKL-1540 (16” X 35”) CNC Teachable Precision Lathe with Gear Box Spindle
Brand: LeBlond
SKU: Lathe RKL-1540
Availability: InStock

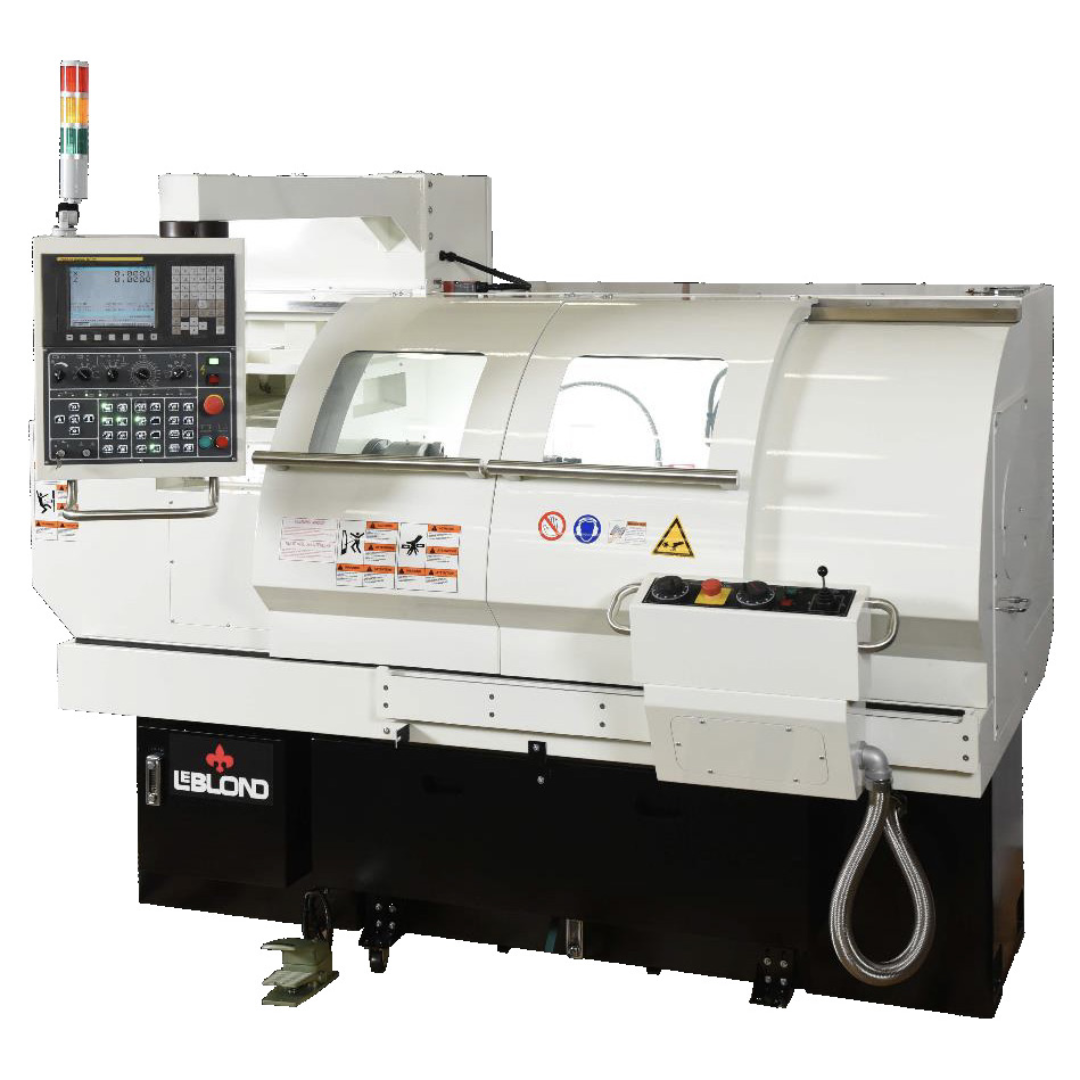

LeBlond RKL-1540 CNC teachable precision lathe with gear box spindle, featuring enclosed cutting area, digital control panel, and heavy-duty industrial base for metal turning operations.

Roll over image to zoom in Click on image to zoom

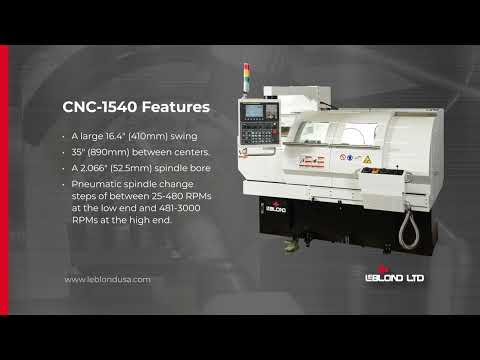

LeBlond RKL-1540 CNC teachable precision lathe with gear box spindle control interface display, showing user-friendly programming screen and operational controls for precision machining.

We Cover Sales Tax Excluding (Illinois)

Share this product

Section 179
Tax Savings

Save up to $0.00 on this equipment Estimate Your Tax Deduction

Calculate Savings →

Commercial Buyer?

Unlock volume pricing and dedicated facility support with Trade Accounts
(Requires minimum of 2+ items)

Order Placed

Ships Out

Delivered

*Please Note: This timeline is an estimate. Certain products may require an additional 1 week for manufacturing. Please speak with your sales rep, Matthew, for official details and confirmation before placing your order.

CALL US FOR THE MOST ACCURATE AND COMPETITIVE LTL SHIPPING RATE, (888) 308-5580

Get Questions Answered

Fast & Free

Experience: 20+ Years B2B • Origin: US-Based Support

EXPRESS SHIPPING

Most orders process in 1-3 days. Yes, even if it weights 400lb

Hassle-Free Returns

No restocking fees. Ever.

Manufacturer Warranty

Fully backed by the brands you trust.

Dedicated Rep Mathew

Speak to a US-Based Equipment Specialist: (888) 308-5580

Flexible Financing

Get Upto 60 Months Financing

CNC Teachable Control • High Precision Turning • Compact Production Lathe

LeBlond RKL-1540 CNC Teachable Precision Lathe with Gear Box Spindle

The LeBlond RKL-1540 CNC Teachable Precision Lathe with Gear Box Spindle delivers advanced CNC capability in a compact footprint designed for high-volume production environments. Equipped with a FANUC 0i-TF control system, precision ball screws, and a heavy-duty gearbox spindle, this machine provides exceptional accuracy for turning, threading, milling, tapping, and boring operations—all within a single setup. Built with rugged construction and thermal stability in mind, this lathe ensures consistent results, reduced vibration, and long-term reliability for demanding machining applications. :contentReference[oaicite:0]{index=0}

LeBlond RKL-1540 CNC Teachable Precision Lathe with Gear Box Spindle Applications

High-volume production machining and repeat part manufacturing
Precision turning, threading, boring, and tapping operations
Tool rooms, maintenance departments, and prototype development
Metalworking shops requiring compact CNC automation
General engineering and industrial fabrication environments

Ideal for shops needing CNC precision with manual flexibility in a space-saving machine platform.

LeBlond RKL-1540 CNC Teachable Precision Lathe with Gear Box Spindle Specifications

Control System	FANUC 0i-TF (3) – 8.4” Color Monitor
Number of Axes	2 Axis (X, Z)
Swing Over Bed	16.14"
Distance Between Centers	35"
Bed Width	10.236"
Spindle Nose	A1-6 Camlock
Spindle Bore	2.066"
Spindle Speed Range	225–480 RPM (Low) / Up to 2500–3000 RPM (High)
Main Spindle Power	5.5kW / 7.5kW (30 min rated)
X-Axis Travel	8.07"
Z-Axis Travel	32.08"
Rapid Traverse (X/Z)	295.3 / 393.7 IPM
Ball Screw Diameter (X/Z)	0.787" / 1.259"
Tailstock Taper	MT4
Quill Travel	5.5"
Chuck Size	8" Hydraulic Chuck
Voltage	230V / 3PH / 60Hz (Other Voltages Available)
Machine Dimensions (L x W x H)	Up to 90" x 45" x 75"
Weight	Approx. 3000 lbs

LeBlond RKL-1540 CNC Teachable Precision Lathe with Gear Box Spindle Performance & Construction

FANUC CNC Control System with 8.4” color display provides intuitive programming, monitoring, and high-precision machining control.
Heavy-duty gearbox spindle with dual speed ranges delivers torque for heavy cuts and high-speed finishing capability.
Hardened and precision-ground headstock gears ensure quiet, smooth, and vibration-free operation.
Pressurized lubrication system maintains optimal thermal stability and extends machine life.
Electronic H4 turret enables fast, repeatable tool indexing for efficient production cycles.
Hydraulic tailstock quill and 8” hydraulic chuck provide strong clamping and consistent part support.
Precision ball screws and AC servo motors deliver accurate positioning and repeatability.
Manual handwheel control allows flexible teach-mode programming and manual operation.
Integrated coolant system improves tool life and surface finish during machining.
Compact footprint design maximizes shop floor efficiency without sacrificing performance.

Why Choose the LeBlond RKL-1540 CNC Teachable Precision Lathe with Gear Box Spindle

Combines CNC automation with manual teach capabilities for versatile operation.
Compact machine footprint ideal for small to mid-sized production environments.
Robust construction ensures long-term durability and consistent machining accuracy.
Advanced FANUC control system simplifies programming and improves productivity.
Designed for high-volume production with minimal setup and maximum efficiency.

The LeBlond RKL-1540 CNC Teachable Precision Lathe with Gear Box Spindle is a powerful, space-efficient solution for manufacturers seeking precision, flexibility, and reliable CNC performance in one machine.

Key Information

Order Cutoff Time: 2:00 PM EST
Order Handling Time: 1–3 business days (Monday–Friday)
Transit Time: 1–7 business days (Monday–Friday)
Total Estimated Delivery Time: 3–11 business days (Monday–Friday)
Shipping Availability: Free Shipping On Most Items In The Contiguous United States only

For more information Click Here

Request Expert Consultation

Our tool specialists are ready to help you find the perfect solution for your specific application.

CAPITAL ACCESS

EQUIPMENT FINANCING

AVAILABLE

Preserve cash flow with up to 60 month financing.

Frequently Asked Questions

The RKL-1540 has a 16.14" swing over the bed and 35" between centers, with a 2.066" spindle bore and an A1-6 camlock spindle nose.

It uses a FANUC 0i-TF control with an 8.4" color monitor on a 2-axis (X, Z) setup, plus manual handwheel control for teach-mode programming.

A teachable lathe lets the operator move the axes manually with handwheels and record those moves as a program, combining manual flexibility with CNC repeatability, as on the RKL-1540.

Its gearbox spindle has a low range of 225 to 480 RPM and a high range up to 2500 to 3000 RPM, driven by a 5.5 kW / 7.5 kW (30 min rated) main spindle motor.

It is listed for 230V, 3-phase, 60Hz power, with other voltages available.

The RKL-1540 measures up to 90" x 45" x 75" (L x W x H) and weighs approximately 3000 lbs.

What a privilege to help great companies #getworkdone:

OUTFITTING FACILITIES FROM COAST TO COAST

Iron Line Tools provides the critical equipment that industrial and manufacturing operations rely on to execute at the highest level.

Frequently Asked Questions for LeBlond

The RKL-1540 has a 16.14" swing over the bed and 35" between centers, with a 2.066" spindle bore and an A1-6 camlock spindle nose.

It uses a FANUC 0i-TF control with an 8.4" color monitor on a 2-axis (X, Z) setup, plus manual handwheel control for teach-mode programming.

A teachable lathe lets the operator move the axes manually with handwheels and record those moves as a program, combining manual flexibility with CNC repeatability, as on the RKL-1540.

Its gearbox spindle has a low range of 225 to 480 RPM and a high range up to 2500 to 3000 RPM, driven by a 5.5 kW / 7.5 kW (30 min rated) main spindle motor.

It is listed for 230V, 3-phase, 60Hz power, with other voltages available.

The RKL-1540 measures up to 90" x 45" x 75" (L x W x H) and weighs approximately 3000 lbs.
