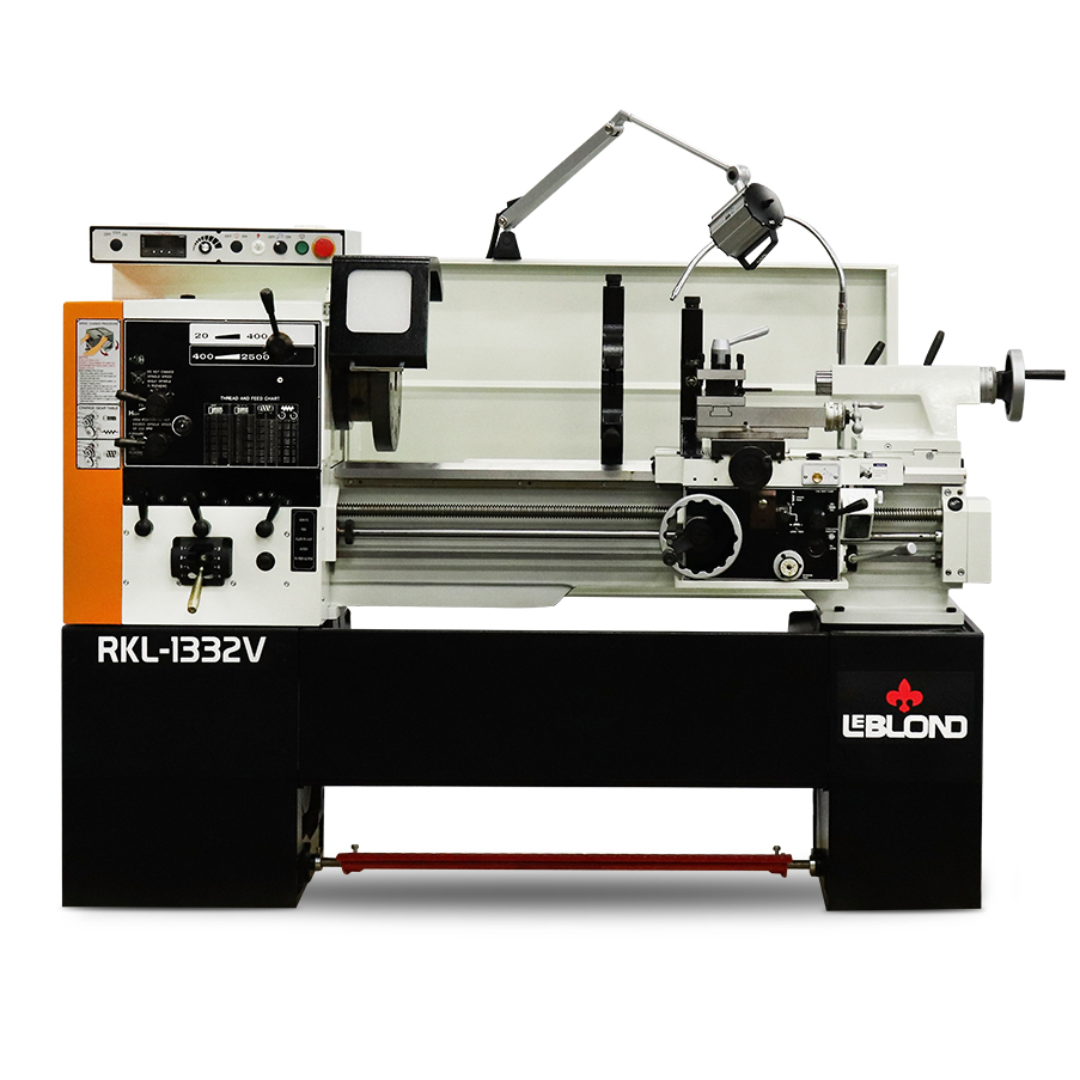

LeBlond RKL-1332 Series Educational Lathe Applications
- Technical schools, vocational training centers, and educational labs
- Toolrooms and maintenance departments
- Light production and prototype machining
- Training programs focused on manual machining and threading
- Precision turning of small to medium-sized components
Ideal for teaching environments and shops that require a compact, reliable, and easy-to-operate lathe.
LeBlond RKL-1332 Series Educational Lathe Specifications
| Model | RKL-1332G/V |
|---|---|
| Swing Over Bed | 14.17" |
| Distance Between Centers | 31.5" |
| Swing Over Carriage | 8.35" |
| Swing in Gap | 20.98" |
| Spindle Bore | 2.066" |
| Spindle Nose | D1-6 |
| Spindle Taper | MT 6 |
| Spindle Speeds | 16 Speeds (40 – 2000 RPM) / Variable Speed Option (20 – 2500 RPM) |
| Main Motor | 5 HP |
| Voltage | 230V / 3PH / 60Hz (Single Phase Available) |
| Inch Threads | 2 – 72 TPI (45 selections) |
| Metric Threads | 0.2 – 14 mm (39 selections) |
| Feed Range (Longitudinal) | 0.002 – 0.067 IPR |
| Feed Range (Cross) | 0.001 – 0.034 IPR |
| Tailstock Quill Diameter | 2.047" |
| Tailstock Quill Travel | 6.0" |
| Tailstock Taper | MT 4 |
| Bed Width | 10.236" |
| Machine Weight | 2,865 lbs |
| Shipping Weight | 3,090 lbs |
LeBlond RKL-1332 Series Educational Lathe Performance & Construction
- Forged alloy steel spindle that is hardened, ground, and dynamically balanced for consistent precision.
- D1-6 cam-lock spindle mount allows for quick and secure tooling changes.
- High-grade bearing system with tapered roller and ball bearings supported by constant oil bath lubrication.
- 16-speed geared headstock or optional variable speed drive for flexible operation up to 2500 RPM.
- 5 HP motor with inverter option delivers smooth, controlled power for training and production use.
- Meehanite cast iron bed with induction hardened ways (HRC 50) for durability and wear resistance.
- Wide bed with one-piece base ensures rigidity, reduced vibration, and improved machining accuracy.
- Removable gap bed increases swing capacity for larger diameter workpieces.
- Precision hand-scraped ways provide smooth carriage movement and long-term alignment accuracy.
- Integrated lubrication system ensures continuous protection of gears and bearings.
LeBlond RKL-1332 Series Educational Lathe Standard Equipment & Features
- Coolant system with pump
- Manual chuck guard with operator safety interlock
- Removable front chip pan
- Lockable main disconnect switch
- LED work light for improved visibility
- Leveling pads (set of 6)
- Operation manual and parts list
- Tool box with tools
- Steady rest with roller jaws (0.4″ – 5.5″ capacity)
- Follow rest with roller jaws (0.6″ – 3.0″ capacity)
- 4-way quick turn tool post
- 12″ face plate
- Dead centers (2 included)
- Spindle center sleeve (MT6 × MT4)
Why Choose the LeBlond RKL-1332 Series Educational Lathe
- Perfect balance of size, power, and precision for training and light industrial work.
- Flexible speed options with geared or variable drive configurations.
- Robust construction ensures long-term durability in classroom or shop environments.
- Comprehensive threading and feed capabilities for full machining instruction.
- Trusted LeBlond engineering delivering consistent, reliable performance.
The LeBlond RKL-1332 Series Educational Lathe is a dependable, high-performance solution for teaching, training, and precision machining in compact workspaces.
