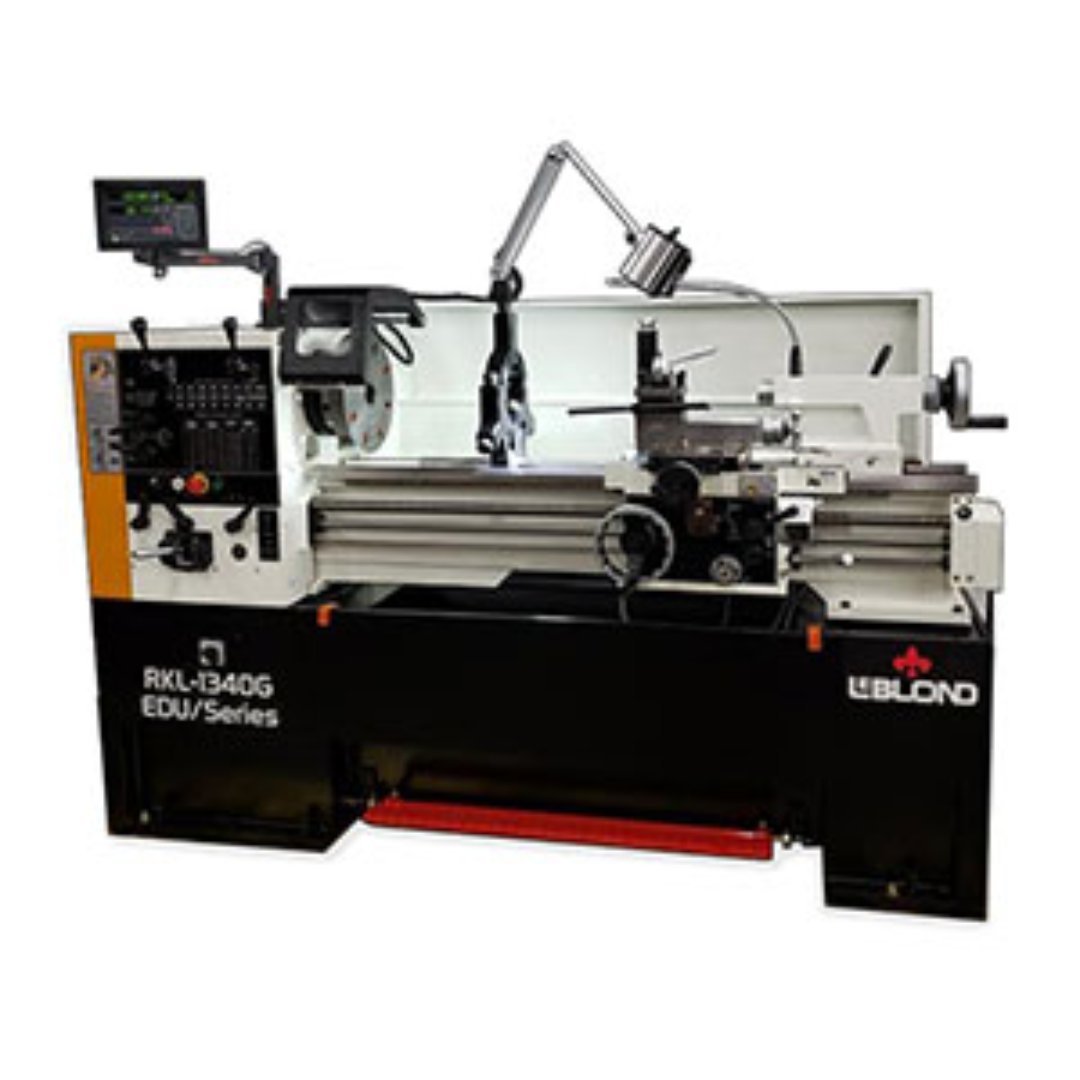

LeBlond RKL 1300G Series Geared Head High-Speed Lathe Applications
- General metalworking and precision part fabrication
- Maintenance shops and tool rooms
- Prototype development and short production runs
- Thread cutting, boring, facing, and turning operations
- Industrial manufacturing and repair facilities
Ideal for machinists who need a reliable, high-speed lathe with flexible capacity and consistent performance.
LeBlond RKL 1300G Series Geared Head High-Speed Lathe Specifications
| Swing Over Bed | 14.17" |
|---|---|
| Distance Between Centers | 31.5" / 40" / 60" |
| Swing Over Cross Slide | 8.35" |
| Swing in Gap | 20.98" |
| Cross Slide Travel | 8.6" |
| Top Slide Travel | 4.92" |
| Bed Width | 10.236" |
| Spindle Nose | D1-6 |
| Spindle Bore | 2.066" |
| Spindle Taper | MT6 |
| Spindle Speed Range | 40 – 2000 RPM (16 Speeds) |
| Inch Threads | (45) 2 – 72 TPI |
| Metric Threads | (39) 0.2 – 14 mm |
| Lead Screw Diameter | 1.25" |
| Lead Screw Pitch | 4 TPI |
| Longitudinal Feed | 0.002 – 0.067 IPR |
| Cross Feed | 0.001 – 0.034 IPR |
| Tailstock Taper | MT4 |
| Quill Travel | 6" |
| Main Motor | 5 HP |
| Voltage | 230V / 3PH / 60Hz (Single Phase Available) |
| Machine Dimensions (L x W x H) | Up to 110" x 45" x 75" |
| Weight | Approx. 2865 – 3200 lbs |
LeBlond RKL 1300G Series Geared Head High-Speed Lathe Performance & Construction
- Forged alloy steel spindle is hardened, precision ground, and dynamically balanced for long life and high accuracy.
- Geared headstock with 16 speeds delivers high torque across a wide RPM range up to 2000 RPM.
- Precision tapered roller and ball bearings ensure smooth, stable spindle performance.
- Meehanite cast iron bed with induction-hardened ways provides rigidity and wear resistance.
- Wide bed design with one-piece base minimizes vibration and enhances machining stability.
- Removable gap bed allows larger diameter workpieces for expanded machining capability.
- Constant lubrication system maintains optimal performance and reduces wear on critical components.
- Integrated safety features including spindle brake pedal, chuck guard with interlock, and overload protection clutch.
- Complete accessory package including steady rest, follow rest, taper attachment, tool post, and faceplate.
- Coolant system and LED work light improve visibility and machining efficiency.
Why Choose the LeBlond RKL 1300G Series Geared Head High-Speed Lathe
- 16-speed geared head for versatile machining across multiple materials.
- Heavy-duty construction ensures durability and long-term accuracy.
- Flexible configurations with multiple bed lengths and power options.
- Comprehensive tooling and safety features included as standard.
- Trusted LeBlond engineering delivers consistent performance in demanding environments.
The LeBlond RKL 1300G Series Geared Head High-Speed Lathe is a dependable, high-performance solution for shops that demand precision, power, and versatility in a traditional manual lathe platform.
