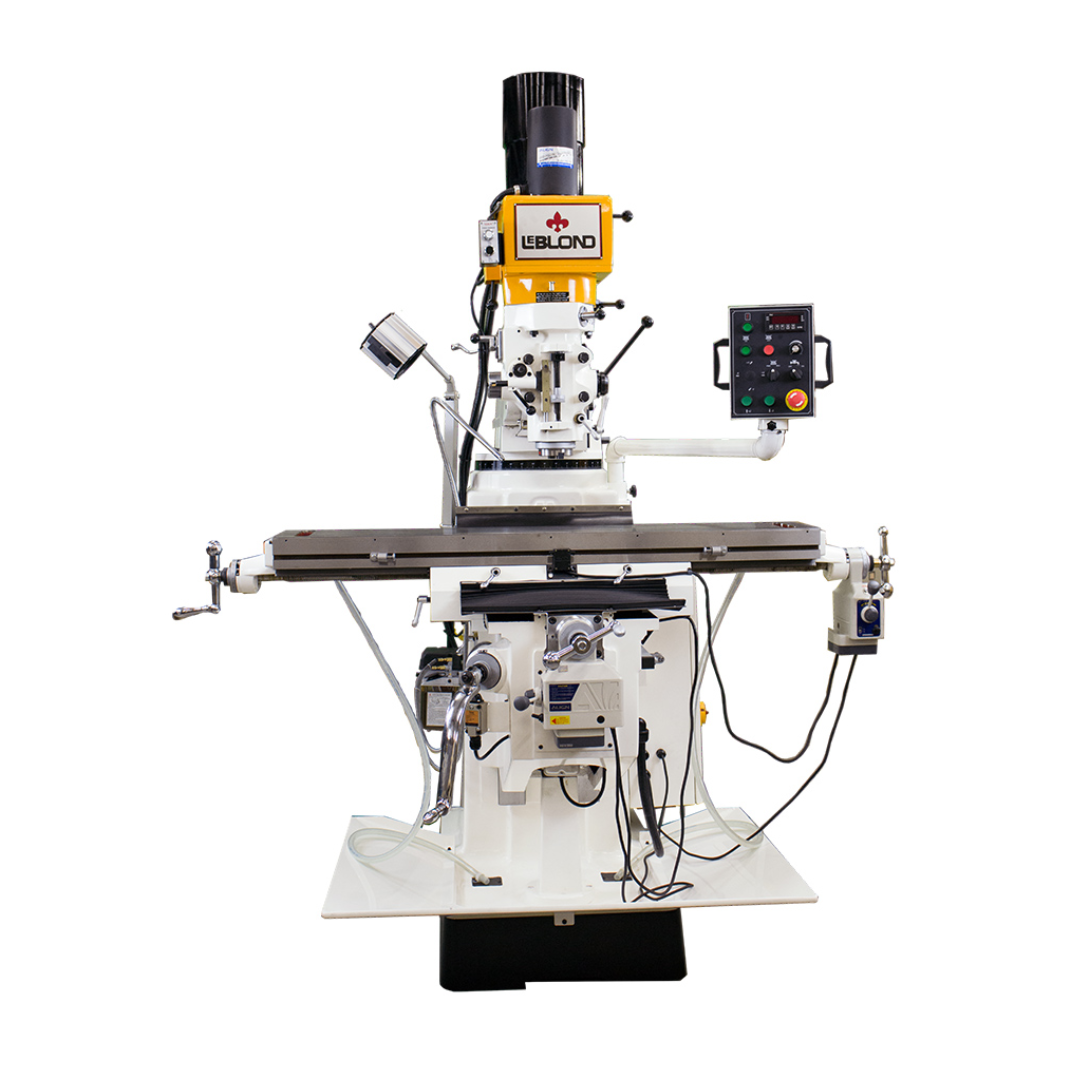

LeBlond LVM 12 Series Vertical Knee Mill Applications
- Heavy-duty milling and large part machining
- Tool rooms and industrial manufacturing facilities
- Prototype development and custom fabrication
- Drilling, boring, slotting, and contour milling
- Medium to high production machining environments
Designed for machining larger components requiring increased table space, power, and rigidity.
LeBlond LVM 12 Series Vertical Knee Mill Specifications
| Table Size | 12.5" x 58" |
|---|---|
| T-Slots | 3 Slots |
| Max Workpiece Weight | 990 lbs |
| Longitudinal Travel (X-Axis) | 31.5" |
| Cross Travel (Y-Axis) | 15.75" |
| Knee Travel (Z-Axis) | 17" |
| Ram Travel | 18.625" |
| Quill Travel | 5" |
| Spindle to Column Distance | 5.875" – 27.5" |
| Spindle Nose to Table | 2.375" – 20.875" |
| Spindle Taper | NT40 |
| Spindle Speed Options | 60 – 5000 RPM (depending on configuration) |
| Quill Feed Rates | 0.0015", 0.003", 0.006" |
| Head Swivel | 360° |
| Head Tilt (Left/Right) | ±45° |
| Head Tilt (Up/Down) | ±45° |
| Main Motor | 5 HP |
| Voltage | 230V / 3 Phase (other options available) |
| Floor Space (L × W × H) | 109.25" × 94.5" × 93.5" |
| Net Weight | 3970 lbs |
LeBlond LVM 12 Series Vertical Knee Mill Performance & Construction
- Meehanite cast iron construction provides maximum rigidity and vibration dampening for demanding machining tasks.
- High-precision Class 7 angular contact bearings ensure spindle stability and accuracy throughout the full speed range.
- Variable speed spindle options allow flexibility for a wide range of materials and cutting conditions.
- Precision hardened and ground ways with Turcite coating for smooth motion and long-term wear resistance.
- One-piece quill pinion and shaft enhances durability and reduces maintenance requirements.
- Auto lubrication system ensures consistent machine performance and extended component life.
- Ground and hardened table with precision scraping for superior machining accuracy.
- Low vibration drive system delivers quiet, smooth operation with dynamically balanced components.
LeBlond LVM 12 Series Vertical Knee Mill Standard Equipment
- Built-in coolant tank in base
- Digital meter for easy operation monitoring
- LED work lamp for improved visibility
- Spindle safety guard
- Chip tray for efficient chip removal
- Auto lubrication (Autolube) system
- Three precision T-slots
- Ground ram slideways for accuracy
- Multi-point locking system for saddle, knee, table, and ram
- Dovetail/box ways with Turcite coating
LeBlond LVM 12 Series Vertical Knee Mill Options & Configurations
- Electronic variable speed or mechanical variable speed spindle configurations
- Automatic power drawbar
- Power feed systems
- Single-phase or three-phase electrical options
- Custom configuration options available
Why Choose the LeBlond LVM 12 Series Vertical Knee Mill
- Large table capacity for handling bigger workpieces.
- High horsepower motor for demanding cutting applications.
- Precision spindle and rigid construction for accurate machining.
- Versatile speed and configuration options.
- Reliable performance backed by the LeBlond name.
The LeBlond LVM 12 Series Vertical Knee Mill delivers the power, precision, and durability required for heavy-duty machining operations in modern industrial environments.
