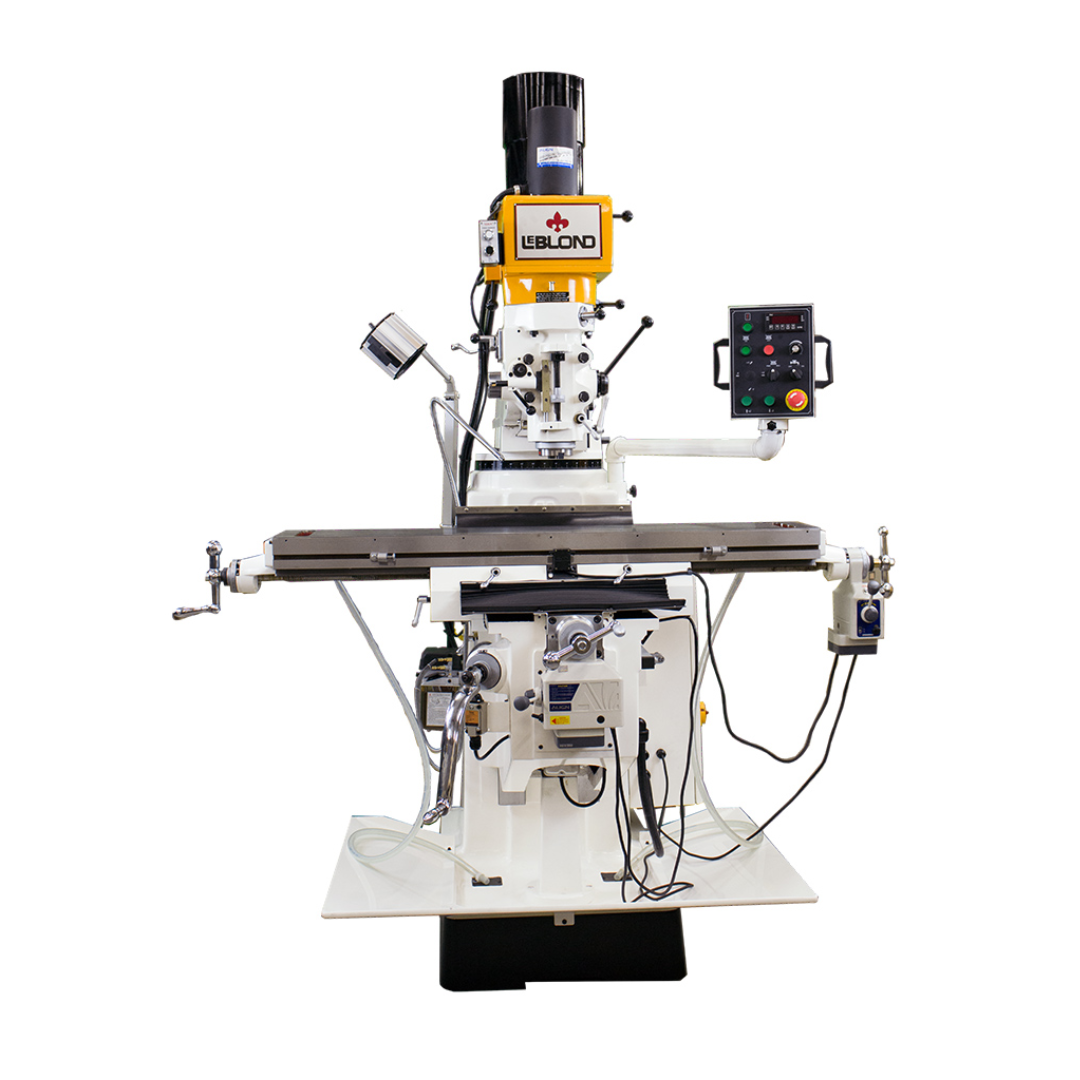

LeBlond LVM 10 Series Vertical Knee Mill Applications
- Heavy-duty milling and machining operations
- Tool rooms and industrial maintenance facilities
- Prototype development and custom fabrication
- Drilling, boring, slotting, and contour milling
- Medium to heavy production environments
Designed for shops requiring increased table size, load capacity, and machining rigidity.
LeBlond LVM 10 Series Vertical Knee Mill Specifications
| Table Size | 10" x 54" (also available in 10" x 50") |
|---|---|
| T-Slots | 3 Slots |
| Max Workpiece Weight | 946 lbs |
| Table Travel (X-Axis) | 28" |
| Cross Travel (Y-Axis) | 14.5" |
| Knee Travel (Z-Axis) | 15" |
| Ram Travel | 21.625" |
| Quill Travel | 5" |
| Spindle to Column Distance | 4" – 25.625" |
| Spindle Nose to Table | 1.625" – 16.5" |
| Spindle Taper | R-8 |
| Spindle Speed Options | 60 – 5000 RPM (depending on configuration) |
| Quill Feed Rates | 0.0015", 0.003", 0.006" |
| Head Swivel | 360° |
| Head Tilt (Left/Right) | ±45° |
| Head Tilt (Up/Down) | ±45° |
| Main Motor | 3 HP |
| Voltage | 230V / 3 Phase (other options available) |
| Floor Space (L × W × H) | 101.25" × 90.5" × 84.625" |
| Net Weight | 3350 lbs |
LeBlond LVM 10 Series Vertical Knee Mill Performance & Construction
- Meehanite cast iron construction provides exceptional rigidity and vibration dampening for heavy-duty machining.
- High-precision Class 7 angular contact bearings ensure consistent spindle accuracy across the full RPM range.
- Multiple spindle speed configurations including electronic variable, mechanical variable, and step pulley options (LVM 1050).
- Precision hardened and ground ways with Turcite coating for smooth movement and reduced wear.
- One-piece quill pinion and shaft enhances durability and reduces maintenance requirements.
- Auto lubrication system maintains optimal performance and extends machine life.
- Ground and hardened table with precision scraping for superior accuracy and repeatability.
- Low vibration drive system with dynamically balanced pulleys for quiet, smooth operation.
LeBlond LVM 10 Series Vertical Knee Mill Standard Equipment
- Built-in coolant tank in base
- Digital meter for easy monitoring
- LED work lamp for improved visibility
- Spindle safety guard
- Chip tray for efficient chip management
- Auto lubrication (Autolube) system
- Three precision T-slots
- Ram slideways ground for accuracy
- Multi-point locking system for saddle, knee, table, and ram
LeBlond LVM 10 Series Vertical Knee Mill Options & Configurations
- Electronic variable speed, mechanical variable speed, or 16-speed step pulley (LVM 1050)
- Automatic power drawbar
- Power feed systems
- Single-phase or three-phase electrical options
- Custom configuration options available
Why Choose the LeBlond LVM 10 Series Vertical Knee Mill
- Larger table size and higher load capacity for demanding applications.
- Precision spindle and rigid construction for consistent machining results.
- Flexible speed and configuration options to match shop requirements.
- Quiet, smooth operation for improved working conditions.
- Built with the trusted durability of LeBlond machine tools.
The LeBlond LVM 10 Series Vertical Knee Mill is a heavy-duty, precision milling solution designed to deliver reliable performance and accuracy in demanding machining environments.
