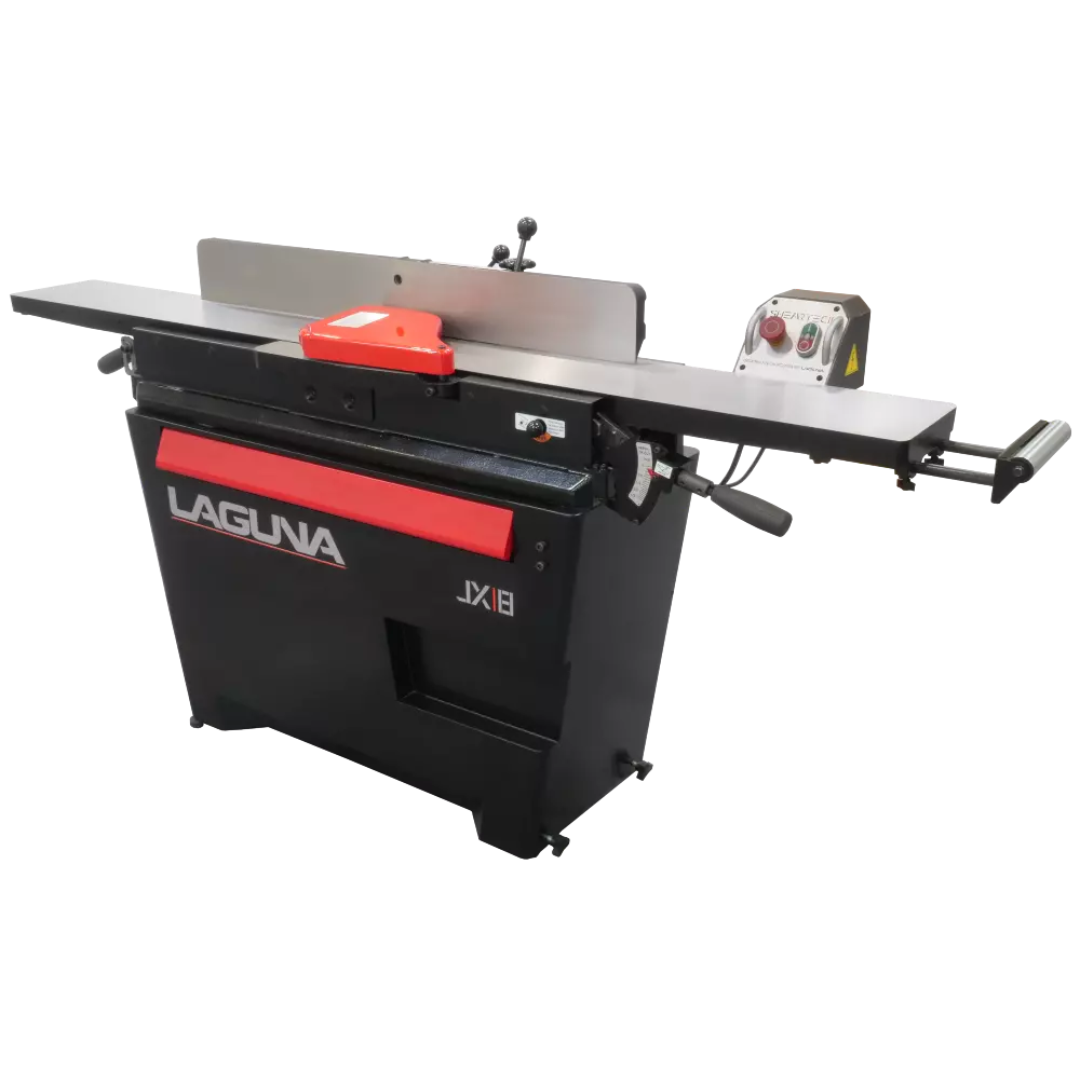

Laguna JX|8 ShearTec: II Jointer MJ8X72P-0130 Applications
- Edge jointing and flattening boards up to 8 inches wide
- Precision stock preparation for cabinetry and furniture making
- Processing hardwoods and difficult grain materials with superior finish quality
- Professional woodworking shops and high-production environments
Designed for demanding users who require maximum power, precision, and surface finish quality.
Laguna JX|8 ShearTec: II Jointer MJ8X72P-0130 Specifications
| Motor | 3 HP, 220V, 1 Phase, 60 Hz (12 Amp) |
|---|---|
| Bed Size | 72" × 8" |
| Table System | Parallelogram Adjustment |
| Max Depth of Cut | 1/8" |
| Rabbetting Capacity | 1/2" |
| Fence Size | 38" × 4-3/4" Cast Iron |
| Fence Tilt | ±45° / 90° |
| Cutterhead Type | ShearTec II Helical |
| Insert Knives | 54 × 4-Sided Carbide Inserts (6 Row) |
| Cutterhead RPM | 5500 |
| Cutterhead Diameter | 3-1/8" |
| Dust Port | 4" |
| Table Height | 31" |
| Dimensions (Set Up) | 75-1/2" × 26-1/2" |
| Base Footprint | 32-1/2" × 15-1/2" |
| Shipping Dimensions | 40" × 18" × 26" & 82" × 25" × 17" (2 Boxes) |
| Shipping Weight | 139 lbs + 319 lbs |
| Certification | CSA Approved |
| Plug Type | NEMA 6-20P |
Laguna JX|8 ShearTec: II Jointer MJ8X72P-0130 Performance & Features

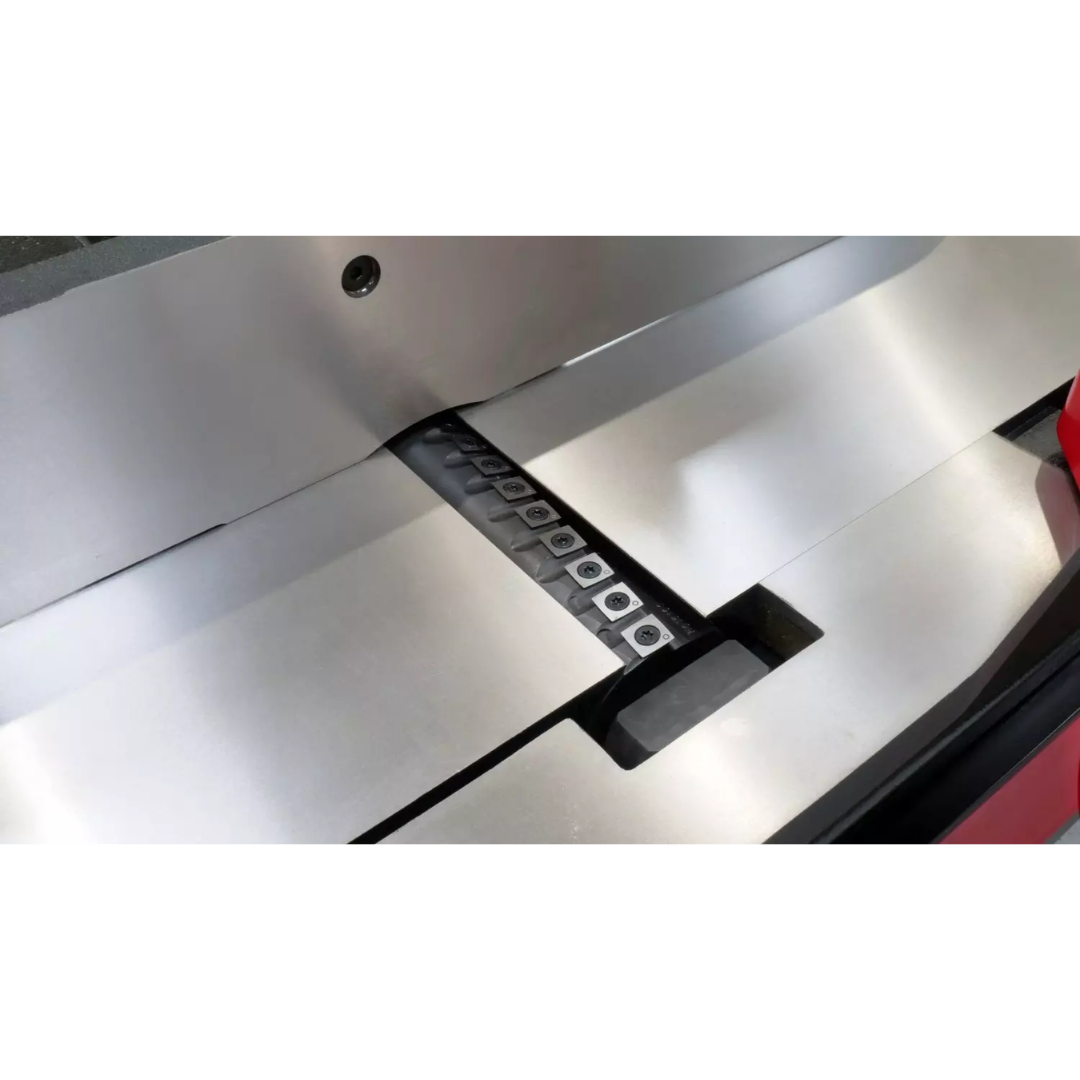

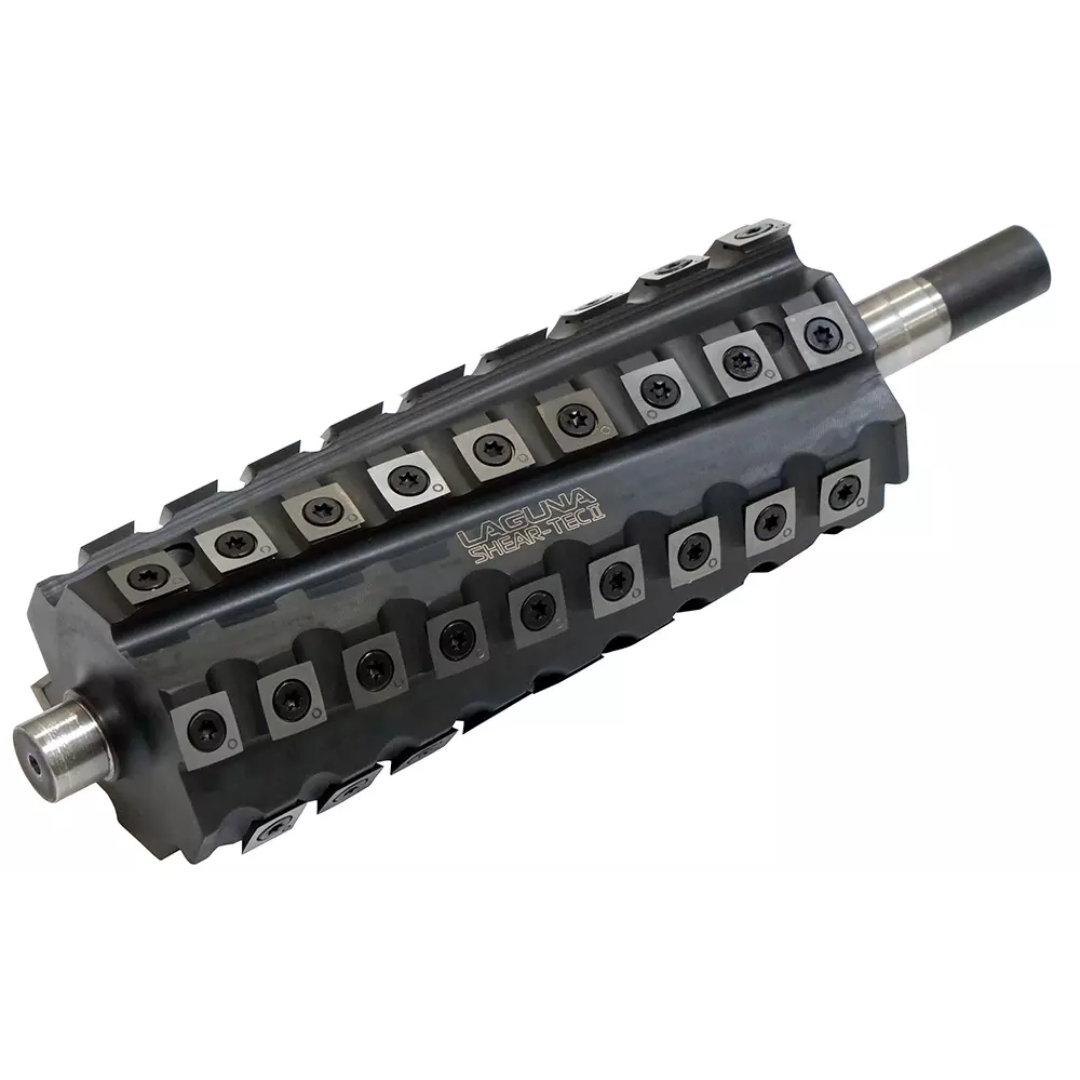

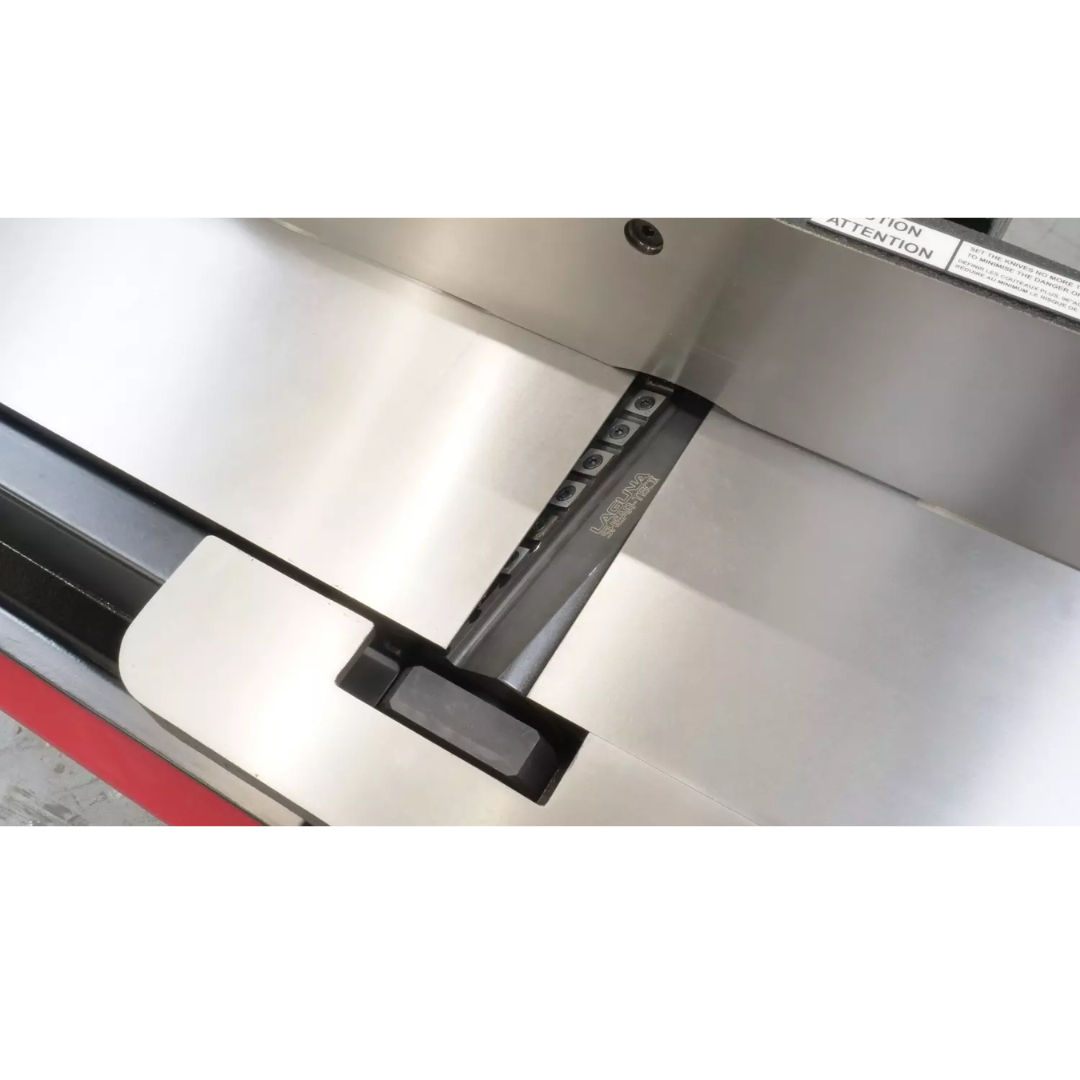

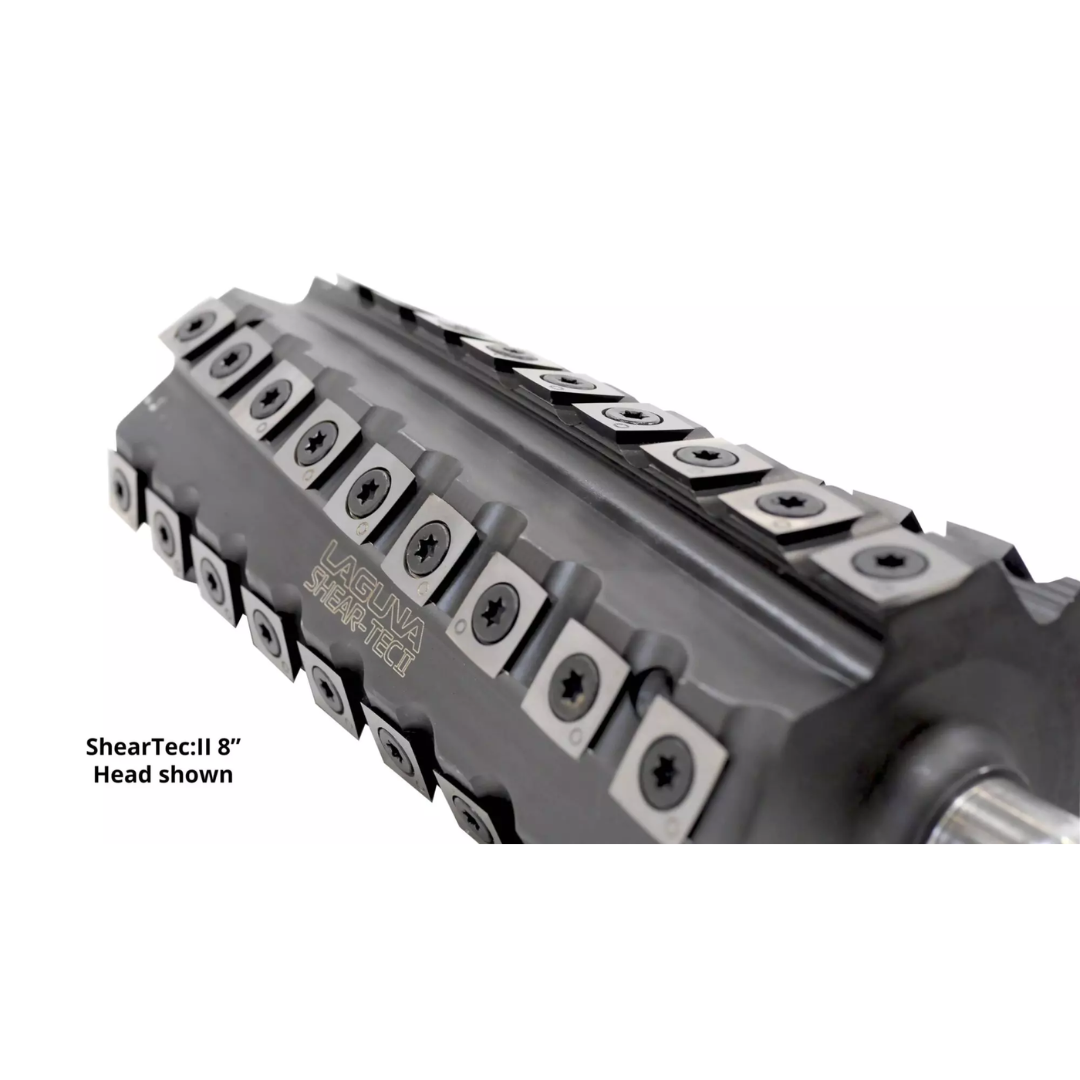

- ShearTec II Cutterhead features a 6-row helical design with 4-sided solid carbide inserts for ultra-smooth finishes and reduced tear-out.
- T-Shoulder Insert Design increases clamping force and helps prevent insert cracking, ensuring durability and consistent performance.
- Shear Cutting Action produces superior surface quality on all wood types, including difficult hardwoods and figured grain.
- Quiet Operation deep cutterhead grooves reduce noise levels and improve chip ejection efficiency.
- Indexed Carbide Inserts allow quick rotation to a fresh cutting edge without the need for a setting jig.

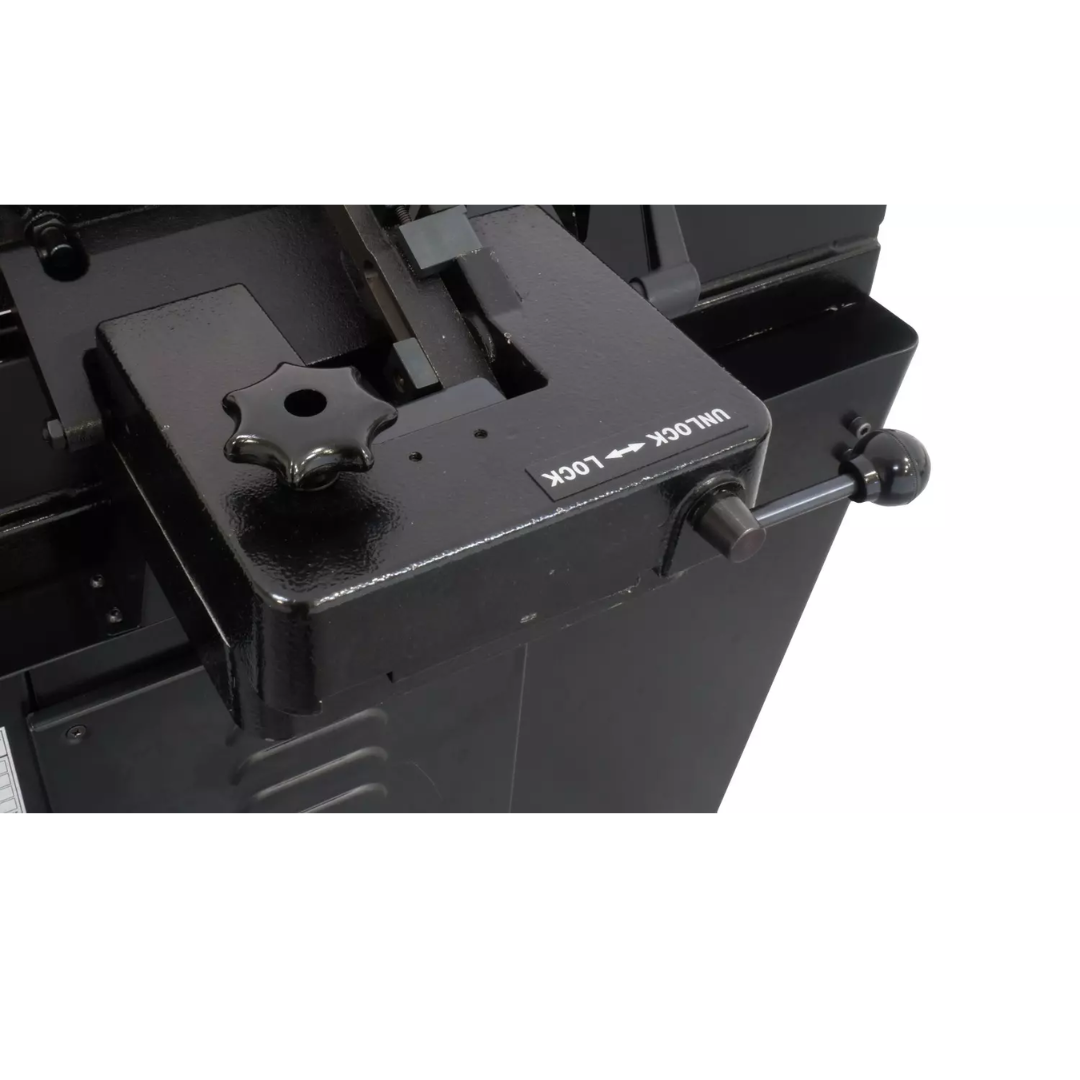

- Parallelogram Table Adjustment ensures precise depth control and maintains consistent cutterhead alignment.
- Emergency Knee-Stop Safety Bar provides fast shutdown from any position for enhanced operator safety.

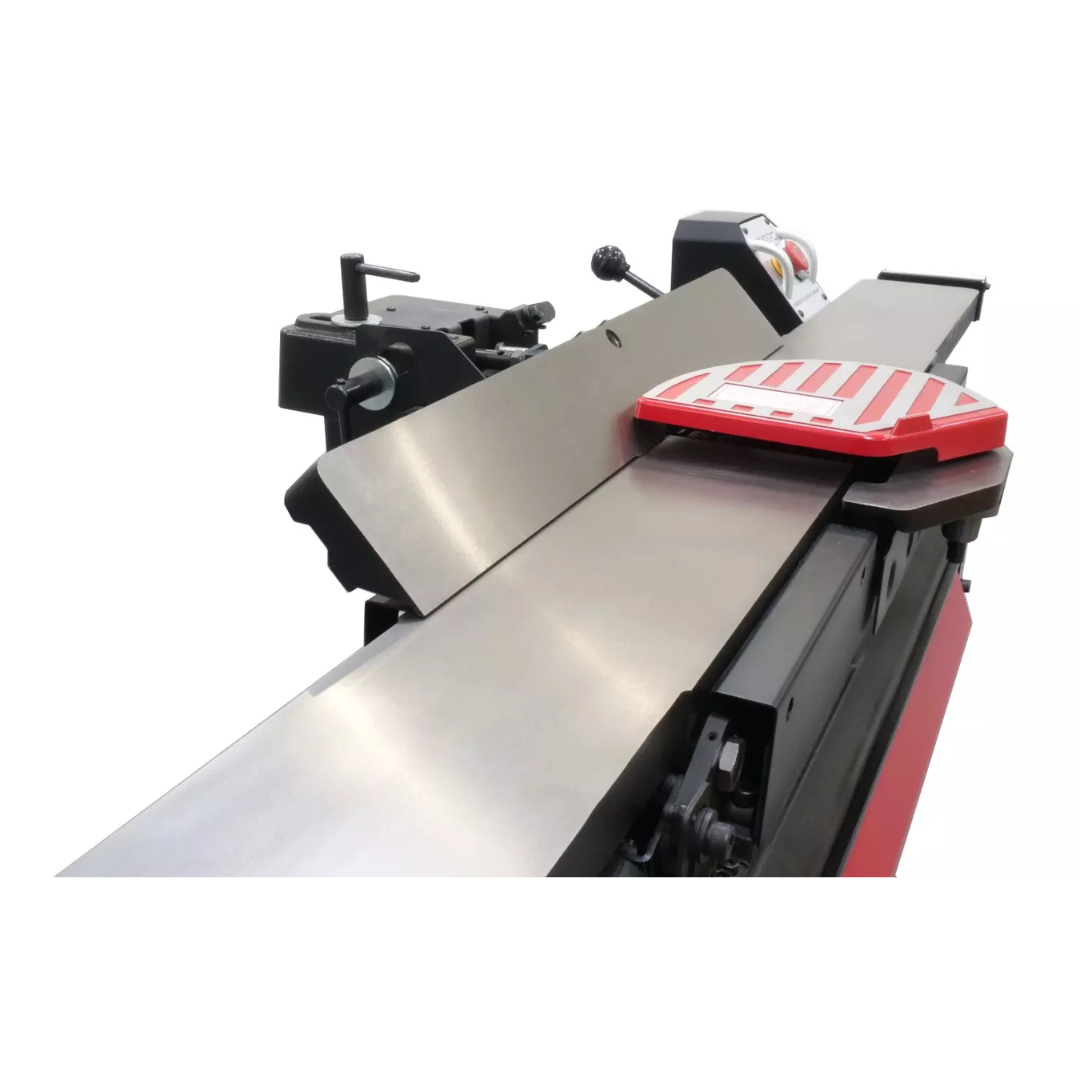

- Extended 72" Cast Iron Bed offers superior support for long workpieces, improving accuracy and stability.

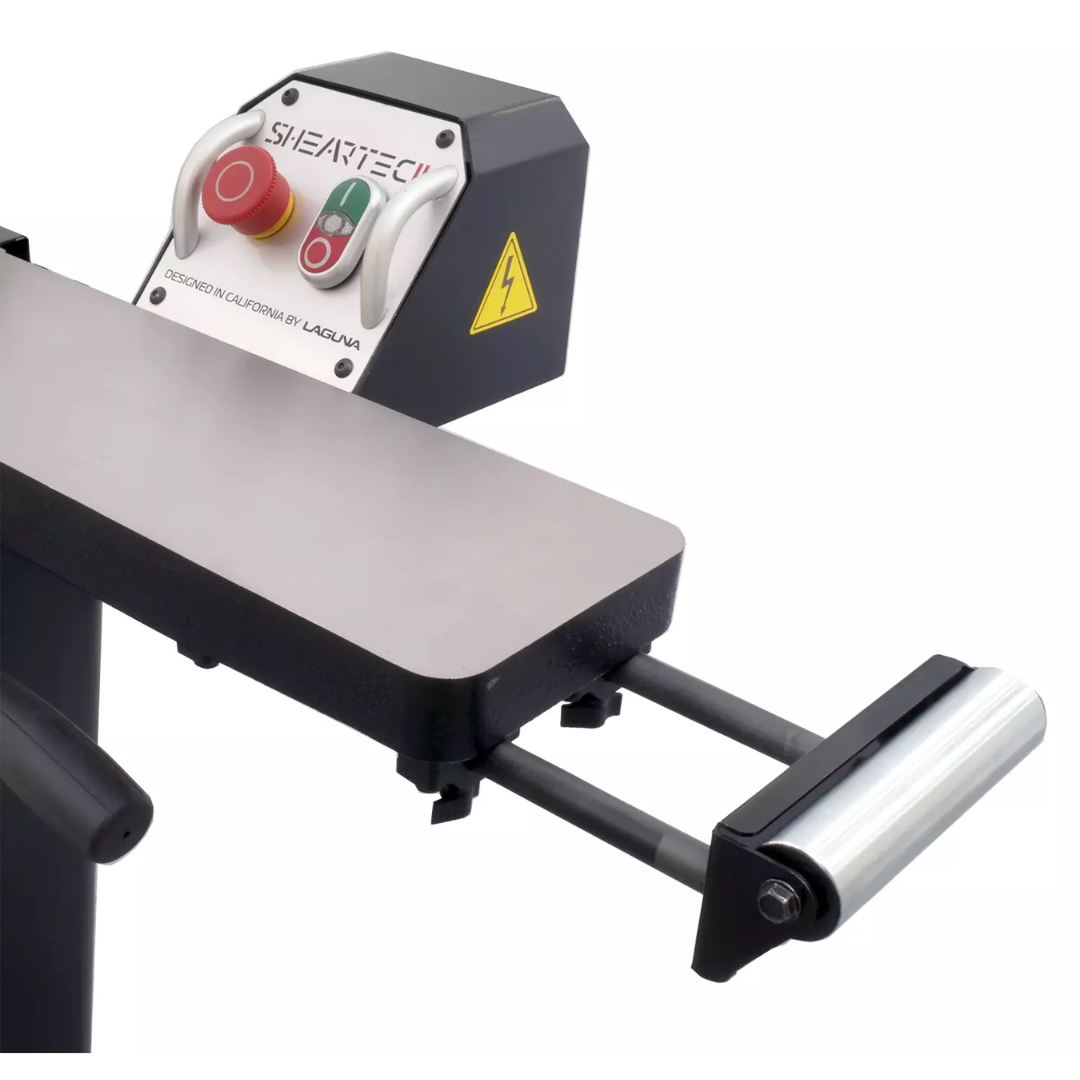

- Infeed Support Roller assists with handling long stock, reducing strain and improving feed consistency.
- Ergonomic Toe-Kick Design allows operators to stand closer to the machine for better control and comfort.
- Built-In Mobility Wheels enable easy repositioning without additional accessories.
- Heavy-Duty Cast Iron Construction ensures long-term durability and vibration reduction.
Why Choose the Laguna JX|8 ShearTec: II Jointer MJ8X72P-0130
- Powerful 3 HP motor for demanding professional applications.
- Advanced ShearTec II cutterhead for unmatched finish quality.
- Extended bed and heavy-duty construction for maximum stability.
- Enhanced safety and ergonomic features for better user control.
- Designed for high-performance woodworking and production environments.
The Laguna JX|8 ShearTec: II Jointer MJ8X72P-0130 delivers industrial-level power, precision, and finish quality, making it the ideal solution for professionals who demand the best in jointing performance.
